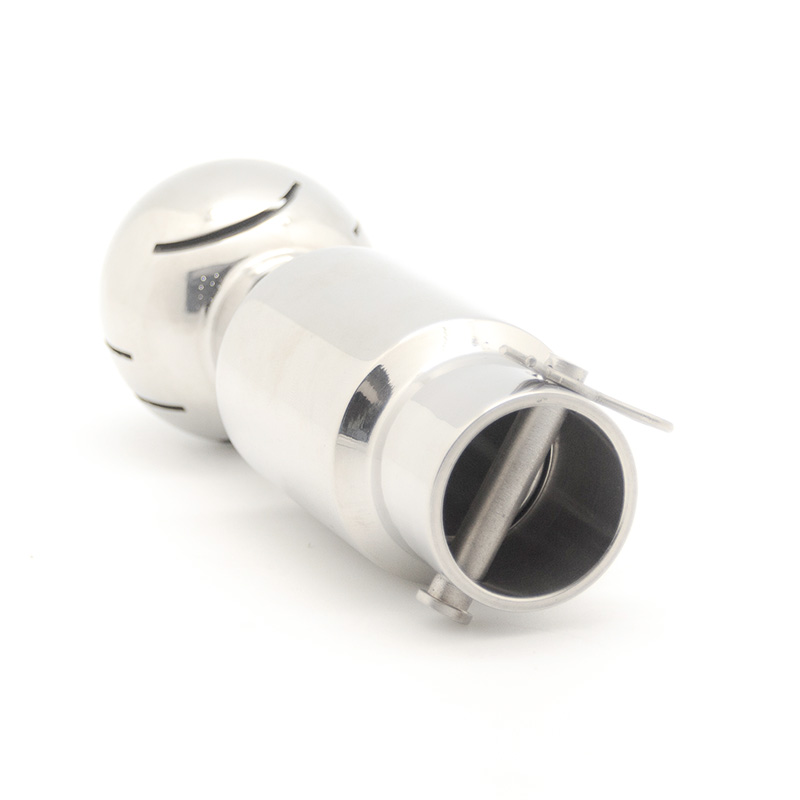

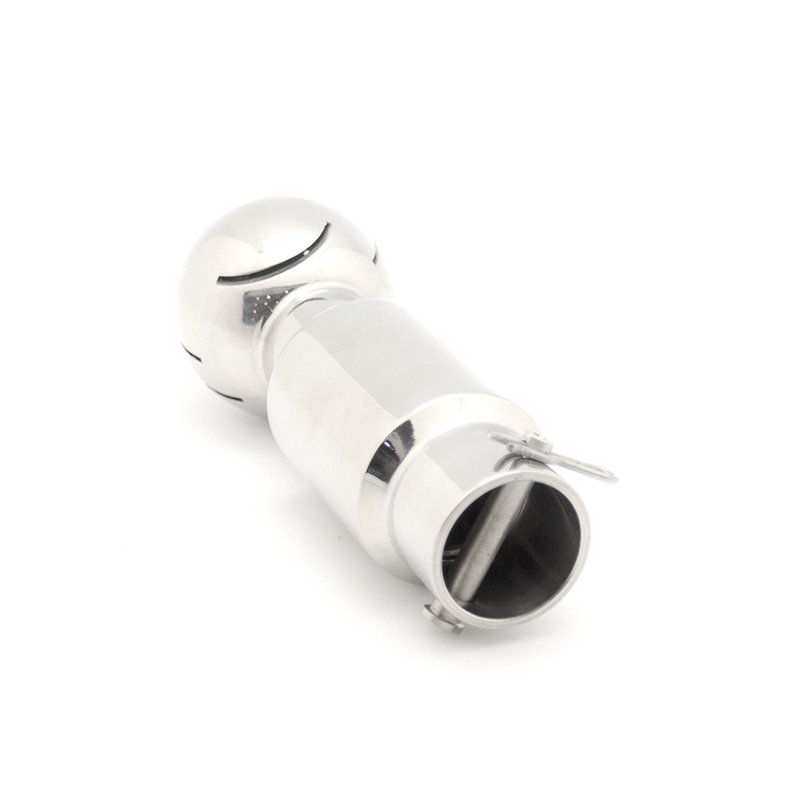

Sanitary Clip ON Rotary Cleaning Ball SS304 SS316L Tank Spray Cleaning Head Stainless Steel Tri Clamp Tank Fitting

Application

Tank Spray Cleaning Head uses cleaning media to provide  coverage and impact. The device represents an effective alternative to traditional static spray balls because it uses low volumes of cleaning fluid at low pressure.

TCN is a fixed cleaning ball used for cleaning storage tanks in  food and beverage industries, which are used for less  demanding cleaning duties.

TCR is a rotating head with double ball bearing, it makes the device suitable for all industrial cleaning applications, including  tanks, reactors, vessels and other containers ranging from 0.05  to 1 m³, depending on dimensions and cleaning task.

Materials

• Body Material: SS304 or SS316L

• Clip parts: SS304

DESIGN AND FEATURES

• Different Spray Pattern

• Different Connection Way

• Different Connection Standard

TECHNICAL DATA

Wetting Radius:                         Max. 2.5m

Impact cleaning radius:              Max. effective 0.6m

Working pressure:                        1-3Bar

Recommended pressure:           2.5Bar

FINISH

Exterior: Satin or Mirror

CONNECTION

Clamp, Weld, Clip on, Female or on request.

Weld Rotary Cleaning Ball TCR

Model No	Size	A	Q	Pressure	Spray Radius	Flow Rate
TCR01W41050Q401	1/2''	110	40	2Bar	1.25	10
TCR01W41075Q451	3/4''	137	45	2Bar	1.25	10
TCR01W41100Q531	1''	143	53	2Bar	1.25	12
TCR01W41125Q631	11/4"	145	53	2Bar	1.25	12
TCR01W41150Q761	11/2''	145	63	2Bar	1.25	12
TCR01W41200Q911	2''	180	76	2Bar	1.5	38

Clamp Rotary Cleaning Ball TCR

Model No	Size	A	Q	Pressure	Spray Radius	Flow Rate
TCR01C41050Q401	1/2''	120	40	2Bar	1.25	10
TCR01C41075Q451	3/4''	138	45	2Bar	1.25	10
TCR01C41100Q531	1''	138	53	2Bar	1.25	12
TCR01C41125Q631	11/4"	138	53	2Bar	1.25	12
TCR01C41150Q761	11/2''	138	63	2Bar	1.25	12
TCR01C41200Q911	2''	168	76	2Bar	1.5	38

BSP Female Rotary Cleaning Ball TCR

Model No	Size	A	Q	Pressure	Spray Radius	Flow Rate
TCR01F41050Q401	1/2''	110	40	2Bar	1.25	10
TCR01F41075Q451	3/4''	138	45	2Bar	1.25	10
TCR01F41100Q531	1''	140	53	2Bar	1.25	12
TCR01F41125Q631	11/4"	160	53	2Bar	1.25	12
TCR01F41150Q761	11/2''	170	63	2Bar	1.25	12
TCR01F41200Q911	2''	192	76	2Bar	1.5	38

Clip ON Rotary Cleaning Ball TCR

Model No	Size	A	Q	Pressure	Spray Radius	Flow Rate
TCR01B41050Q401	1/2''	110	40	2Bar	1.25	10
TCR01B41075Q451	3/4''	137	45	2Bar	1.25	10
TCR01B41100Q531	1''	135	53	2Bar	1.25	12
TCR01B41125Q631	11/4"	137	53	2Bar	1.25	12
TCR01B41150Q761	11/2''	150	63	2Bar	1.25	12
TCR01B41200Q911	2''	168	76	2Bar	1.5	38
