SS316L Carbonation Stone Stainless steel Fitting With 1/4inch NPT Length 4in-12inch Sanitary Aeration stone

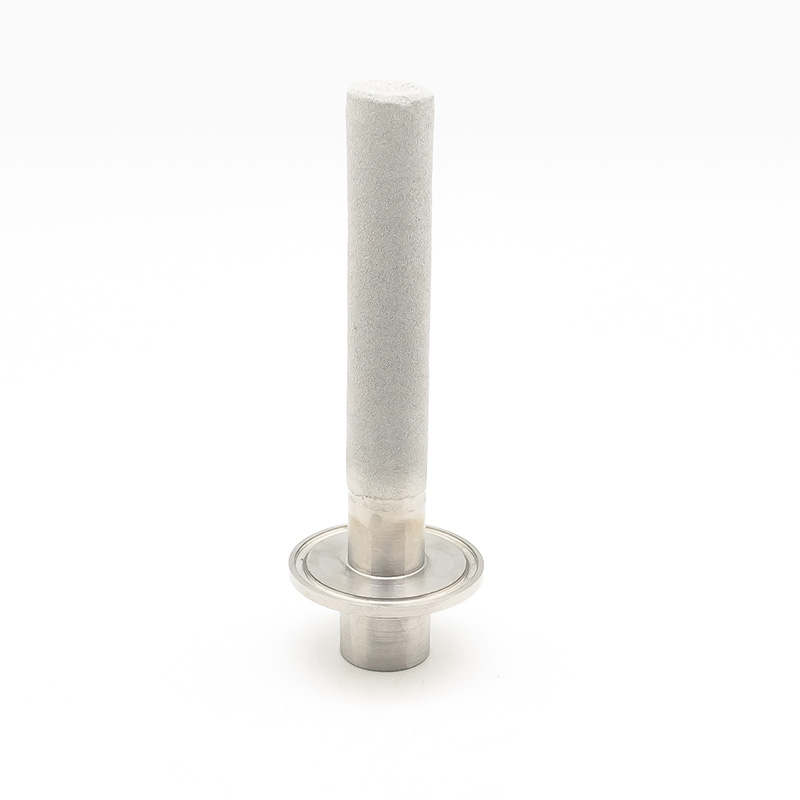

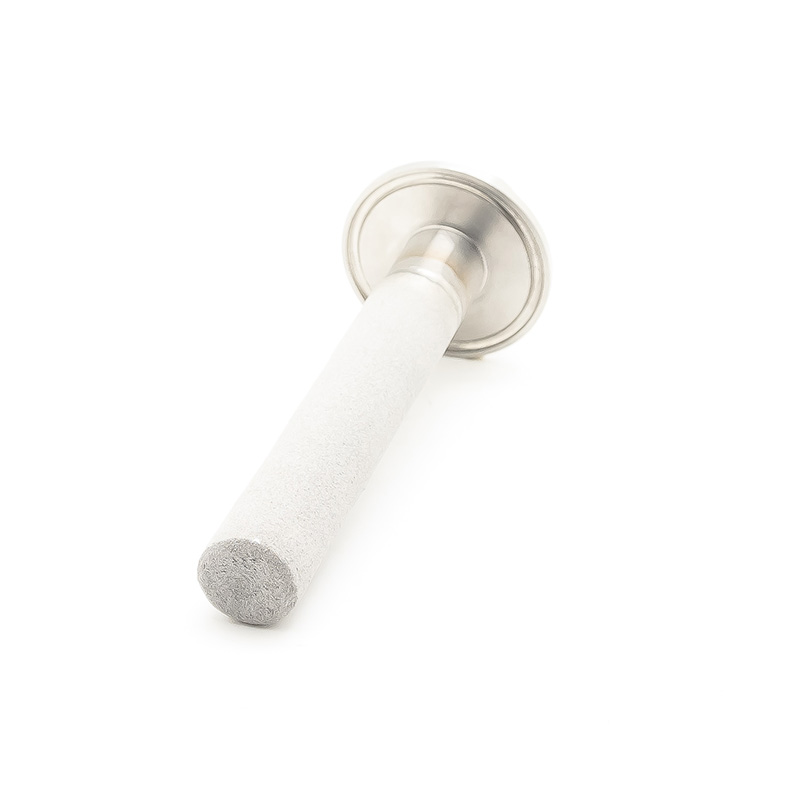

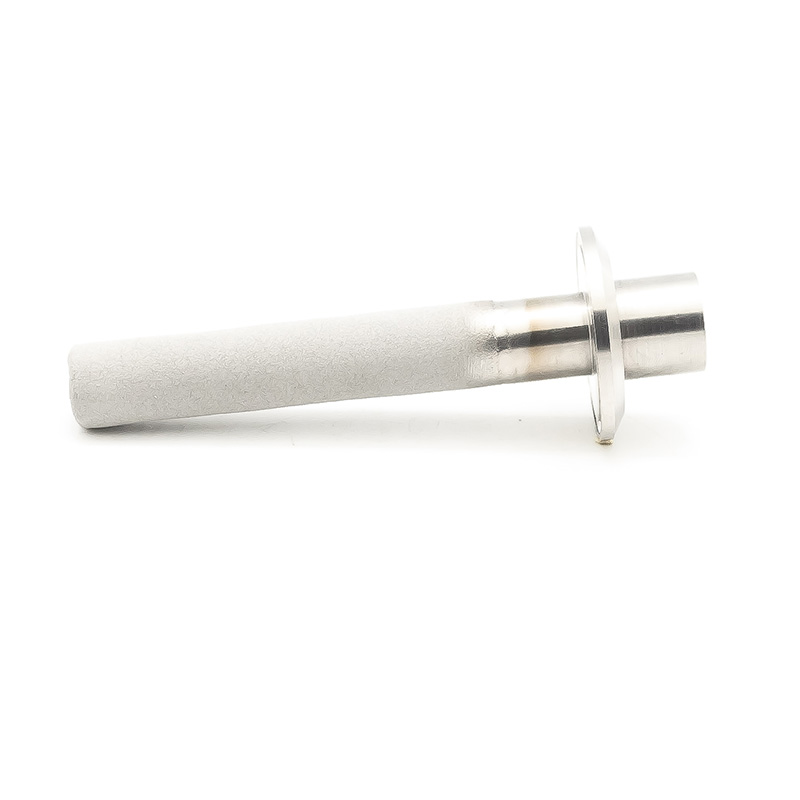

Name: SS316L Carbonation Stone Stainless steel Fitting With 1/4inch NPT Length 4in-12inch Sanitary Aeration stone
Brand: QIMING
SKU: 00102
Rating: 4.9 (101 reviews)

Model No.:CCS01

SKU:CCS01

End Connections:

Size:

Material:

Inquire

Description

Application

This carbonation stone is sanitary designed and construction for carbonation or micro-oxygenation of small volume of wine or beer.

Materials

Stem part: AISI-316L
Ferrule part: AISI-304

Specification

Density: 1 or 2 micron
Stem Length: availble from 4"-14"
Ferrule Length: 46mm
TC size: 1.5" or others upon on requirement

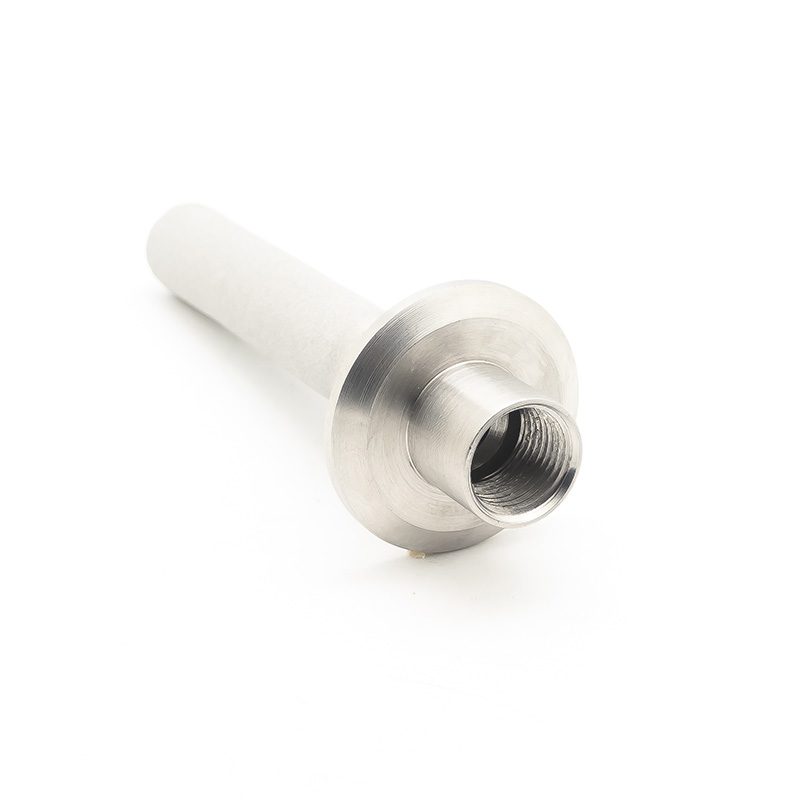

End connections: 1/4" NPT Female thread, or others upon requirement

QM Stainless is a specialized manufacturer where customization is welcome and customers could rely on. Plz feel free to inquire.
