ISO-K Claw Clamp Bored Flange Stainless Steel High Vacuum ISO63-ISO630 Fittings SS304 SS316L Claw Clamp Bored Flange

ISO Flange Assembly Instructions

ISO flanges are larger than KF flanges, similar to the KF flanges, they use a centering ring for sealing ISO flanges are widely used in systems that need frequent cleaning or disassembly.

There are two different methods to join the flanges together:1. Bolts (ISO-F, see diagram C) or 2. Claw clamps (ISO-K, see diagram A). These two flanges look very different, yet they can be joined together by using a single claw clamp(see diagram B).

A. ISO-K Flange with Double Claw Clamp
B. ISO-K Flange With Single Claw Clamp
C. ISO-F Flange
D. ISO-K Flange and Nonrotatable with Rotatable Bolt Ring

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including

• ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
• ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Material and Size

•  Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
•  Clamps:Aluminum or Stainless Steel 304
•  O-Ring:FKM/NBR/EPDM
•  Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

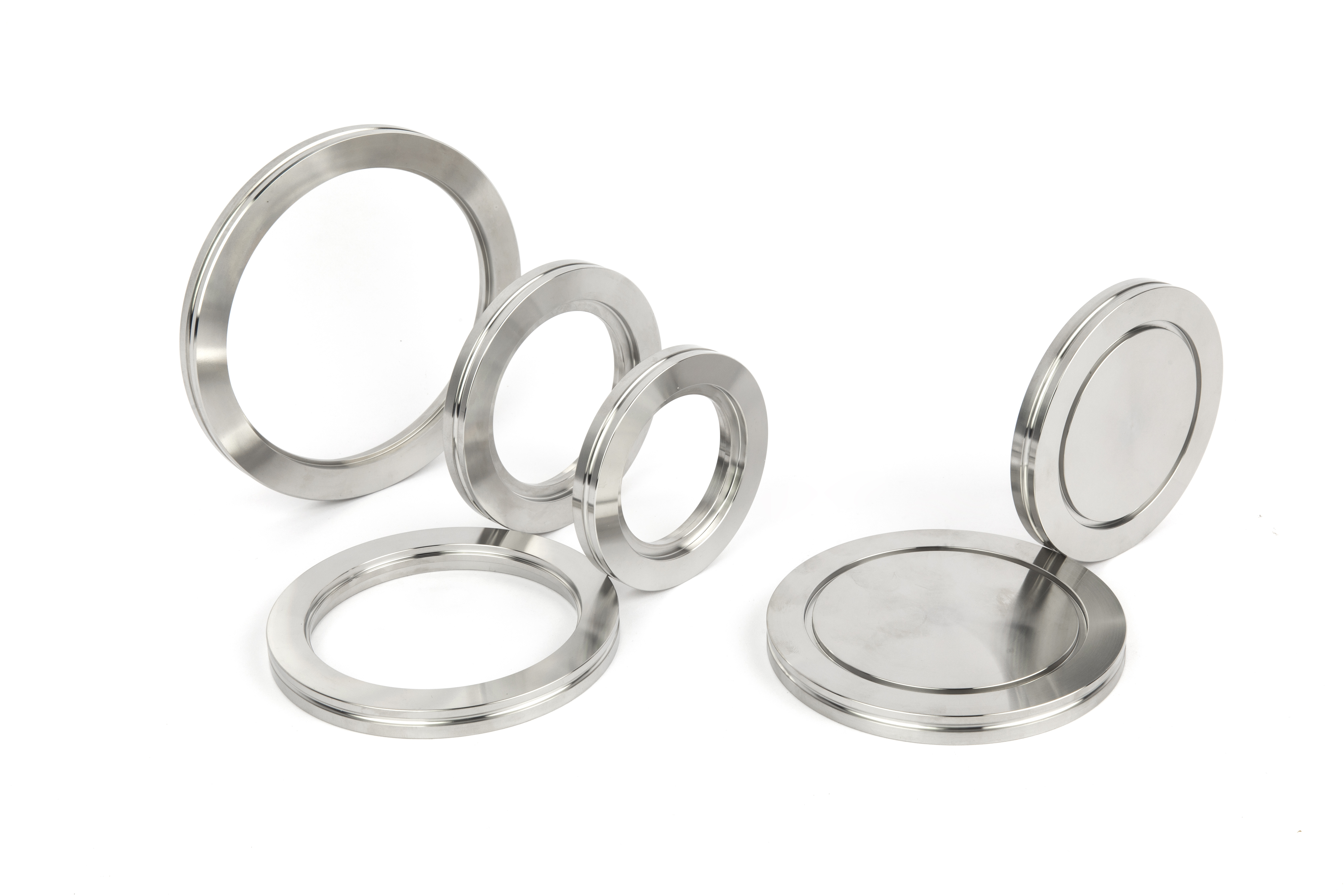

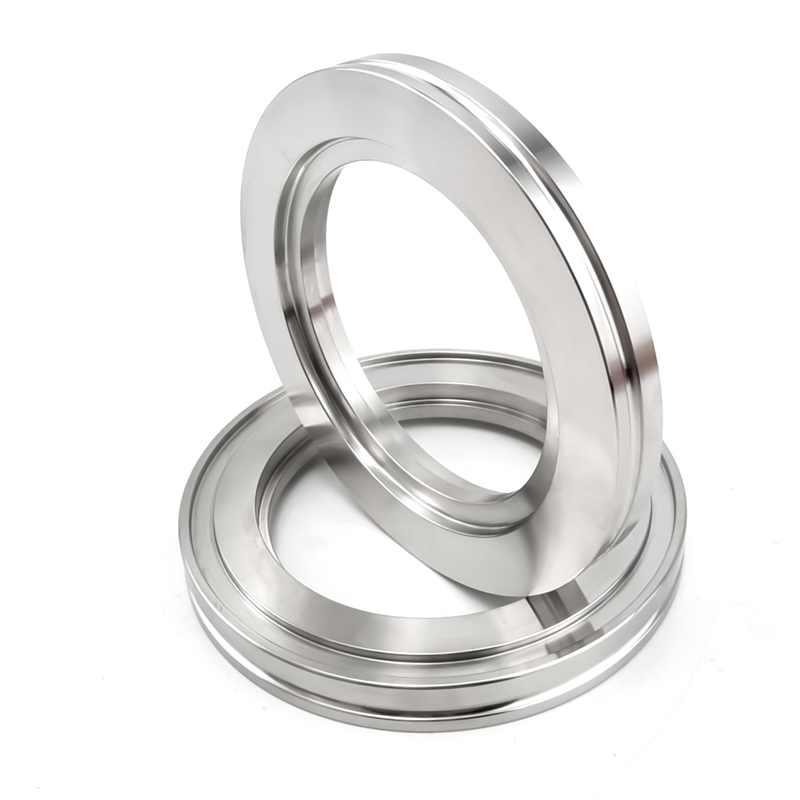

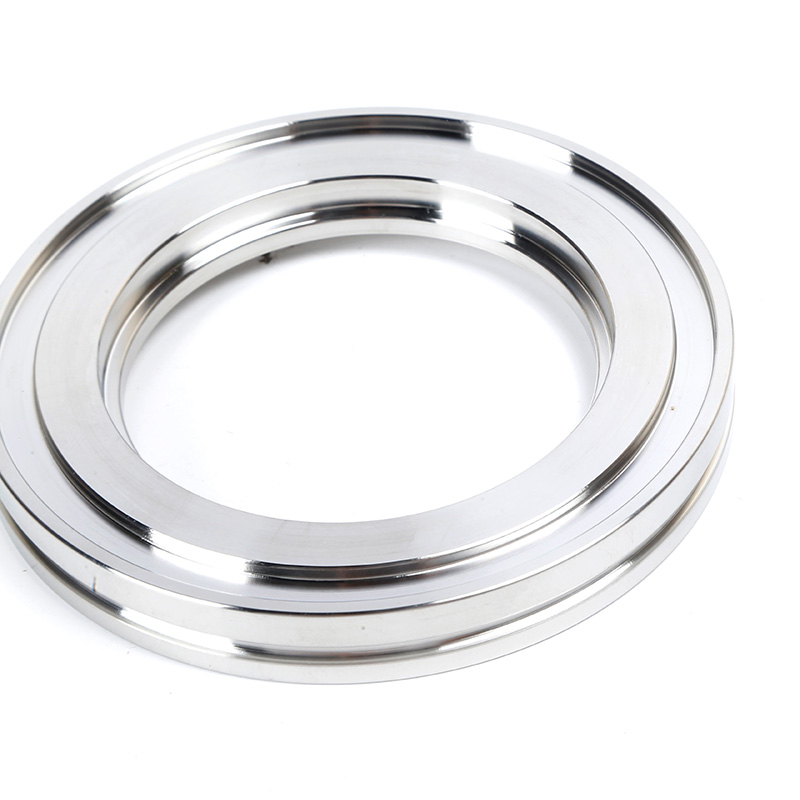

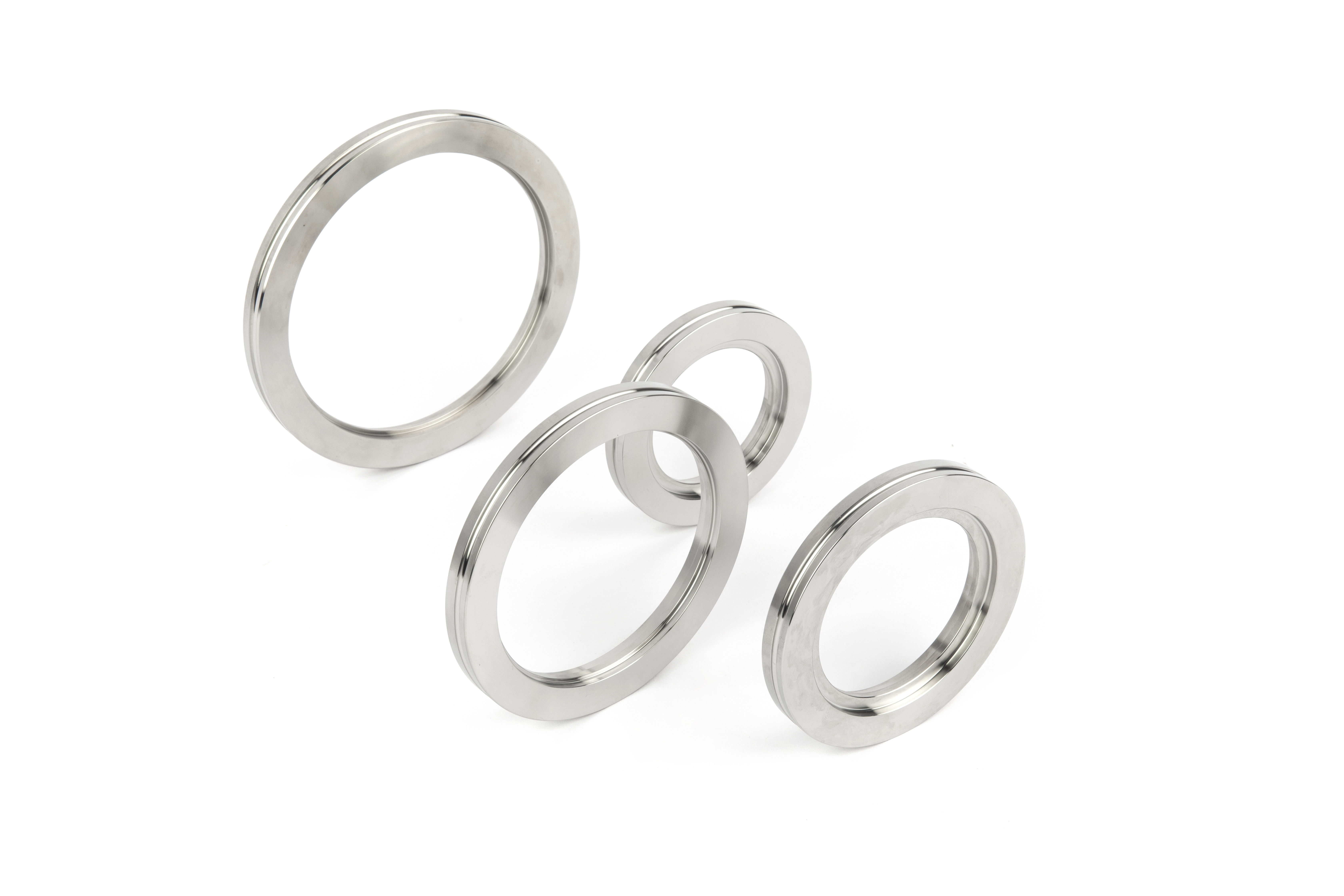

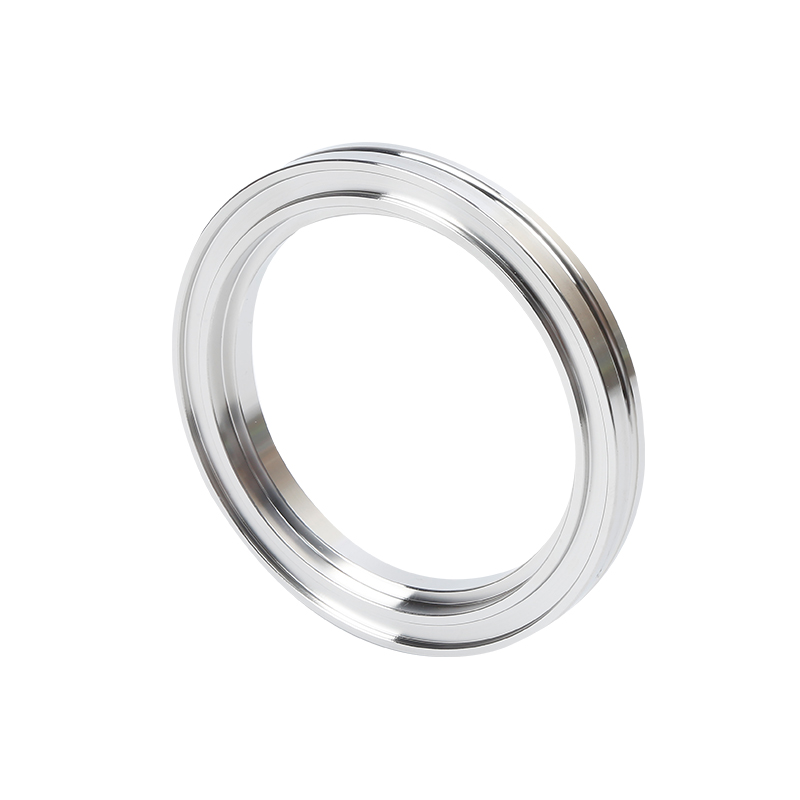

ISO-K Claw Clamp Bored Flange

*Material: SS304/SS316L

	Model for 304	Size(ISO/NW)	A/mm	B/mm	C/mm	D/mm	For Tube OD/mm	N.W./g
	FBA821S632504	63	95	12	63.7	70	63.5	320
	FBA821S633004	63	95	12	76.4	70	76.2	260
	FBA821S803004	80	110	12	76.4	83	76.2	450
	FBA821S803504	80	110	12	89.3	83	88.9	335
	FBA821S1004004	100	130	12	101.8	102	101.6	500
	FBA821S1004254	100	130	12	108.5	102	108	415
	FBA821S1255004	125	155	12	127.5	127	127	550
	FBA821S1255254	125	155	12	133.8	127	133	500
	FBA821S1606004	160	180	12	152.9	153	152.4	650
	FBA821S1606254	160	180	12	159.3	153	159	550
	FBA821S2008004	200	240	12	203.7	213	203.2	1100
	FBA821S2008604	200	240	12	219.5	213	219	800
	FBA821S25010004	250	290	12	254.5	261	254
	FBA821S25010754	250	290	12	273.6	261	273	950
	FBA821S32012004	320	370	17	305.3	318	304.8
	FBA821S32012504	320	370	17	319.5	318	319	3700
	FBA821S32012754	320	370	17	324.3	318	323.85
	FBA821S40016004	400	450	17	407	400	406.4	4000
	FBA821S50020004	500	550	17	508.8	501	508	5000
