SS304 SS316L Vacuum ISO-K Cross ISO63-ISO160 Stainless Steel Vacuum Cross Fitting for Semiconductor

Model No.:FXS02

SKU:FXS02

Size.:

Materials:

ISO Flange Assembly Instructions

ISO flanges are larger than KF flanges, similar to the KF flanges, they use a centering ring for sealing ISO flanges are widely used in systems that need frequent cleaning or disassembly.

There are two different methods to join the flanges together:1. Bolts (ISO-F, see diagram C) or 2. Claw clamps (ISO-K, see diagram A). These two flanges look very different, yet they can be joined together by using a single claw clamp(see diagram B).

A. ISO-K Flange with Double Claw Clamp
B. ISO-K Flange With Single Claw Clamp
C. ISO-F Flange
D. ISO-K Flange and Nonrotatable with Rotatable Bolt Ring

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including

ISO-KF fittings can be used in a wide variety of applications including:
Roughing and foreline plumbing
Small systems
Systems requiring frequent cleaning or modification
Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Material and Size

Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
Clamps:Aluminum or Stainless Steel 304
O-Ring:FKM/NBR/EPDM
Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

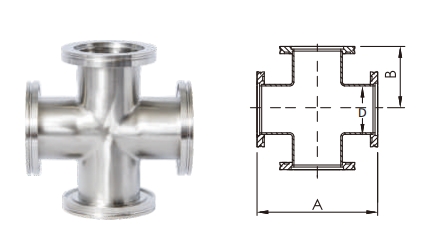

ISO-K Cross

*Material: SS304/SS316L

Model for 304	Size(ISO/NW)	A/mm	B/mm	D/mm
FXS021S632504	ISO63	165	82.5	63.5
FXS021S803004	ISO80	177.8	88.9	76.2
FXS021S1004004	ISO100	209.4	104.7	101.6
FXS021S1606004	ISO160	298.6	149.3	152.4
