ISO-K Vacuum Viewports Flange SS304/SS316L with FKM O-Ring Borosilicate Sight Glass with Window Flange Stainless Steel

Name: ISO-K Vacuum Viewports Flange SS304/SS316L with FKM O-Ring Borosilicate Sight Glass with Window Flange Stainless Steel
Brand: QIMING
SKU: 01021
Rating: 4.9 (561 reviews)

Model No.:TSS02

SKU:TSS02

Material:

O-Ring Material:

Glass Matrial:

Size.:

Inquire

Description

Application

TSS02 series ISO-K Flange sight glass can be used in ultra-high vacuum systems in a wide range of applications; large, distortion-free viewing area design.

Materials

Body Materials: AISI 304
Tempered glass
FKM O-ring Seal

Standard Design

Available in size from IS063-1S0100

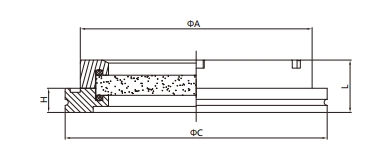

Technical Specification

Specification	A	C	H	L
IS063	80	95	12	26
IS080	95	110	12	26
IS0100	115	130	12	26
IS0125	140	155	12	26
IS0160	165	180	12	26
IS0200	225	240	12	26

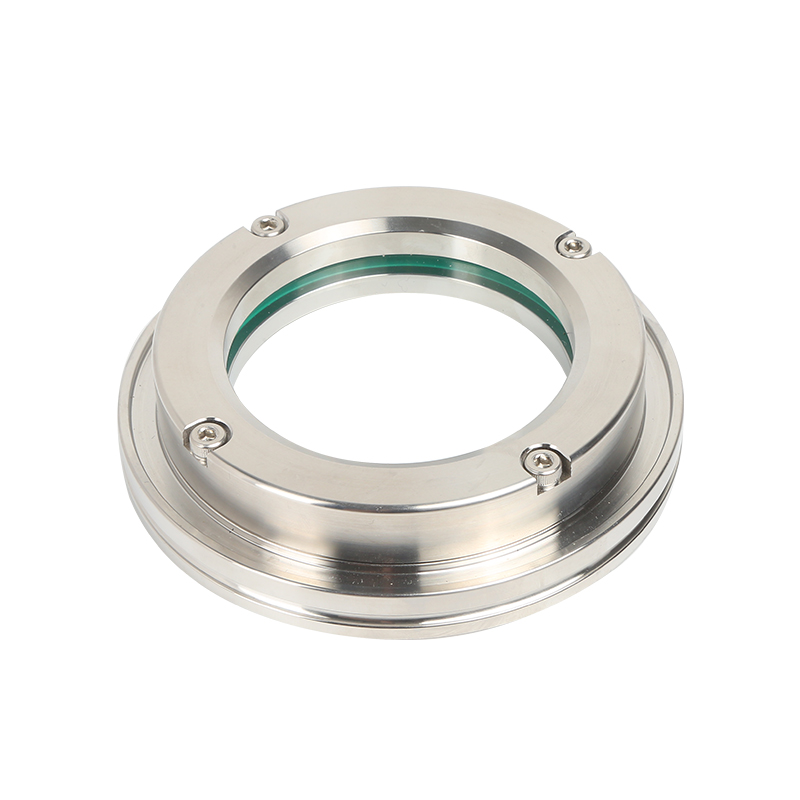

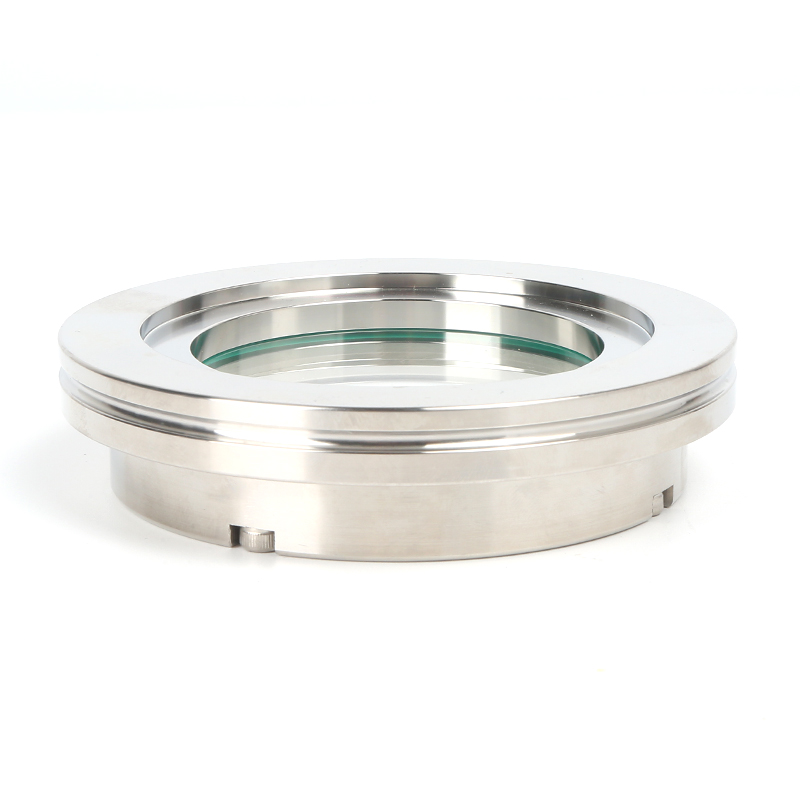

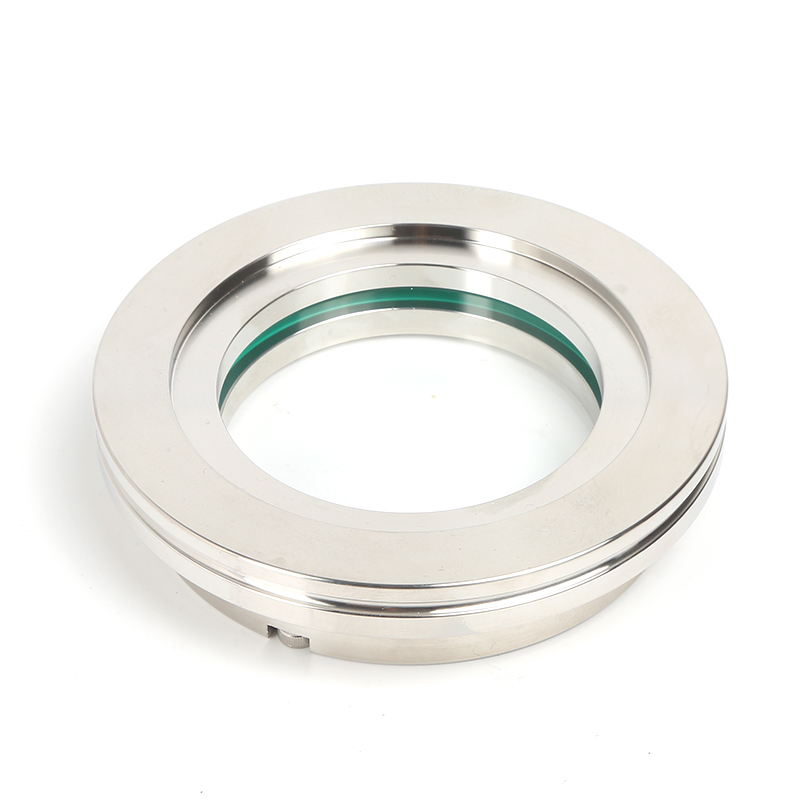

ISO-K Vacuum ViewPort

*SS304/SS316L Flange with FKM O-Ring

*Glass Material: Borosilicate Glass

*Pressure Range: 10 ⁻⁸torr to 1 bar

*Temperature range: -5°C to 150°C

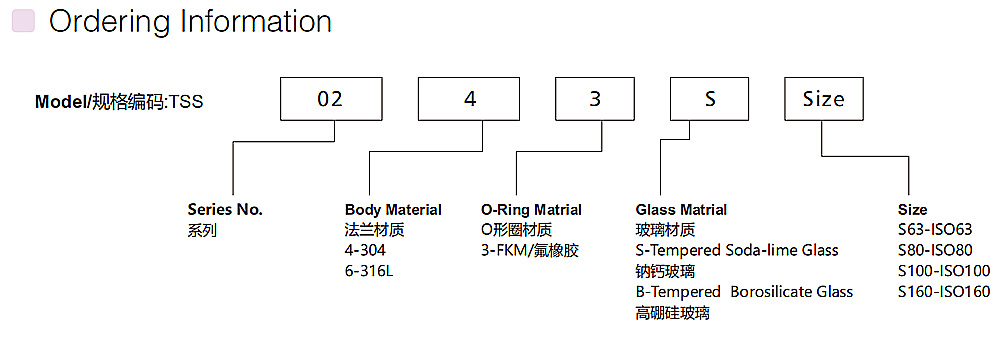

Model	Size	A/mm	C/mm	H/mm	L/mm	N.W./g
TSS0243SS63S1	ISO63	80	95	12	26	660
TSS0243SS80S1	ISO80	95	110	12	26	840
TSS0243SS100S1	ISO100	115	130	12	26	1070
TSS0243SS125S1	ISO125	140	155	12	26
TSS0243SS160S1	ISO160	165	180	12	26
TSS0243SS200S1	ISO200	225	240	12	26
