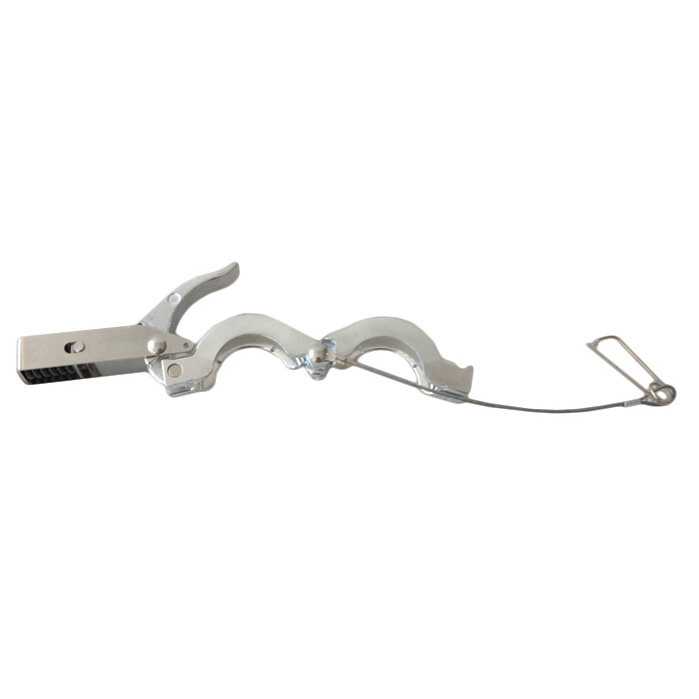

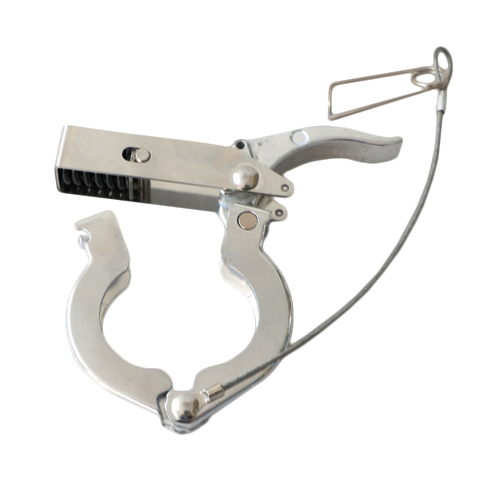

KF/NW Vacuum Aluminum Toggle Clamp with Lanyard KF16-KF50 Spring Loaded Quick Release Quick Clamp with Cotter Pin

Model No.:FCC82

SKU:FCC82

Size.:

Material:

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:

Roughing and foreline plumbing
Small pipe systems
Systems need frequent cleaning or modification
Research and teaching laboratories

Material and Size

Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
Clamps:Aluminum or Stainless Steel 304
O-Ring:Viton/NBR/EPDM

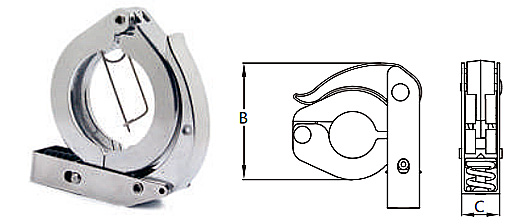

Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2)
