SS304 KF/NW High Tension Clamps Stainless Steel Vacuum Fitting CNC Machined High Tension Clamps for Semiconductor

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:

• Roughing and foreline plumbing
• Small pipe systems
• Systems need frequent cleaning or modification
• Research and teaching laboratories

Material and Size

•  Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
•  Clamps:Aluminum or Stainless Steel 304
• O-Ring:Viton/NBR/EPDM
• Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

The  ISO-KF  components  are  assembled  by  inserting  a  centering  ring  between  the  two  flange  faces,  then  securing  the assembly with a flange encompassing clamp (see Figure 2)

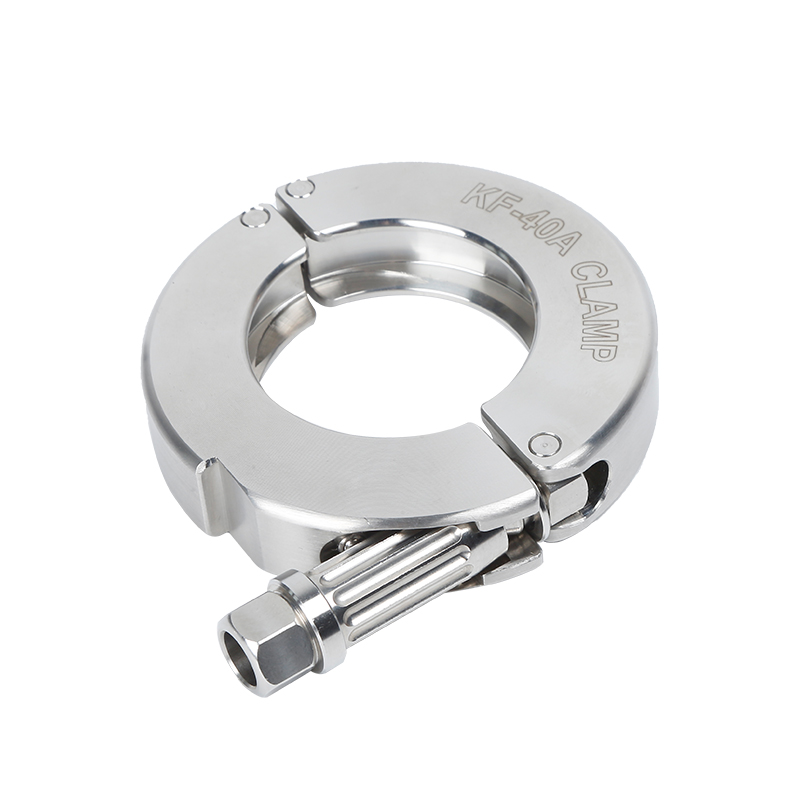

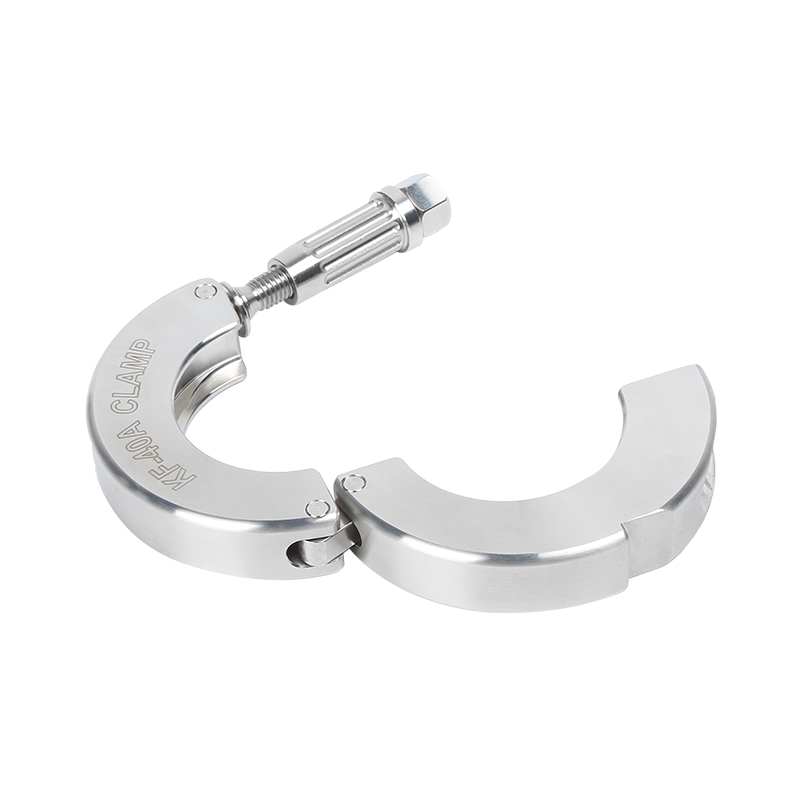

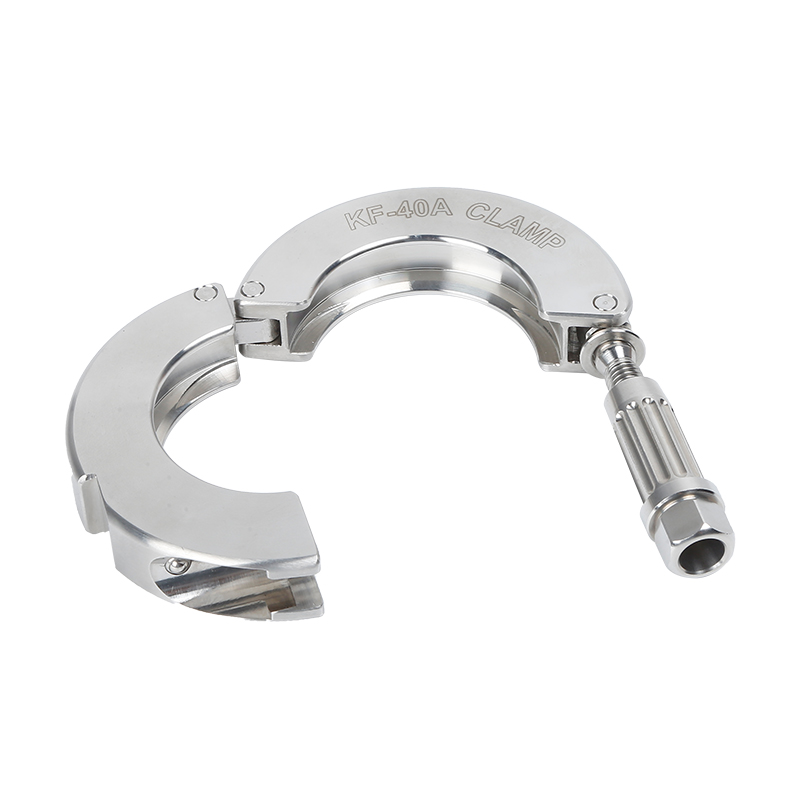

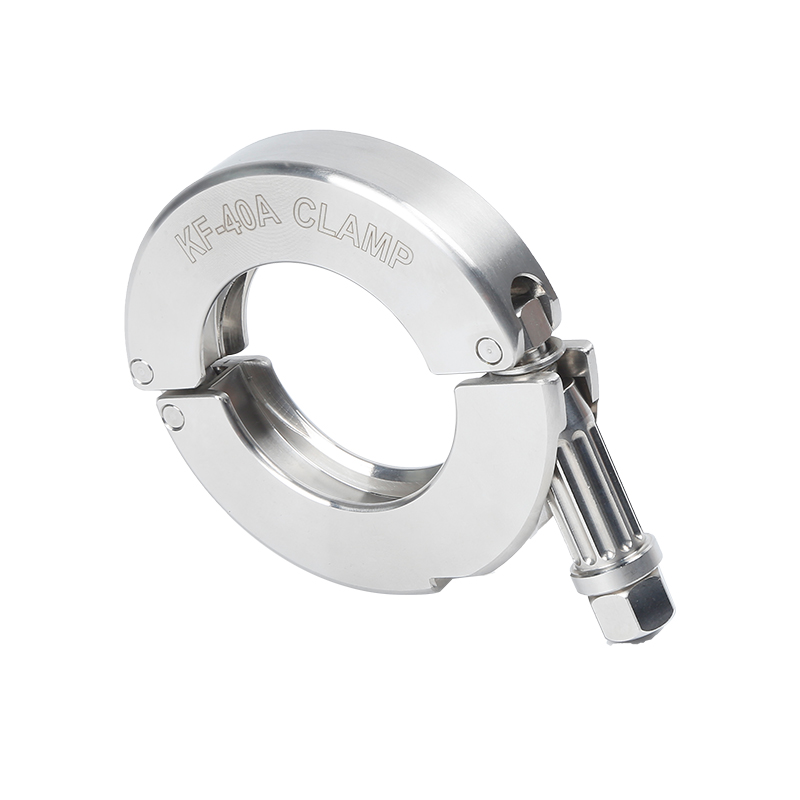

KF High Tension Clamp

* Material:SS304

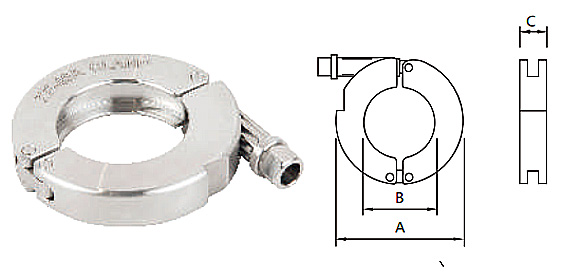

	Model for 304	Size				A/mm			B/mm			C/mm		N.W./g
	FCR811K164	KF16				62			22.5			17		312
	FCR811K254	KF25				67.5			31.5			17		313
	FCR811K404	KF40				83.5			46.5			17		415
	FCR811K504	KF50				104.5			67			17		549
