KF Aluminum Chain Clamp for Semiconductor NW Vacuum Fitting High-Tech Industry Large Size KF/NW Standards Clamp Fitting

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:

• Roughing and foreline plumbing
• Small pipe systems
• Systems need frequent cleaning or modification
• Research and teaching laboratories

Material and Size

•  Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
•  Clamps:Aluminum or Stainless Steel 304
• O-Ring:Viton/NBR/EPDM
• Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

The  ISO-KF  components  are  assembled  by  inserting  a  centering  ring  between  the  two  flange  faces,  then  securing  the assembly with a flange encompassing clamp (see Figure 2)

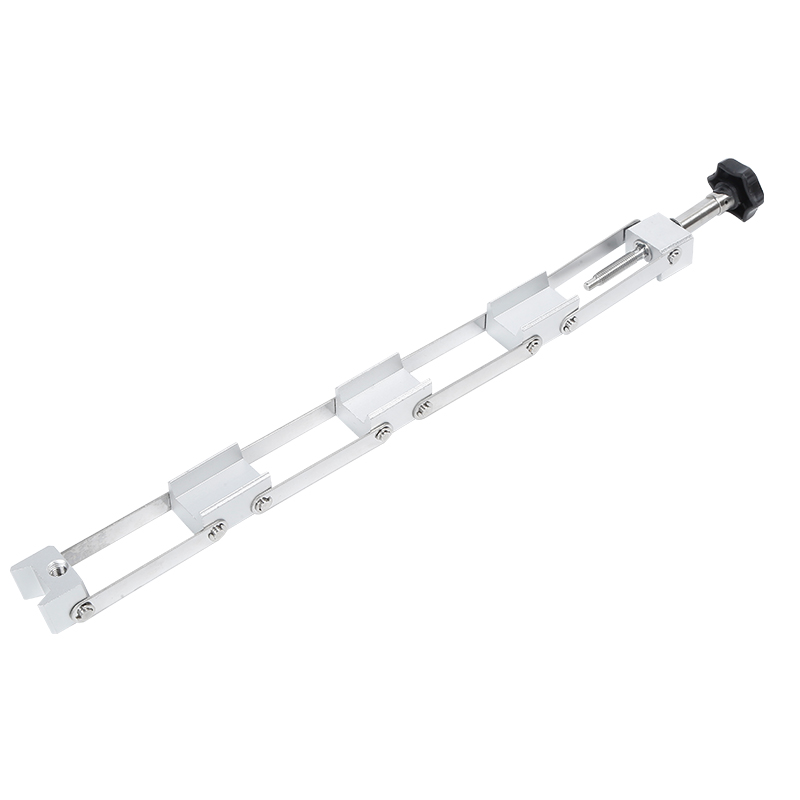

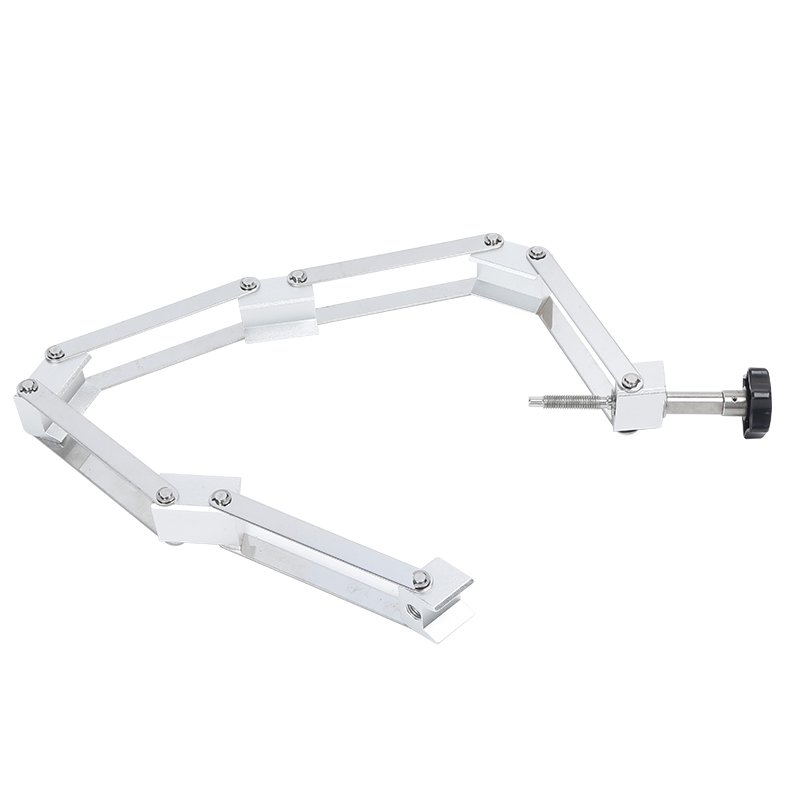

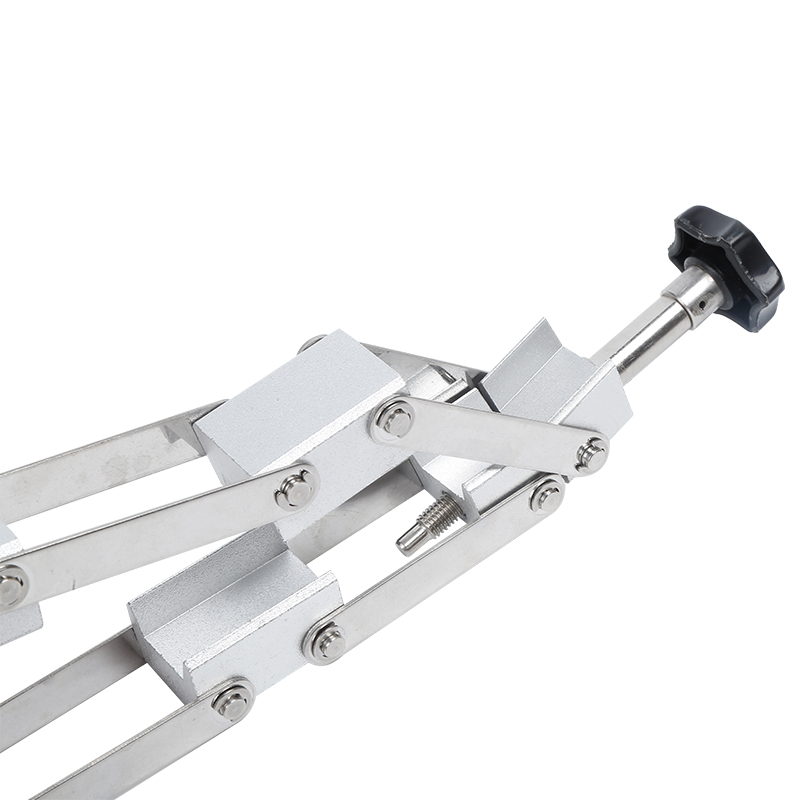

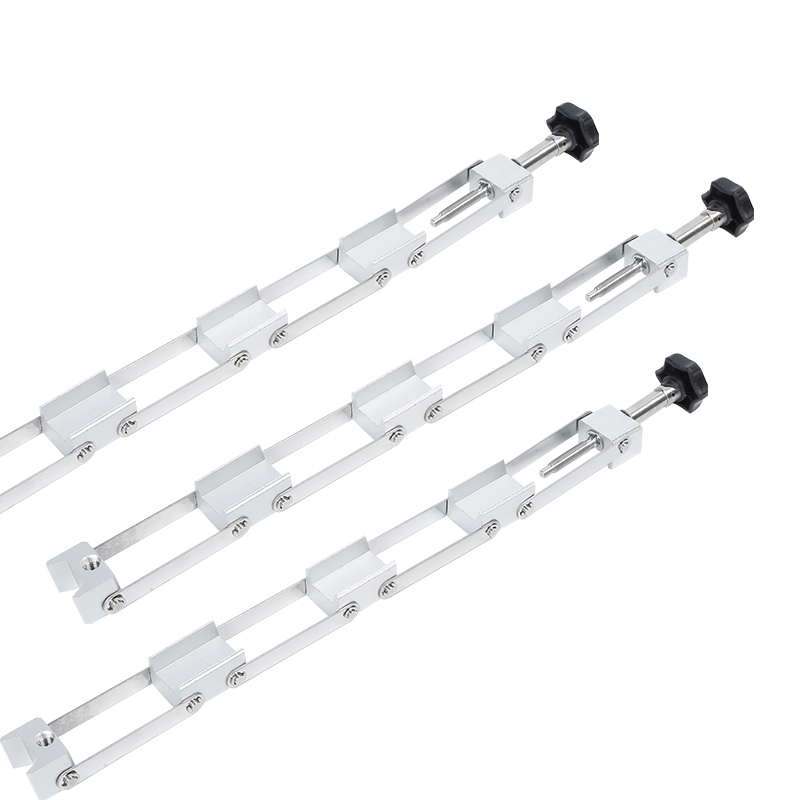

KF Aluminum Chain Clamp

* Material:Aluminum

	Model for Alu	Size		A/mm			B/mm		C/mm		N.W./g
	FCP811K808	KF80		117			153		30		446
	FCP811K1008	KF100		136.5			171.7		30		531.5
	FCP811K1608	KF160		198.9			231.7		30		587
