SS304 KF Chain Clamps (KF16-KF63)

Application

ISO-KF fttings can be used in a wide variety of aplications including:
●Roughing and foreline plumbing
●Small systems
●Systems requiring frequent cleaning or modification
●Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure.
Because of the large number of elastomer seals used.

Installation

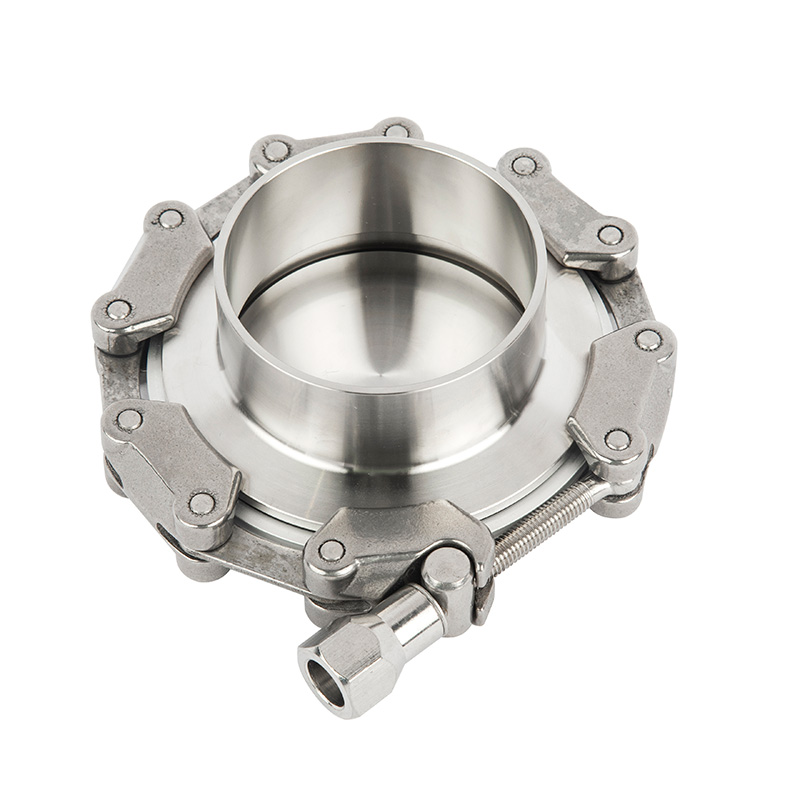

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).


Description

The ISO-KF system is a modular, building block method of creating a piping system. There are several advantages in the use of IS0 components. Since component dimensions are standardized, elbows, tees, crosses or valves for a given size may be interchanged.
The flanges are "sexless" and the seal is symmetrical, so that the components are rotatable. By using Iso components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

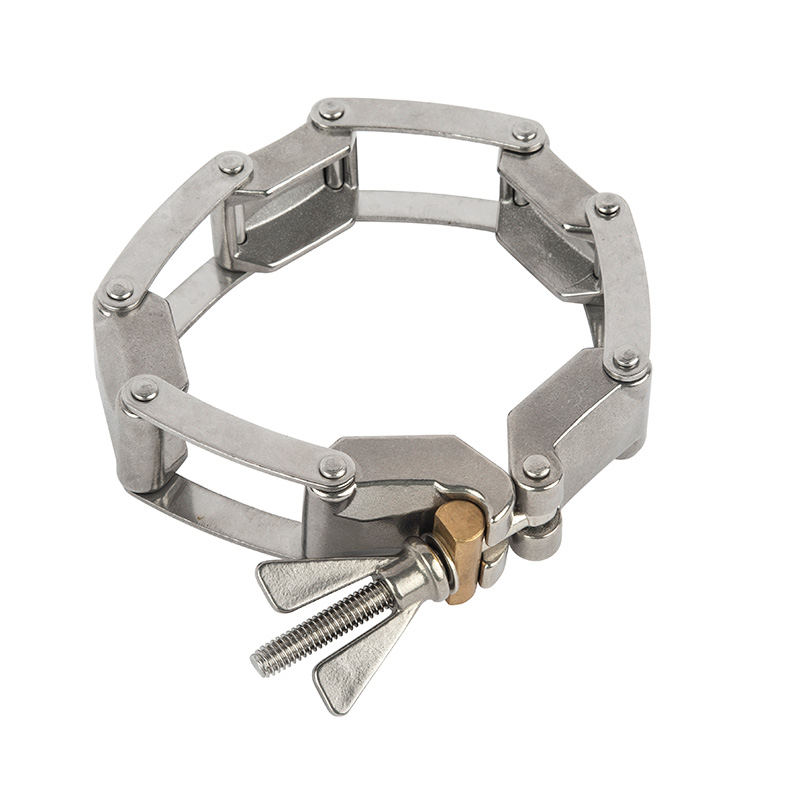

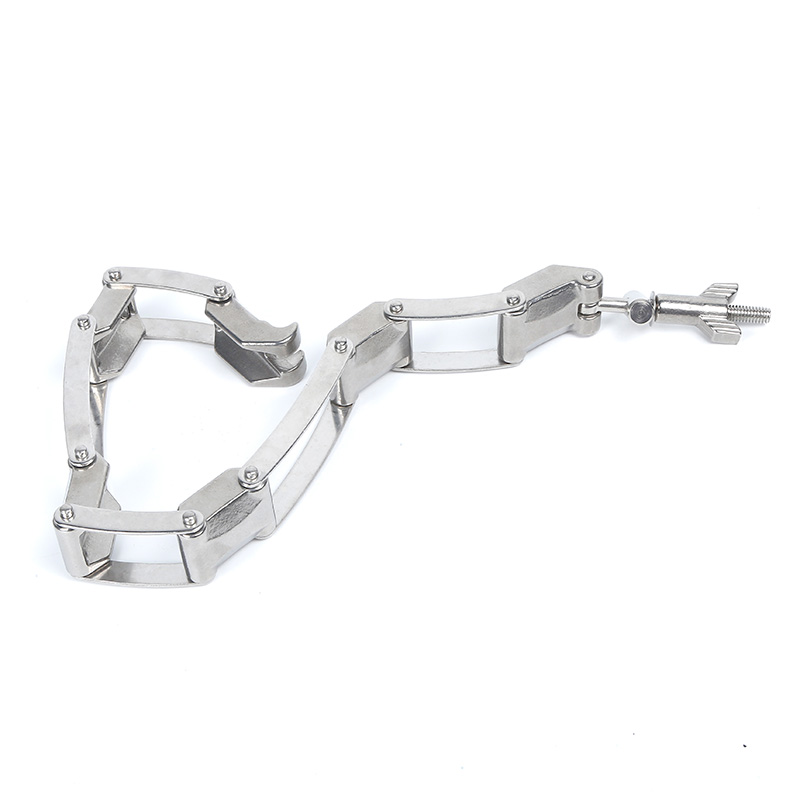

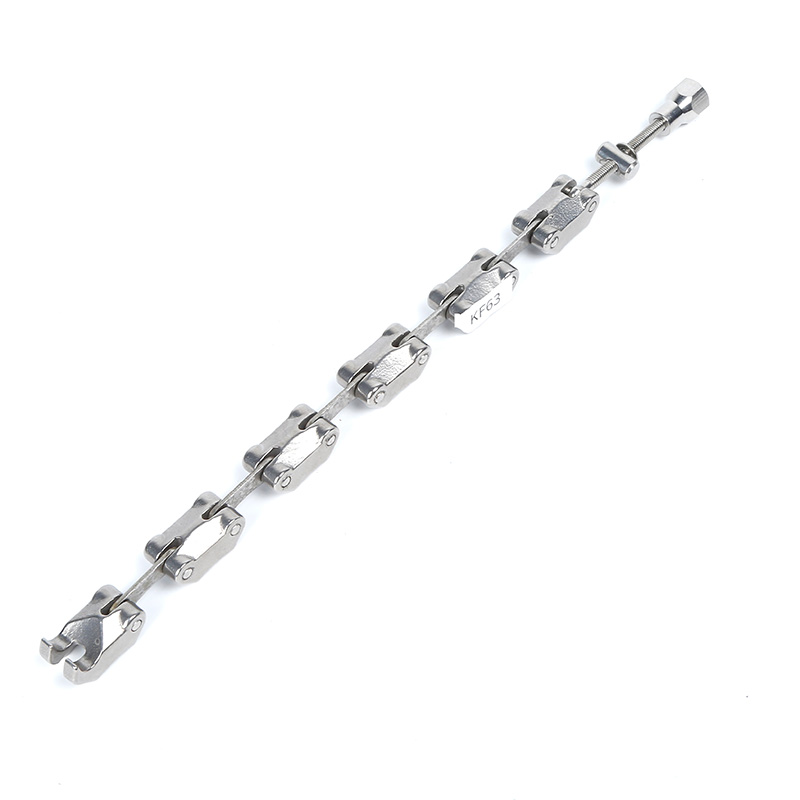

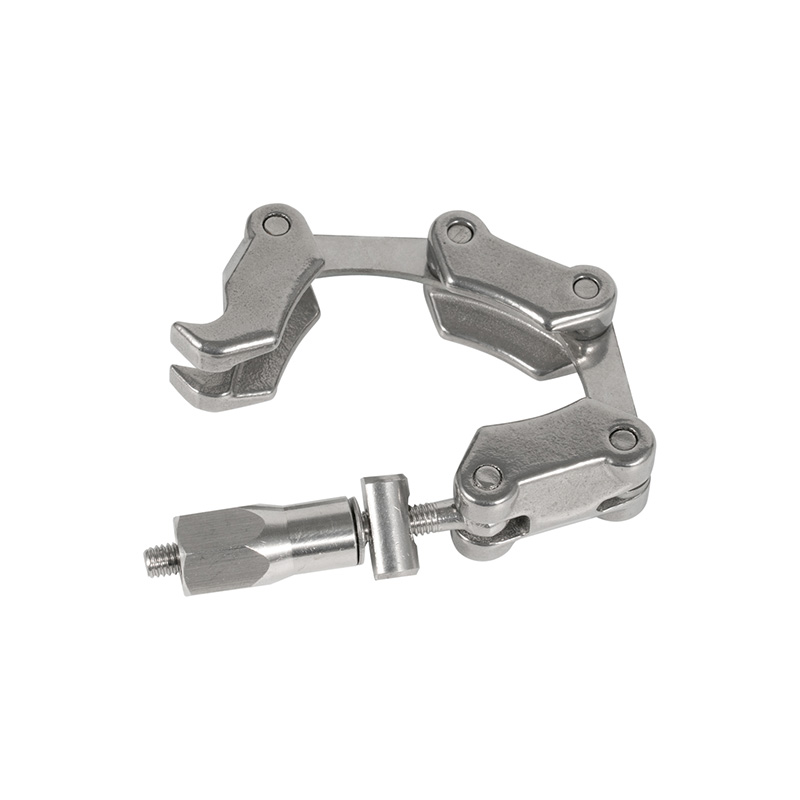

KF SS Chain Clamp

 *Material: SS304

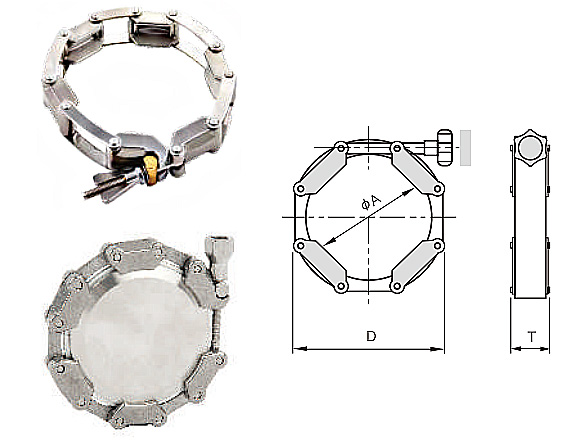

	Model for 304	Size	A/mm	D/mm	T/mm	N.W./g
	FCN811K164	KF16	22	60	20	200
	FCN811K254	KF25	32	70	20	205
	FCN811K404	KF40	47	85	20	258
	FCN811K504	KF50	67	105	20	317
	FCN811K634	KF63	79	120	20	370
