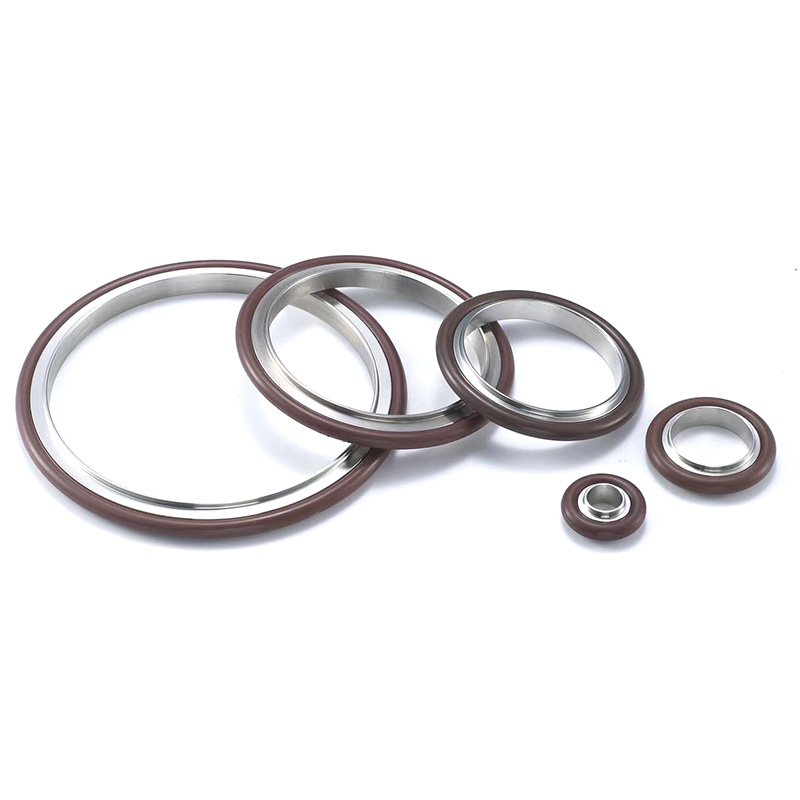

KF/NW/ISO Vacuum Pipe Ring Fittings SS304/SS316L/Aluminum Center Ring with O-Ring with FKM/NBR Seals for Semiconductor

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:

• Roughing and foreline plumbing
• Small pipe systems
• Systems need frequent cleaning or modification
• Research and teaching laboratories
• ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
• ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Material and Size

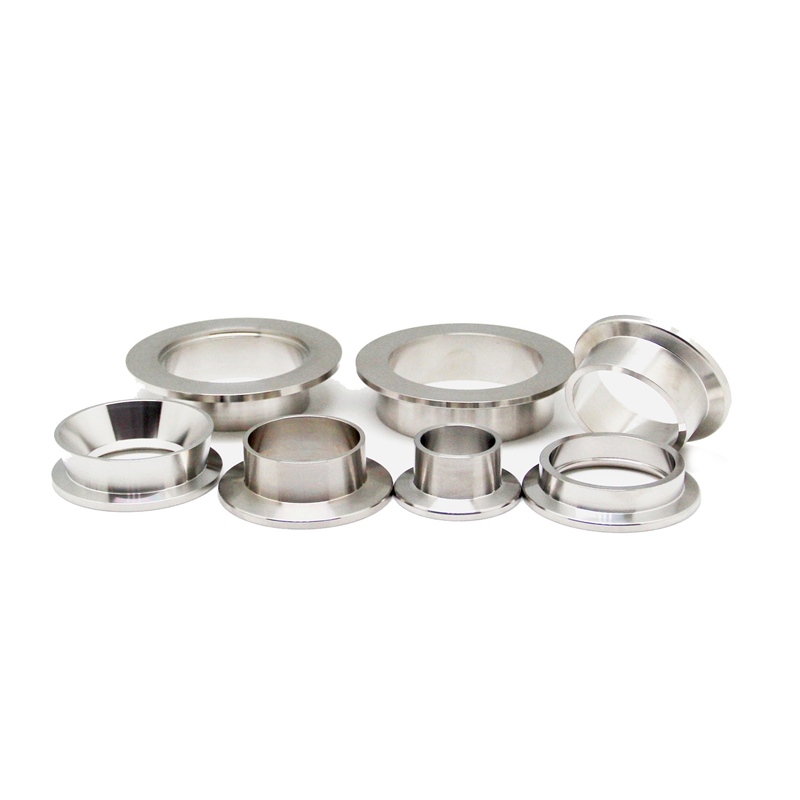

•  Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
•  Clamps:Aluminum or Stainless Steel 304
• O-Ring:Viton/NBR/EPDM
• Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

The  ISO-KF  components  are  assembled  by  inserting  a  centering  ring  between  the  two  flange  faces,  then  securing  the assembly with a flange encompassing clamp (see Figure 2)

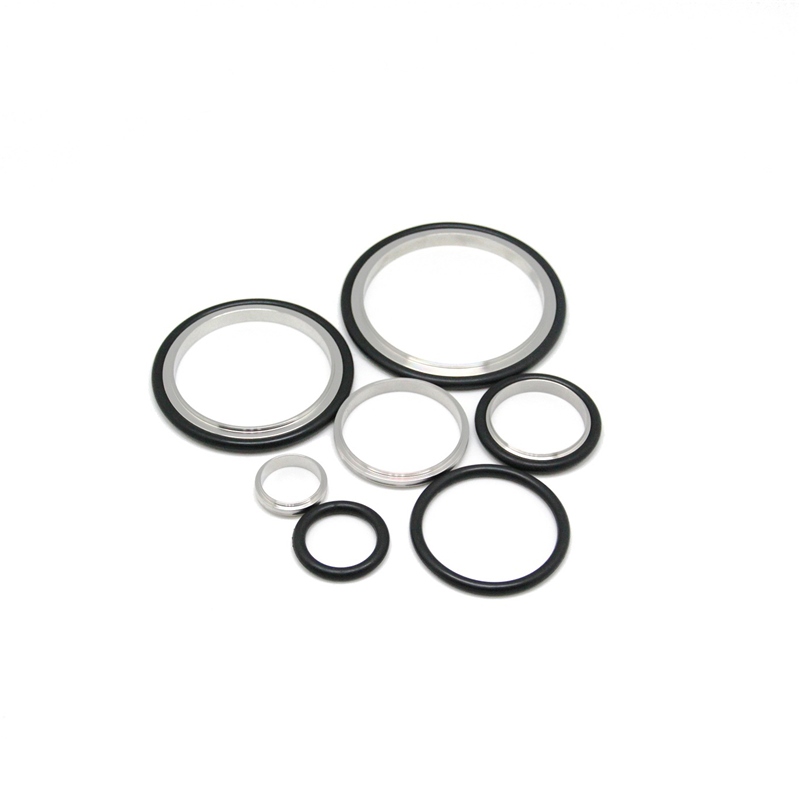

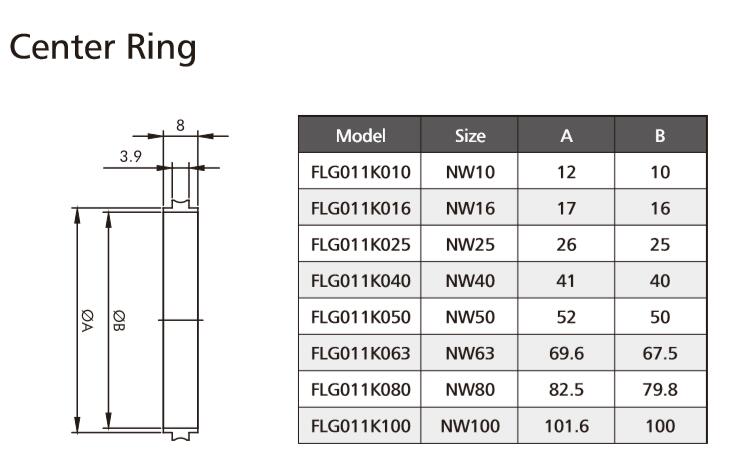

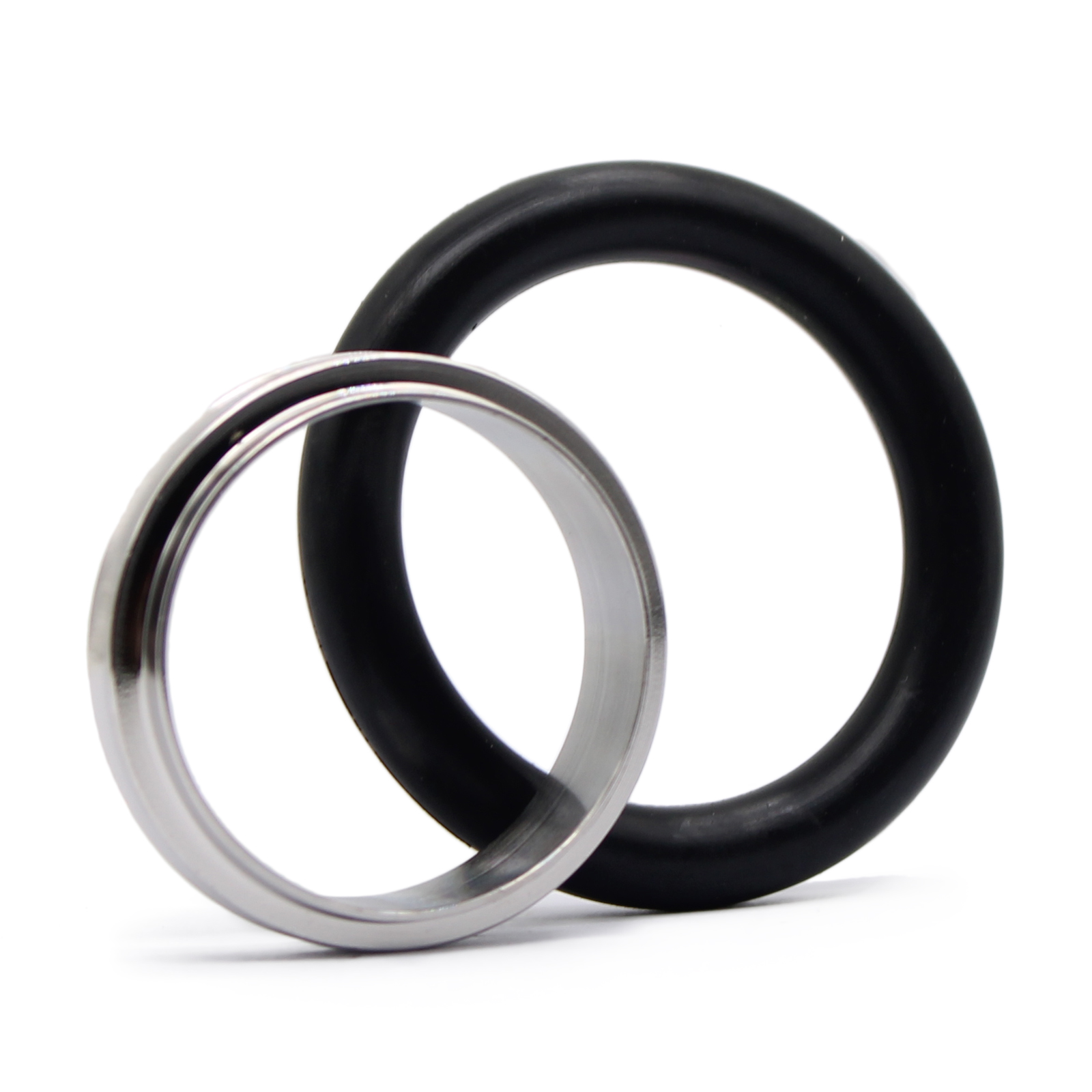

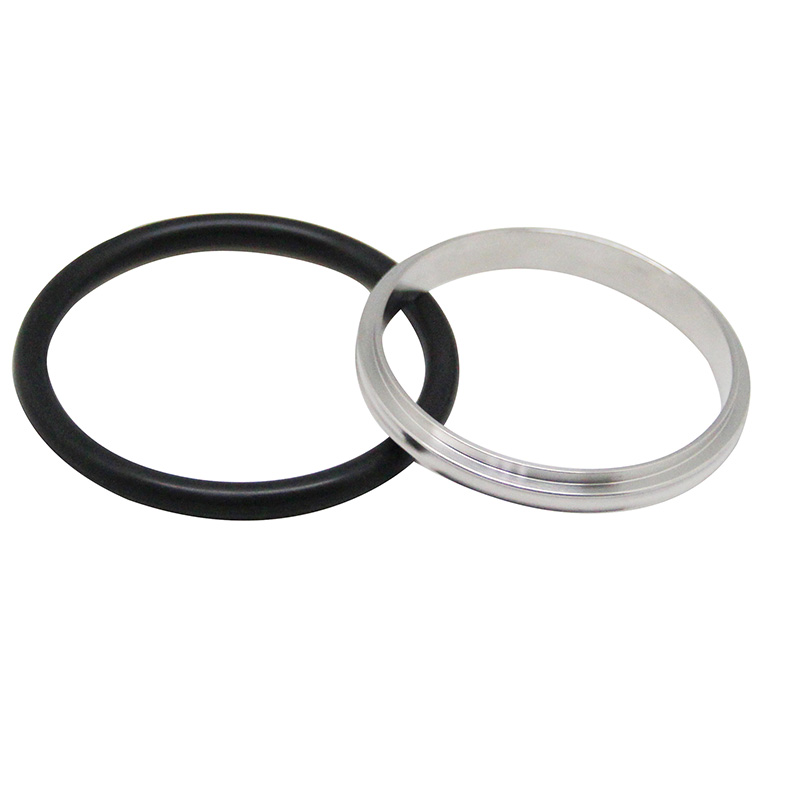

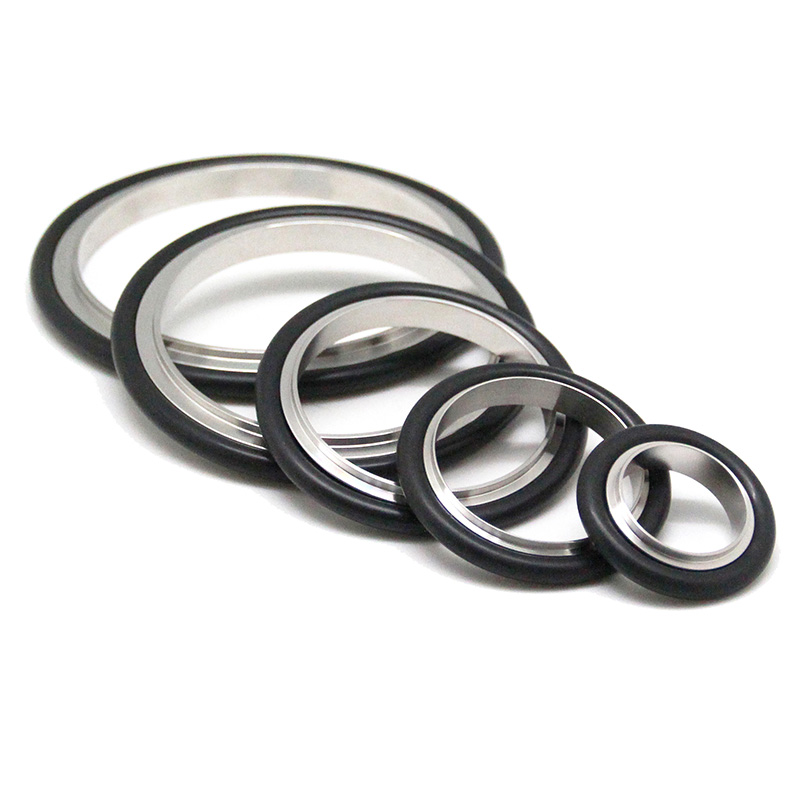

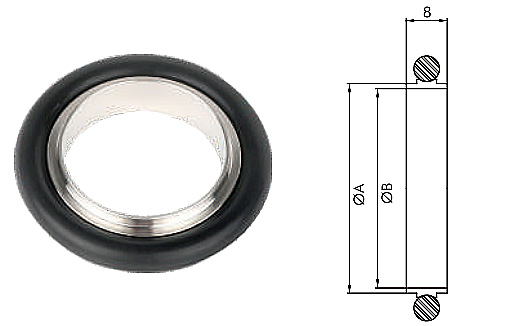

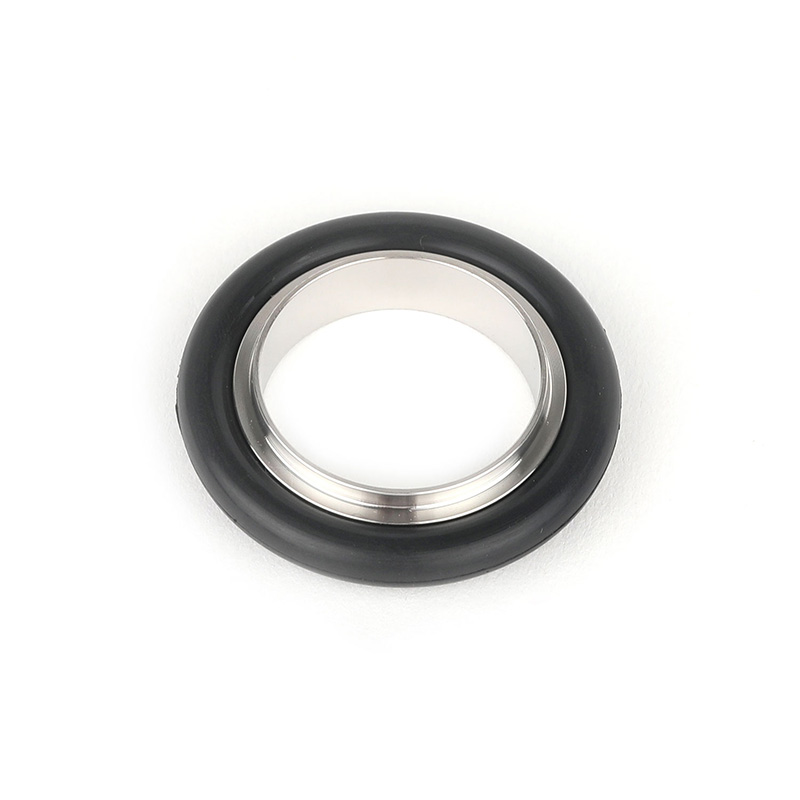

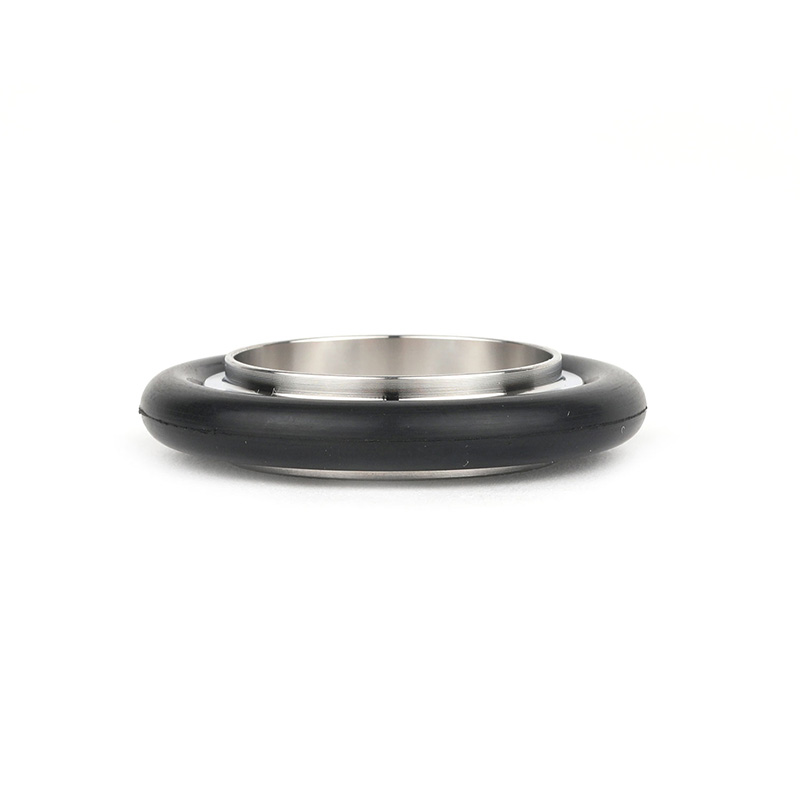

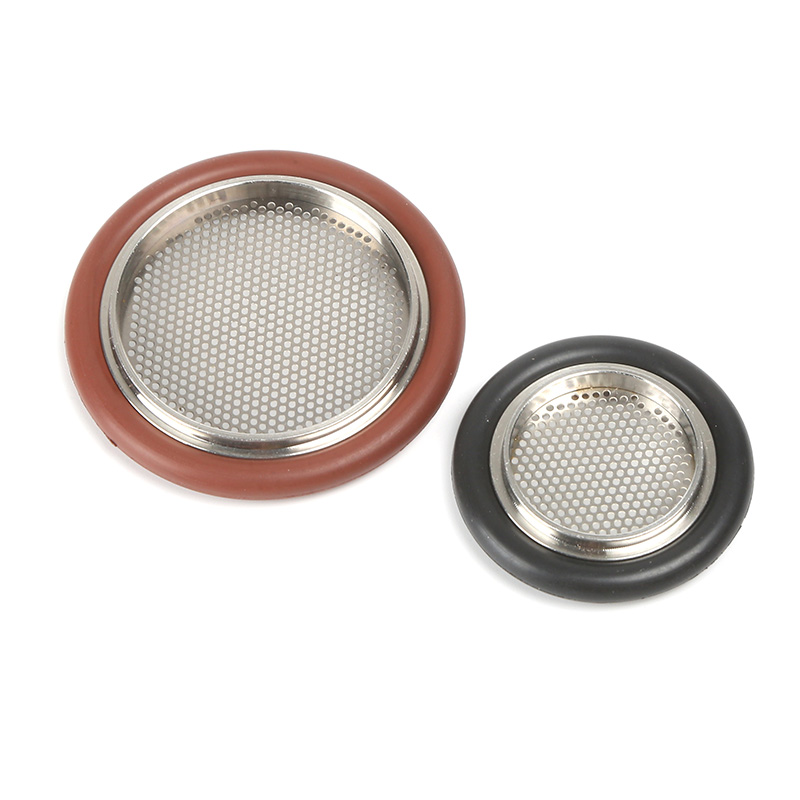

KF Center Ring with O-Ring

* Center Ring Material:SS304/SS316L/Aluminum

* O-Ring Material:Viton/NBR/EPDM

	Model for 304+VITON		Size		A/mm				B/mm		N.W./g
	FLG11N1K1034		KF10		12				10
	FLG11N1K1634		KF16		17				16		6.9
	FLG11N1K2534		KF25		26				25		11.2
	FLG11N1K4034		KF40		41				40		16.5
	FLG11N1K5034		KF50		52				50		29.5

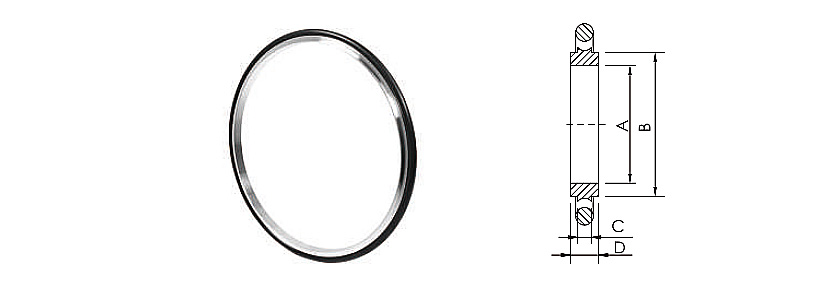

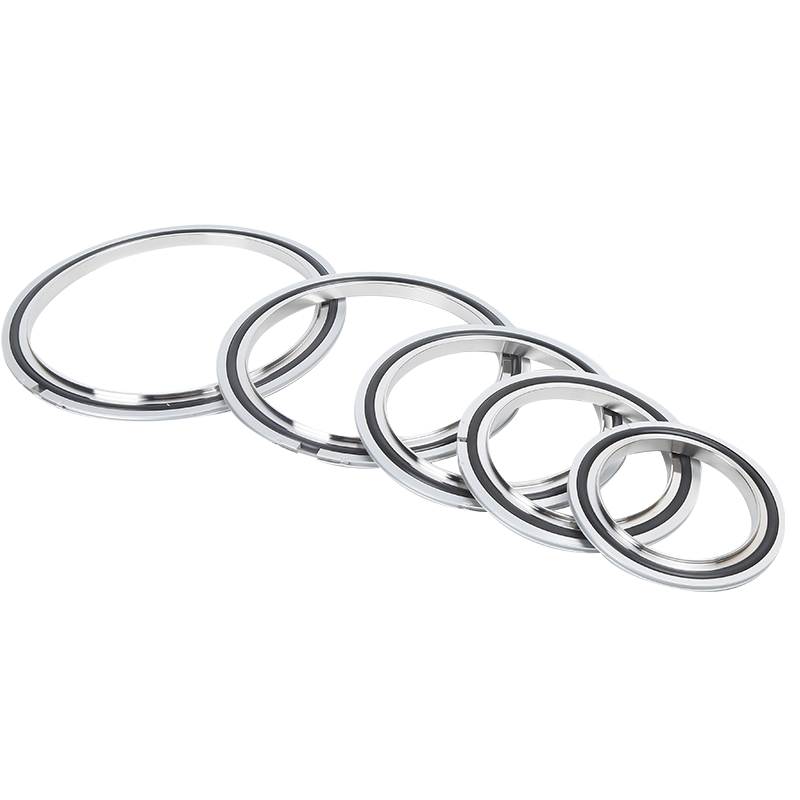

ISO Center Ring with O-Ring

* Center Ring Material:SS304/SS316L/Aluminum

* O-Ring Material:Viton/NBR/EPDM

Model																					Size						A/mm						B/mm					C/mm						D/mm						N.W./g
SS304+Viton										SS304+NBR																																								SS304+Viton						SS304+NBR
FLG11N1S6334										FLG11N1S6344											ISO63						68						70					3.9						8						56.8
FLG11N1S8034										FLG11N1S8044											ISO80						81						83					3.9						8						64.7
FLG11N1S10034										FLG11N1S10044											ISO100						100						102					3.9						8						82.8
FLG11N1S12534										FLG11N1S12544											ISO125						124						125.8					3.9						8						100
FLG11N1S16034										FLG11N1S16044											ISO160						148						153					3.9						8						129
FLG11N1S20034										FLG11N1S20044											ISO200						210						213					3.9						8						173.5
FLG11N1S25034										FLG11N1S25044											ISO250						257.5						260.4					3.9						8
FLG11N1S32034										FLG11N1S32044											ISO320						312						317.3					5.6						12
FLG11N1S40034										FLG11N1S40044											ISO400						394						400					5.6						12
FLG11N1S50034										FLG11N1S50044											ISO500						494						501					5.6						12
