Vacuum Pipe Ring Fittings SS304/SS316L/Aluminum KF/NW/ISO Center Ring with Aluminum/SS304 Outer Ring & O-Ring with FKM/NBR Seals

Applications

KF flanges are a sexless design made from 304 stainless, they can be used in a wide range of applications including:

• Roughing and foreline plumbing
• Small pipe systems
• Systems need frequent cleaning or modification
• Research and teaching laboratories
• ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
• ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Material and Size

•  Flanges,Blanks,Fittings:Stainless Steel 304,316L or Aluminum
•  Clamps:Aluminum or Stainless Steel 304
• O-Ring:Viton/NBR/EPDM
• Size:KF10-KF50(See Figure 1

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

The  ISO-KF  components  are  assembled  by  inserting  a  centering  ring  between  the  two  flange  faces,  then  securing  the assembly with a flange encompassing clamp (see Figure 2)

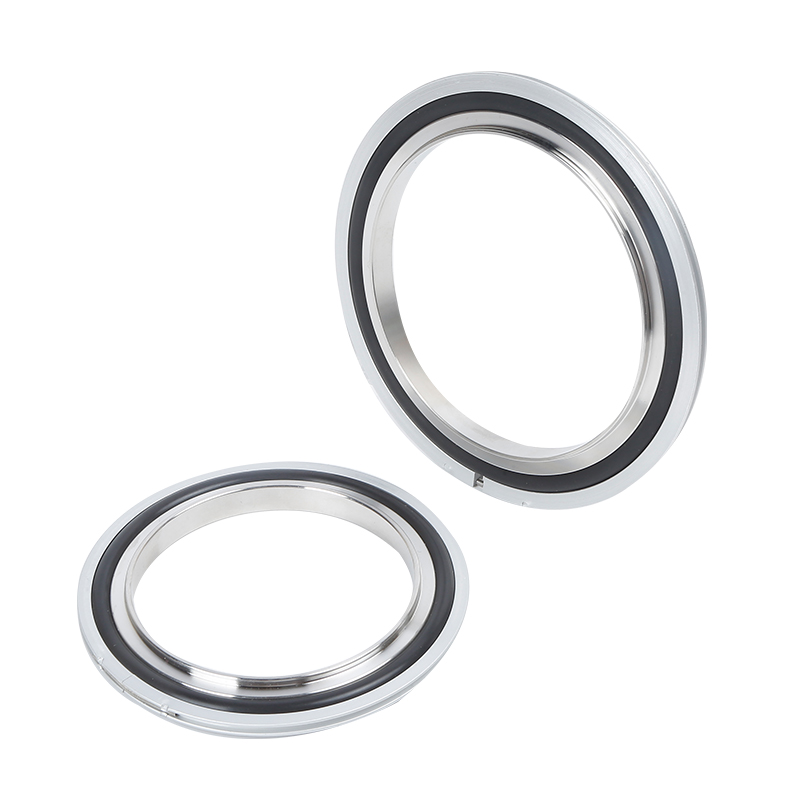

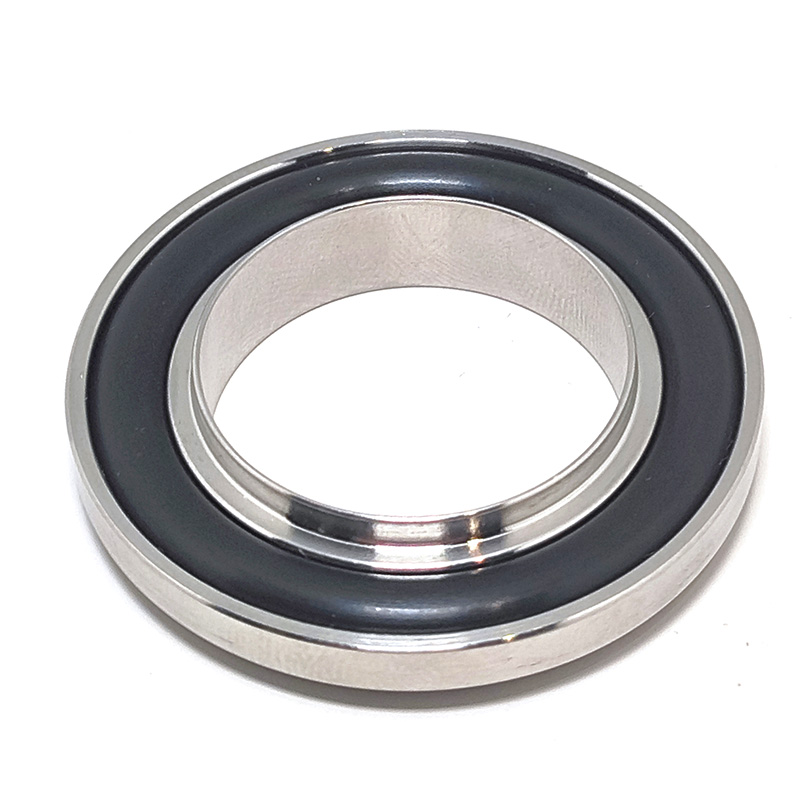

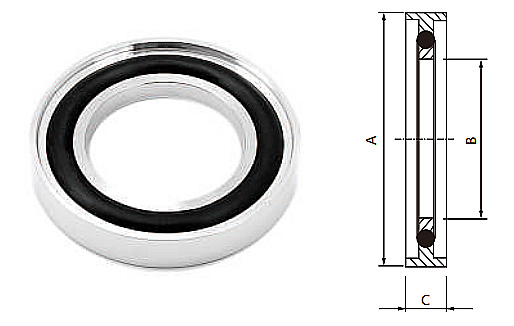

KF Center Ring with Outer Ring & O-Ring

* Center Ring Material:SS304/SS316L/Aluminum

*Outer Ring Materal:Aluminum

* O-Ring Material:FKM/NBR/EPDM

	Model for 304+FKM+Alu												Size					A/mm					B/mm				C/mm					N.W./g
	FLG31N1K16348												KF16					32.5					16.1				8
	FLG31N1K25348												KF25					42.5					24.85				8					16.2
	FLG31N1K40348												KF40					57.5					39.85				8					28
	FLG31N1K50348												KF50					77.5					50				8					59.8

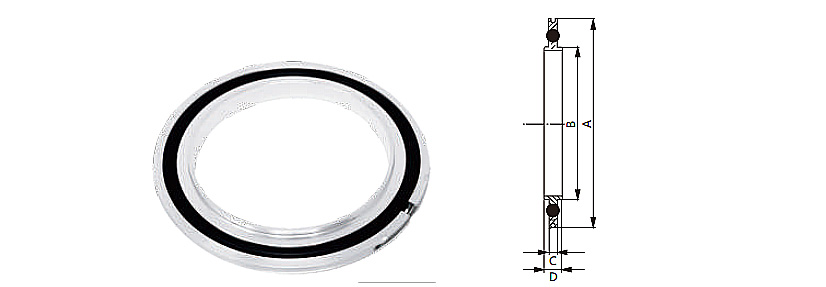

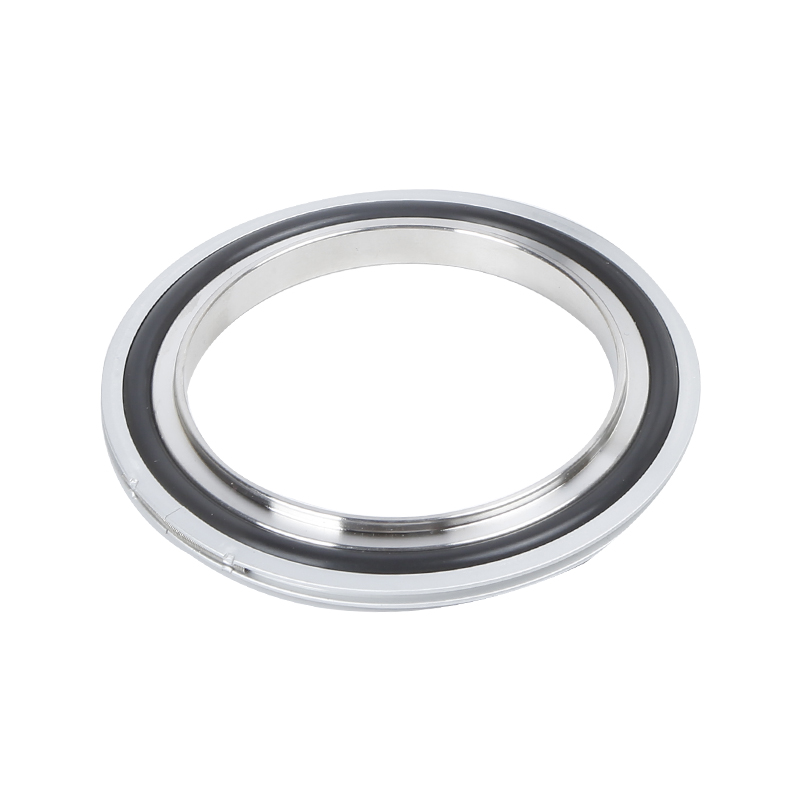

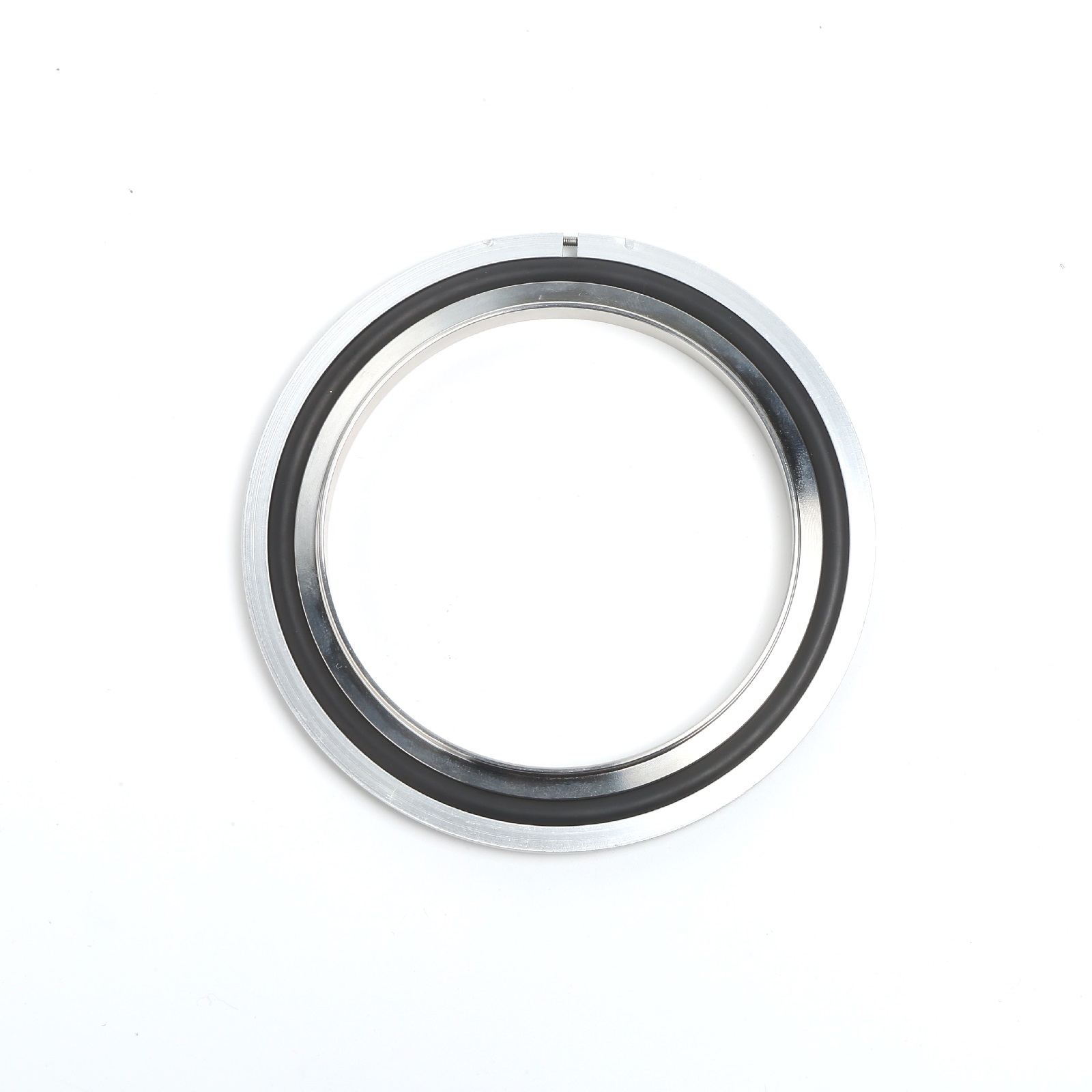

ISO Center Ring with Outer Ring & O-Ring

* Center Ring Material:SS304/SS316L/Aluminum

*Outer Ring Materal:Aluminum

* O-Ring Material:FKM/NBR/EPDM

Model																					Size						A/mm						B/mm					C/mm						D/mm						N.W./g
Alu+SS304+FKM										Alu+SS304+NBR																																								Alu+SS304+FKM						Alu+SS304+NBR
FLG31N1S63348										FLG31N1S63448											ISO63						94						70					3.9						8						62.8
FLG31N1S80348										FLG31N1S80448											ISO80						109						83					3.9						8						76.3
FLG31N1S100348										FLG31N1S100448											ISO100						128						102					3.9						8						96.3
FLG31N1S125348										FLG31N1S125448											ISO125						152						125.8					3.9						8						116.8
FLG31N1S160348										FLG31N1S160448											ISO160						179						153					3.9						8						148.2
FLG31N1S200348										FLG31N1S200448											ISO200						238						213					3.9						8						199.3
FLG31N1S250348										FLG31N1S250448											ISO250						287						260.4					3.9						8
FLG31N1S320348										FLG31N1S320448											ISO320						344						317.3					5.6						12
FLG31N1S400348										FLG31N1S400448											ISO400						446						400					5.6						12
FLG31N1S500348										FLG31N1S500448											ISO500						535						501					5.6						12
