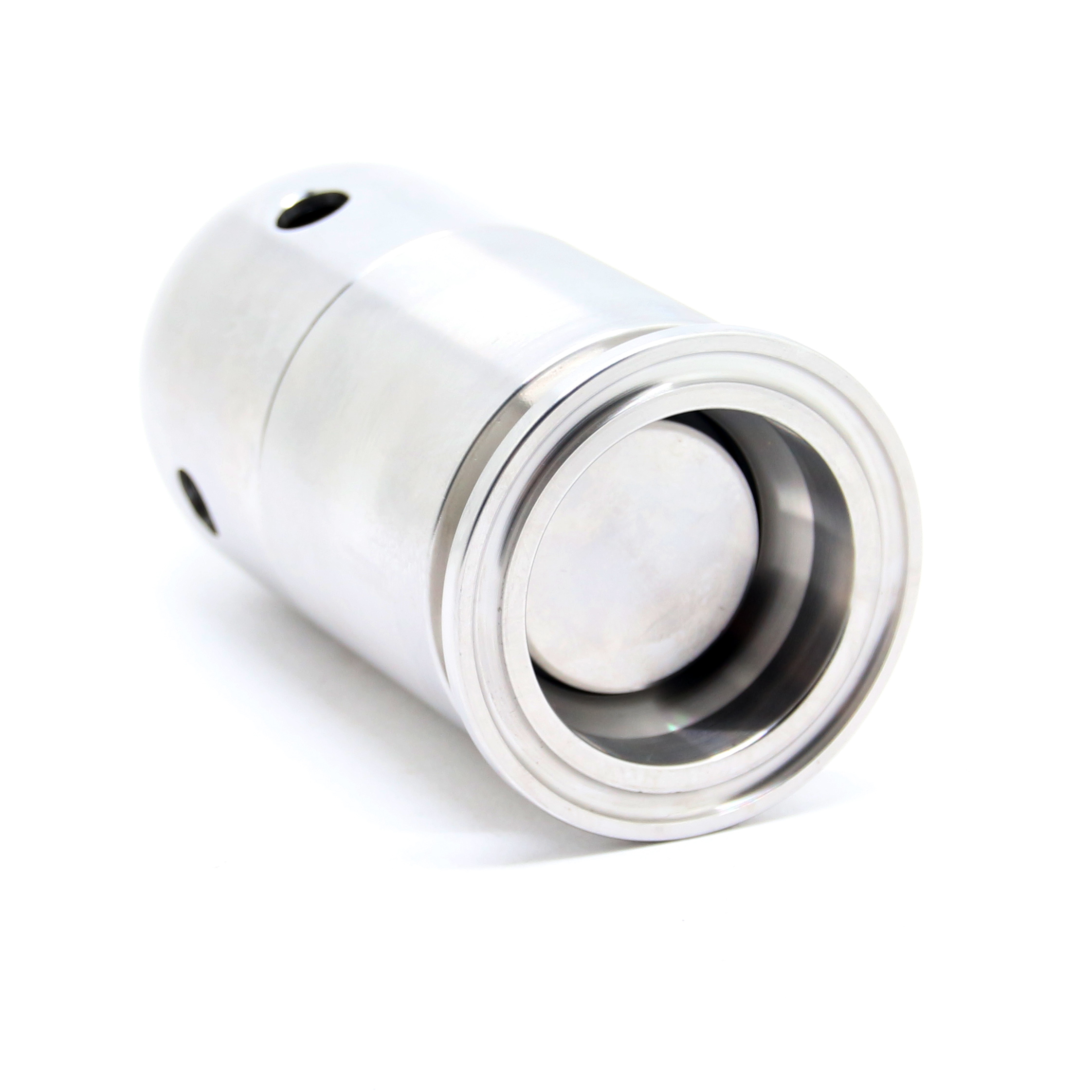

VAV03 Series adjustable vacuum & pressure relief valve that can be calibrated by turning nut position from 0.1 bar to 2.5 bar to meet tank pressure rating. Sanitary design and construction for beer tank.
It will open when pressure over than presetted pressure and close after pressure dropping.
Material: SS304
Seal Rings: EPDM per FDA 177.2600
Pressure Range: 0.1-2.5Bar
Vacuum: 0.1-0.5Bar
Temperature range: -10°C to 120°C
 |
|||

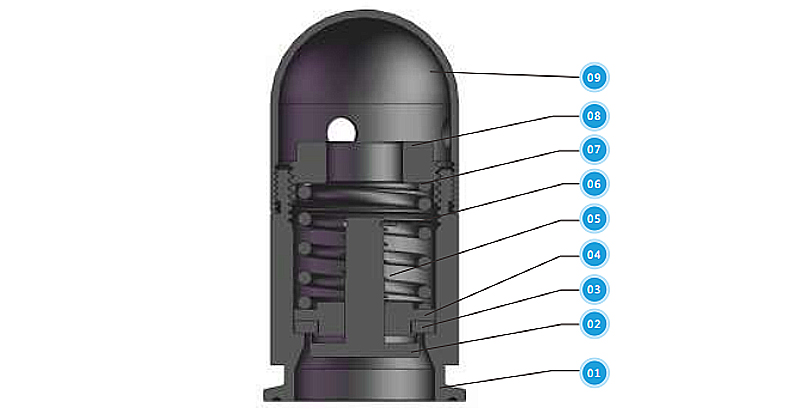

| Item | Name | Matrtial | QTY |
| 1 | Valve Body | SS304 | 1 |
| 2 | Seat Seal | EPDM | 1 |
| 3 | Valve Seal | SS304 | 1 |
| 4 | Spring（Vacuum） | SS304 | 1 |
| 5 | Snap Ring | SS304 | 1 |
| 6 | Spring(Prssure) | SS304 | 1 |
| 7 | Washer | SS304 | 1 |
| 8 | Adjusting Nut | SS304 | 1 |
| 9 | Valve Shaft | SS304 | 1 |
 |
||||

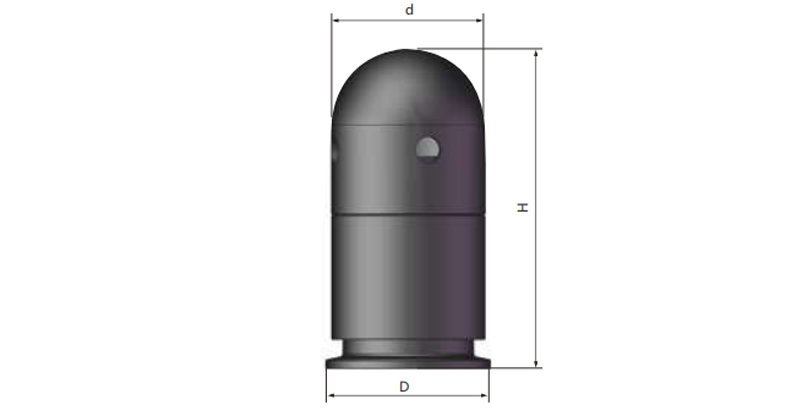

| Model No | Size | D | d | H |
| VAV03C421150 | 1.5'' | 50.5 | 48 | 98 |
| VAV03C421200 | 2'' | 64 | 56 | 110 |
