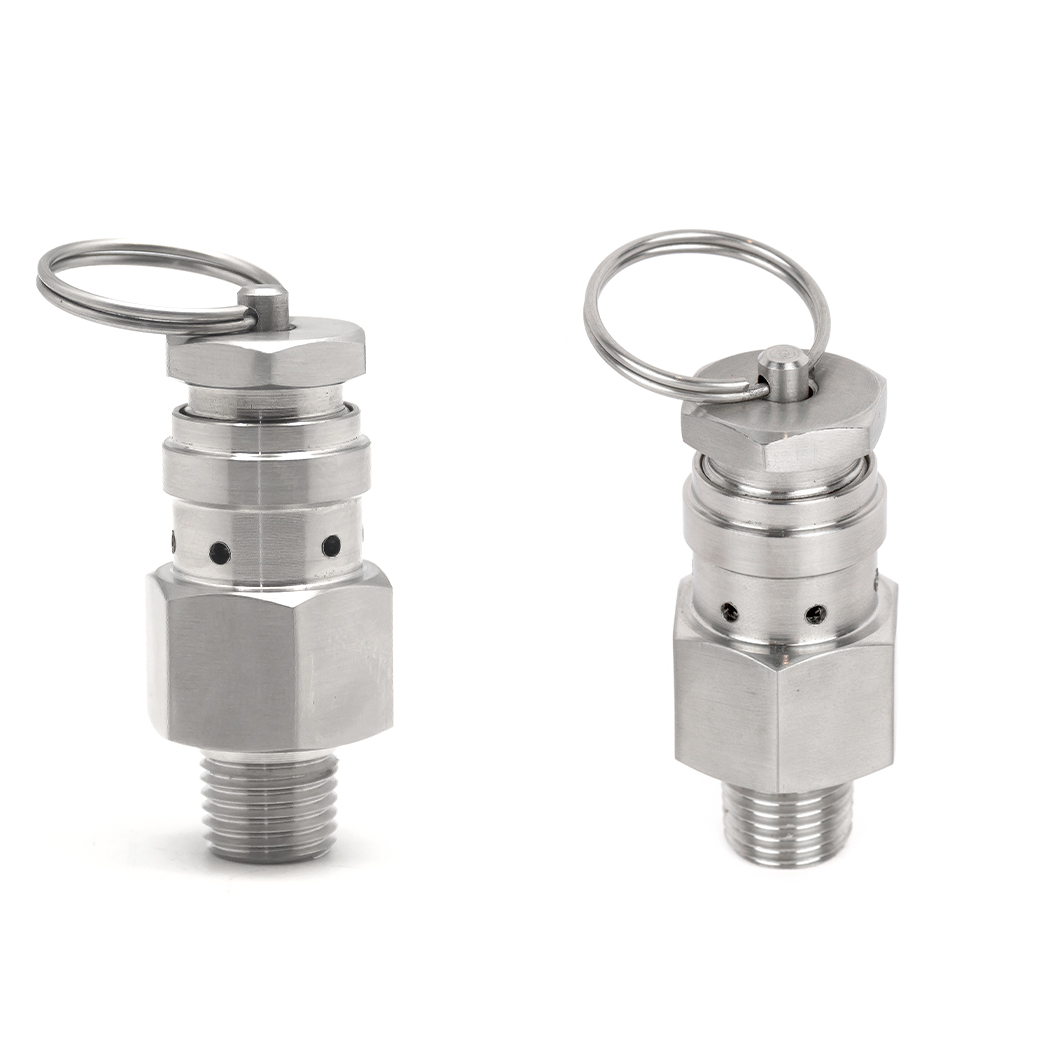

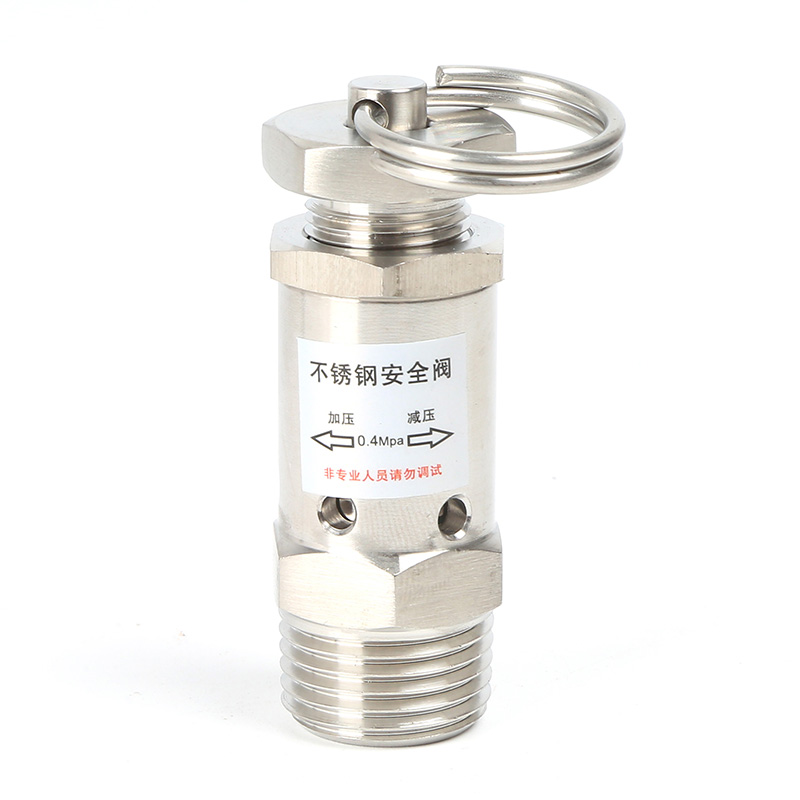

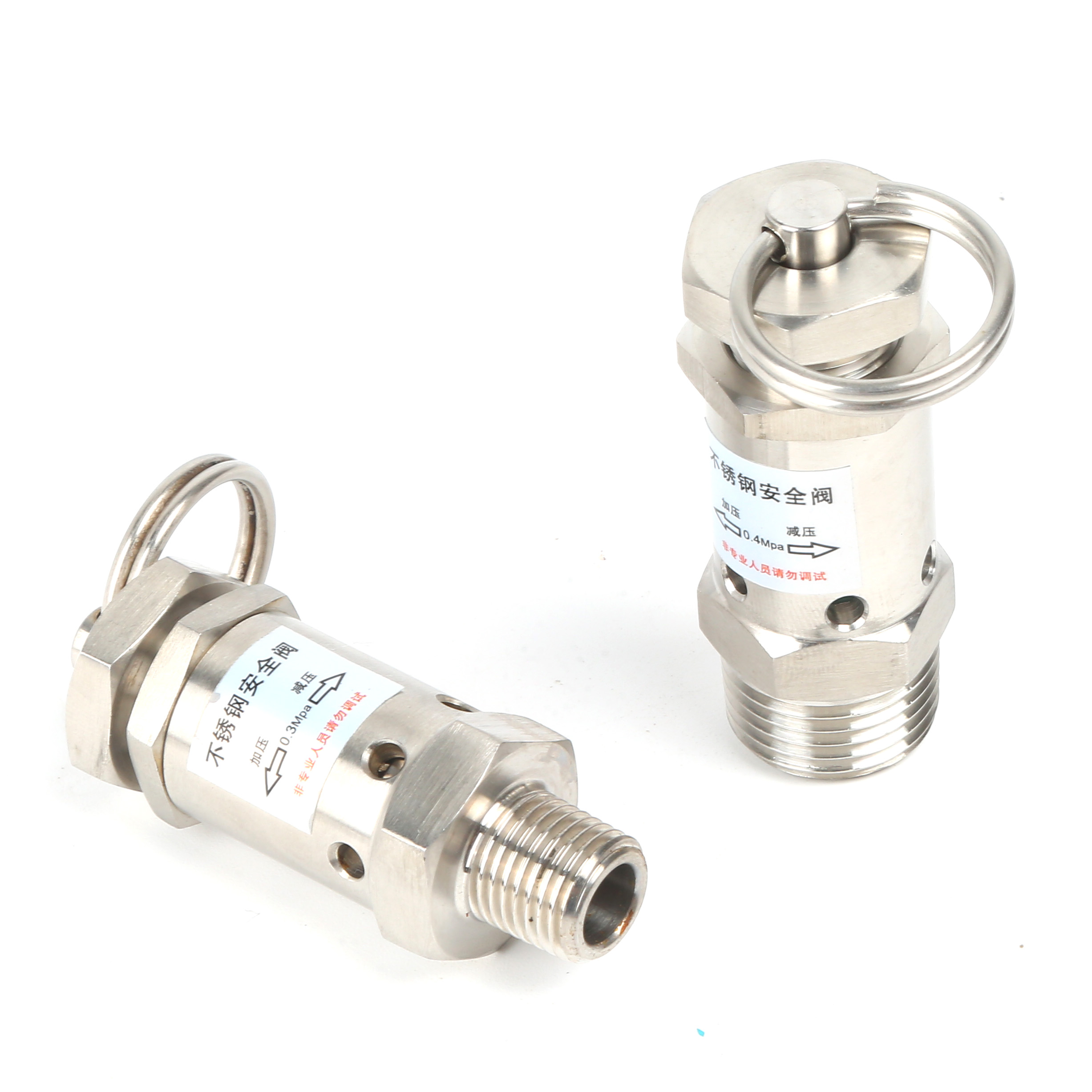

SS304 Sanitary NPT/BSP Male Mini Type Pressure Relief Valve Stainless Steel Pressure Quick Releasing

Application

VAM series air release valves are used on pressure vessel to prevents pressrure vessels exploding from over pressure. It is widely used in food processing, brewery,beverage and pharmaceutical industry.VAM series air release valves are used on pressure vessel to prevents pressrure vessels exploding from over pressure. It is widely used in food processing, brewery, beverage and pharmaceutical industry.

Materials

• Body Materials: AISI-304 or AISI-316L

Standard Design

• Available in size: 1-1.5", 2", 2.5"

• Installation: supposed to be installed overhead tanks

• Standard: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE

• Connection: butt-welded, clamp, or other's upon request

Technical Specification

• Working Pressure: 14.5psi/ 1bar (standard), could be pre-set before production

• Temperature range: medium

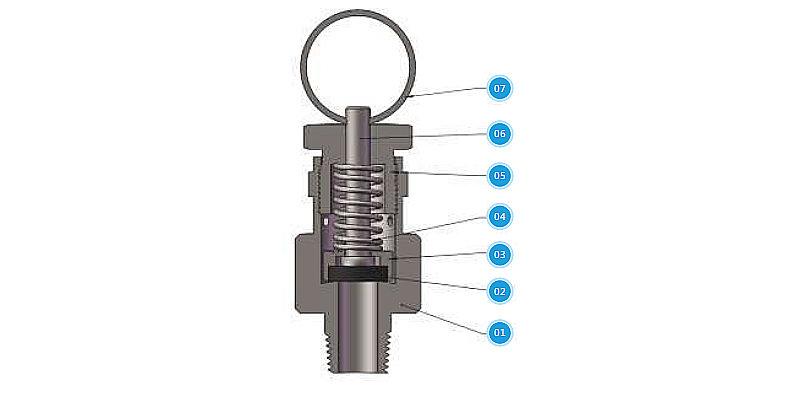

Item	Name	Matrtial	QTY
1	Valve Body	SS304	1
2	Seat Seal	EPDM	1
3	Valve Seal	SS304	1
4	Spring	SS304	1
5	Adjusting Nut	SS304	1
6	Valve Srem	SS304	1
7	Draw Ring	SS304	1

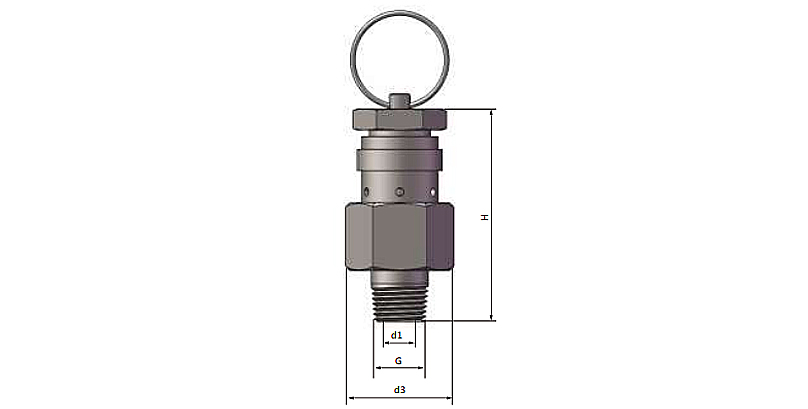

Model No	Size	G	d1	d3	H
VAM01M422025	1/4''	NPT 1/4"	8.5	22	50
VAM01M422050	1/2''	NPT 1/2"	8.5	22	50
