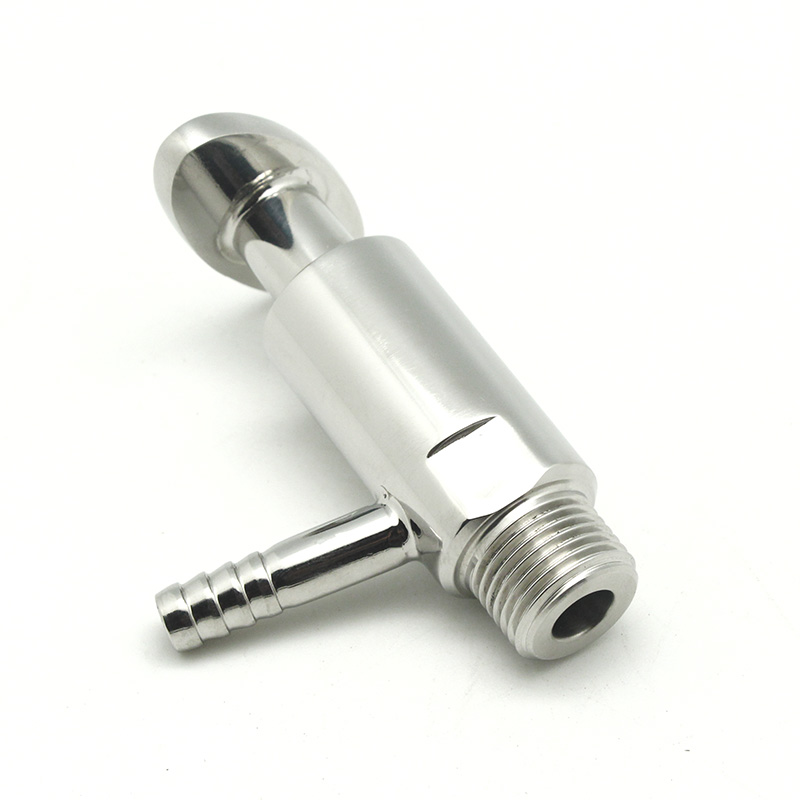

Sanitary SS304/SS316L Stainless Steel High Quality Male Thread Sampling Valve SS304/SS316L Stainless Steel Manual

VSN Sampling Valves are used in piping systems or on tanks for sampling. It is used for low viscosity materials, such as water, beer, wine, fluid milk and so on.

It also can be assembled at the bottom of the tank or pipeline to drain away the remains.

Material

Valve Body: SS304 or SS316L

Valve Shaft:SS304 or SS316L

Seat Seal: PTFE

O ring Seal: FKM per FDA 177.2600

Standard Design

With hose adaptor outlet

Handle in handwheel or ellipse·

End connection: Weld, Clamp, Thread

Technical Specification

Max.Temperatur:120degree C

Max. pressure: 10bar

Size Available:1/2"-1.5" or DN10-DN40

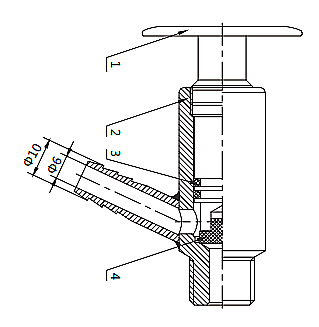

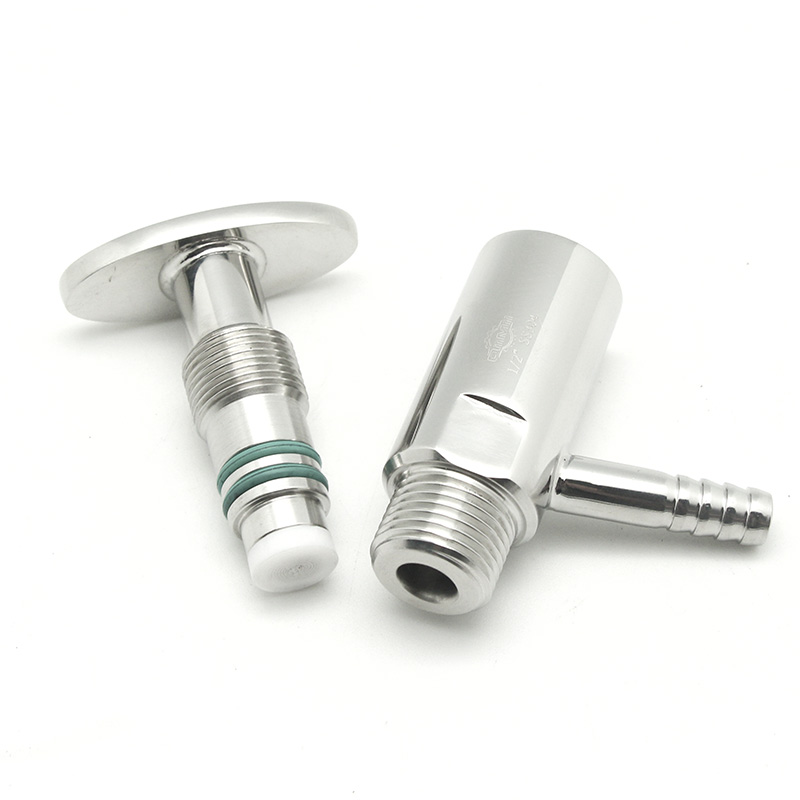

Item	Description	Material	Qty
1	Valve Shaft	1.4301/1.4404	1
2	Valve Body	1.431/1.4404	1
3	O ring Seal	FKM*	2
4	Seat Seal	PTFE	1

O ring seal Material Option: Silicon, EPDM, FPM

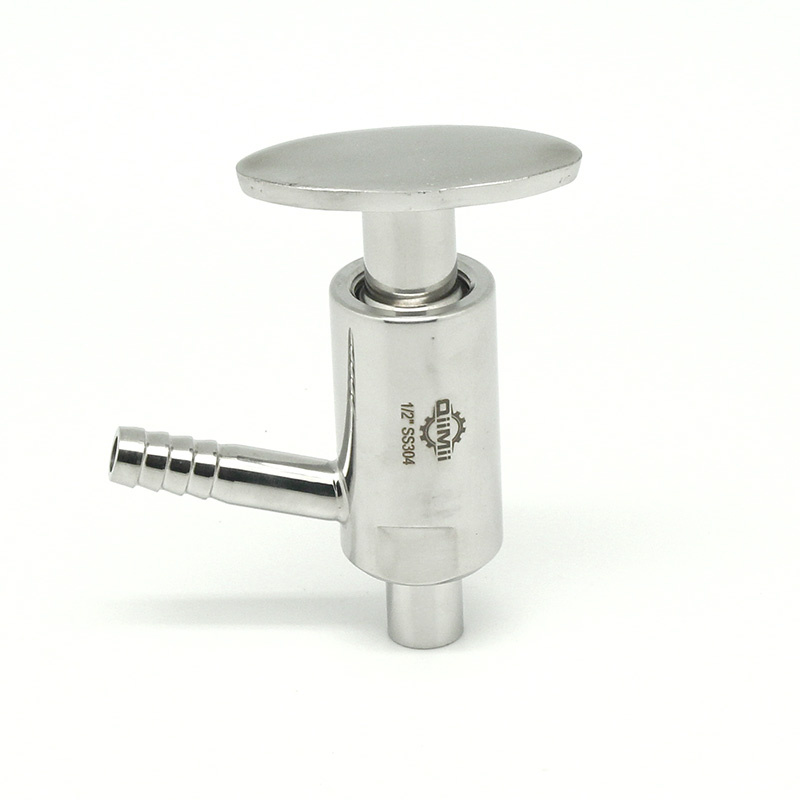

Weld Sampling Valve

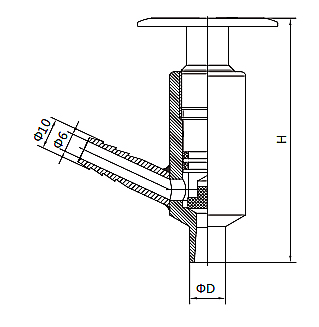

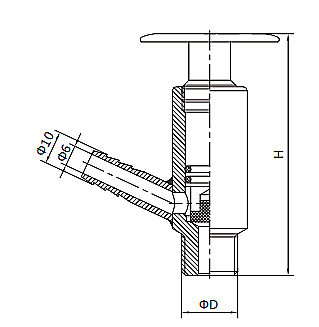

Model No	Size	D	H
VSN01W451050	1/2"	12.7	89
VSN01W451075	3/4"	19.1	89
VSN01W451100	1"	25.4	89

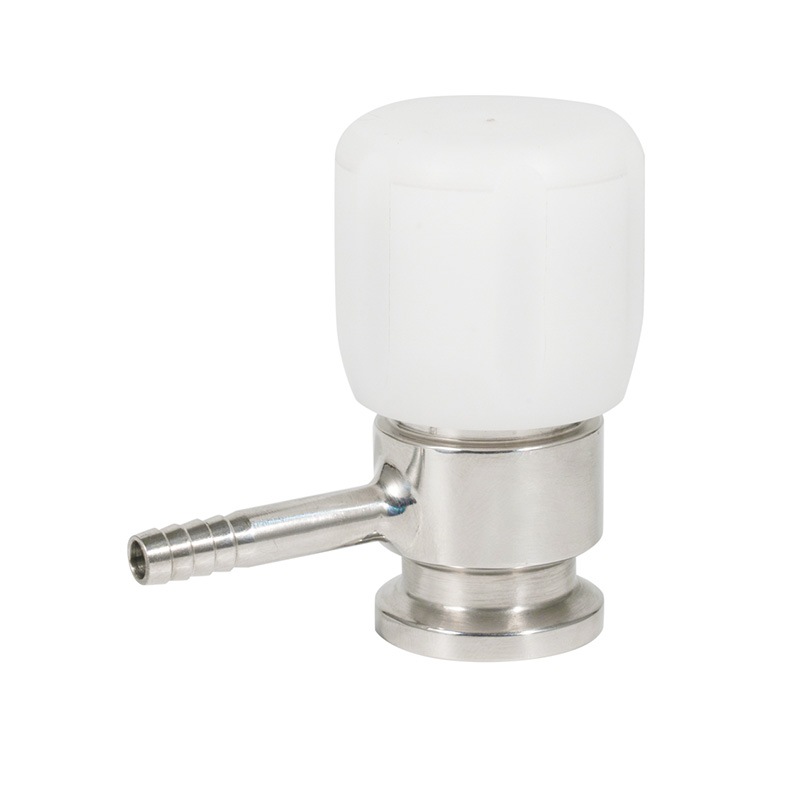

Clamp Sampling Valve

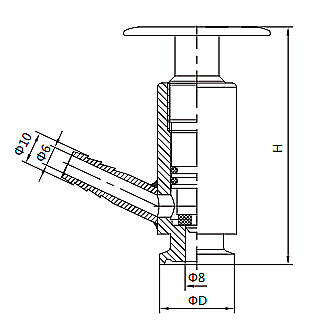

Model No	Size	D	H
VSN01C451050	1/2"	25.2	89
VSN01C451150	1.5"	50.5	89

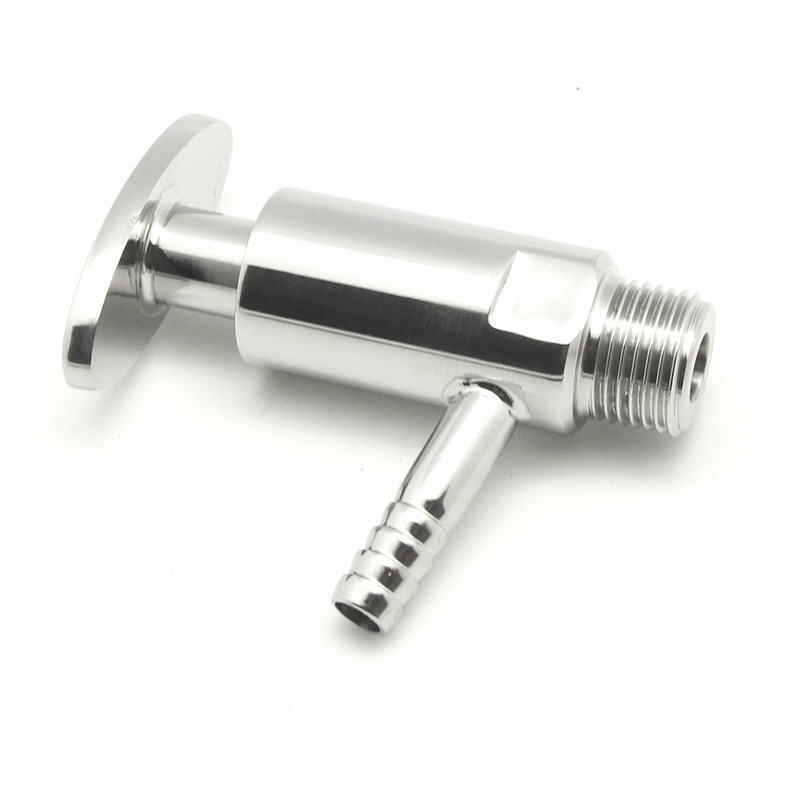

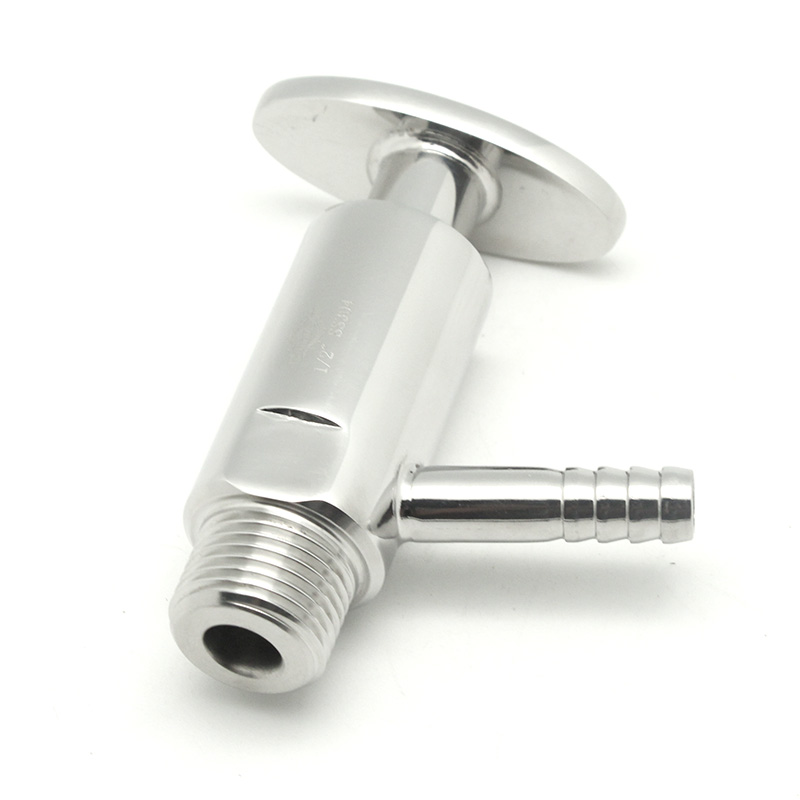

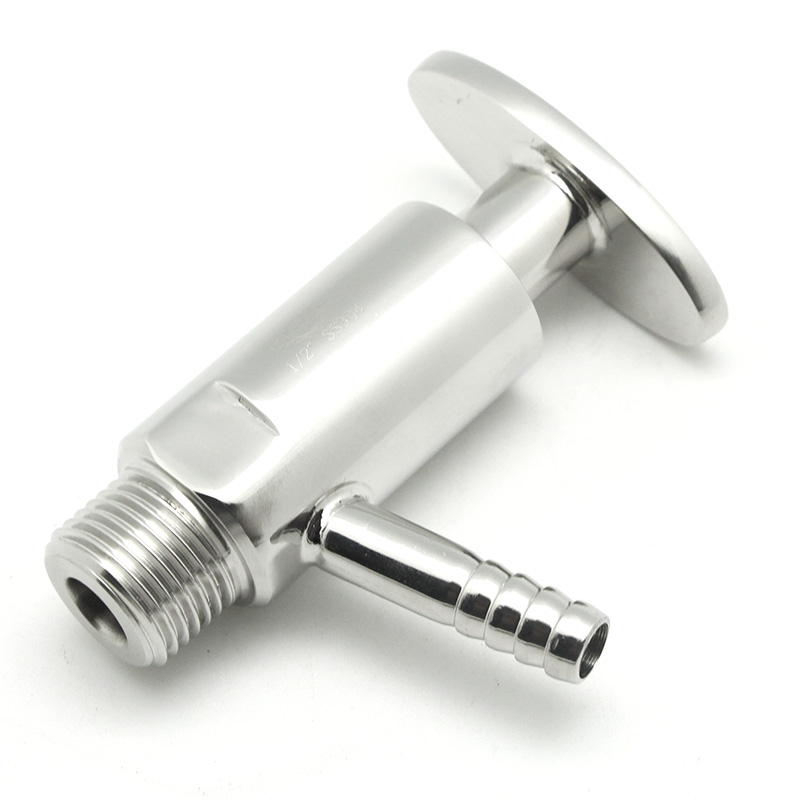

Thread Sampling Valve

Model No	Size	G	H
VSN01M453038	3/8"	BSP3/8"	89
VAN01M453050	1/2"	BSP1/2"	89
VSN01M453075	3/4"	BSP3/4"	89
