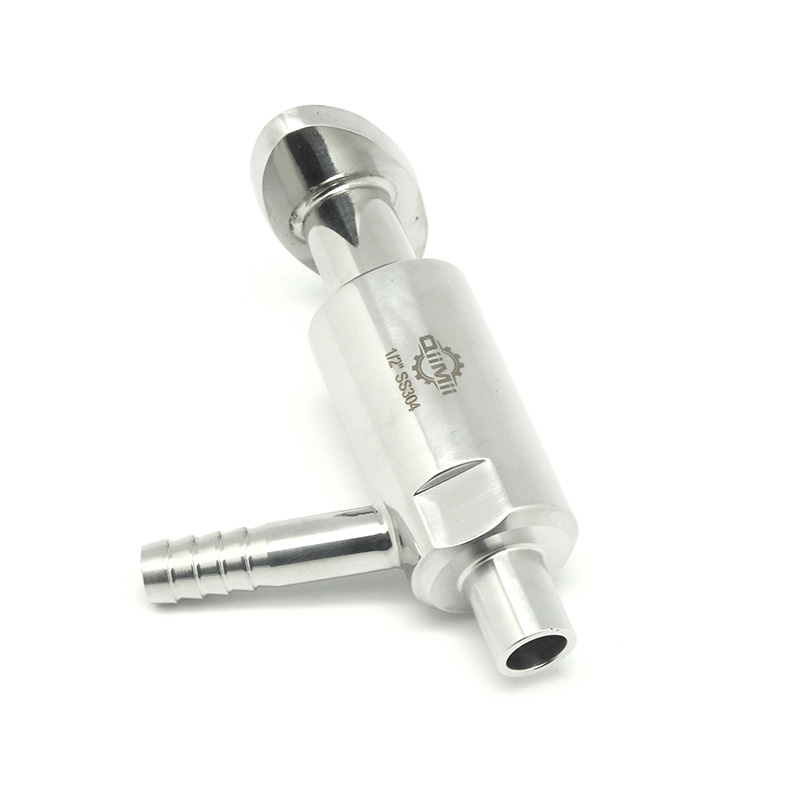

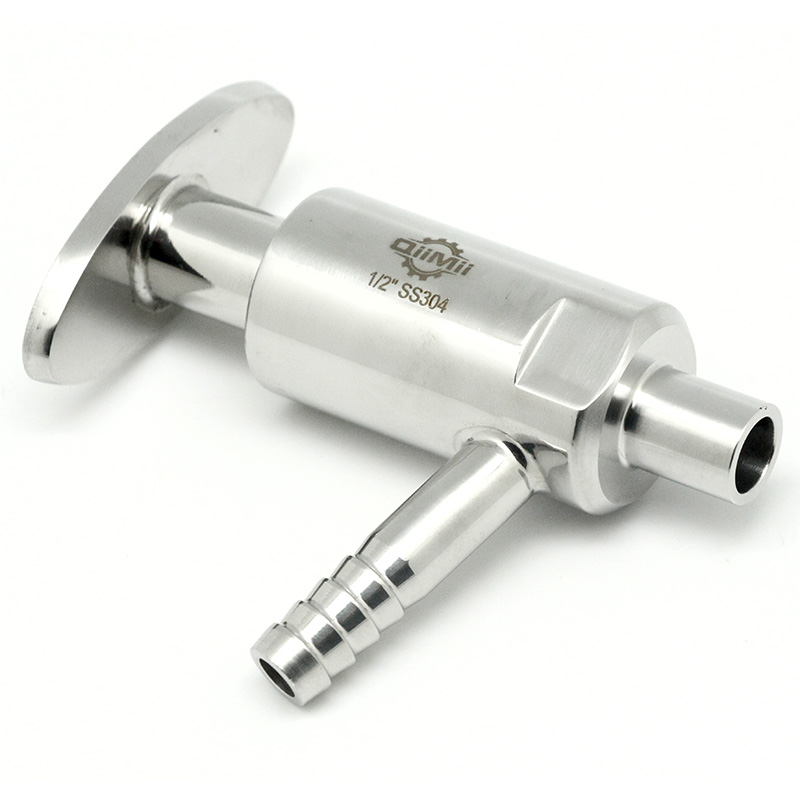

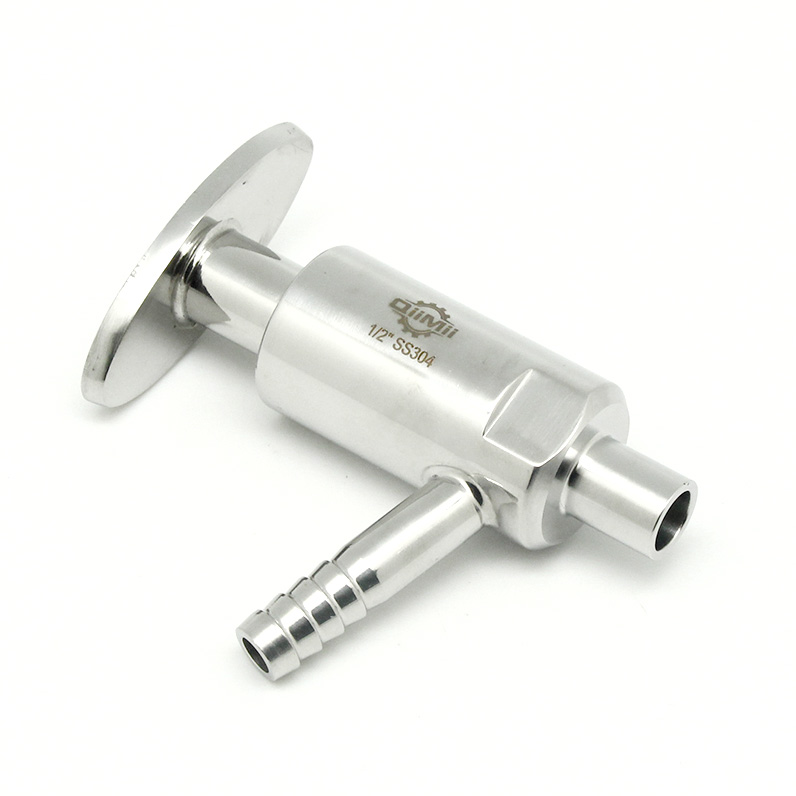

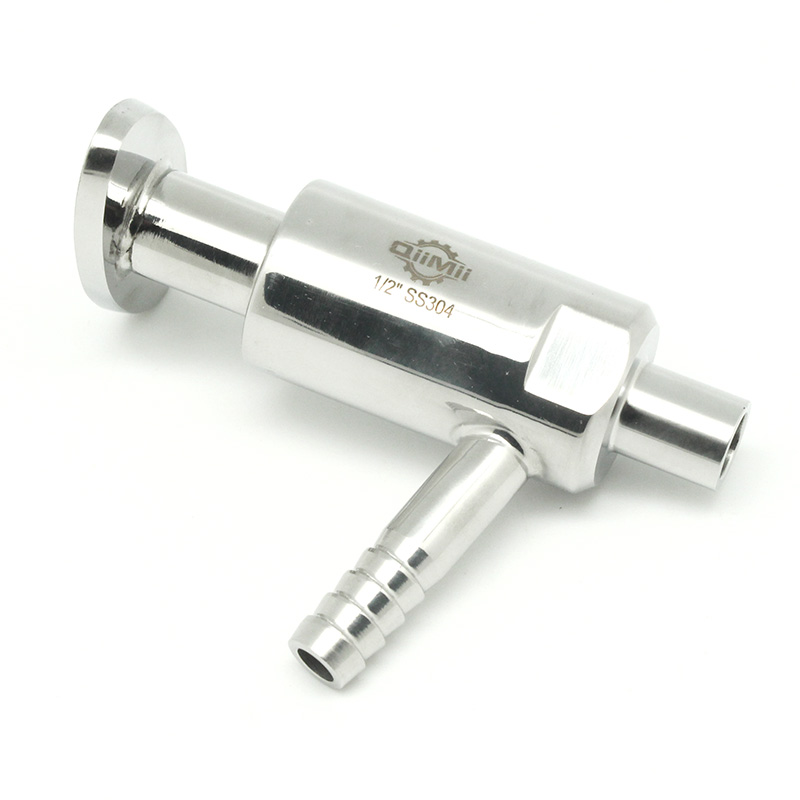

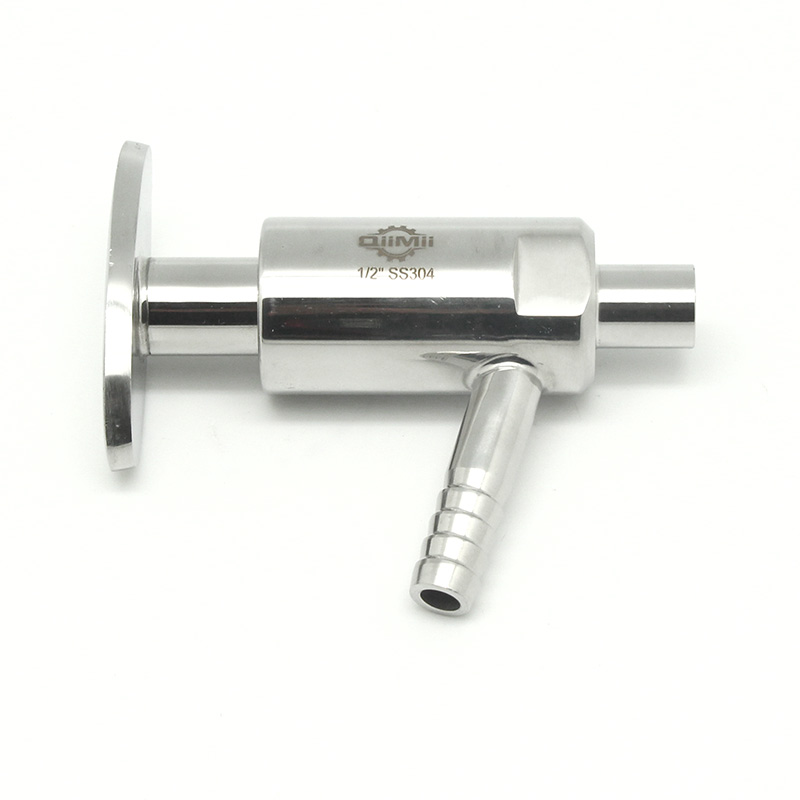

VSN Sampling Valves are used in piping systems or on tanks for sampling. It is used for low viscosity materials, such as water, beer, wine, fluid milk and so on.
It also can be assembled at the bottom of the tank or pipeline to drain away the remains.
Valve Body: SS304 or SS316L
Valve Shaft:SS304 or SS316L
Seat Seal: PTFE
O ring Seal: FKM per FDA 177.2600
With hose adaptor outlet
Handle in handwheel or ellipse·
End connection: Weld, Clamp, Thread
Max.Temperatur:120degree C
Max. pressure: 10bar
Size Available:1/2"-1.5" or DN10-DN40
 |
|||
| Item | Description | Material | Qty |
| 1 | Valve Shaft | 1.4301/1.4404 | 1 |
| 2 | Valve Body | 1.431/1.4404 | 1 |
| 3 | O ring Seal | FKM* | 2 |
| 4 | Seat Seal | PTFE | 1 |
O ring seal Material Option: Silicon, EPDM, FPM
Weld Sampling Valve
 |
|||
| Model No | Size | D | H |
| VSN01W451050 | 1/2" | 12.7 | 89 |
| VSN01W451075 | 3/4" | 19.1 | 89 |
| VSN01W451100 | 1" | 25.4 | 89 |
Clamp Sampling Valve
 |
|||
| Model No | Size | D | H |
| VSN01C451050 | 1/2" | 25.2 | 89 |
| VSN01C451150 | 1.5" | 50.5 | 89 |
Thread Sampling Valve
 |
|||
| Model No | Size | G | H |
| VSN01M453038 | 3/8" | BSP3/8" | 89 |
| VAN01M453050 | 1/2" | BSP1/2" | 89 |
| VSN01M453075 | 3/4" | BSP3/4" | 89 |
