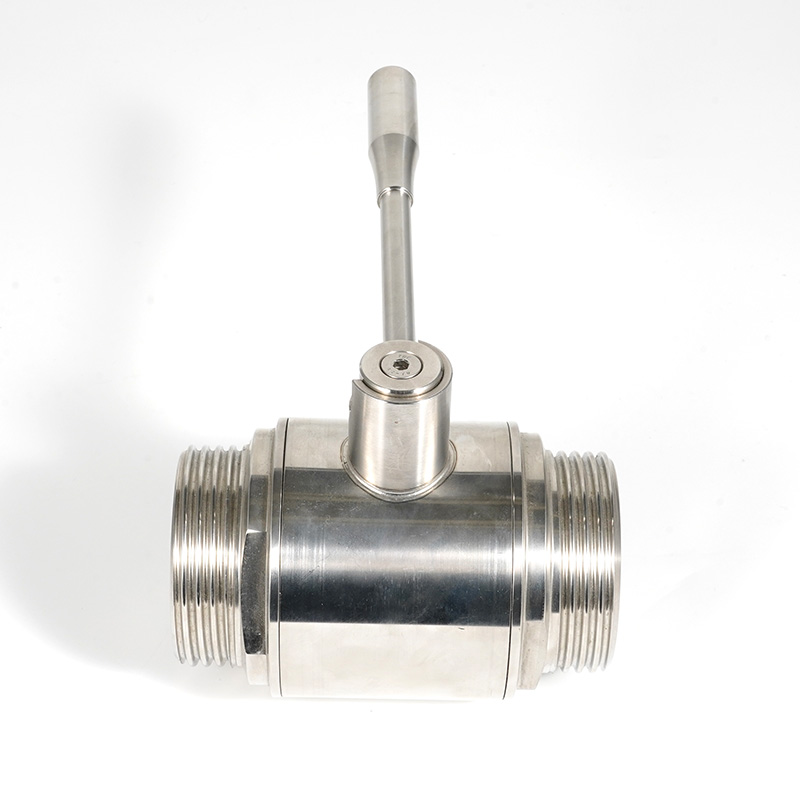

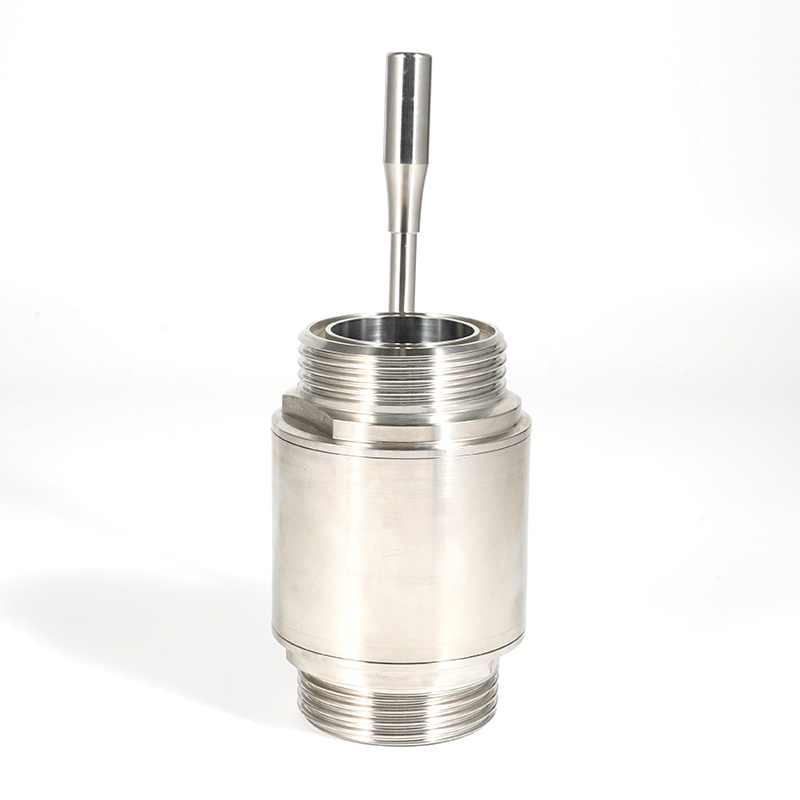

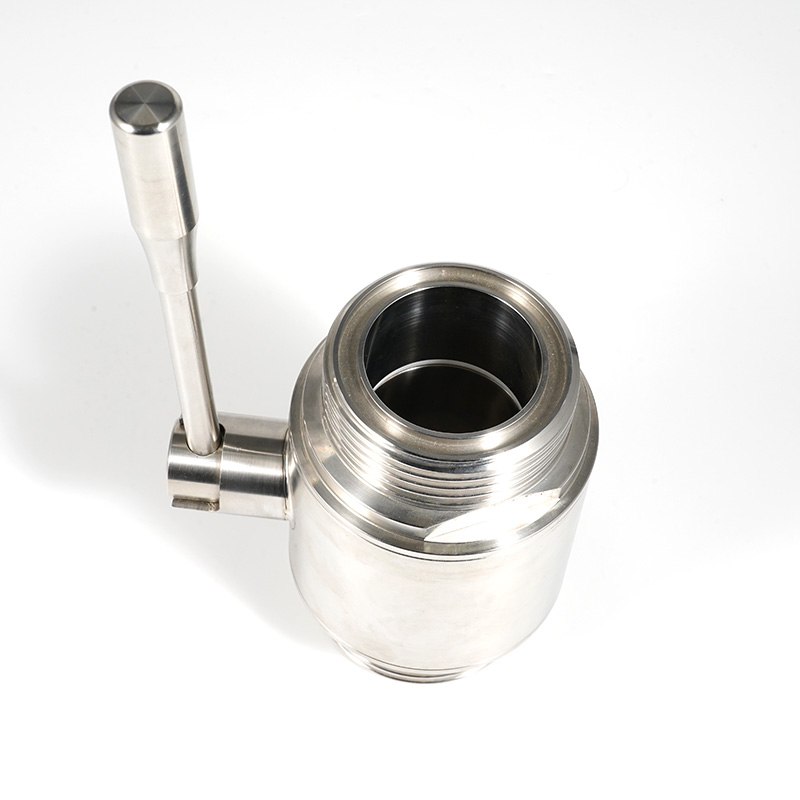

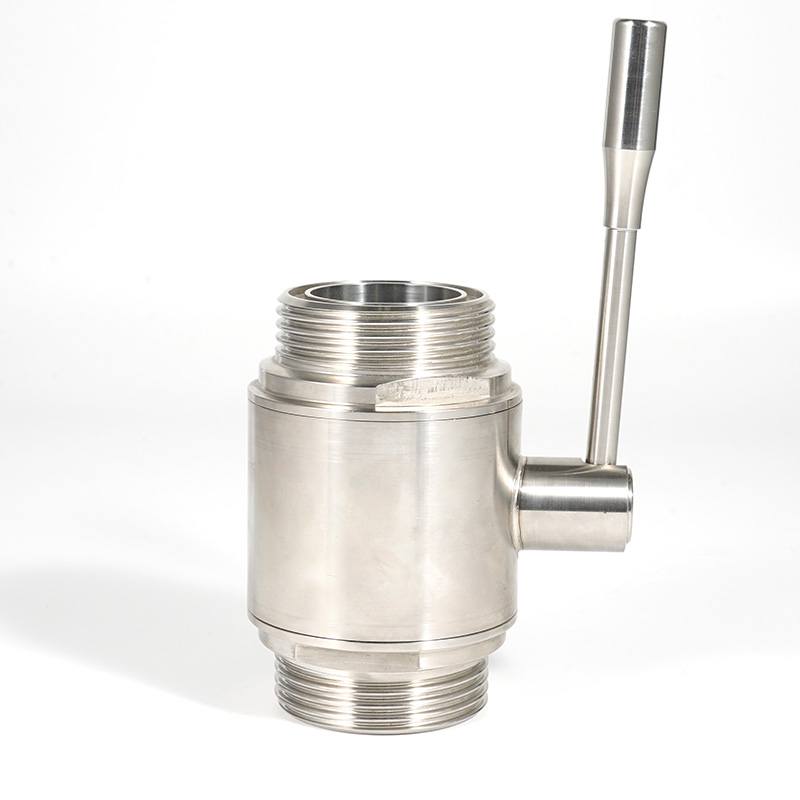

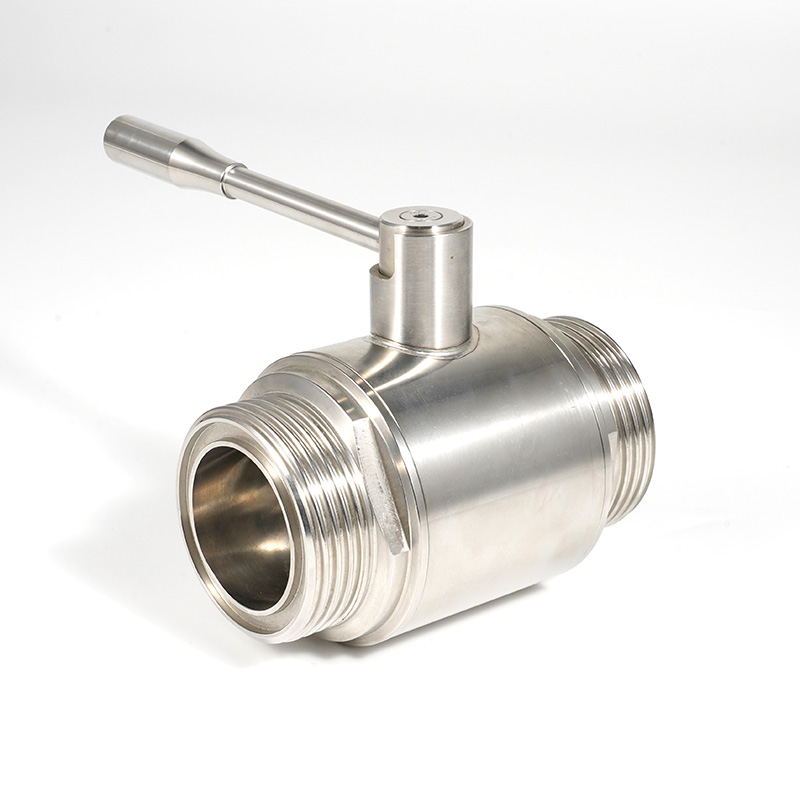

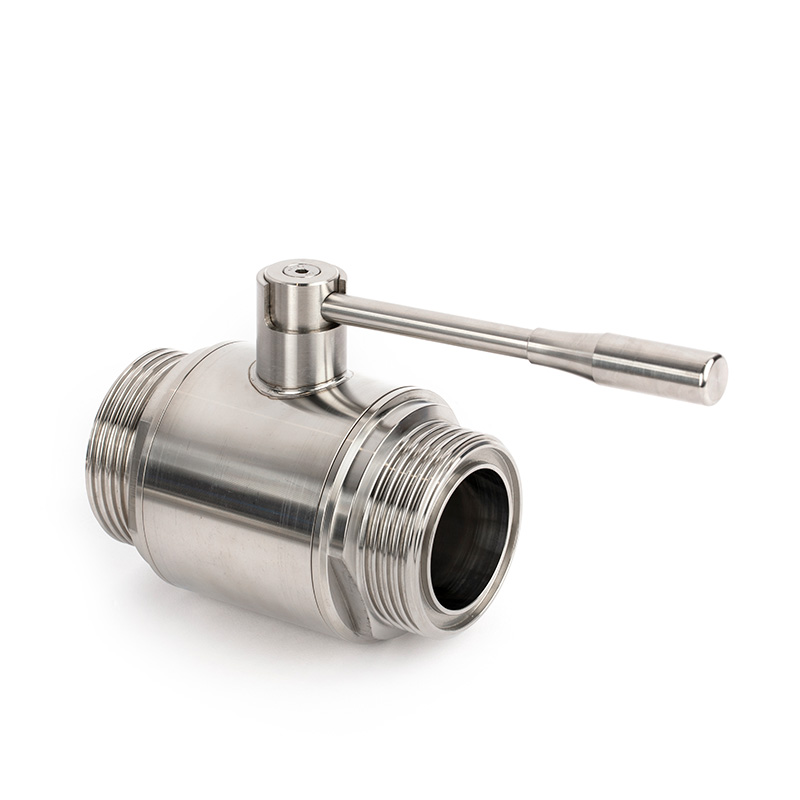

VFM Sanitary Manual Male Encapsulated Direct Way Ball Valve SS304 SS316L Stainless Steel with PTFE Gasket 3A/SMS/DIN Ball Valve

Application

VFM series with full encapsulated or cavity filled withPTFE, it is a sanitary ball valve with weld/ tri clamp /Male ends, which is extensively used in food & beverageprocessing, brewing, oil refinery, cosmetic,pharmaceutical, and chemical industries to controlmedium flow.

Materials

Materials: AISI-304

Size: 3/4''

Seal Material: Silicon,EPDM,PTFE

Design Features

• Free of maintenance

• Compact and portable

• Small operating torque

• Gasket complies with PTFE FDA 177.2600

• Handle level can be installed on the side of the valve body,no matter of the flow direction

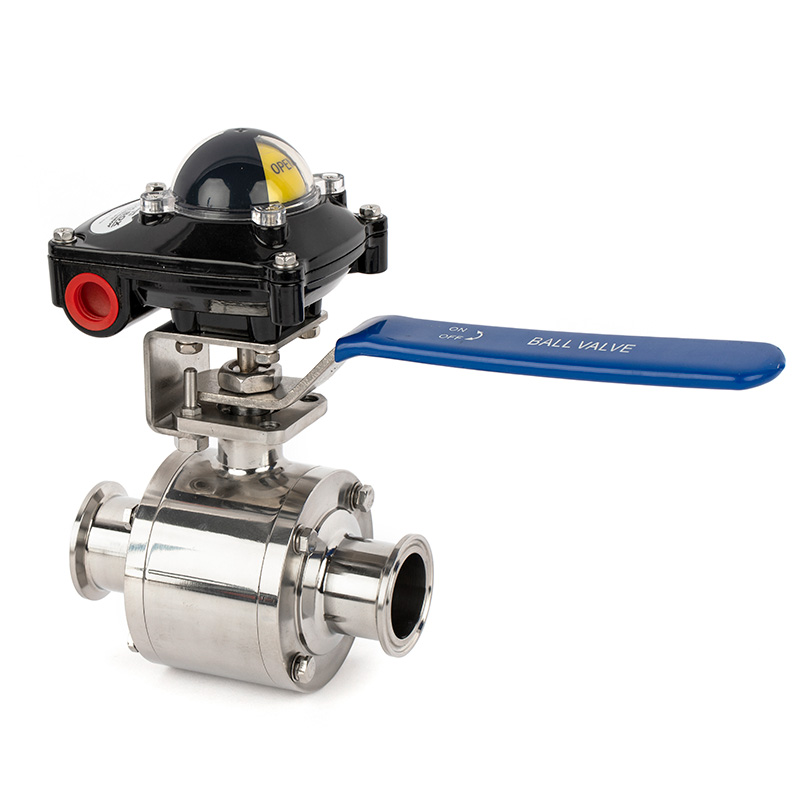

• It can be match with pneumatic and electric actuators

• Valve Type: One piece, Two piece, Three-piece, Butterfly ball type

• Cores Type: T type,L type,Direct type

• Material :AISI304,316L

Technical Specification

• Sizes available: 1/2" -4" , DN15-DN100

• Max. pressure: 10bar (147psi)

• Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

• End connections: sanitary clamp, butt-welded, threaded, flange, I-line or others upon request

• Inside polish: Ra 32μin (0.8μm); Outside polish: CNC machining

• Supply pressure for air actuator: 70 ~ 115psi

Weld Direct Way Ball Valve

	Model No	Size	D	Dn	L	H	H1
	VFM01WH1SX51050NN	1/2"	12.7	9.4	76	103	43.5
	VFM01WH1SX51075NN	3/4"	19.1	15.8	76	103	47.5
	VFM01WH1SX51100NN	1"	25.4	22.1	100	127	57
	VFM01WH1SX51150NN	1 1/2"	38.1	34.8	115	127	64.5
	VFM01WH1SX51200NN	2"	50.8	47.5	134	154	86
	VFM01WH1SX51250NN	2 1/2"	63.5	60.2	155	170	98
	VFM01WH1SX51300NN	3"	76.2	72.9	168	257	146
	VFM01WH1SX51400NN	4"	101.6	97.6	222	257	127
	VFM01WH1SX52015NN	DN15	18	15	76	87	47.5
	VFM01WH1SX52020NN	DN20	22	19	76	103	47.5
	VFM01WH1SX52025NN	DN25	28	25	100	127	57
	VFM01WH1SX52040NN	DN40	41	38	115	127	64.5
	VFM01WH1SX52050NN	DN50	52	49	134	154	86
	VFM01WH1SX52065NN	DN65	70	66	155	170	98
	VFM01WH1SX52080NN	DN80	85	81	168	257	127
	VFM01WH1SX52100NN	DN100	104	100	222	257	146

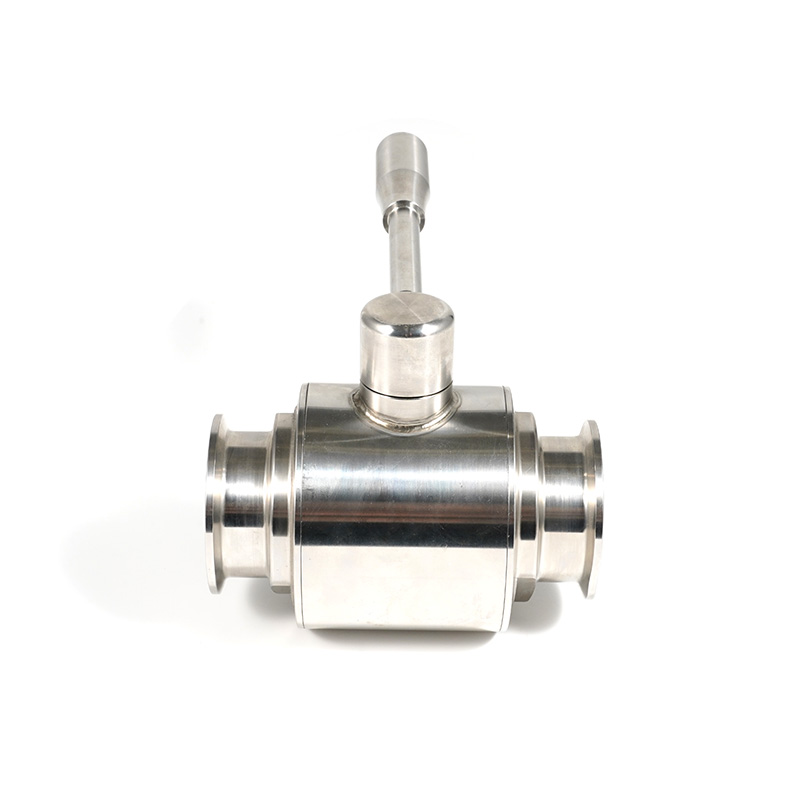

Tri Clamp Direct Way Ball Valve

	Model No	Size	D	Dn	L	H	H1
	VFM01CH1SX51050NN	1/2"	25.2	9.4	76	103	43.5
	VFM01CH1SX51075NN	3/4"	25.2	15.8	76	103	47.5
	VFM01CH1SX51100NN	1"	50.5	22.1	100	127	57
	VFM01CH1SX51150NN	1 1/2"	50.5	34.8	115	127	64.5
	VFM01CH1SX51200NN	2"	64	47.5	134	154	86
	VFM01CH1SX51250NN	2 1/2"	77.5	60.2	155	170	98
	VFM01CH1SX51300NN	3"	91	72.9	168	257	146
	VFM01CH1SX51400NN	4"	119	97.6	222	257	127
	VFM01CH1SX52015NN	DN15	34	15	76	87	47.5
	VFM01CH1SX52020NN	DN20	34	19	76	103	47.5
	VFM01CH1SX52025NN	DN25	50.5	25	100	127	57
	VFM01CH1SX52040NN	DN40	50.5	38	115	127	64.5
	VFM01CH1SX52050NN	DN50	64	49	134	154	86
	VFM01CH1SX52065NN	DN65	91	66	155	170	98
	VFM01CH1SX52080NN	DN80	106	81	168	257	127
	VFM01CH1SX52100NN	DN100	119	100	222	257	146

DIN Male Thread Direct Way Ball Valve

	Model No	Size	G/RD	Dn	L	H	H1
	VFM01MH1SX52010NN	DN10	RD28*1/8	10	76	103	43.5
	VFM01MH1SX52015NN	DN15	RD34*1/8	15	76	103	47.5
	VFM01MH1SX52020NN	DN20	RD44*1/6	19	76	103	47.5
	VFM01MH1SX52025NN	DN25	RD52*1/6	25	100	127	57
	VFM01MH1SX52040NN	DN40	RD65*1/6	38	115	127	64.5
	VFM01MH1SX52050NN	DN50	RD78*1/6	49	134	154	86
	VFM01MH1SX52065NN	DN65	RD95*1/6	66	155	170	98
	VFM01MH1SX52080NN	DN80	RD110*1/4	81	168	257	127
	VFM01MH1SX52100NN	DN100	RD130*1/4	100	222	257	146

SMS Male Thread Direct Way Ball Valve

	Model No	Size	G/RD	Dn	L	H	H1
	VFM01MH1SX53050NN	1/2"	RD28*1/8	9.4	76	103	43.5
	VFM01MH1SX53075NN	3/4"	RD36*1/8	15.8	76	103	47.5
	VFM01MH1SX53100NN	1"	RD40*1/6	22.1	100	127	57
	VFM01MH1SX53150NN	1 1/2"	RD60*1/6	34.8	115	127	64.5
	VFM01MH1SX53200NN	2"	RD70*1/6	47.5	134	154	86
	VFM01MH1SX53250NN	2 1/2"	RD85*1/6	60	155	170	98
	VFM01MH1SX53300NN	3"	RD98*1/4	72.9	168	257	127
	VFM01MH1SX53400NN	4"	RD125*1/4	97.6	222	257	146
