VFC Series 3-way Stainless Steel ball valves are used in situations where tight shut off is necessary. Providing superior ease of operation, these ball valves can maintain and regulate high volume, high pressure and high temperature flow. They offer rugged construction, providing for a long service life and comparably low cost.
Material: SS304 or SS316L
Seat Gasket: PTFE
Operating pressure: Max.1000kPa(10 Bar)/145 psi
Temperature range: -20°C to 150°C
Actuator
Air pressure: 4-7 Bar
Temperature range: -25°C to 120°C
· Fully encapsulated or cavity filled with PTFE
· Lockable Handle
· ISO 5211 Mount Pad
· High pressure applications
· Full port design (½ - 3") offers lower pressure drop and a less turbulent flow
· Precision stainless steel balls reduce torque and friction losses while extending seat life
· L port or T port Ball Core
· Max. operating Pressure: 3000kPa(30Bar)/435psi
· Connection: Weld, Tri Clamp, Male
· Stanard: 3A, SMS, DIN
· Operating : Manual, Pneumatic Actuator, Electric Actuator
· Control: Valve positioning, 0/4… 20mA
Position sensor,PNP or NPN
Top control unit
 |

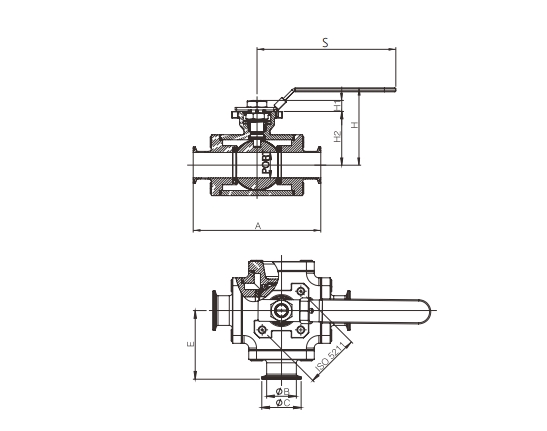

Model No | Size | A | B | C | E | H | S | ISO5211 | |
| VFC22H1TEX51050NN | DN15 | 110 | 18 | 34 | 73.7 | 89.0 | 186.5 | F04 | ||
| VFC22H1TEX51075NN | DN20 | 110 | 22 | 34 | 77.9 | 98.0 | 218.0 | F05 | ||
| VFC22H1TEX51100NN | DN25 | 130 | 25 | 50.5 | 84.4 | 102.0 | 218.0 | F05 | ||
| VFC22H1TEX51125NN | DN32 | 130 | 32 | 50.5 | 98.95 | 118.5 | 135.0 | F05 | F07 | |
| VFC22H1TEX51150NN | DN40 | 175 | 38 | 50.5 | 110.7 | 127.0 | 135.0 | F05 | F07 | |
| VFC22H1TEX51200NN | DN50 | 220 | 50 | 64 | 122.3 | 139.0 | 252.0 | F07 | F10 | |
| VFC22H1TEX51250NN | DN65 | 240 | 65 | 77.5 | 135.0 | 165.7 | 252.0 | F07 | F10 | |
| VFC22H1TEX51300NN | DN80 | 290 | 80 | 106 | 146.1 | 170.0 | 252.0 | F07 | F10 | |
| VFC22H1TEX51400NN | DN100 | 330 | 100 | 119 | 164.0 | 193.0 | 600.0 | F07 | F10 | |

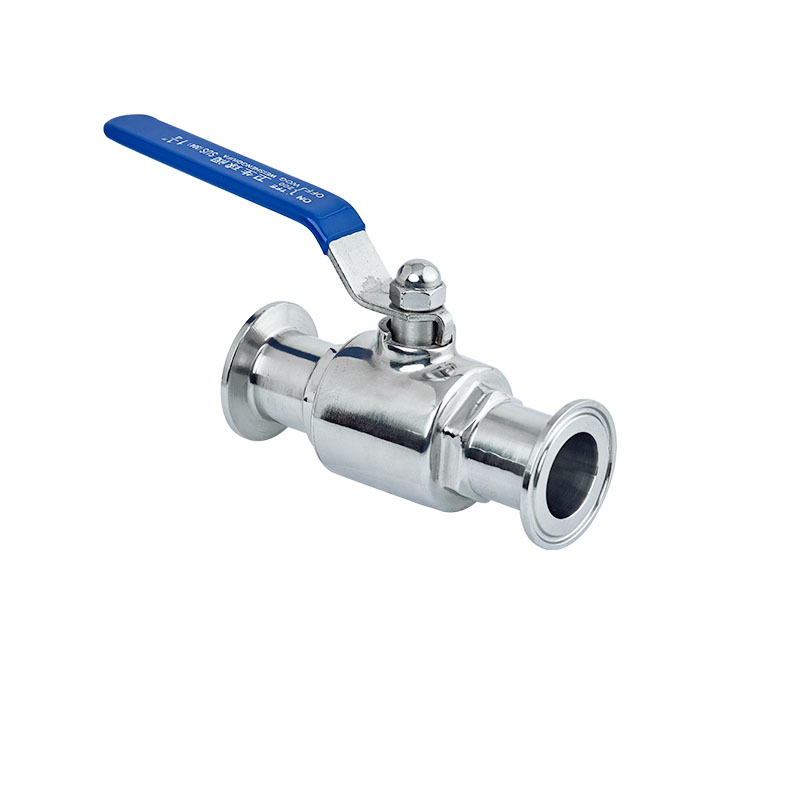

VFM series ball valves are used to transfer controlling the materials. Which extensively use to food,beve...
