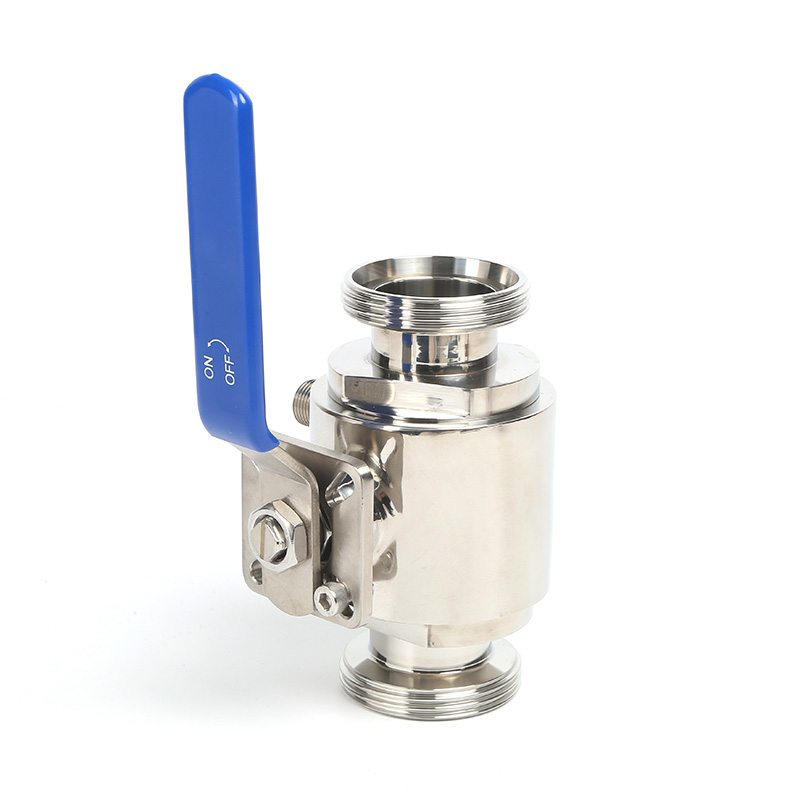

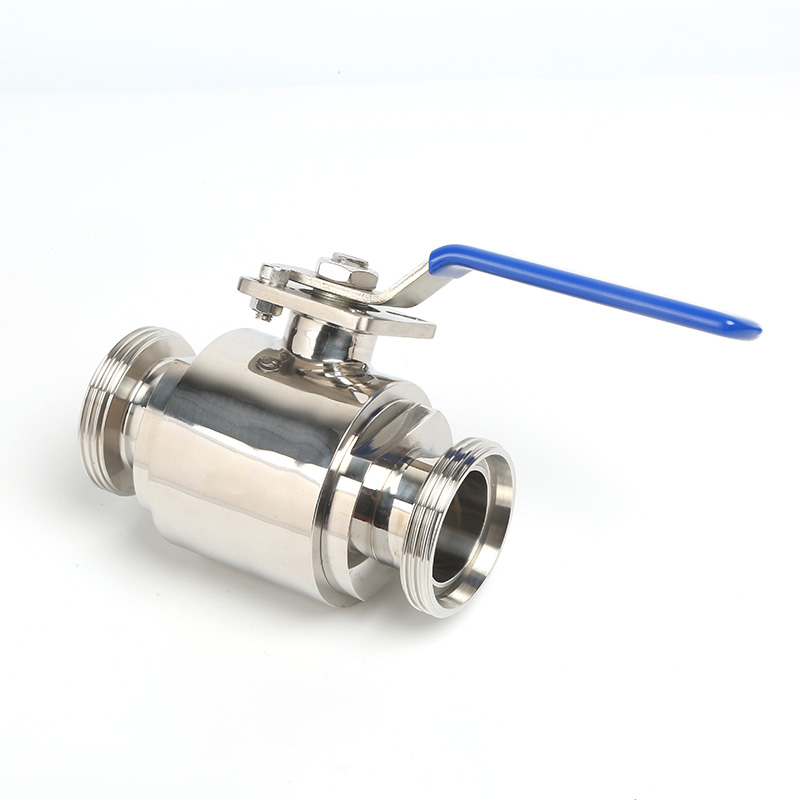

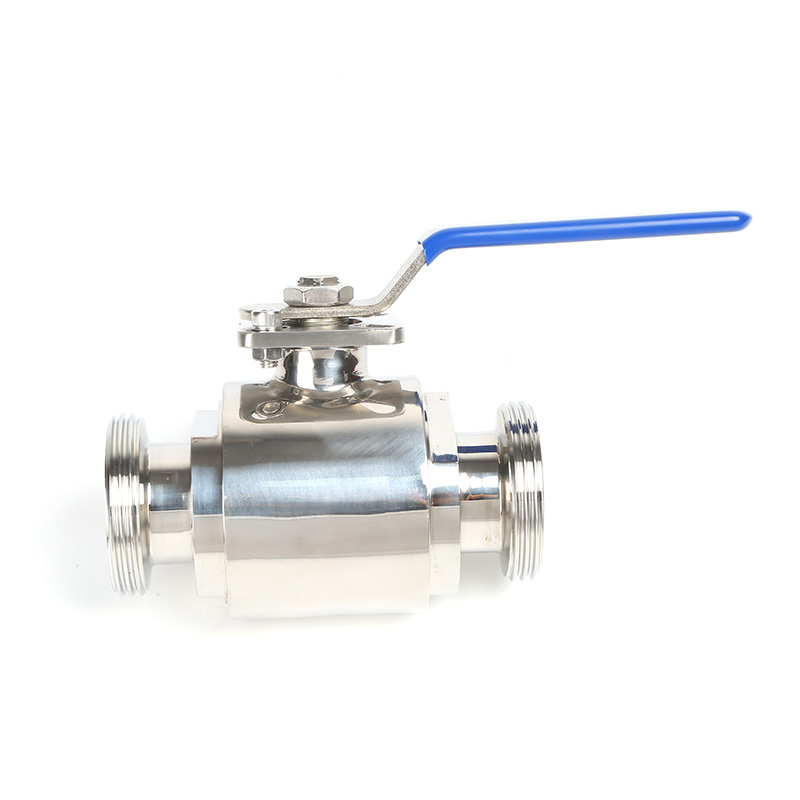

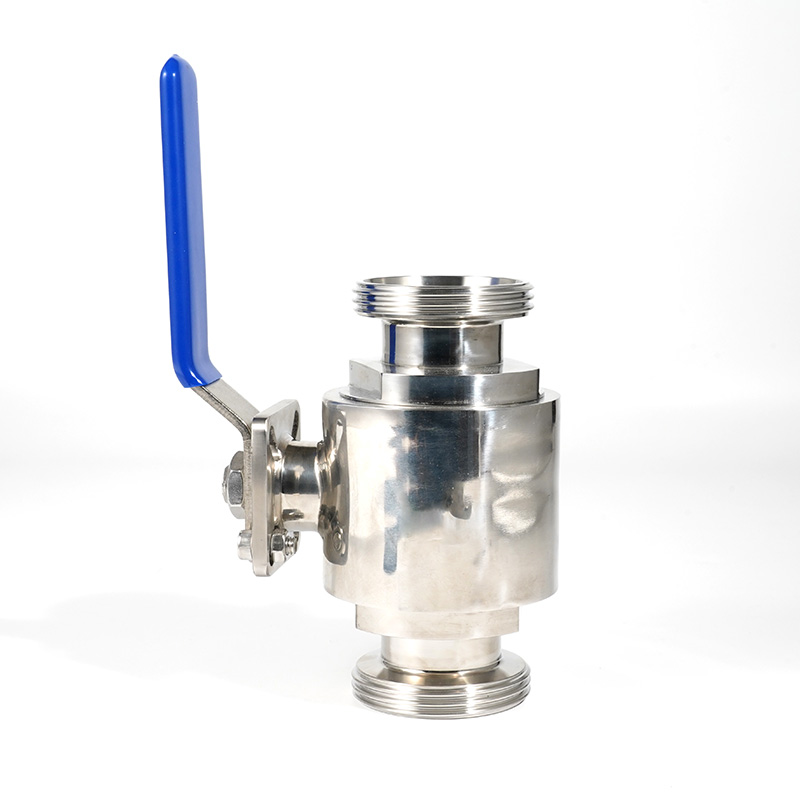

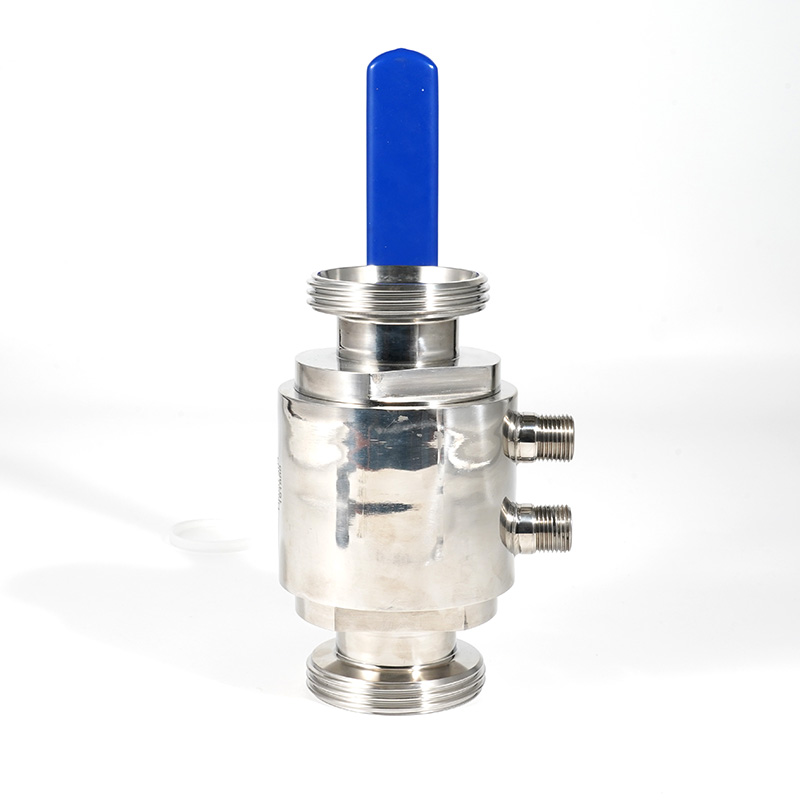

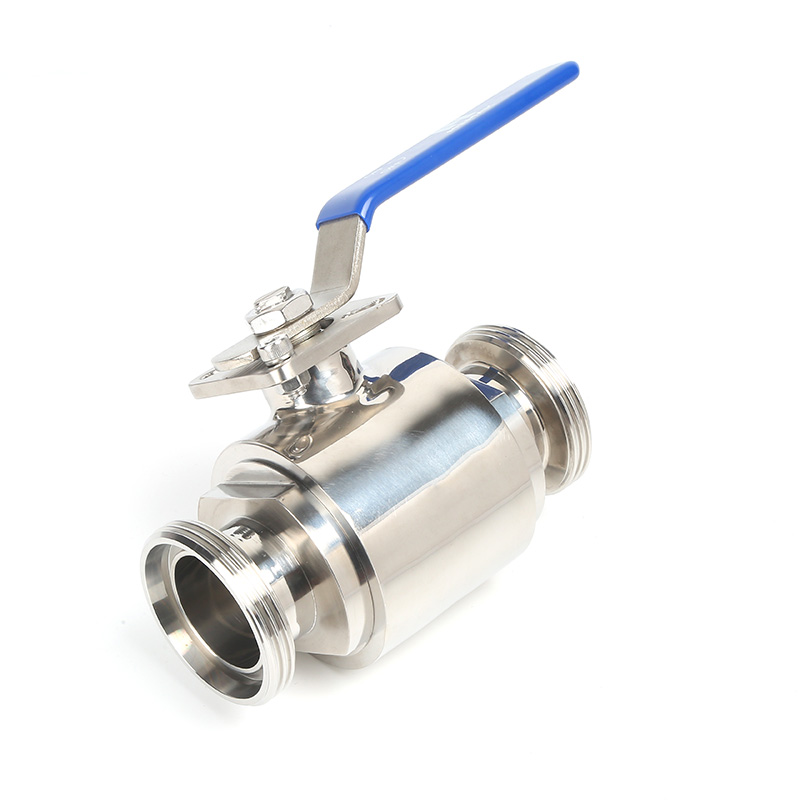

Sanitary SS316 Stainless Steel Insulated Ball Valve With a platform Handle 1/2"-2" or DN15-DN50 Union Chocolate Ball Valve With Heating Jacket

Product Overview

Sanitary ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. Stainless steel two-piece ball valve and three-piece ball valve are a new type of valve that has been widely used in recent years. Such valves are generally installed horizontally. The sanitary stainless steel thermal insulation ball valve has good thermal insulation and cold preservation characteristics, and the valve diameter is the same as the pipe diameter, and at the same time, it can effectively reduce the heat loss of the medium in the pipeline. Mainly used in petroleum, chemical, metallurgy, pharmaceutical, food and other systems to transport high-viscosity media that solidify at room temperature

FEATURES AT A GLANCE

Sanitary stainless steel heating jacket ball valve is a relatively new type of ball valve, which has some advantages unique to its own structure, such as frictionless switch, non-wearing seal, and small opening and closing torque. This can reduce the size of the actuator. Equipped with a multi-turn electric actuator, it can realize the adjustment and close shut-off of the medium.

Stainless steel heat jacketed ball valve has good heat preservation and cold preservation characteristics, and the valve diameter is consistent with the pipe diameter, and at the same time, it can effectively reduce the heat loss of the medium in the pipeline. Mainly used in petroleum, chemical, metallurgy, pharmaceutical, food and other systems to transport high-viscosity media that solidify at room temperature.
