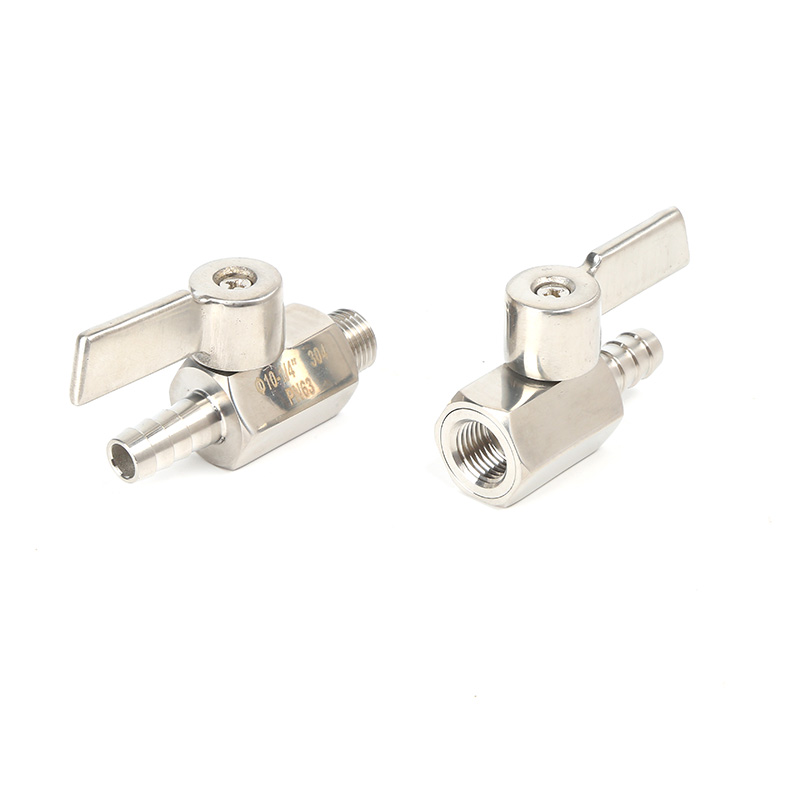

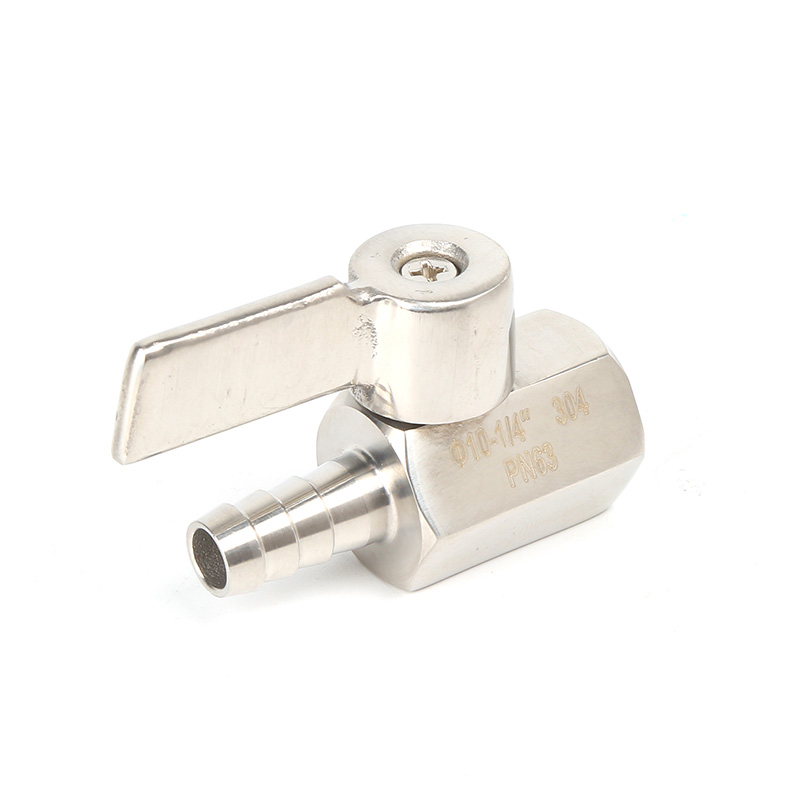

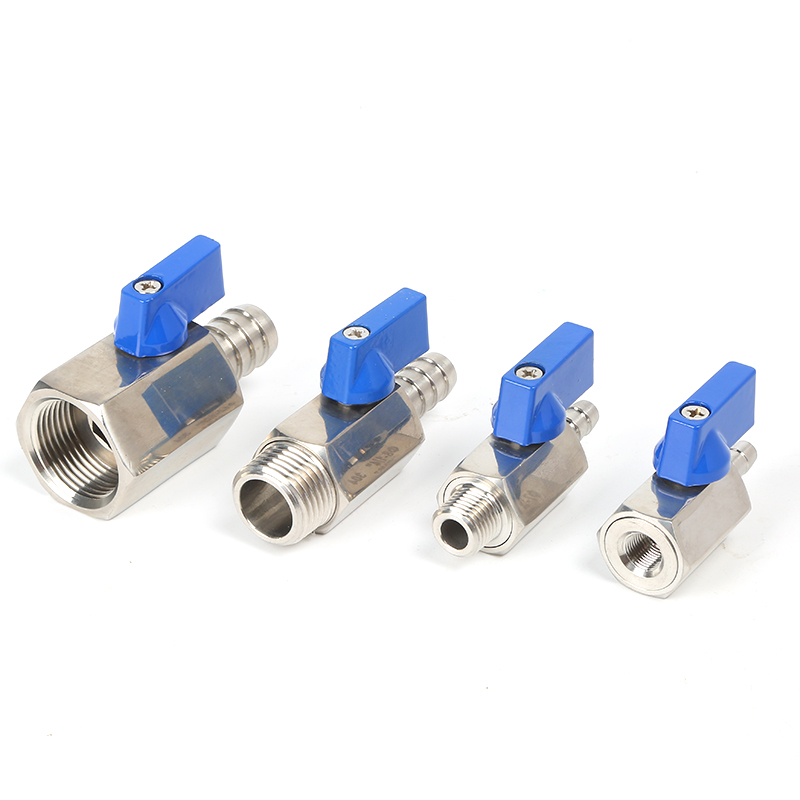

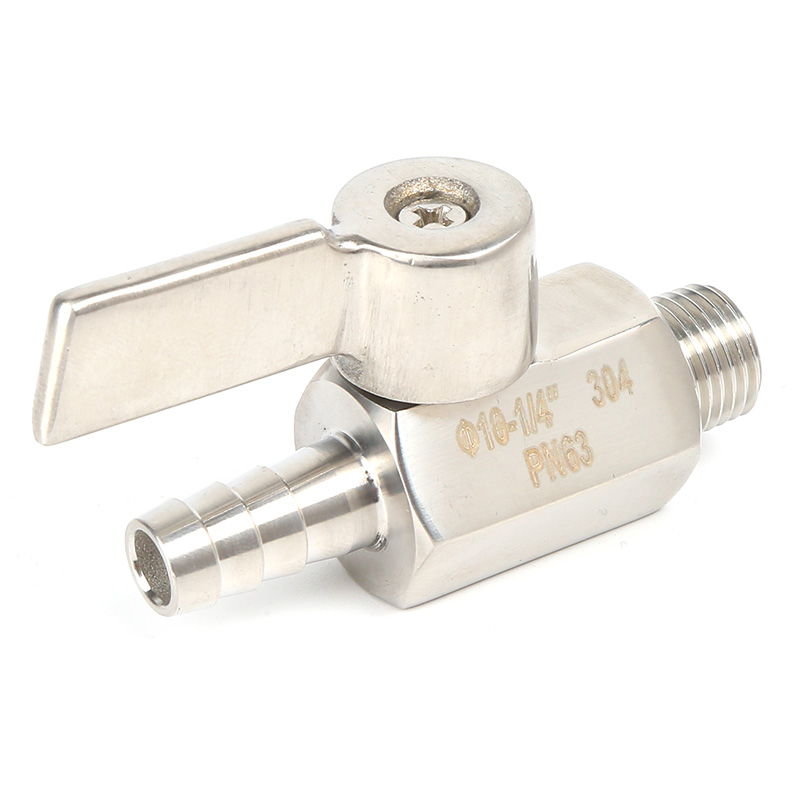

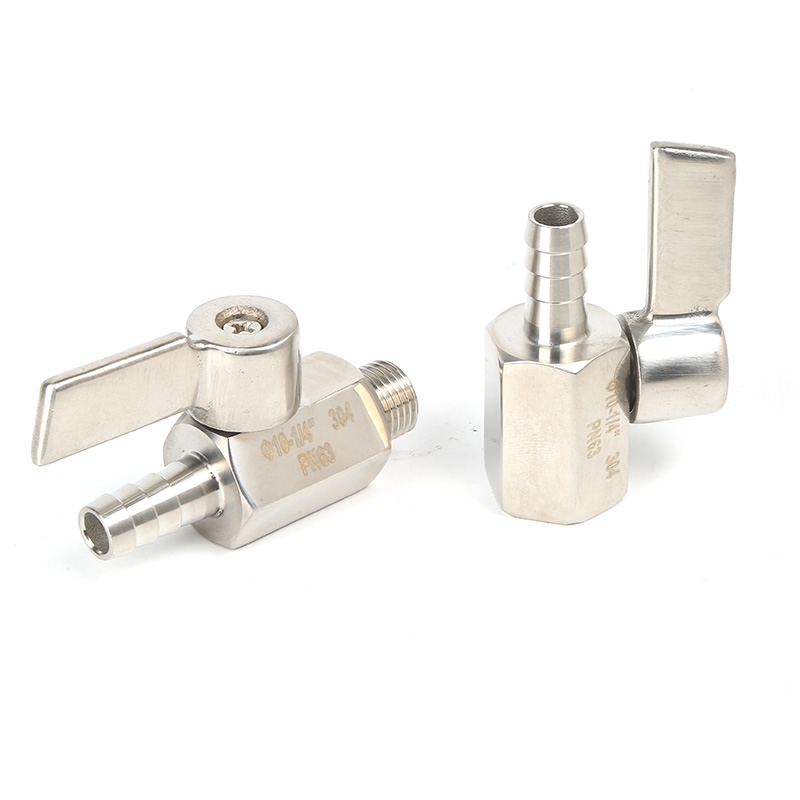

VFI Mini Ball Valve Female/Male X Hose SS304/SS316L Stainless Steel Handle Two Way Ball Valve Sanitary BSPT/NPT 1/8"-1" to 6-20mm

Application

VFI Series mini ball valve is made of stainless steel , and has a lever handle for on/off manual control. It is suitable for use in air, water, or inert gas applications.

Features

*Thread ends M-F according to ISO 7-1 (EN 10226-1),ASME B1.20.1, BS21.0, DIN2999/259, ISO228-1, JIS B0203

*Reduced bore

*External mirror or Satin polished.

*Painted Aluminium handle.

Technical Specification

Material: CF8 or CF8M

Seat Gasket: PTFE or on request

Operating Pressure: Max. 16 Bar (PN16)

Emperature Range: -20°C to 110°C

Max. pressure: 10Bar (DN15-DN65/ 1/2"-21/2")

                         8Bar (DN80-DN100/ 3"-4")

Working temperature:  -20℃ to + 150℃ (PTFE)

Female x Female Mini Ball Valve (NPT)

	Model No	Size	D	H	W	L
	VFI44H1SX52013NN	1/8"	7	26.5	22.8	42
	VFI44H1SX52025NN	1/4"	7	26.5	22.8	42
	VFI44H1SX52038NN	3/8"	7	26.5	22.8	42
	VFI44H1SX52050NN	1/2"	9.2	28.3	22.8	46
	VFI44H1SX52075NN	3/4"	12.5	31.5	22.8	54
	VFI44H1SX52100NN	1"	15	34	22.8	65

Male x Female Mini Ball Valve (NPT)

	Model No	Size	D	H	W	L
	VFI34H1X52013NN	1/8"	7	26.5	22.8	40
	VFI34H1X52025NN	1/4"	7	26.5	22.8	40
	VFI34H1X52038NN	3/8"	7	26.5	22.8	40
	VFI34H1X52050NN	1/2"	9.2	28.3	22.8	46
	VFI34H1X52075NN	3/4"	12.5	31.5	22.8	54
	VFI34H1X52100NN	1"	15	34	22.8	65

Male x Male Mini Ball Valve (NPT)

	Model No	Size	D	H	W	L
	VFI33H1X52013NN	1/8"	5(7)	26.5	21	50
	VFI33H1X52025NN	1/4"	7	26.5	21	50
	VFI33H1X52038NN	3/8"	7	26.5	21	50
	VFI33H1X52050NN	1/2"	9.2	29	24.5	58
	VFI33H1X52075NN	3/4"	12.5	32	31	71
	VFI33H1X52100NN	1"	15	35	36	83
