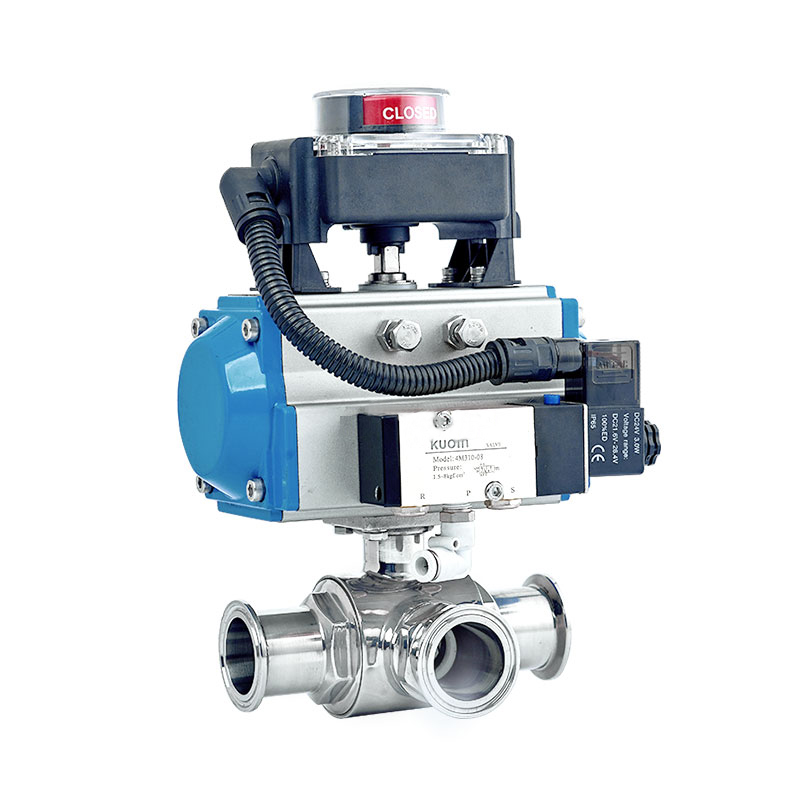

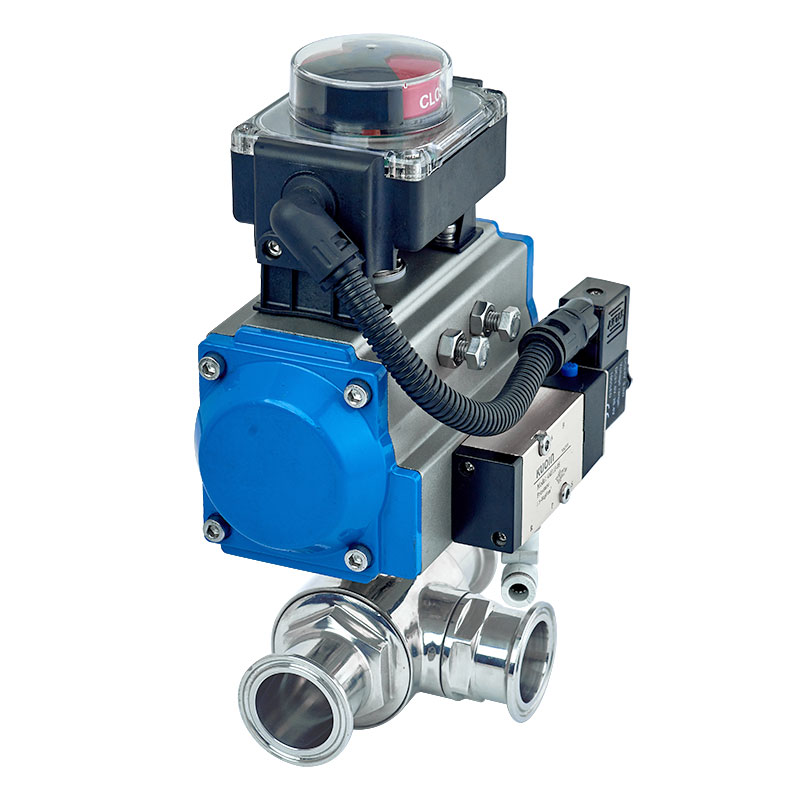

Sanitary SS304/SS316L Stainless Steel Pneumatic Electric 3 Way Ball Valve Clamp/Male Ball Valve

Model No.:VFT01

SKU:VFT01

End Connections:

Operation:

Ball Core:

Materials:

Gasket Material:

Size.:

Solenoid valve:

Limit Switch Box:

Application

VFT Three Way Sanitary Ball Valve has a full port design to reduce turbulence and pressure drop through the valve. The hygienic design is widely used in the field of food processing, beverages, fruit juices, wine. There are 2 ball cores: L-Port and T-Port.

Technical Specification

Material: SS304 or SS316L

Seat Gasket: PTFE

Operating pressure: Max. 800kPa(8 bar)/ 115 psi

Temperature range: -10°C to 120°C

Actuator

Air pressure: 4-7 Bar

Temperature range: -25°C to 120°C

Standard Design

· Connection: Tri Clamp, Male

· Stanard: 3A, SMS, DIN

· Ball Core: T port or L Port

· Operating : Manual, Pneumatic Actuator, Electric Actuator with or without position sensor and solenoid valve

Tri Clamp 3-Way Ball Valve

Model No	Size	A	B	D	H	L
VFT22H1TX51075NN	3/4''	101	55	25.2	55	120
VFT22H1TX51100NN	1''	120	61	50.5	55	132
VFT22H1TX51125NN	1 1/4''	130	60.5	50.5	60	136
VFT22H1TX51150NN	1 1/2''	153	73	50.5	65	160
VFT22H1TX51200NN	2''	164	84	64	65	178
VFT22H1TX51250NN	2 1/2''	200	101	77.5	100	225
VFT22H1TX51300NN	3''	210	105	91	110	250
VFT22H1TX51400NN	4''	260	132	119	140	300
VFT22H1TX52020NN	DN20	101	55	34	55	120
VFT22H1TX52025NN	DN25	120	61	50.5	55	132
VFT22H1TX52032NN	DN32	130	60.5	50.5	60	136
VFT22H1TX52040NN	DN40	153	73	50.5	65	160
VFT22H1TX52050NN	DN50	164	84	64	65	178
VFT22H1TX52065NN	DN65	200	101	91	100	225
VFT22H1TX52080NN	DN80	210	105	106	110	250
VFT22H1TX52100NN	DN100	260	132	119	140	300
