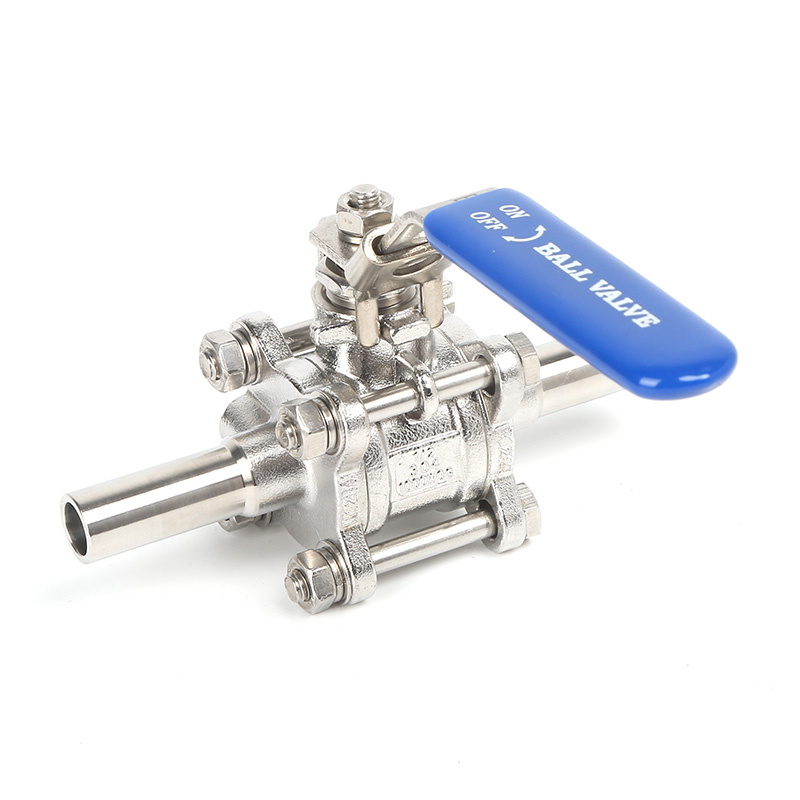

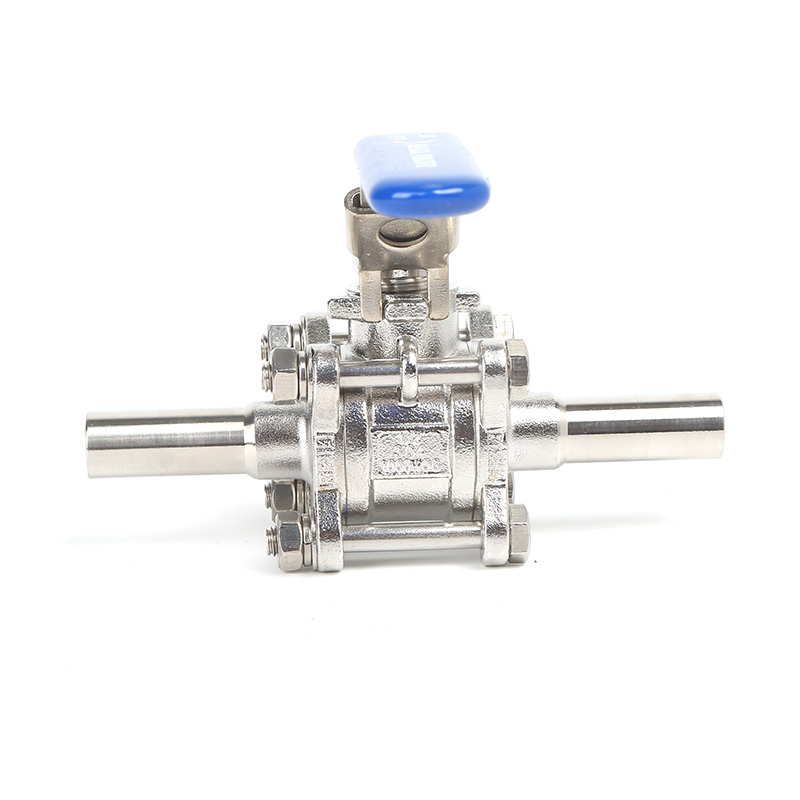

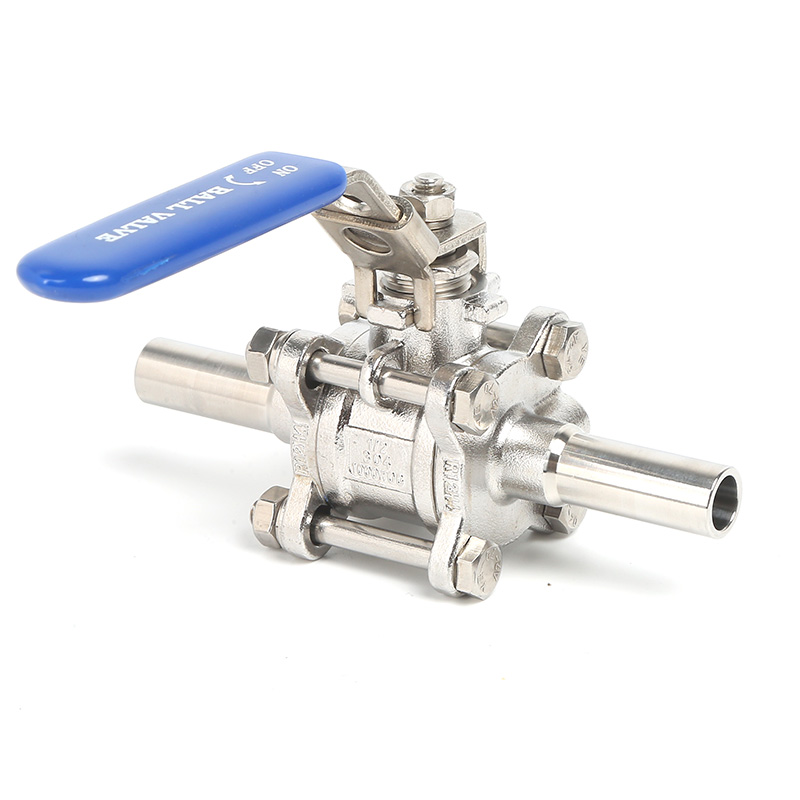

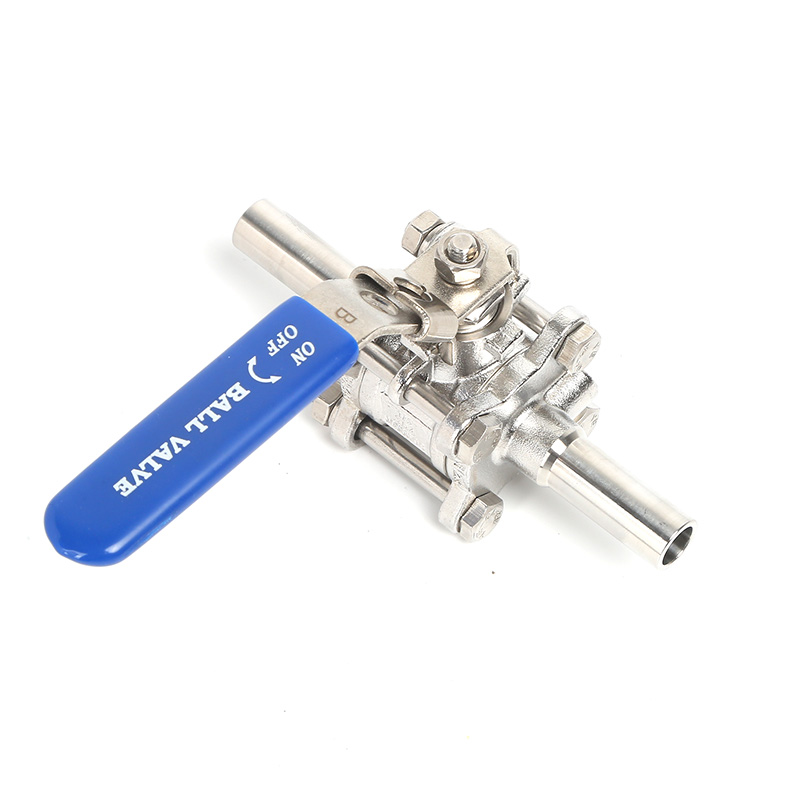

VFP SS304/SS316L Stainless Steel Manual Ball Valve Extension Pipe Three-Piece Butt-Welded Wholesome Pharmaceuticals Automatic Sanitary Valves

Application

VFP series is a manual type sanitary 3-pc ball valve with Encapsulated PTFE seat, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic,  pharmaceutical, and chemical industries to control medium flow. The Encapsulated PTFE seat design with no residue makes it an optimum choice for sanitary needs.

Materials

Valve body: CF8 or CF8M

Valve seat: Encapsulated PTFE

Design Features

·Full port design

·Balanced encapsulated construction minimizes cold flow

·Precision stainless steel balls reduce torque and friction  losses while extending sat life

·Lockable handle can prevent accidental actuation

·Integral ISO 5211 mounting pad

·Sizes are available from 1/2"/DN15 to 4"/DN100

·Connection: Welding, Clamp, Male or others upon request.

Technical Specification

Max. pressure: 10Bar (DN15-DN65/ 1/2"-21/2")

8Bar (DN80-DN100/ 3"-4")

Working temperature: -20℃ to + 150℃ (PTFE)

Weld Encapsulated Three Pieces Ball Valve

	Model No	Size	D	Dn	L	K	H
	VFP11P2EX51050NN	1/2''	12.7	9.4	89	130	38
	VFP11P2EX51075NN	3/4‘’	19.1	15.8	101	130	42.5
	VFP11P2EX51100NN	1‘’	25.4	22.1	114	165	52.5
	VFP11P2EX51125NN	1 1/4‘’	31.8	28.5	122	165	58.5
	VFP11P2EX51150NN	1 1/2‘’	38.1	34.8	140	215	73
	VFP11P2EX51200NN	2‘’	50.8	47.5	156	215	78.5
	VFP11P2EX51250NN	2 1/2‘’	63.5	60.2	197	215	95
	VFP11P2EX51300NN	3‘’	76.2	72.9	229	320	110.5
	VFP11P2EX51400NN	4‘’	101.6	97.6	242	320	122.5
	VFP11P2EX52010NN	DN10	13	10	89	130	38
	VFP11P2EX52015NN	DN15	18	15	101	130	42.5
	VFP11P2EX52020NN	DN20	22	19	114	165	52.5
	VFP11P2EX52025NN	DN25	28	25	122	165	58.5
	VFP11P2EX52040NN	DN40	41	38	140	215	73
	VFP11P2EX52050NN	DN50	52	49	156	215	78.5
	VFP11P2EX52065NN	DN65	70	66	197	215	95
	VFP11P2EX52080NN	DN80	85	81	229	320	110.5
	VFP11P2EX52100NN	DN100	104	100	242	320	122.5

Clamp Encapsulated Three Pieces Ball Valve

	Model No	Size	D	Dn	L	K	H
	VFP22P2EX51050NN	1/2''	25.2	9.4	89	130	38
	VFP22P2EX51075NN	3/4‘’	25.2	15.8	101	130	42.5
	VFP22P2EX51100NN	1‘’	50.5	22.1	114	165	52.5
	VFP22P2EX51125NN	1 1/4‘’	50.5	28.5	122	165	58.5
	VFP22P2EX51150NN	1 1/2‘’	50.5	34.8	140	215	73
	VFP22P2EX51200NN	2‘’	64	47.5	156	215	78.5
	VFP22P2EX51250NN	2 1/2‘’	77.5	60.2	197	215	95
	VFP22P2EX51300NN	3‘’	91	72.9	229	320	110.5
	VFP22P2EX51400NN	4‘’	119	97.6	242	320	122.5
	VFP22P2EX52010NN	DN10	34	10	89	130	38
	VFP22P2EX52015NN	DN15	34	15	101	130	42.5
	VFP22P2EX52020NN	DN20	34	19	114	165	52.5
	VFP22P2EX52025NN	DN25	50.5	25	122	165	58.5
	VFP22P2EX52040NN	DN40	50.5	38	140	215	73
	VFP22P2EX52050NN	DN50	64	49	156	215	78.5
	VFP22P2EX52065NN	DN65	91	66	197	215	95
	VFP22P2EX52080NN	DN80	106	81	229	320	110.5
	VFP22P2EX52100NN	DN100	119	100	242	320	122.5

Pneumatic Weld Three-Pieces Ball Valve

	Model No	Size	D	Dn	L	H
	VFP11ACEX51050NN	1/2''	18	15	93	40.3
	VFP11ACEX51075NN	3/4''	22	19	103.5	42.3
	VFP11ACEX51100NN	1''	28	25	110	53.4
	VFP11ACEX51125NN	1 1/4''	34	31	120	58.4
	VFP11ACEX51150NN	1 1/2''	40	37	129	70.8
	VFP11ACEX51200NN	2''	52	49	145	77.8

Pneumatic Clamp Three Pieces Ball Valve

	Model No	Size	D	Dn	L	H
	VFP22ACEX51050NN	1/2''	34	15	93	40.3
	VFP22ACEX51075NN	3/4''	50.5	19	103.5	42.3
	VFP22ACEX51100NN	1''	50.5	25	110	53.4
	VFP22ACEX51125NN	1 1/4''	50.5	31	120	58.4
	VFP22ACEX51150NN	1 1/2''	50.5	37	129	70.8
	VFP22ACEX51200NN	2''	64	49	145	77.8
