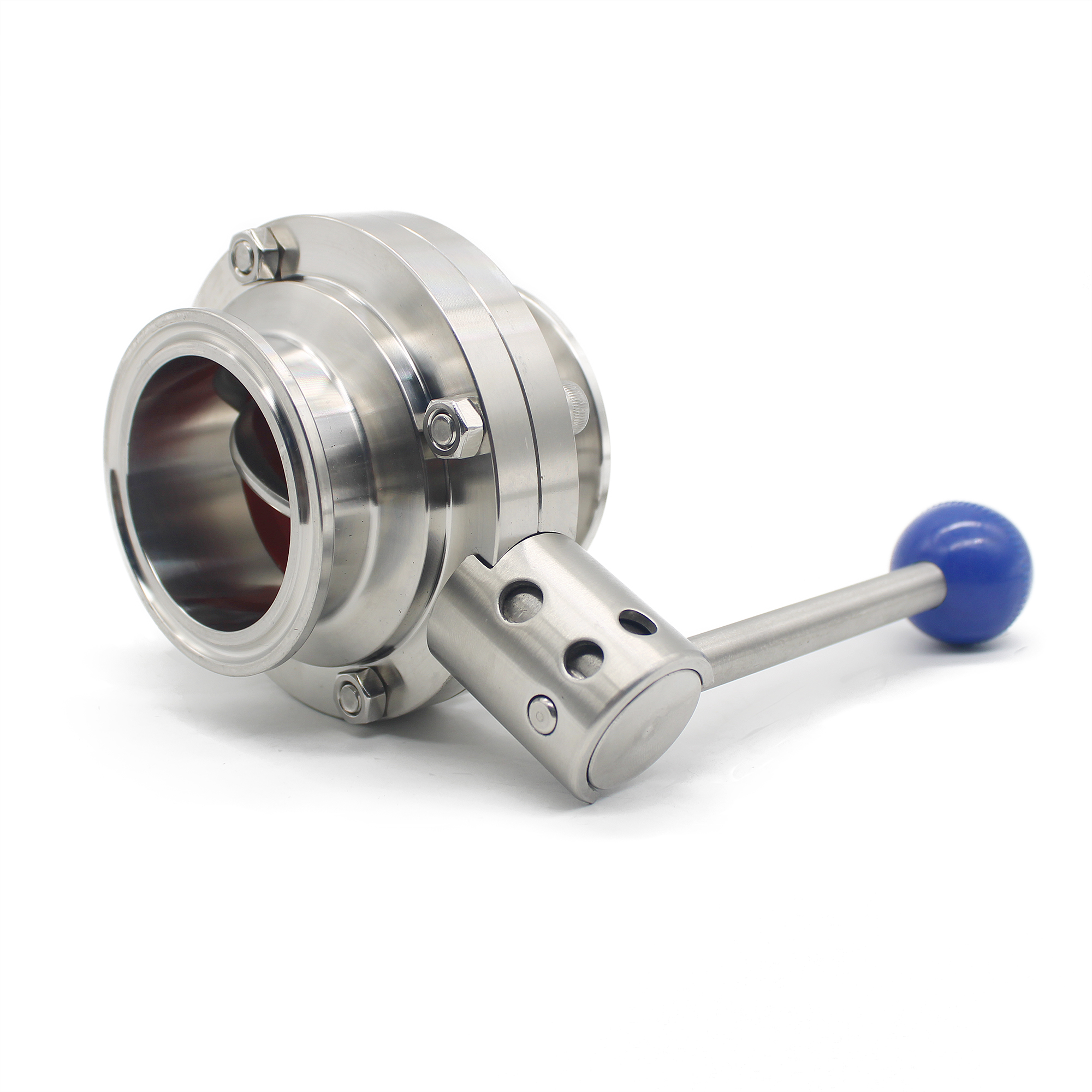

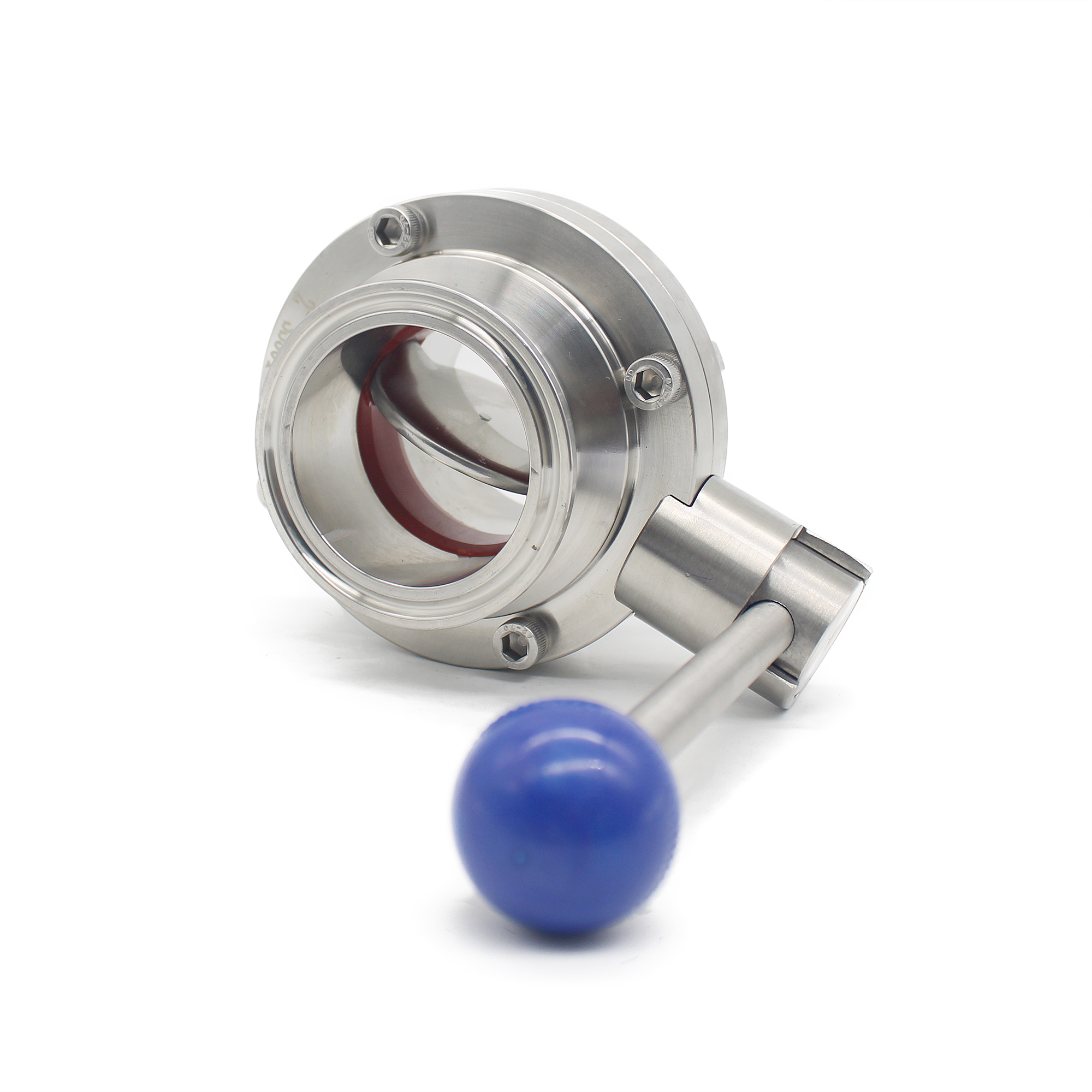

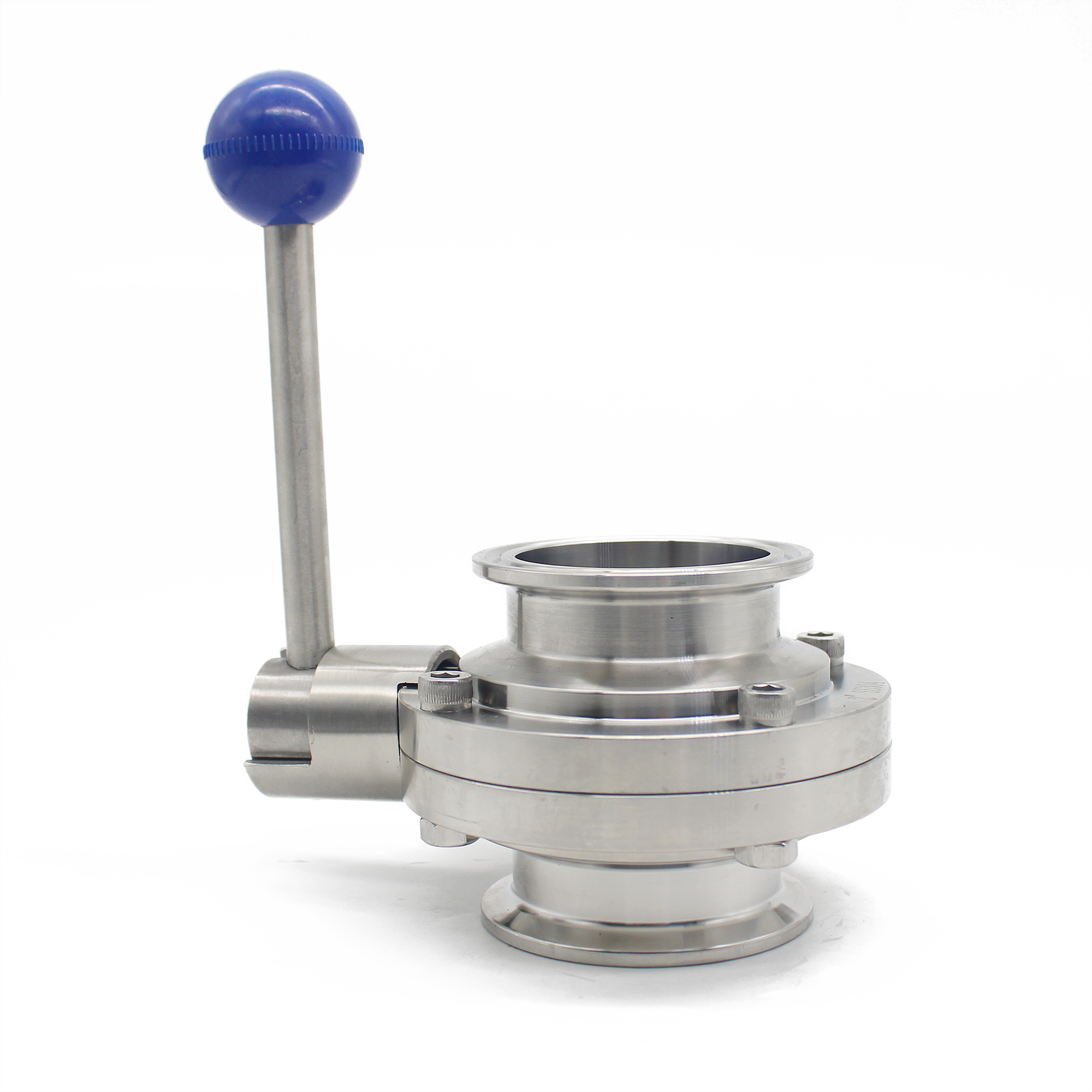

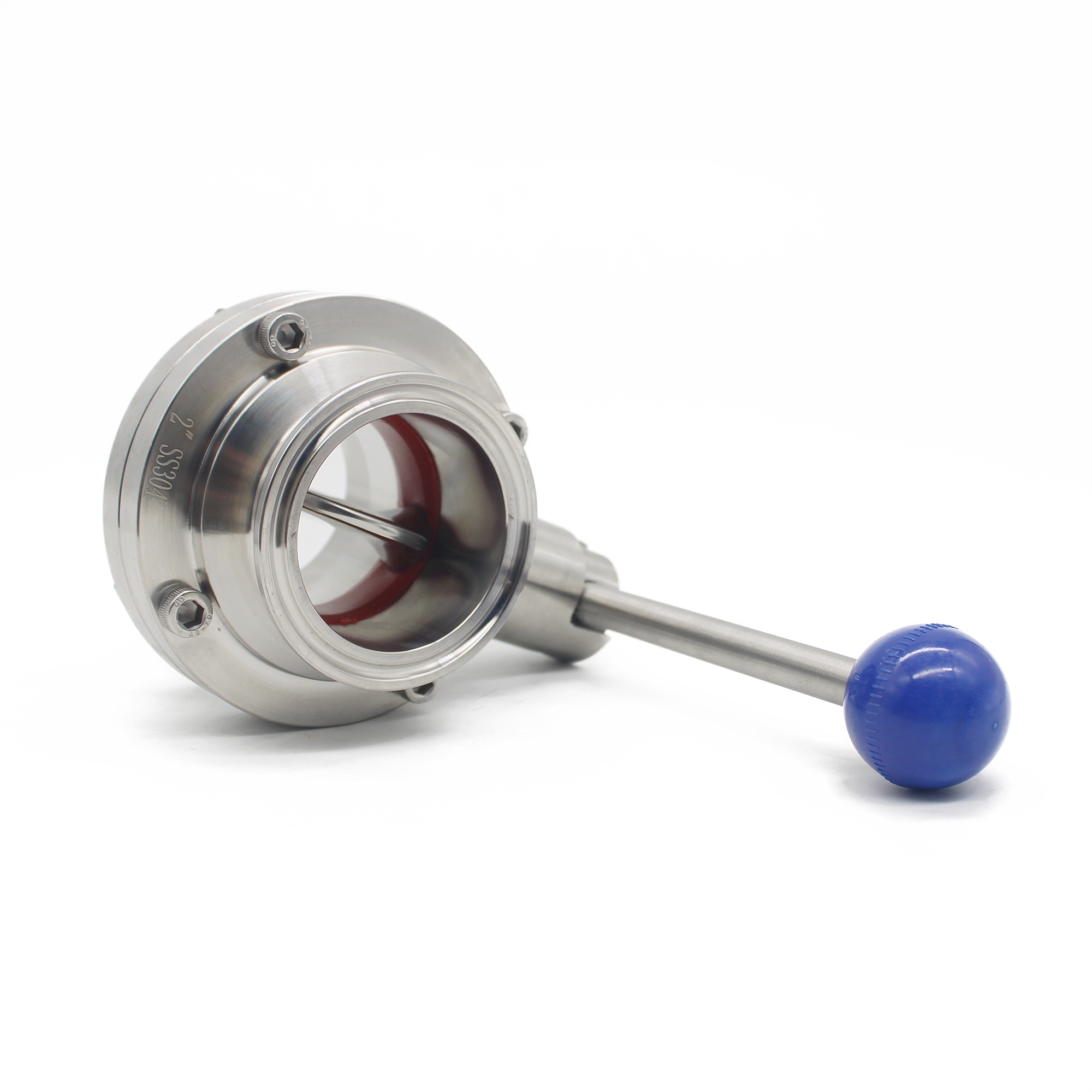

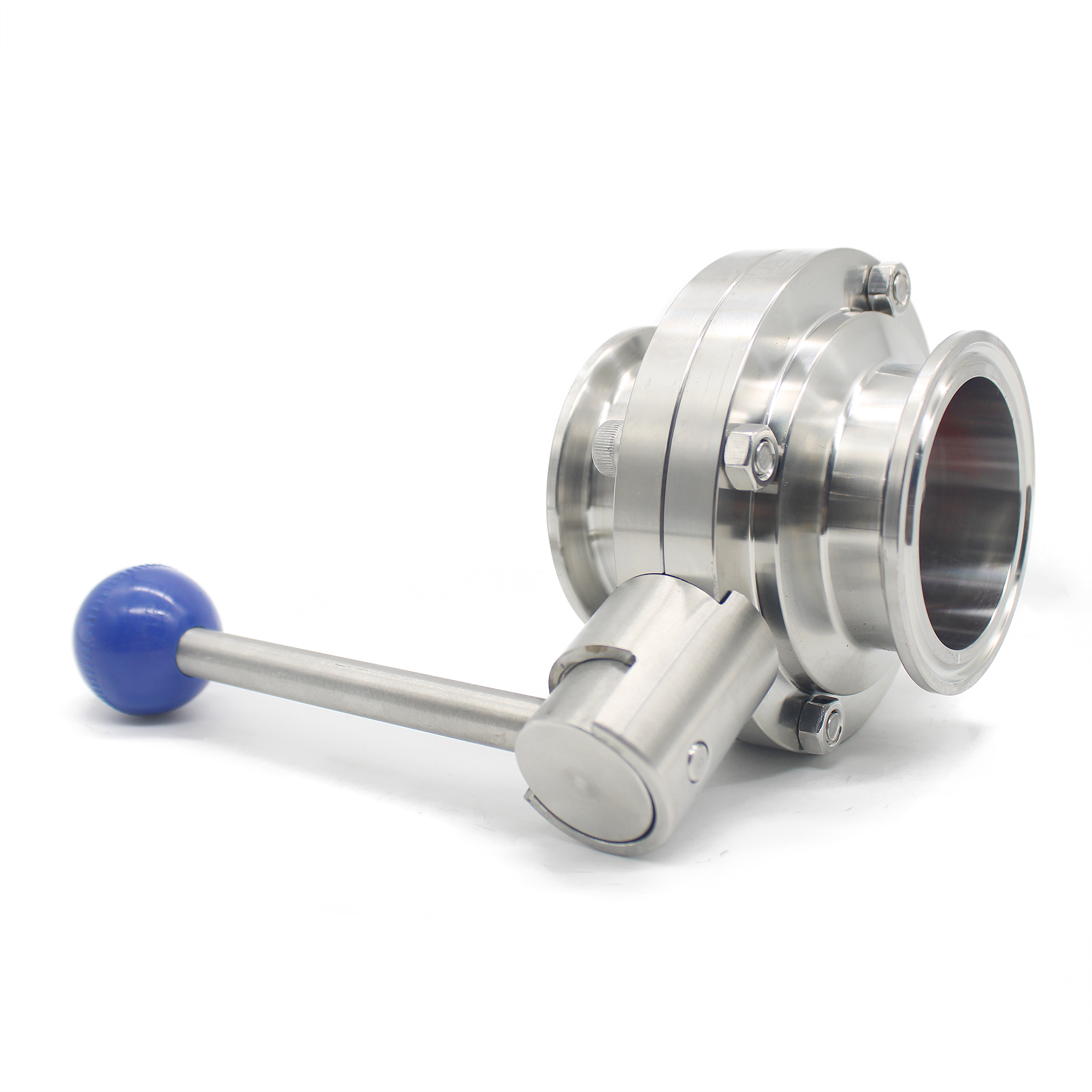

VBC 3A SS304/SS316L Weld/Clamp SMS Sanitary Manual Economical Butterfly Valve

CONCEPT

A butterfly valve is a type of flow control device,used to make a fluid start or stop flowingthrough a section of pipe. lt is well applied tostainless steel pipe systems for food, beverage,dairy, brewing, pharmaceutical,biopharmaceutical and chemical industries.

TECHNICAL DATA

Valve

Max. product pressure:   1000kPa(10Bar) for DN15-DN100, 800kPa(8Bar) for DN125-DN150

Min. product pressure:    Full vacuum, EPDM

Temperature range:    -10°C to +120°C

Actuator

Max. air pressure:     700 kPa (7 bar)

Min. air pressure, NC and NO:      400 kPa (4 bar)

Temperature range:   -25°C to +90°C

WORKING PRINCIPLE

Butterfly valves are valves with a circular body and a rotary motiondisk closure member which is pivotally supported by its stem. Buterfly valve is either remote-controlled by means of an actuator ormanually operated by means of a handle. The handle for manual operation mechanically locks the valve in itsfull open, half open and closed position. By rotating the handle, the motion disk either parallel or perpendicular to the flow of water, shutting off the flow. The actuator is designed so that an axial movement of a piston istransformed into a 90° rotation of a shaft. The torque of the actuator is increased when the valve disc contacts the seal ring of the butterfly valve.

OPERATION DESIGN

-The actuator is made in three standard versions, normally closed (NC), normally open (NO) and air/air activated (A/A).

- Electronic actuator avaliable in AC.24V, 110V, 220V, 380V or DC. 24V. 50Hz or 60Hz,action time: 9S, 10S, 13S, 15S, 20S, 25S, 30S, 50S, 60S and 100S

- Manually handle locks the valve in 3 position: Full open, half open and closed.*

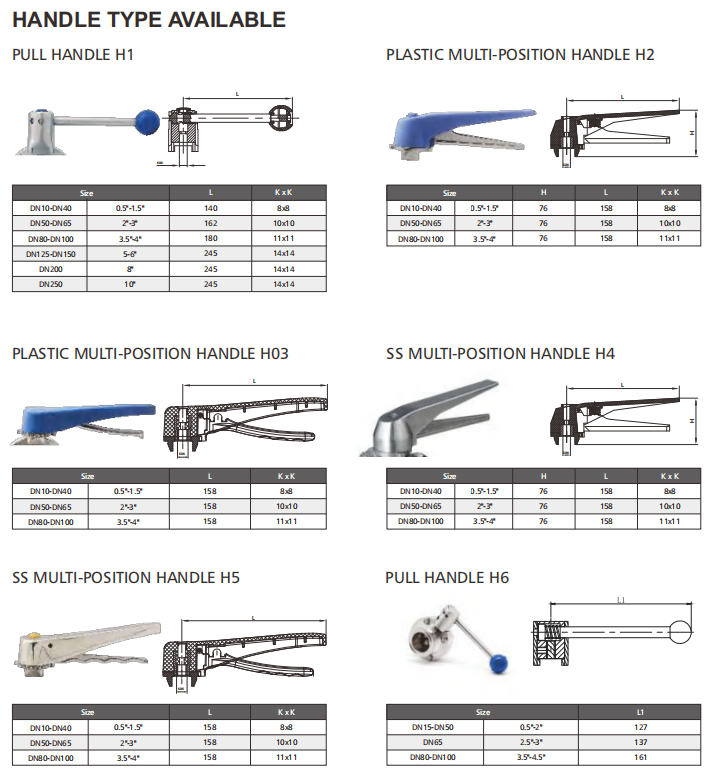

*For different handles type, see Handle Available.

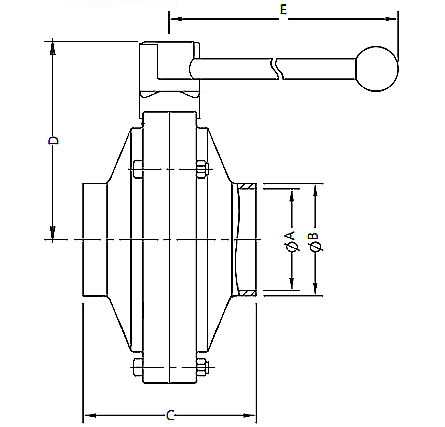

3A Weld Economical Butterfly Valve

	Model No	Size	A	B	C	D	E
	VBC02WH6XX1075NN	19	16.1	19	52	71.5	127
	VBC02WH6XX1100NN	25	22.4	25.4	52	71.5	127
	VBC02WH6XX1125NN	32	28.8	31.8	52	71.5	127
	VBC02WH6XX1150NN	38	35.1	38.1	52	71.5	127
	VBC02WH6XX1175NN	45	42	45	52	74	127
	VBC02WH6XX1200NN	51	47.8	50.8	52	79	127
	VBC02WH6XX1225NN	57	53	57	56	83	127
	VBC02WH6XX1250NN	63	59.5	63.5	56	88.5	137
	VBC02WH6XX1300NN	76	72.2	76.2	60	92.5	137
	VBC02WH6XX1350NN	89	84.9	88.9	60	99	160
	VBC02WH6XX1400NN	102	97.6	101.6	60	107	160
	VBC02WH6XX1425NN	108	104	108	60	107	160
	VBC02WH6XX1450NN	114	110	114	64	112	160
	VBC02WH6XX1525NN	133	128	133	80	128	210
	VBC02WH6XX1600NN	152	146.8	152.4	90	146	210
	VBC02WH6XX1625NN	159	154	159	90	146	210
	VBC02WH6XX1800NN	203	198	203.2	92	193	295
	VBC02WH6XX2010NN	219	213	219	92	193	295

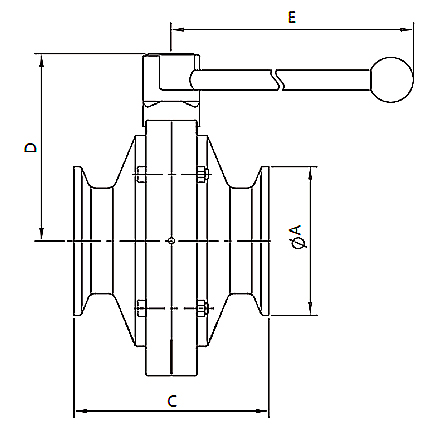

3A Clamp Economical Butterfly Valve (inch)

	Model No	Size	A	C	D	E
	VBC02CH6XX1075NN	19	50.5	66	71.5	127
	VBC02CH6XX1100NN	25	50.5	66	71.5	127
	VBC02CH6XX1125NN	32	50.5	66	71.5	127
	VBC02CH6XX1150NN	38	50.5	66/70	71.5	127
	VBC02CH6XX1175NN	45	64	70	74	127
	VBC02CH6XX1200NN	51	64	70/72	79	127
	VBC02CH6XX1225NN	57	77.5	76	83	127
	VBC02CH6XX1250NN	63	77.5	76	88.5	137
	VBC02CH6XX1300NN	76	91	76	92.5	137
	VBC02CH6XX1350NN	89	106	80	99	160
	VBC02CH6XX1400NN	102	119	90	107	160
	VBC02CH6XX1425NN	108	119	90	107	160
	VBC02CH6XX1450NN	114	130	106	112	160
	VBC02CH6XX1525NN	133	145	100	128	210
	VBC02CH6XX1600NN	152	167	132/100	146	210
	VBC02CH6XX1625NN	159	183	132	146	210
	VBC02CH6XX1800NN	203	217	134	193	295
	VBC02CH6XX2010NN	219	233.5	134	193	295

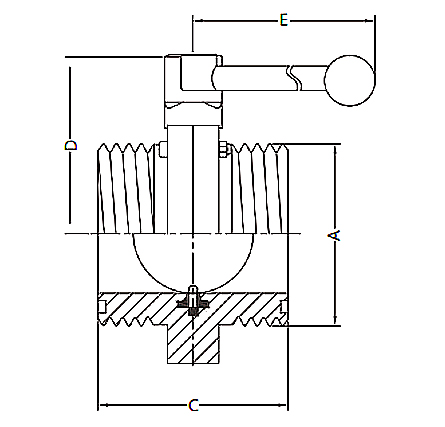

SMS Therad Economical Butterfly Valve (inch)

	Model No	Size	A	C	D	E
	VBC02MH6XX1075NN	19	RD36X1/8	68	68	127
	VBC02MH6XX1100NN	25	RD40X1/6	70	71.5	127
	VBC02MH6XX1125NN	32	RD48X1/6	70	71.5	127
	VBC02MH6XX1150NN	38	RD60X1/6	70	71.5	127
	VBC02MH6XX1200NN	51	RD70X1/6	74	79	127
	VBC02MH6XX1250NN	63	RD85X1/6	80	88	137
	VBC02MH6XX1300NN	76	RD98X1/6	84	92	137
	VBC02MH6XX1350NN	89	RD110X1/6	86	110	160
	VBC02MH6XX1400NN	102	RD125X1/6	88	110	160
