InquireVBN series butterfly valve is a type of flow control device, used to make a fluid start or stop flowing through a section of pipe. It is well applied to stainless steel pipe systems for food,
beverage, dairy, brewing, pharmaceuatical, bio-pharmaceuatical and chemical industries.
Body Materials: AISI-304 or AISI-316L
Gasket Material:Silicon, EPDM, VITON, NBR
Valve seat and gasket comply with FDA 21CFR177.2600
Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
Available in sizes from DN15 / 1/2" to DN250 / 10"
End connection: Butt-weld, Clamp, Male, Nut, Liner or Flange or others upon request.

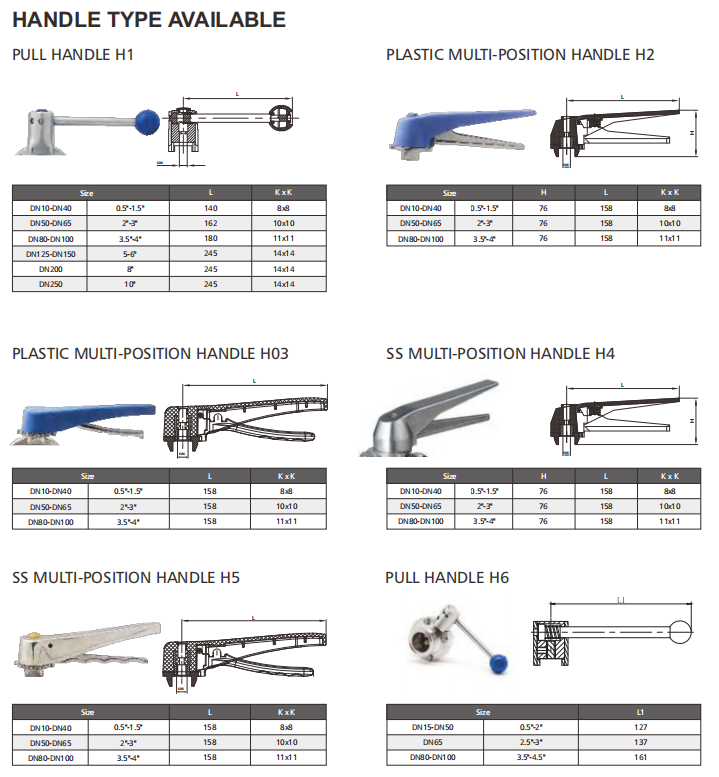

Handle: plastic pull handle (2-4 positions) or plastic/stainless steel squezee handle (13 positions)
Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
Control: position sensor, C-top controller, C-top controller (AS-I)
Manual handle, pneumatic actuator and electric actuator are interchangeable.
Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Supply pressure for air actuator: 70 ~ 115psi
Parameters |
|||
Steel material |
Product wetted steel parts |
AISI 316L / 304 forged |
Provided with material inspection report |
Other steel parts |
AISI 304 |
||
Seal material |
Standard |
EPDM |
All seal materials comply with FDA 21CFR117.2600 |
Options |
VMQ / FPM |
||
Pressure |
Working pressure |
≤10bar (145psi) |
|
Supply pressure for air actuator |
5 ~ 8bar (70 ~ 116psi) |
||
Temperature |
Working temperature |
EPDM: 14 ~ 248°F (-10 ~ 120°C) |
|
Sterilization temperature |
302°F (150°C, Max. 20 min) |
||
Surface treatment |
Inside surface treatment |
Ra 16 ~ 32µin (0.4 ~ 0.8µm) |
|
Outside surface treatment |
Ra32 ~ 64µin (0.8 ~ 1.6µm) |
||
Connection |
The welding diameter |
Welding ends: |
|
End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request. |
Weld Manual Butterfly Valve
Model No | Size | D1 | D | L | KxK | |
VBN11H1XX1050NN | 1/2" | 12.7 | 78 | 50 | 8x8 | |
VBN11H1XX1075NN | 3/4" | 19 | 78 | 50 | 8x8 | |
VBN11H1XX1100NN | 1“” | 25.4 | 78 | 50 | 8x8 | |
VBN11H1XX1125NN | 1 1/4" | 31.8 | 78 | 50 | 8x8 | |
VBN11H1XX1150NN | 1 1/2" | 38.1 | 78 | 50 | 8x8 | |
VBN11H1XX1200NN | 2" | 50.8 | 93 | 52 | 10x10 | |
VBN11H1XX1250NN | 2 1/2" | 63.5 | 115 | 56 | 10x10 | |
VBN11H1XX1300NN | 3" | 76.2 | 128 | 56 | 10x10 | |
VBN11H1XX1350NN | 3 1/2" | 89 | 139 | 60 | 11x11 | |
VBN11H1XX1400NN | 4" | 102 | 154 | 64 | 11x11 | |
VBN11H1XX1500NN | 5" | 127 | 185 | 80 | 14x14 | |
VBN11H1XX1600NN | 6" | 152.4 | 215 | 90 | 14x14 | |
VBN11H1XX1800NN | 8" | 203.2 | 285 | 90 | 14X14 | |
VBN11H1XX2010NN | DN10 | 12/13 | 78 | 50 | 8x8 | |
VBN11H1XX2015NN | DN15 | 18/19 | 78 | 50 | 8x8 | |
VBN11H1XX2020NN | DN20 | 22/23 | 78 | 50 | 8x8 | |
VBN11H1XX2025NN | DN25 | 28/29 | 78 | 50 | 8x8 | |
VBN11H1XX2032NN | DN32 | 34/35 | 78 | 50 | 8x8 | |
VBN11H1XX2040NN | DN40 | 40/41 | 90 | 50 | 8x8 | |
VBN11H1XX2050NN | DN50 | 52/53 | 106 | 52 | 10x10 | |
VBN11H1XX2065NN | DN65 | 70 | 124 | 56 | 10x10 | |
VBN11H1XX2080NN | DN80 | 85 | 139 | 60 | 11x11 | |
VBN11H1XX2100NN | DN100 | 104 | 159 | 64 | 11x11 | |
VBN11H1XX2125NN | DN125 | 129 | 185 | 80 | 14x14 | |
VBN11H1XX2150NN | DN150 | 154 | 215 | 90 | 14x14 | |
VBN11H1XX2200NN | DN200 | 204 | 285 | 90 | 14x14 |

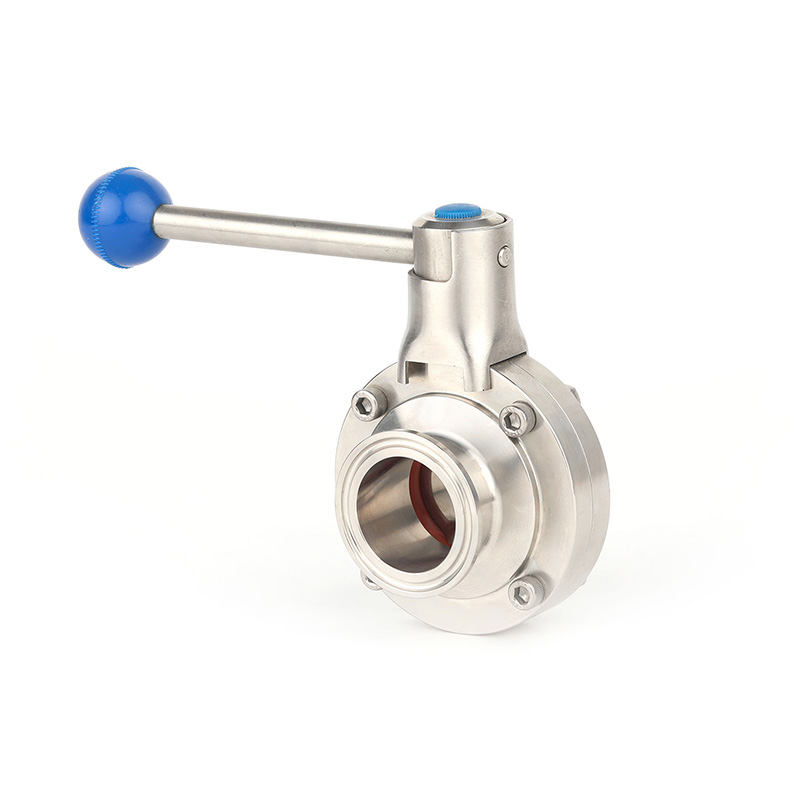

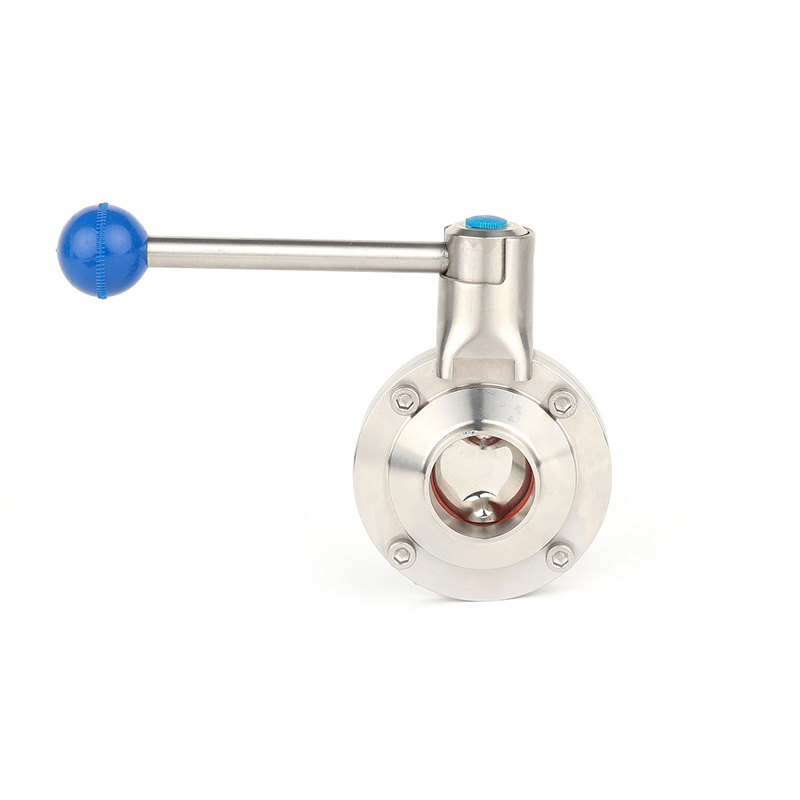

Clamp Manual Butterfly Valve
Model No | Size | D1 | D | L | KxK | |
VBN22H1XX1050NN | 1/2" | 25.4 | 78 | 66 | 8x8 | |
VBN22H1XX1075NN | 3/4" | 25.4 | 78 | 66 | 8x8 | |
VBN22H1XX1100NN | 1" | 50.5 | 78 | 66 | 8x8 | |
VBN22H1XX1125NN | 1 1/4" | 50.5 | 78 | 66 | 8x8 | |
VBN22H1XX1150NN | 1 1/2" | 50.5 | 78 | 70 | 8x8 | |
VBN22H1XX1200NN | 2" | 64 | 93 | 76 | 10x10 | |
VBN22H1XX1250NN | 2 1/2" | 77.5 | 15 | 80 | 10x10 | |
VBN22H1XX1300NN | 3" | 91 | 128 | 84 | 10x10 | |
VBN22H1XX1350NN | 3 1/2" | 106 | 139 | 86 | 11x11 | |
VBN22H1XX1400NN | 4" | 119 | 154 | 104 | 11x11 | |
VBN22H1XX1500NN | 5" | 144.5 | 185 | 122 | 14x14 | |
VBN22H1XX1600NN | 6" | 167 | 215 | 146 | 14x14 | |
VBN22H1XX1800NN | 8" | 217.4 | 285 | 166.8 | 14X14 | |
VBN22H1XX2010NN | DN10 | 34 | 78 | 66 | 8x8 | |
VBN22H1XX2015NN | DN15 | 34 | 78 | 66 | 8x8 | |
VBN22H1XX2020NN | DN20 | 34 | 78 | 66 | 8x8 | |
VBN22H1XX2025NN | DN25 | 50.5 | 78 | 66 | 8x8 | |
VBN22H1XX2032NN | DN32 | 50.5 | 78 | 66 | 8x8 | |
VBN22H1XX2040NN | DN40 | 50.5 | 90 | 70 | 8x8 | |
VBN22H1XX2050NN | DN50 | 64 | 106 | 76 | 10x10 | |
VBN22H1XX2065NN | DN65 | 91 | 124 | 80 | 10x10 | |
VBN22H1XX2080NN | DN80 | 106 | 139 | 100 | 11x11 | |
VBN22H1XX2100NN | DN100 | 119 | 159 | 104 | 11x11 | |
VBN22H1XX2125NN | DN125 | 144.5 | 185 | 136 | 14x14 | |
VBN22H1XX2150NN | DN150 | 167 | 215 | 146 | 14x14 | |
VBN22H1XX2200NN | DN200 | 217.4 | 285 | 146 | 14x14 |

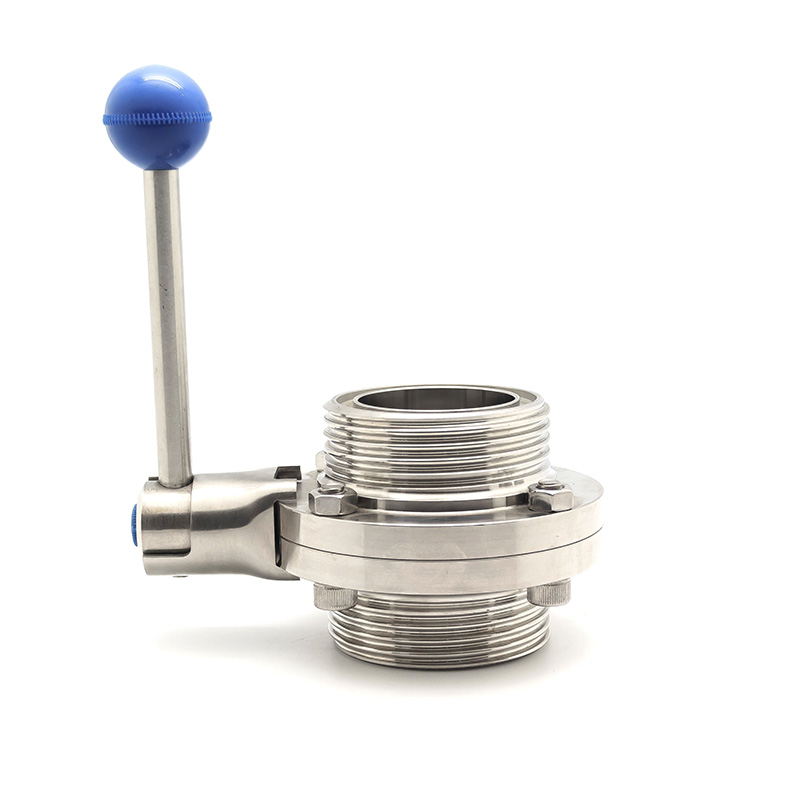

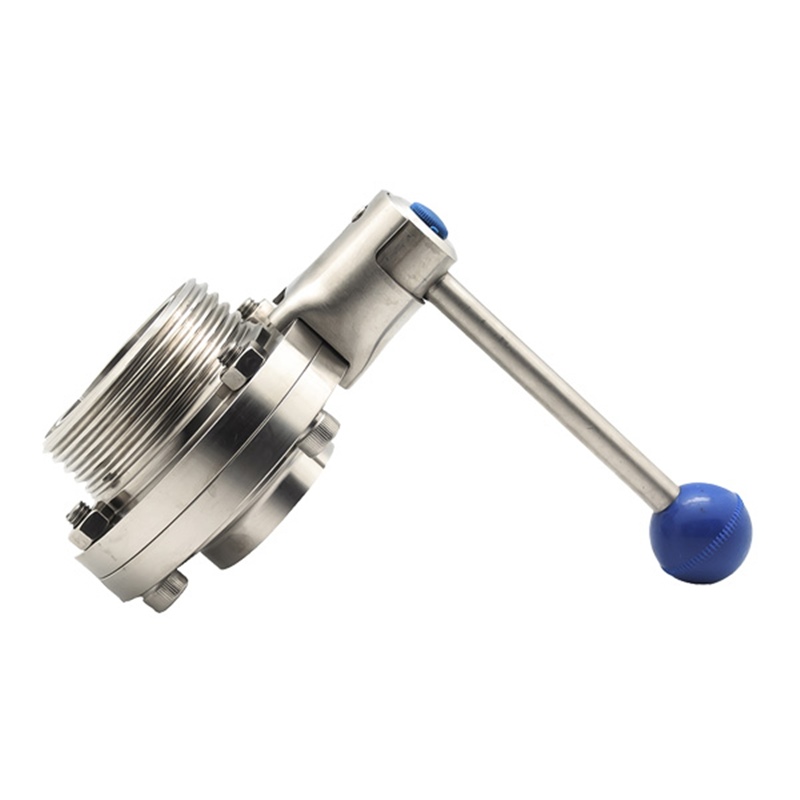

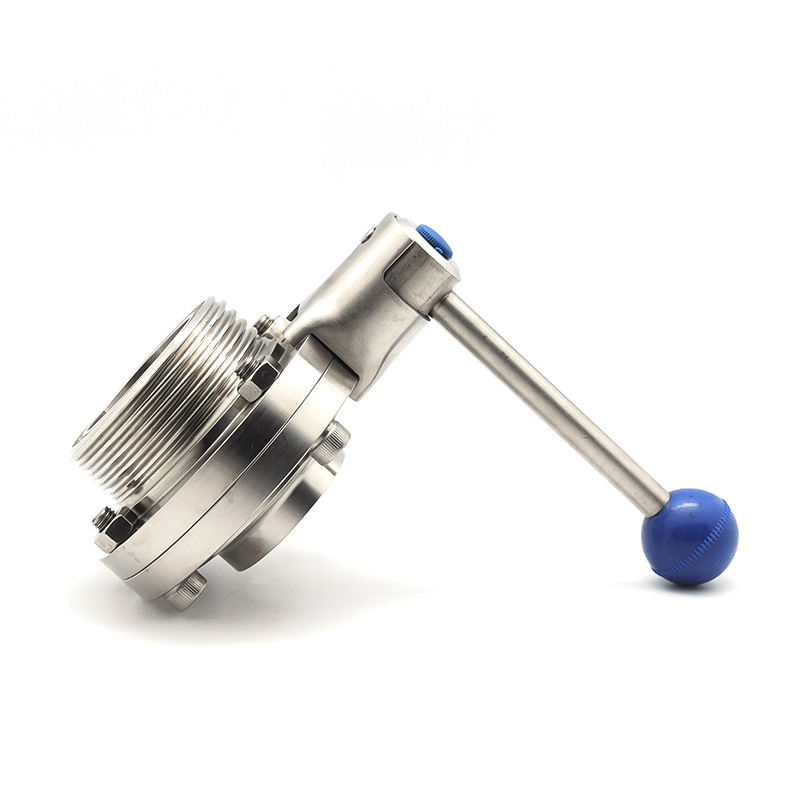

DIN Thread Manual Butterfly Valve
Model No | Size | Dn | D | L | G | KxK | |
VBN33H1XX2010NN | DN10 | 10 | 78 | 66 | RD28x1/8 | 8x8 | |
VBN33H1XX2015NN | DN15 | 15 | 78 | 66 | RD34x1/8 | 8x8 | |
VBN33H1XX2020NN | DN20 | 19 | 78 | 66 | RD44x1/6 | 8x8 | |
VBN33H1XX2025NN | DN25 | 25 | 78 | 66 | RD52x1/6 | 8x8 | |
VBN33H1XX2032NN | DN32 | 31 | 86 | 70 | RD58x1/6 | 8x8 | |
VBN33H1XX2040NN | DN40 | 37 | 90 | 74 | RD65x1/6 | 8x8 | |
VBN33H1XX2050NN | DN50 | 49 | 106 | 76 | RD78x1/6 | 10x10 | |
VBN33H1XX2065NN | DN65 | 66 | 124 | 80 | RD95x1/6 | 10x10 | |
VBN33H1XX2080NN | DN80 | 81 | 139 | 100 | RD110x1/4 | 11x11 | |
VBN33H1XX2100NN | DN100 | 100 | 159 | 104 | RD130x1/4 | 11x11 | |
VBN33H1XX2125NN | DN125 | 125 | 185 | 136 | RD160x1/4 | 14x14 | |
VBN33H1XX21 | DN150 | 150 | 215 | 146 | RD190x1/4 | 14x14 |
SMS Thread Manual Butterfly Valve
Model No | Size | Dn | D | L | G | KxK | |
VBN33H1XX3075NN | 3/4" | 16 | 78 | 66 | RD36x1/8 | 8x8 | |
VBN33H1XX3100NN | 1" | 22.4 | 78 | 66 | RD40x1/6 | 8x8 | |
VBN33H1XX3125NN | 1 1/4" | 28.8 | 86 | 70 | RD48x1/6 | 8x8 | |
VBN33H1XX3150NN | 1 1/2" | 35.1 | 86 | 74 | RD60x1/6 | 8x8 | |
VBN33H1XX3200NN | 2" | 47.8 | 102 | 76 | RD70x1/6 | 10x10 | |
VBN33H1XX3250NN | 2 1/2" | 59.5 | 115 | 80 | RD85x1/6 | 10x10 | |
VBN33H1XX3300NN | 3" | 72.2 | 128 | 100 | RD98x1/6 | 10x10 | |
VBN33H1XX3350NN | 3 1/2" | 85 | 139 | 100 | RD110x1/6 | 11x11 | |
VBN33H1XX3400SNN | 4"(S) | 97.6 | 154 | 104 | RD125x1/6 | 11x11 | |
VBN33H1XX3400LNN | 4"(L) | 97.6 | 159 | 104 | RD132x1/6 | 11x11 |
ISO/IDF Thread Manual Butterfly Valve
Model No | Size | Dn | D | L | G | KxK | |
VBN33H1XX4100NN | 1" | 22.2 | 78 | 72 | 37.1x1/8Acme | 8x8 | |
VBN33H1XX4150NN | 1 1/2" | 34.9 | 86 | 76 | 50.6x1/8Acme | 8x8 | |
VBN33H1XX4200NN | 2" | 47.6 | 102 | 82 | 64.1x1/8Acme | 10x10 | |
VBN33H1XX4250NN | 2 1/2" | 60.3 | 115 | 86 | 77.6x1/8Acme | 10x10 | |
VBN33H1XX4300NN | 3" | 73 | 128 | 90 | 91.1x1/8Acme | 10x10 | |
VBN33H1XX4400SNN | 4"(ISO) | 97.5 | 154 | 110 | 118.2x1/8Acme | 11x11 | |
VBN33H1XX4400FNN | 4"(IDF) | 97.5 | 154 | 110 | 125.9x1/6Acme | 11x11 |
RJT Thread Manual Butterfly Valve
Model No | Size | Dn | D | L | G | KxK | |
VBN33H1XX5100NN | 1" | 22.2 | 78 | 80 | 45.7x1/8TWHIT | 8x8 | |
VBN33H1XX5150NN | 1 1/2" | 34.9 | 86 | 80 | 58.4x1/8TWHIT | 8x8 | |
VBN33H1XX5200NN | 2" | 47.6 | 102 | 84 | 72.7x1/6TWHIT | 10x10 | |
VBN33H1XX5250NN | 2 1/2" | 60.3 | 115 | 84 | 85.4x1/6TWHIT | 10x10 | |
VBN33H1XX5300NN | 3" | 73 | 128 | 84 | 98.1x1/6TWHIT | 10x10 | |
VBN33H1XX5400NN | 4" | 97.5 | 154 | 104 | 123.8x1/6TWHIT | 11x11 | |
VBN33H1XX5600NN | 6" | 148 | 215 | 150 | 174.3x1/6TWHIT | 11x11 |
3A Thread Manual Butterfly Valve
Model No | Size | Dn | D | L | G | KxK | |
VBN33H1XX1100NN | 1" | 22.1 | 78 | 66 | 37.1x1/8Acme | 8x8 | |
VBN33H1XX1125NN | 1 1/4" | 28.8 | 78 | 70 | 45.9x1/8Acme | 8x8 | |
VBN33H1XX1150NN | 1 1/2" | 34.8 | 86 | 70 | 50.6x1/8Acme | 8x8 | |
VBN33H1XX1200NN | 2" | 47.5 | 102 | 76 | 64.1x1/8Acme | 10x10 | |
VBN33H1XX1250NN | 2 1/2" | 60.2 | 115 | 80 | 77.6x1/8Acme | 10x10 | |
VBN33H1XX1300NN | 3" | 72.9 | 128 | 100 | 91.1x1/8Acme | 10x10 | |
VBN33H1XX1400NN | 4" | 97.4 | 154 | 104 | 119.2x1/6Acme | 11x11 |
DS Thread Manual Butterfly Valve
