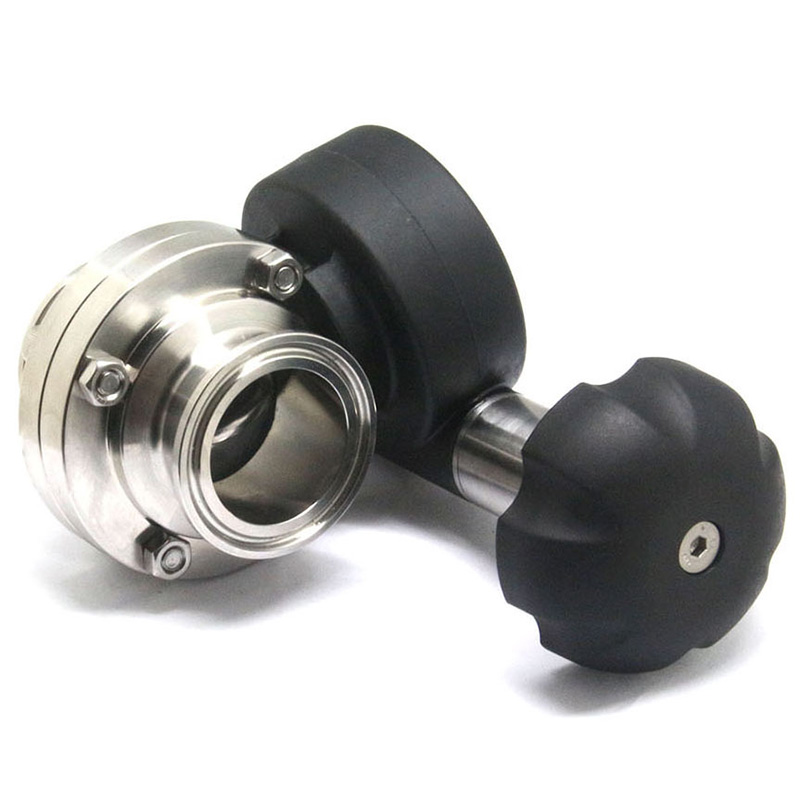

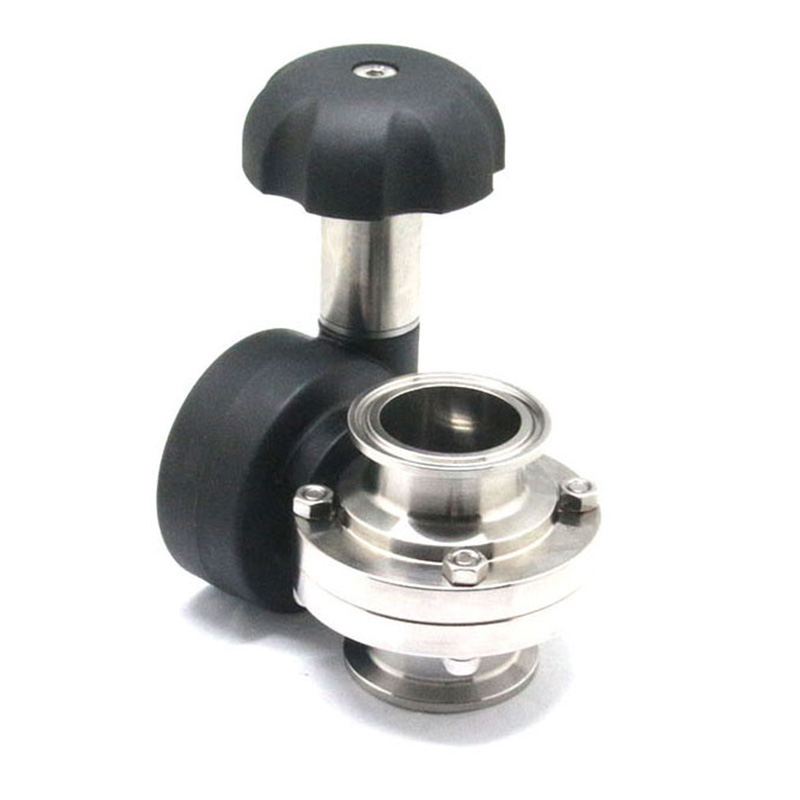

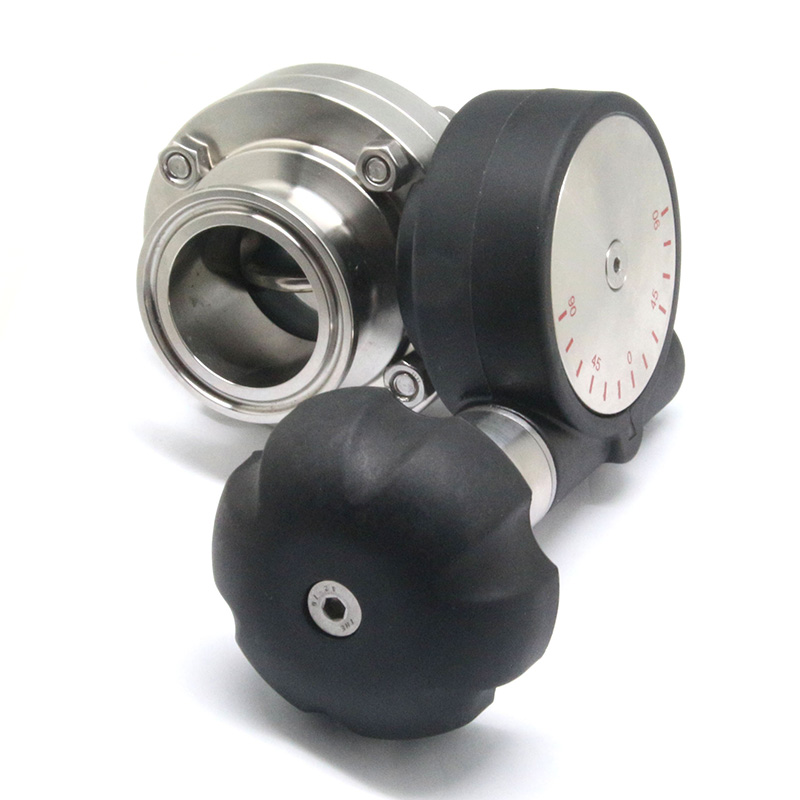

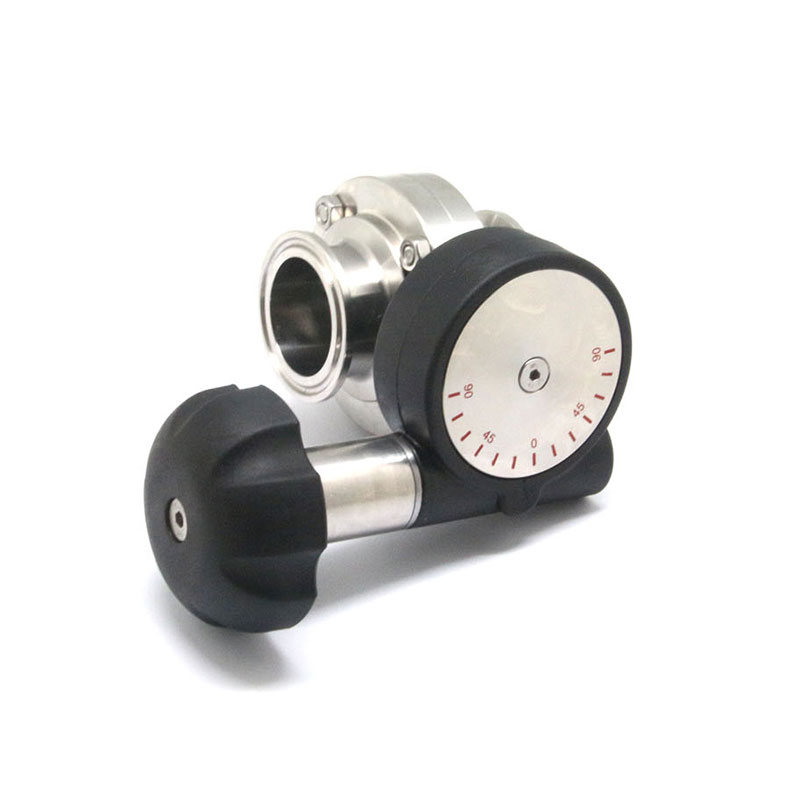

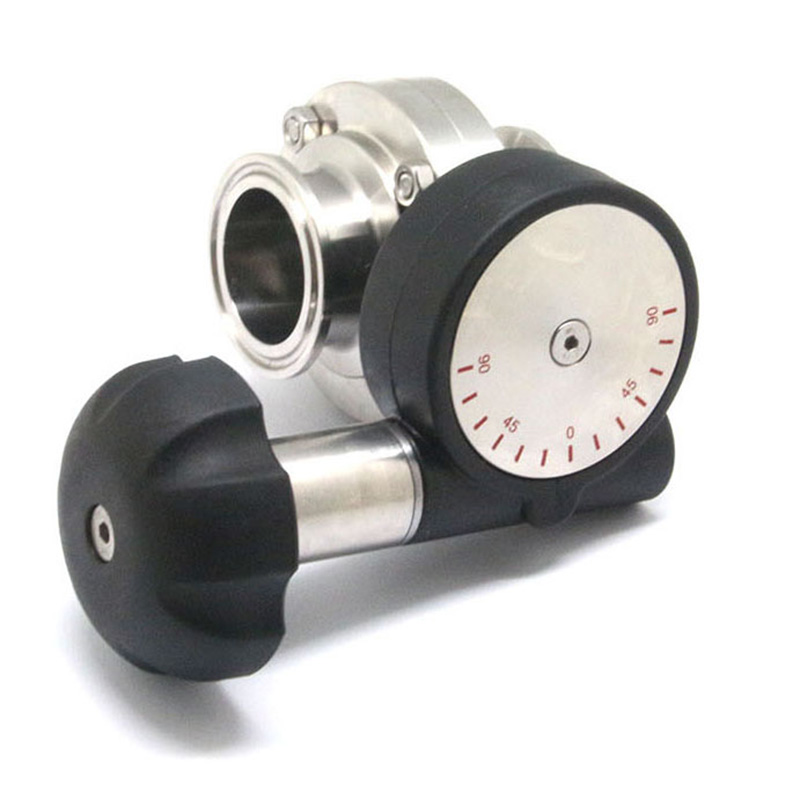

VBN Butterfly Valve With Micro Adjust Handwheel

  • Categories:Sanitary Butterfly Valve
  • MOQ:1
  • Brand:QiiMii
  • FOB Port:Ningbo
  • Terms of Payment:Western Union, T/T, Paypal
  • Delivery Time:Contact with us for details

Application

Micro Adjust Butterfly Valve is made of  SS304/SS316L and is infinitely adjustable. Micro Adjust Handwheel is a very unique valve that allows you to dial in the precise flow that you require for your application.

We offer this valve in sizes 1″ to 4″ with either Silicone, EPDM or Viton seats

Materials

  • Body Materials: AISI-304 or AISI-316L

  • Gasket Material:Silicon, EPDM, VITON, NBR

          Valve seat and gasket  comply with FDA 21CFR177.2600



Standard Design

  • Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.

  • Available in sizes from DN15 / 1/2" to DN250 / 10"

  • End connection: Butt-weld, Clamp, Male, Nut, Liner or Flange or others upon request.

  • Handle: plastic pull handle (2-4 positions) or plastic/stainless steel squezee handle (13 positions)

  • Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.

  • Control: position sensor, C-top controller, C-top controller (AS-I)

  • Manual handle, pneumatic actuator and electric actuator are interchangeable.



Technical Specification

  • Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150

  • Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

  • Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)

  • Supply pressure for air actuator: 70 ~ 115psi




Parameters

Steel material

Product wetted steel parts

AISI 316L / 304 forged
(1.4306 / 1.4404)

Provided with material inspection report

Other steel parts

AISI 304

Seal material

Standard

EPDM

All seal materials comply with FDA 21CFR117.2600

Options

VMQ / FPM

Pressure

Working pressure

≤10bar (145psi)

Supply pressure for air actuator

5 ~ 8bar (70 ~ 116psi)

Temperature

Working temperature

EPDM: 14 ~ 248°F (-10 ~ 120°C)
VMQ: -58 ~ 356°F (-50 ~ +180°C)
FPM: -22 ~ 446°F (-30 ~ +230°C)
Other materials are available upon request

Sterilization temperature

302°F (150°C, Max. 20 min)

Surface treatment

Inside surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Outside surface treatment

Ra32 ~ 64µin (0.8 ~ 1.6µm)

Connection

The welding diameter

Welding ends:
DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc.

End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
