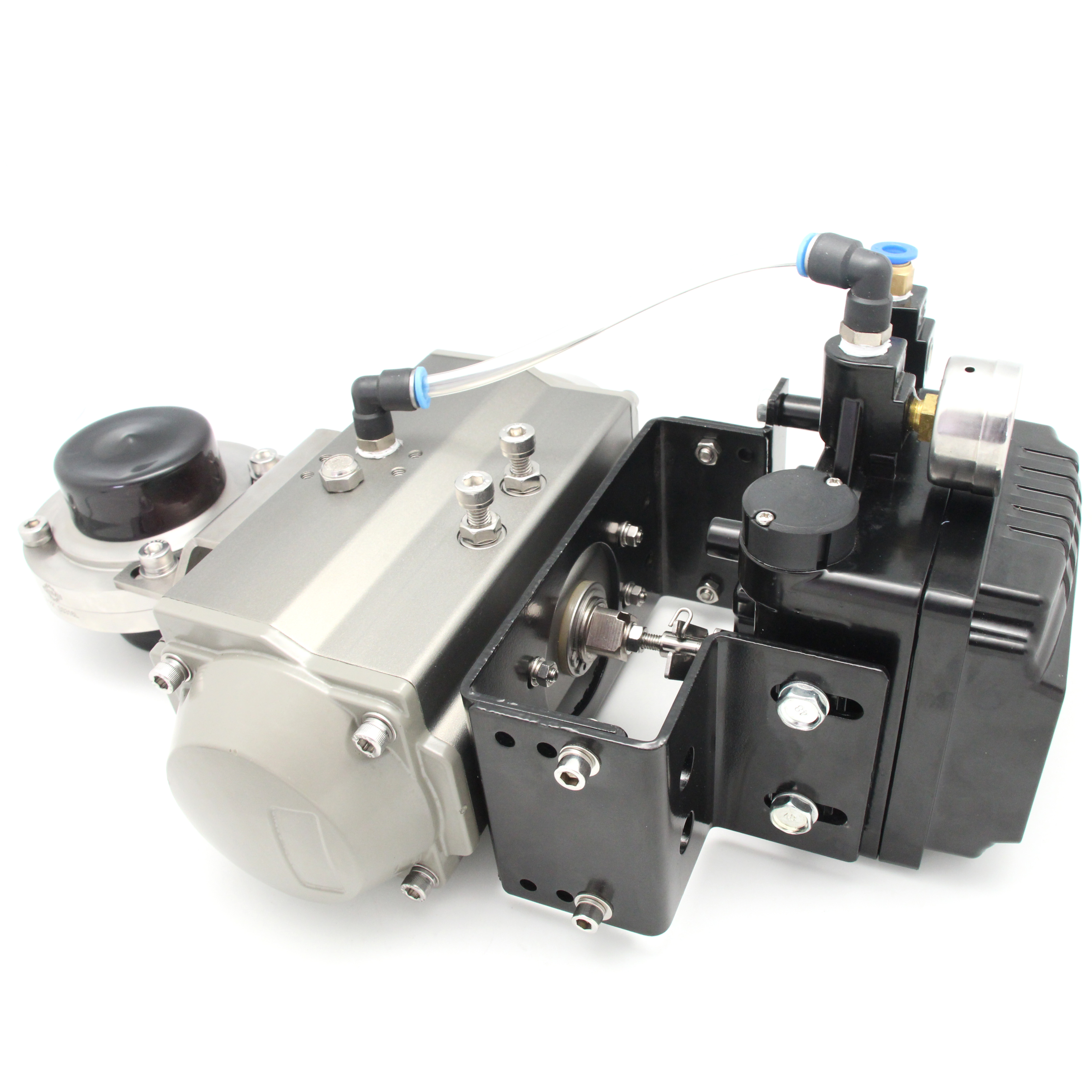

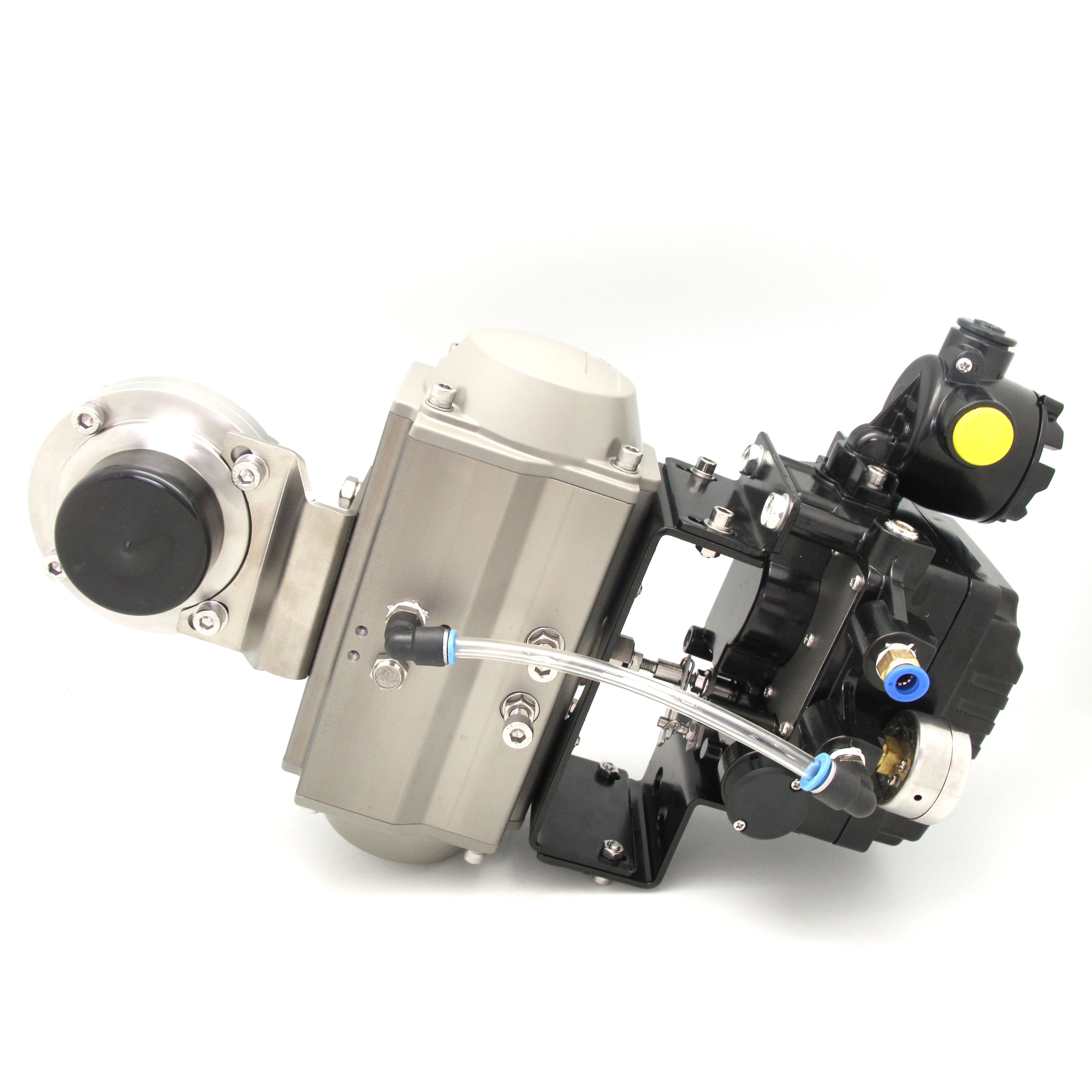

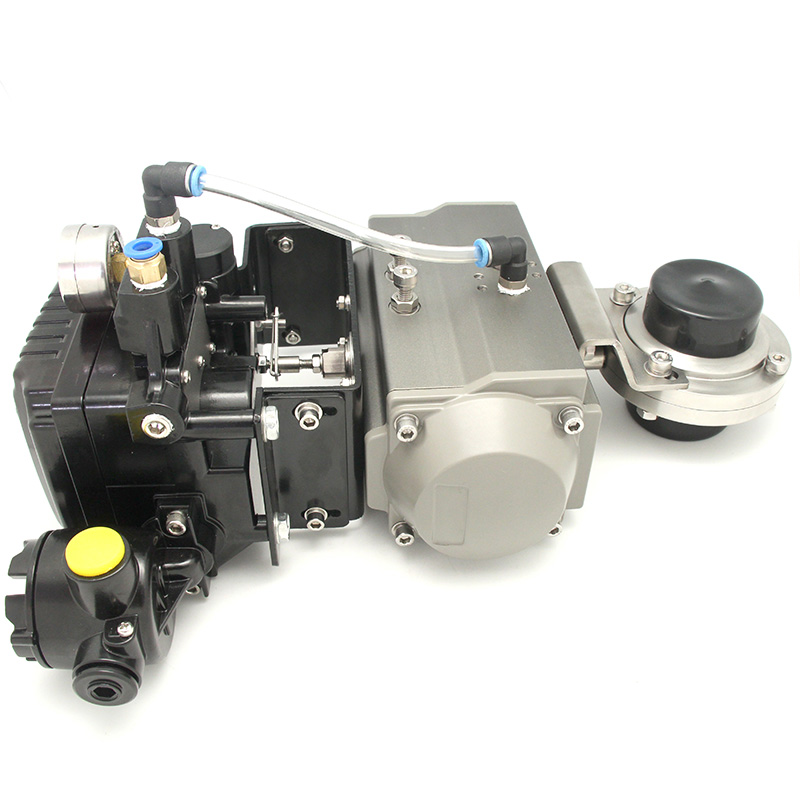

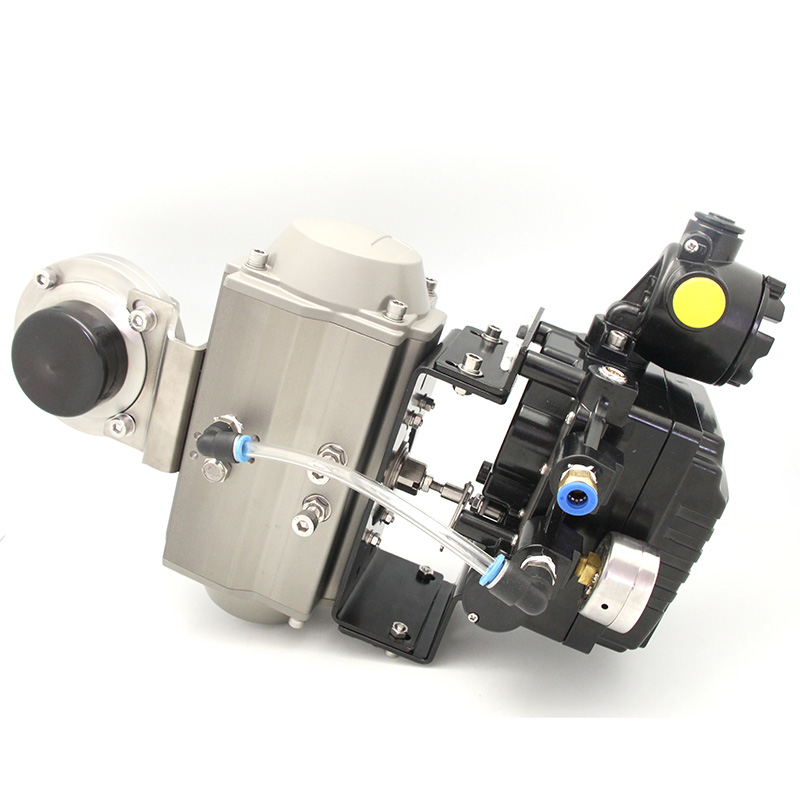

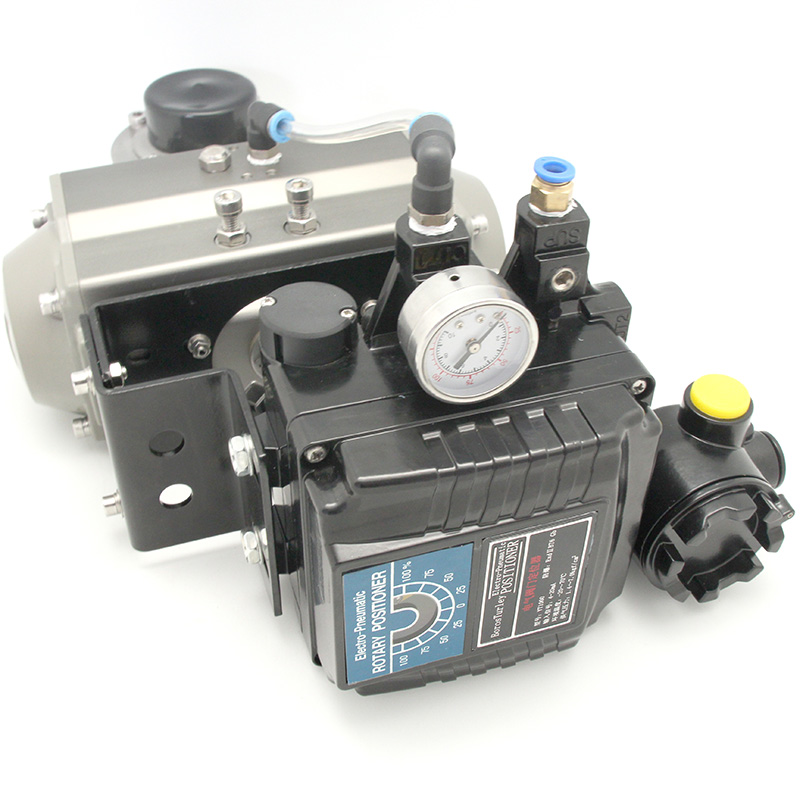

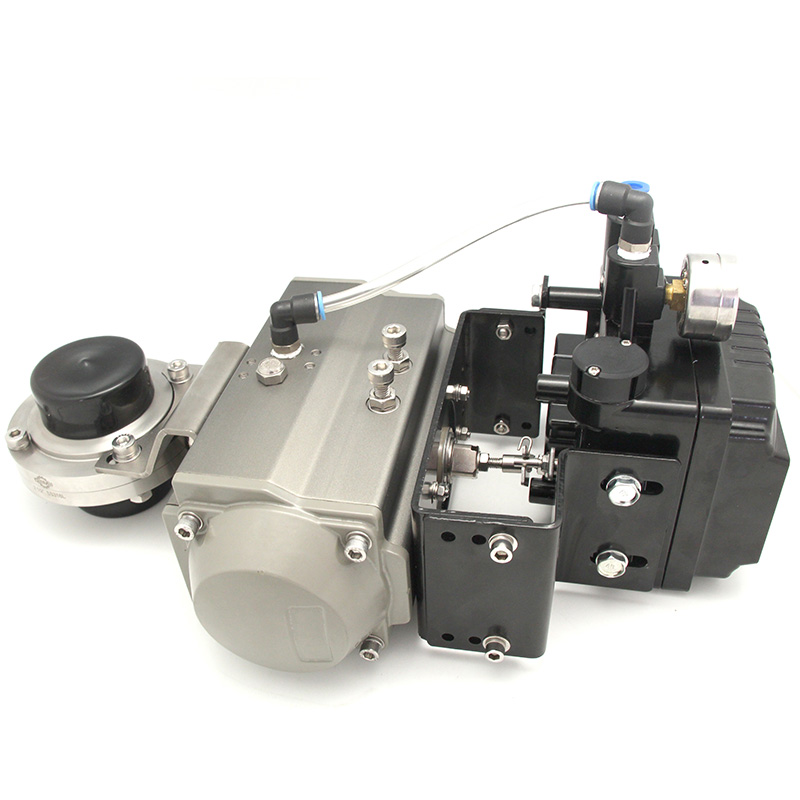

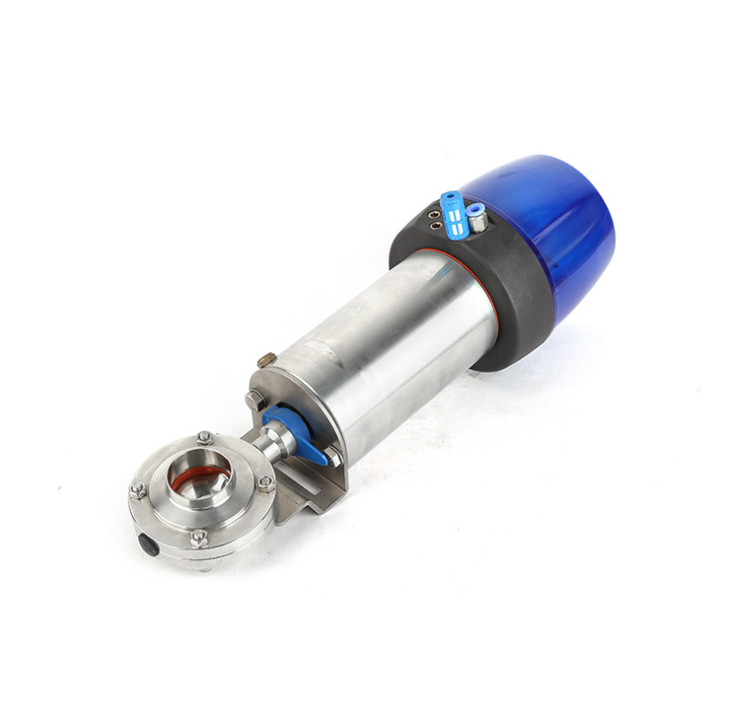

Sanitary Pneumatic SS304/SS316L Stainless Steel Weld/Clamp Electric Butterfly Valve with Positioner

Model No.:VBN01

SKU:VBN01

End Connections:

Operation:

Body Materials:

Gasket Material:

Size.:

Solenoid valve:

Limit Switch Box:

Application

VBN series Pneumatic butterfly valve is a type of flow control device, used to make a fluid start or stop flowing through a section of pipe. It is well applied

to stainless steel pipe systems for food, beverage, dairy, brewing, pharmaceuatical, bio-pharmaceuatical and chemical industries.

Materials

Body Materials: AISI-304 or AISI-316L
Gasket Material:Silicon, EPDM, VITON, NBR

Valve seat and gasket comply with FDA 21CFR177.2600

Standard Design

Standard Avaliable: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
Available in sizes from DN15 / 1/2" to DN250 / 10"
End connection: Butt-weld, Clamp, Male, Nut, Liner or Flange or others upon request.
Handle: plastic pull handle (2-4 positions) or plastic/stainless steel squezee handle (13 positions)
Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
Control: position sensor, C-top controller, C-top controller (AS-I)
Manual handle, pneumatic actuator and electric actuator are interchangeable.

Technical Specification

Max. pressure: 10bar (145psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Supply pressure for air actuator: 70 ~ 115psi

Parameters
Steel material	Product wetted steel parts	AISI 316L / 304 forged (1.4306 / 1.4404)	Provided with material inspection report
	Other steel parts	AISI 304
Seal material	Standard	EPDM	All seal materials comply with FDA 21CFR117.2600
	Options	VMQ / FPM
Pressure	Working pressure	≤10bar (145psi)
	Supply pressure for air actuator	5 ~ 8bar (70 ~ 116psi)
Temperature	Working temperature	EPDM: 14 ~ 248°F (-10 ~ 120°C) VMQ: -58 ~ 356°F (-50 ~ +180°C) FPM: -22 ~ 446°F (-30 ~ +230°C) Other materials are available upon request
	Sterilization temperature	302°F (150°C, Max. 20 min)
Surface treatment	Inside surface treatment	Ra 16 ~ 32µin (0.4 ~ 0.8µm)
	Outside surface treatment	Ra32 ~ 64µin (0.8 ~ 1.6µm)
Connection	The welding diameter	Welding ends: DIN 11850-2 with 11850-1 / SMS / 3A / ISO Series, etc.
	End connections: butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.

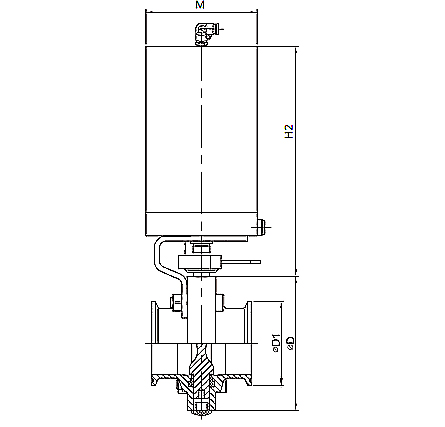

Pneumatic Weld Butterfly Valve

Model No	Size	D	D1	H2	M
VBN01WNCXX1050NN	1/2"	78	12.7	180	85
VBN01WNCXX1075NN	3/4"	78	19	180	85
VBN01WNCXX1100NN	1“”	78	25.4	180	85
VBN01WNCXX1125NN	1 1/4"	78	31.8	180	85
VBN01WNCXX1150NN	1 1/2"	78	38.1	180	85
VBN01WNCXX1200NN	2"	93	50.8	180	85
VBN01WNCXX1250NN	2 1/2"	115	63.5	180	85
VBN01WNCXX1300NN	3"	128	76.2	180	85
VBN01WNCXX1350NN	3 1/2"	139	89	180	85
VBN01WNCXX1400NN	4"	154	101.6	180	85
VBN01WNCXX2015NN	DN15	78	18/19	180	85
VBN01WNCXX2020NN	DN20	78	22/23	180	85
VBN01WNCXX2025NN	DN25	78	28/29	180	85
VBN01WNCXX2032NN	DN32	78	34/35	180	85
VBN01WNCXX2040NN	DN40	90	40/41	180	85
VBN01WNCXX2050NN	DN50	106	52/53	180	85
VBN01WNCXX2065NN	DN65	124	70	180	85
VBN01WNCXX2080NN	DN80	139	85	180	85
VBN01WNCXX2100NN	DN100	159	104	180	85

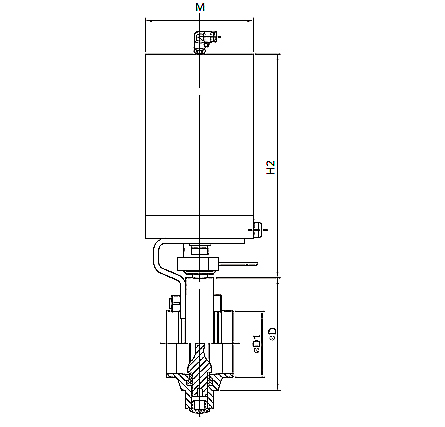

Pneumatic Clamp Butterfly Valve

Model No	Size	D	D1	H2	M
VBN01CNCXX1050NN	1/2"	78	25.4	180	85
VBN01CNCXX1075NN	3/4"	78	25.4	180	85
VBN01CNCXX1100NN	1“”	78	50.5	180	85
VBN01CNCXX1125NN	1 1/4"	78	50.5	180	85
VBN01CNCXX1150NN	1 1/2"	78	50.5	180	85
VBN01CNCXX1200NN	2"	93	64	180	85
VBN01CNCXX1250NN	2 1/2"	115	77.5	180	85
VBN01CNCXX1300NN	3"	128	91	180	85
VBN01CNCXX1400NN	4"	154	119	180	85
VBN01CNCXX2015NN	DN15	78	34	180	85
VBN01CNCXX2020NN	DN20	78	34	180	85
VBN01CNCXX2025NN	DN25	78	50.5	180	85
VBN01CNCXX2032NN	DN32	78	50.5	180	85
VBN01CNCXX2040NN	DN40	90	50.5	180	85
VBN01CNCXX2050NN	DN50	106	64	180	85
VBN01CNCXX2065NN	DN65	124	91	180	85
VBN01CNCXX2080NN	DN80	139	106	180	85
VBN01CNCXX2100NN	DN100	159	119	180	85
