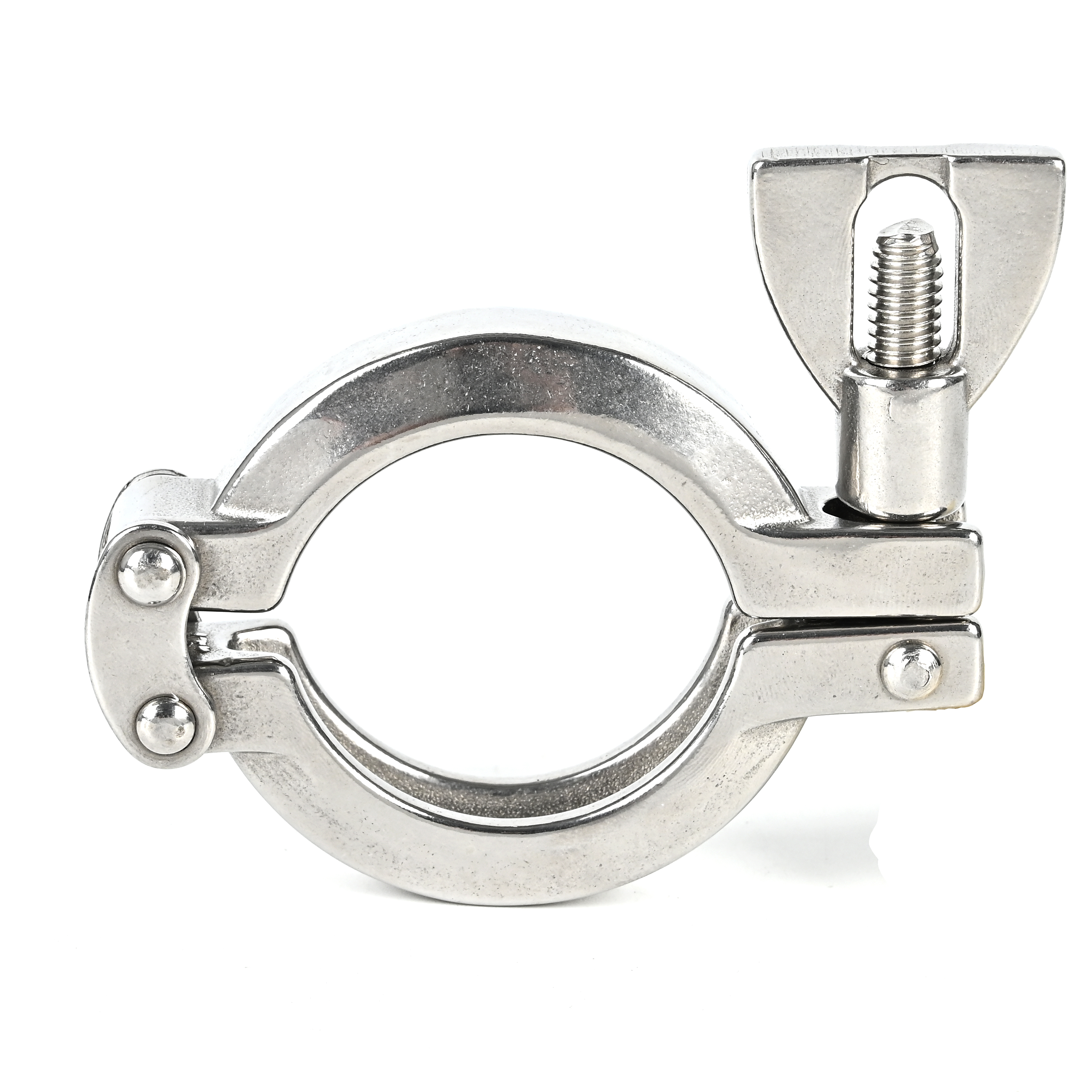

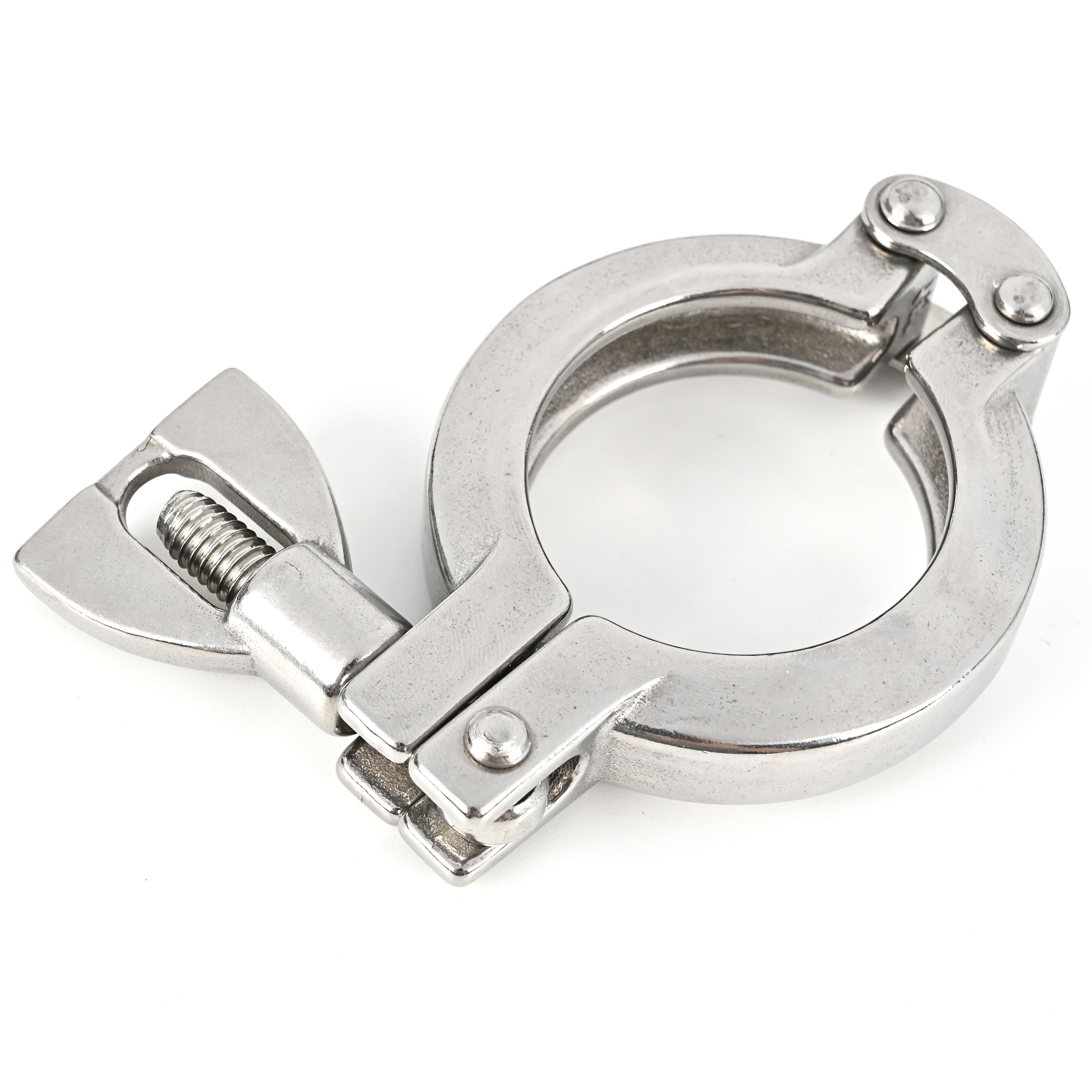

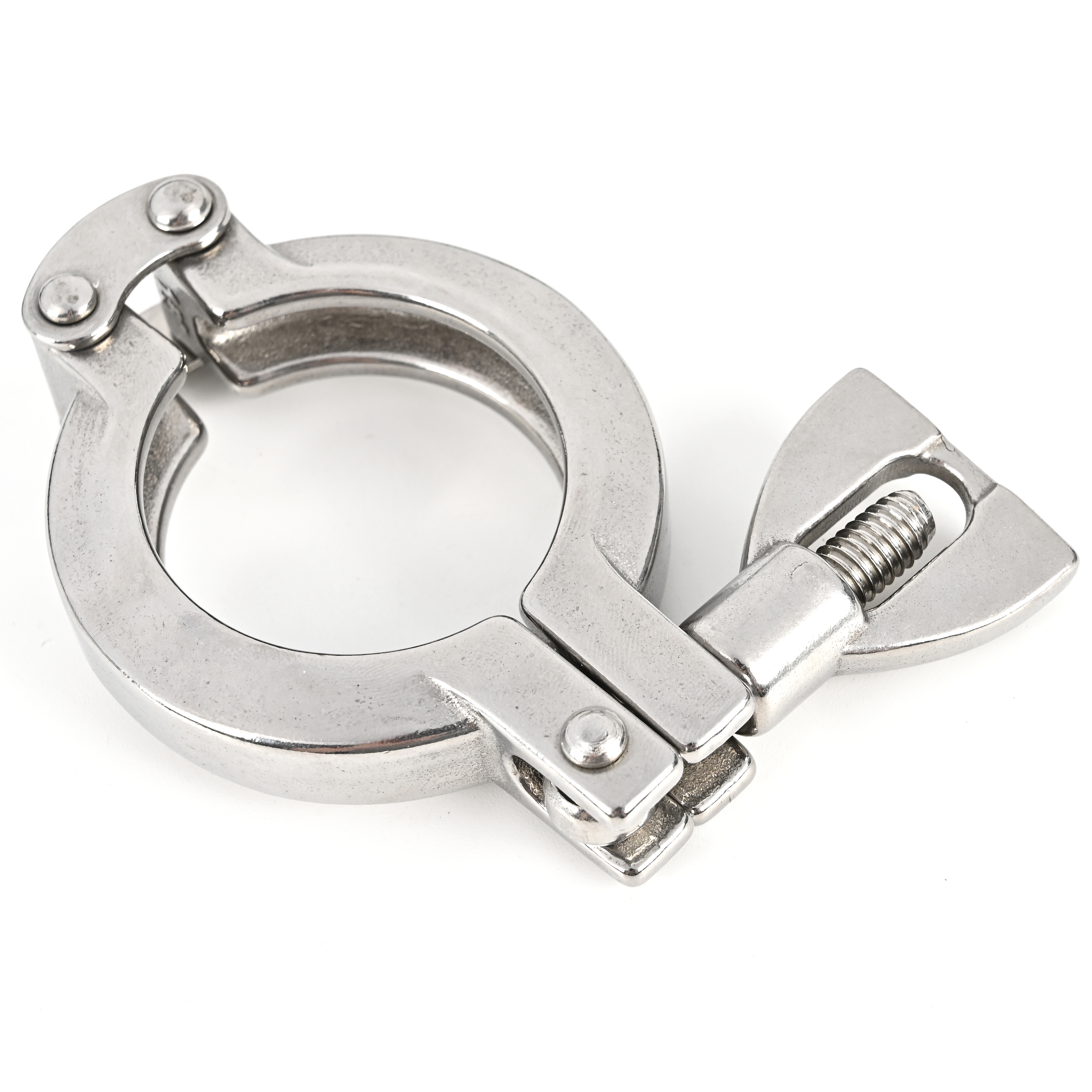

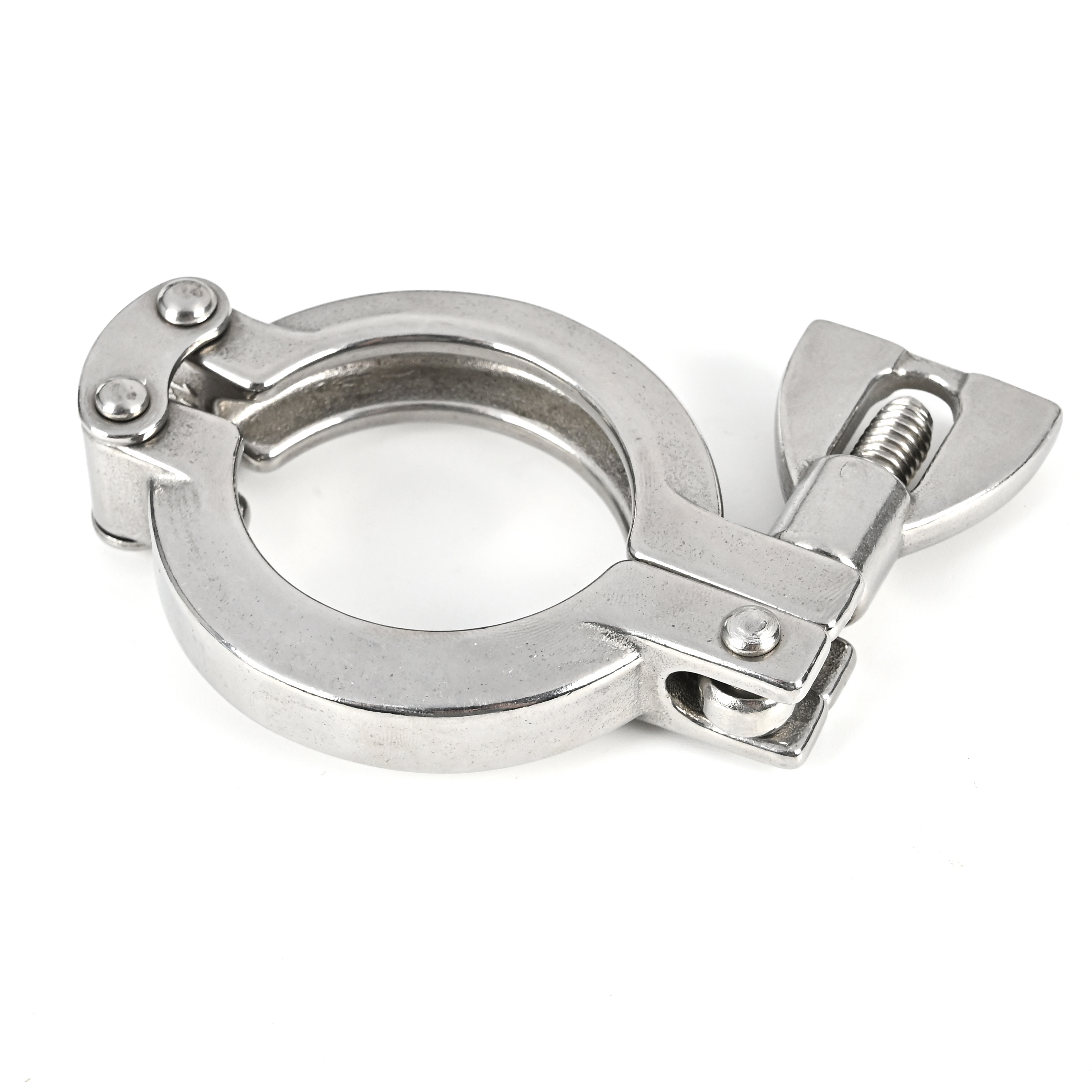

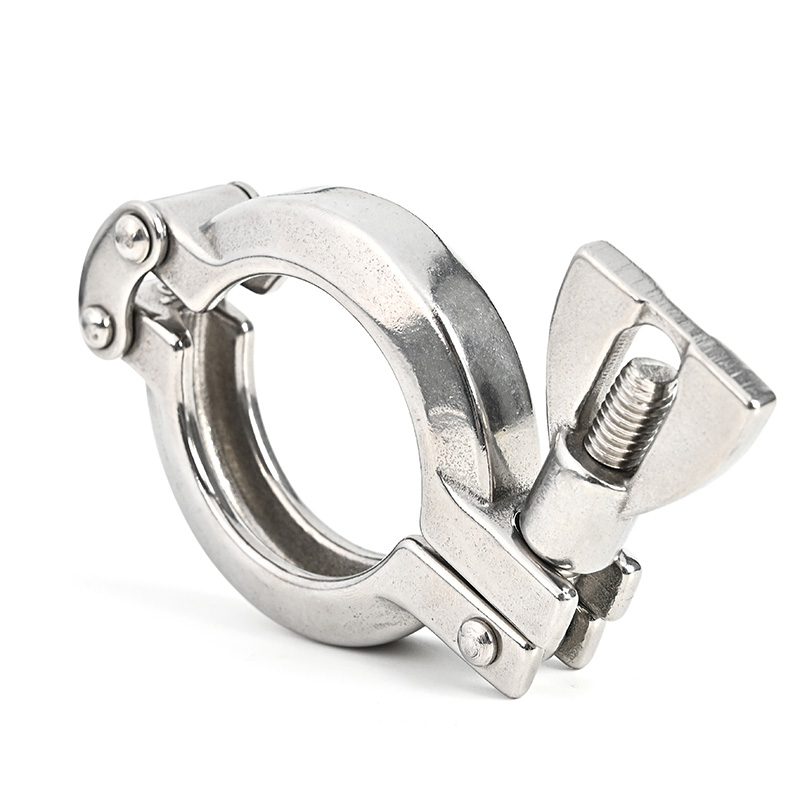

FCD03 Sanitary 13CS 3A/DIN32676 Heavy Duty Double Pin Clamp Fitting

Model:FCD03

Inquire Now PDF Datasheet

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

  • Body: AISI-304, 316L

Standard Design

  • Size available: 1/2"-8" or DN10-DN200

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

  • End connections: Weld or Tri-clamp

Detailed specifications on the drawing label

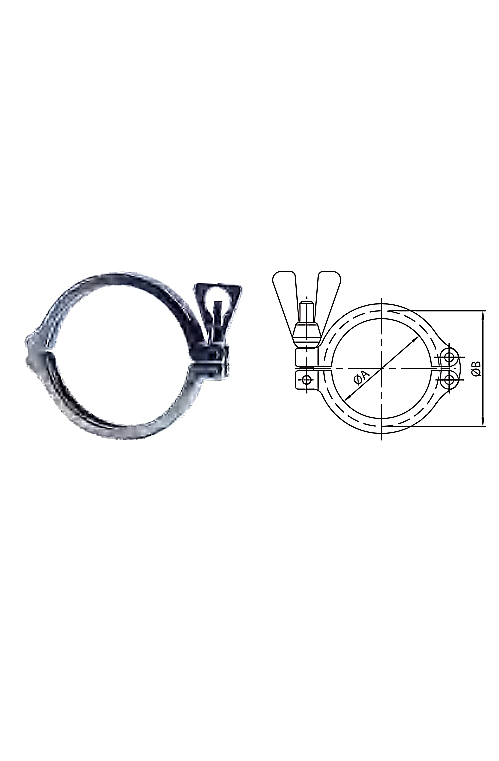

13CS Heavy Duty Double Pin Clamp

Model Size A/mm B/mm For FerrulE Frange OD N.W./g
3A DIN32676
FCD031075 1/2" / 20.6 28.34 25.2
FCD032020 / DN10-DN20 27.2 37 34
FCD031150 1"-1.5" / 41 53.52 50.5
FCD032040 / DN25-DN40 44.5 54.5 50.5
FCD031200 2" / 54.5 57.04 64
FCD032050 / DN50 57 68 64
FCD031250 2.5" / 68 80.52 77.5
FCD031300 3" / 81.5 94.02 91
FCD032065 / DN65 84 95 91
FCD032080 / DN80 99 110 106
FCD031400 4" / 109.5 122.04 119
FCD032100 / DN100 112 123 119
FCD032115 / DN115 123 134 130
FCD032125 / DN125 144 159 155
FCD031600 6" / 157.6 175.1 167
FCD032150   DN150 172 187 183
FCD031800 8" / 207.4 225.9 217.4
FCD032200 / DN200 222.5 237.5 233
FCD032250 / DN250 257 272 268
FCD032300 / DN300 308 323 319
