13CS Heavy Duty Double Pin Clamp SS304 Stainless Steel Sanitary 3A/DIN32676 Fitting 1/2"-8" or DN10-DN300

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

• Body: AISI-304, 316L

Standard Design

• Size available: 1/2"-8" or DN10-DN200

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

Detailed specifications on the drawing label

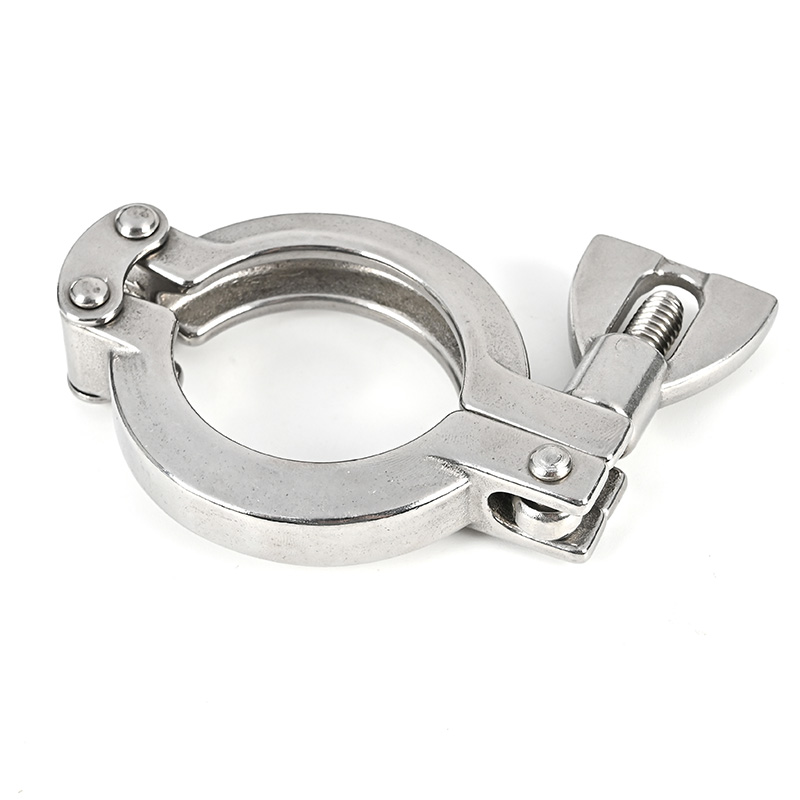

13CS Heavy Duty Double Pin Clamp

	Model	Size		A/mm	B/mm	For FerrulE Frange OD	N.W./g
		3A	DIN32676
	FCD031075	1/2"	/	20.6	28.34	25.2
	FCD032020	/	DN10-DN20	27.2	37	34
	FCD031150	1"-1.5"	/	41	53.52	50.5
	FCD032040	/	DN25-DN40	44.5	54.5	50.5
	FCD031200	2"	/	54.5	57.04	64
	FCD032050	/	DN50	57	68	64
	FCD031250	2.5"	/	68	80.52	77.5
	FCD031300	3"	/	81.5	94.02	91
	FCD032065	/	DN65	84	95	91
	FCD032080	/	DN80	99	110	106
	FCD031400	4"	/	109.5	122.04	119
	FCD032100	/	DN100	112	123	119
	FCD032115	/	DN115	123	134	130
	FCD032125	/	DN125	144	159	155
	FCD031600	6"	/	157.6	175.1	167
	FCD032150		DN150	172	187	183
	FCD031800	8"	/	207.4	225.9	217.4
	FCD032200	/	DN200	222.5	237.5	233
	FCD032250	/	DN250	257	272	268
	FCD032300	/	DN300	308	323	319
