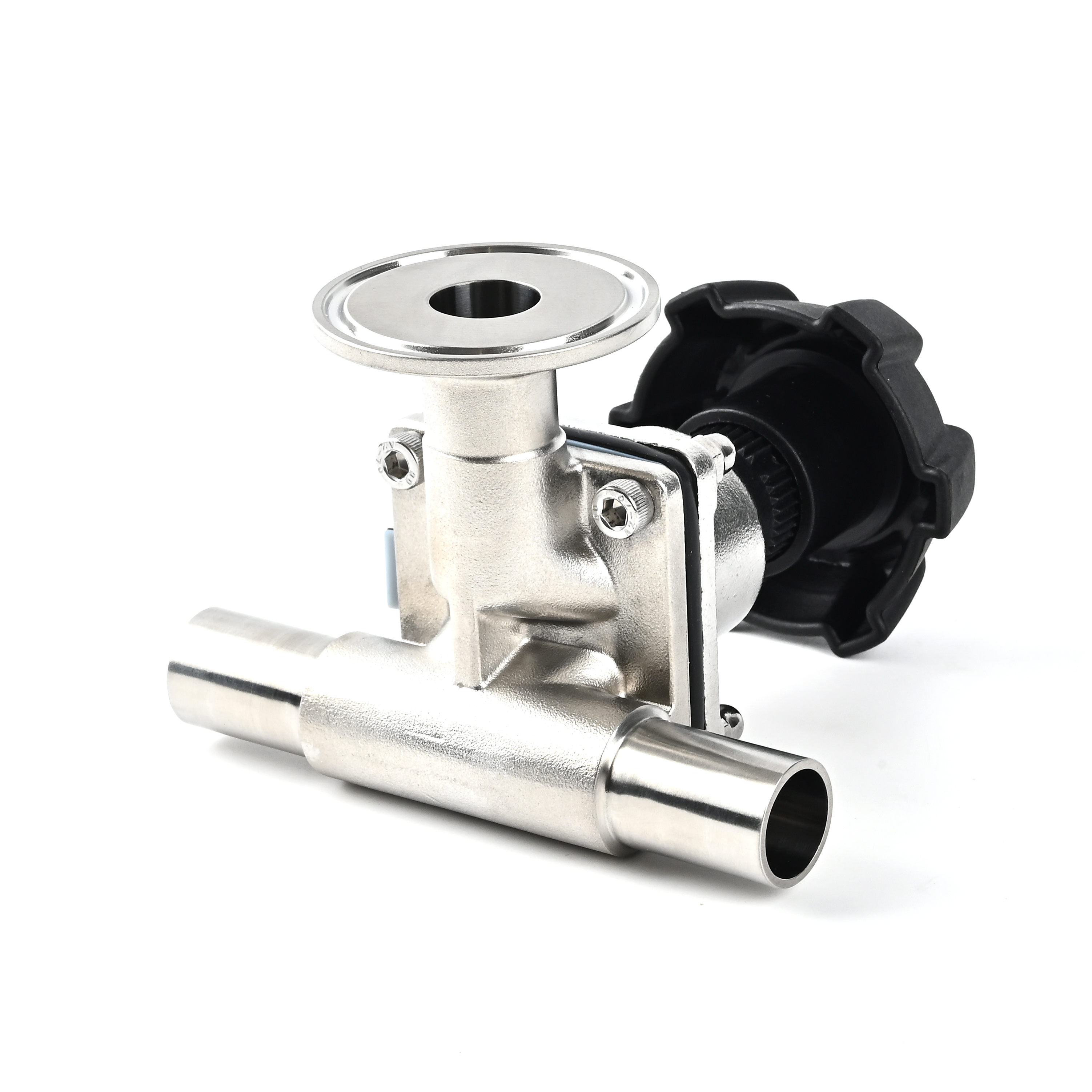

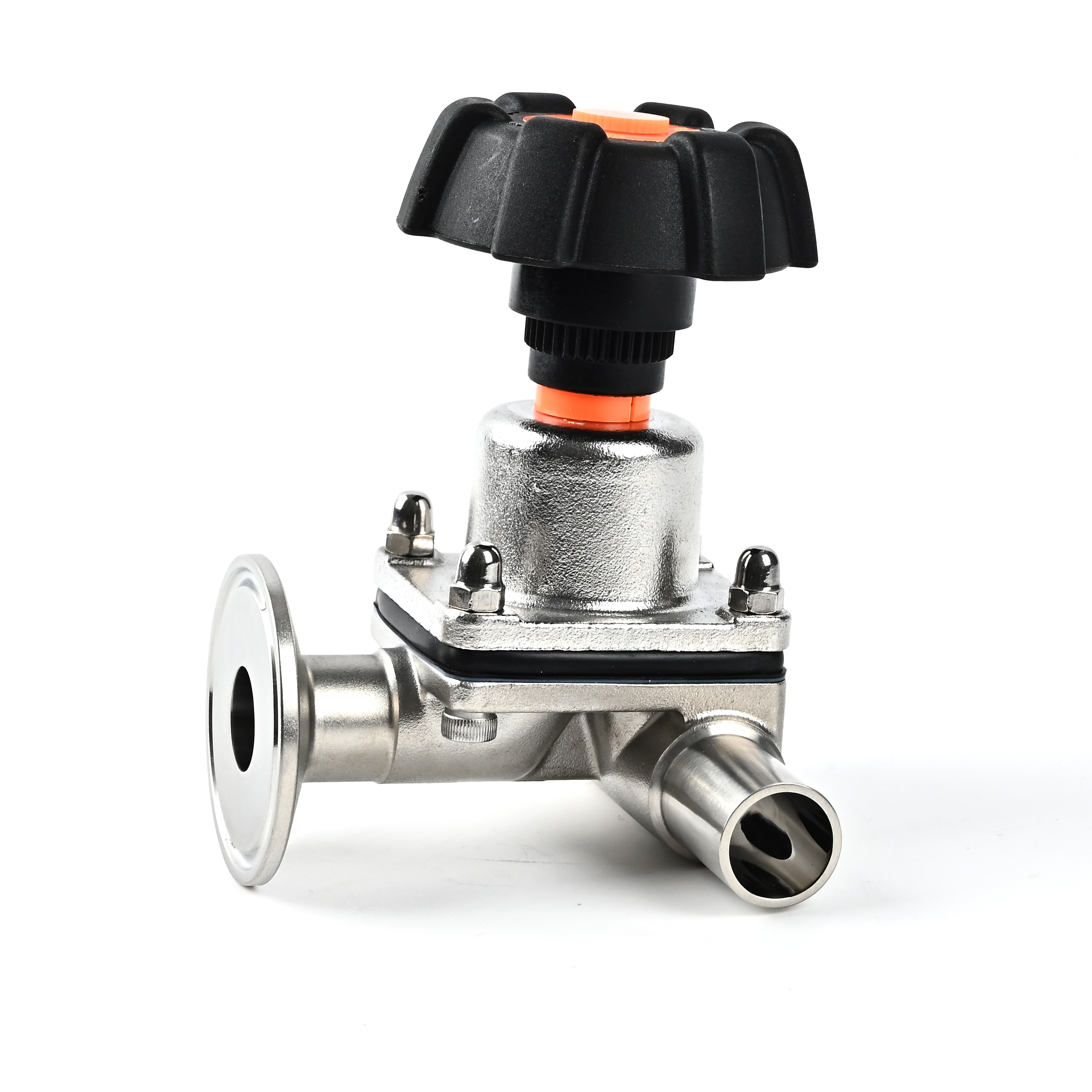

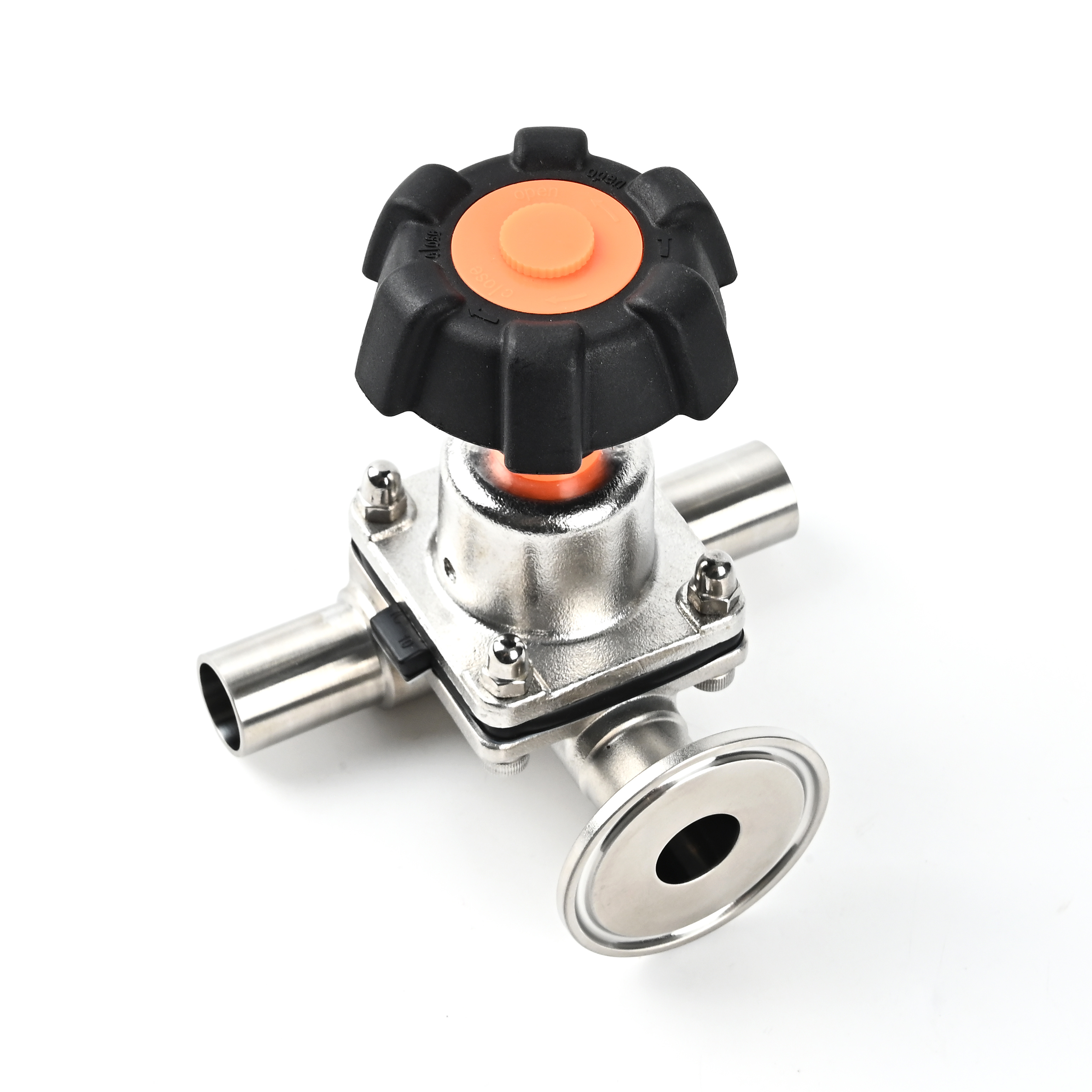

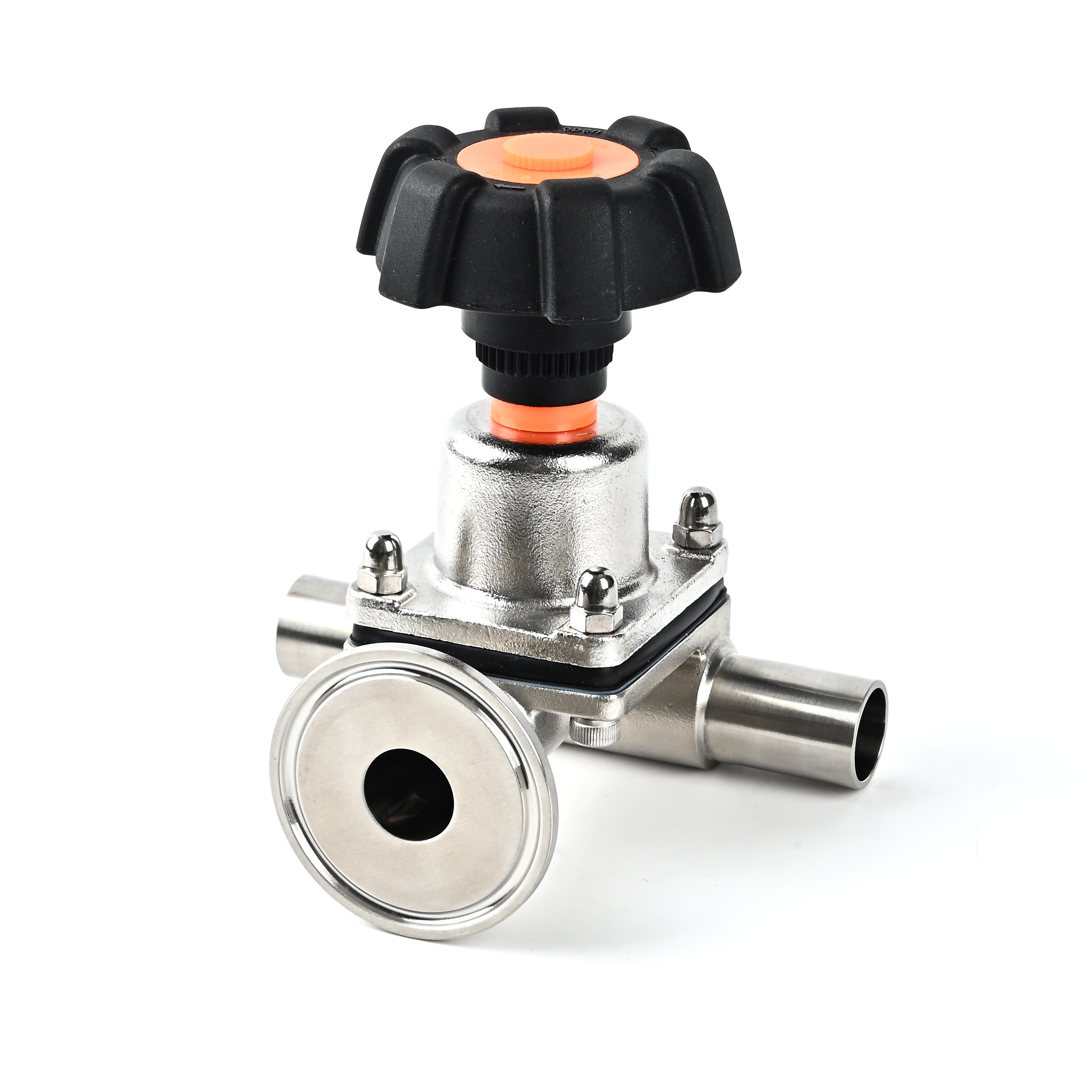

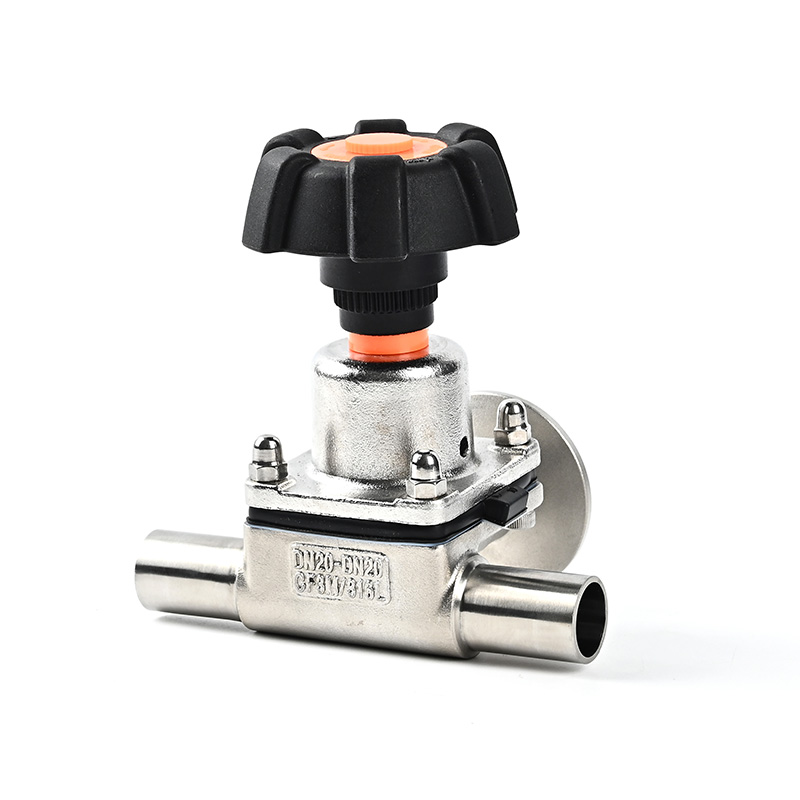

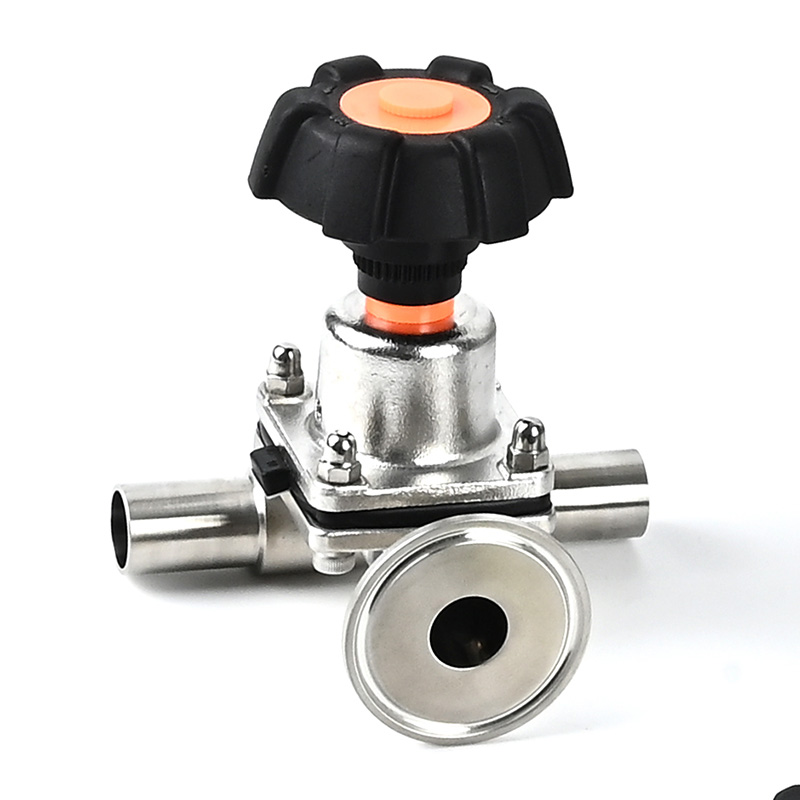

VDT Tee Type Diaphragm Valve

Model:VDT11W/VDT22W

Inquire Now PDF Datasheet

Application

VDT series is a sanitary diaphragm valve with T type design, which is specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Materials

  • Body: AISI-316L

  • Membrane: EPDM+PTFE or EDM

The seal materials comply with FDA177.2600 standard. Using proprietary technology, the diaphragm uses a combination of EPDM and PTFE, which is secured using SS bolts. The sealing part where contact with the medium is of PTFE material, it has good cold resistance -13℉ (-25℃), excellent heat-resistance 482℉ (+250℃), tolerance to most chemicals, and excellent abrasion resistance to medium flow.

Standard Design

  • Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

  • End connections: butt-welded, sanitary clamp, or others upon request

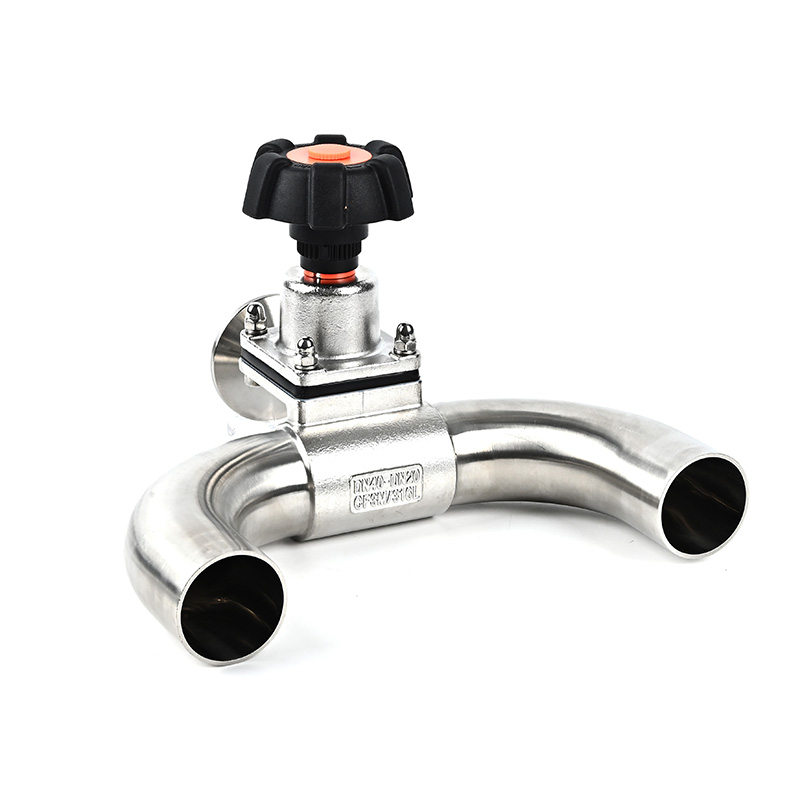

  • Body type: T-type tee, U type tee, Mini type, tank bottom type, etc.

Technical Specification

  • Max. working pressure: 147psi (10bar)

  • Temperature range: 14 ~ 248℉ (-10 ~ 120℃), EPDM

  • Inside polishing: Ra 16-32& micro;in (0.4 ~ 0.8µm)

  • Available for CIP/SIP.

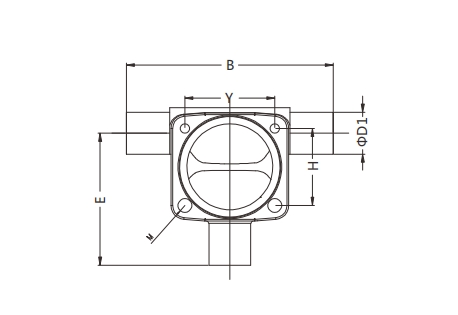

Weld T Type Diaphragm Valve VDT

Model No Size D1 B E HxY M
VDT11W1661050NN 1/2'' 12.7 72 46 22x22 M4
VDT11W1661075NN 3/4'' 19.05 92 65 37x32 M5
VDT11W1661100NN 1'' 25.4 128 81 57x47 M8
VDT11W1661125NN 1 1/4'' 31.8 153 114 70x64 M10
VDT11W1661150NN 1 1/2'' 38.1 153 112 70x64 M10
VDT11W1661200NN 2'' 50.8 172 142 85x75 M12
VDT11W1661250NN 2 1/2'' 63.5 195 156 105x91 M14

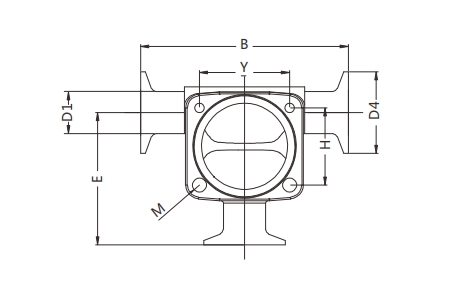

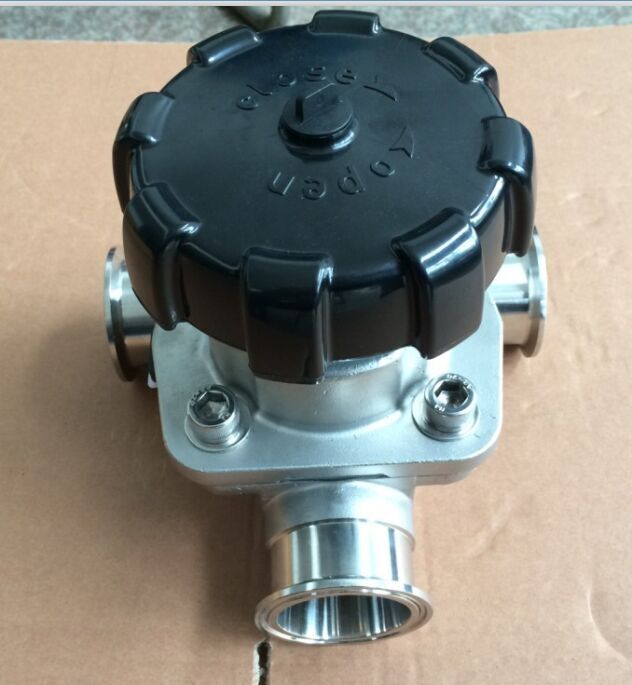

Clamp T Type Diaphragm Valve VDT

Model No Size D1 B E HxY M D4
VDT22W1661050NN 1/2'' 12.7 72 46 22x22 M4 25.2
VDT22W1661075NN 3/4'' 19.05 92 65 37x32 M5 25.2
VDT22W1661100NN 1'' 25.4 128 81 57x47 M8 50.5
VDT22W1661125NN 1 1/4'' 31.8 153 114 70x64 M10 50.5
VDT22W1661150NN 1 1/2'' 38.1 153 112 70x64 M10 50.5
VDT22W1661200NN 2'' 50.8 172 142 85x75 M12 64
VDT22W1661250NN 2 1/2'' 63.5 195 156 105x91 M14 77.5
