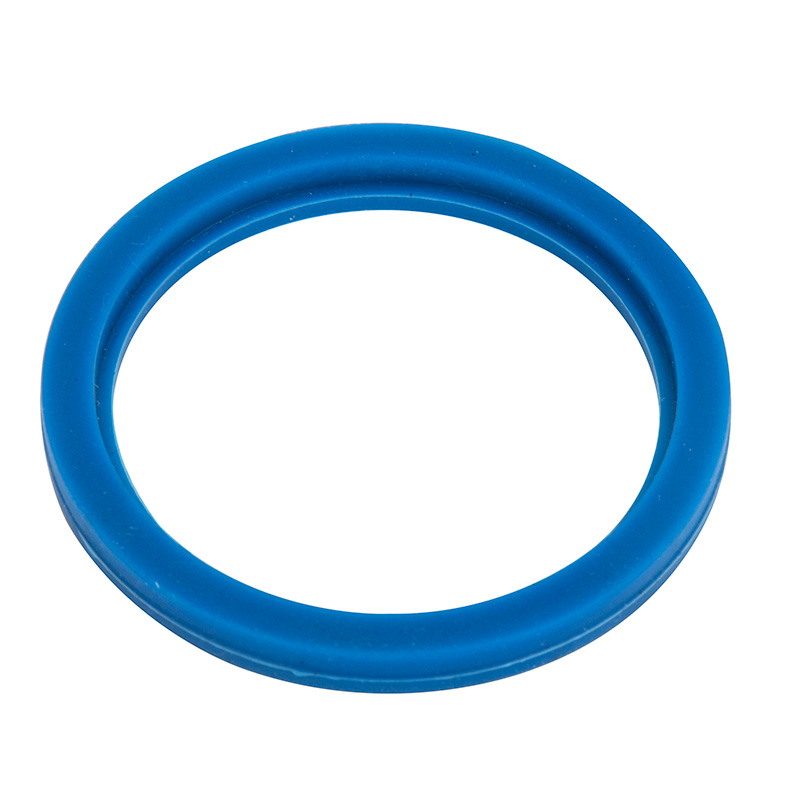

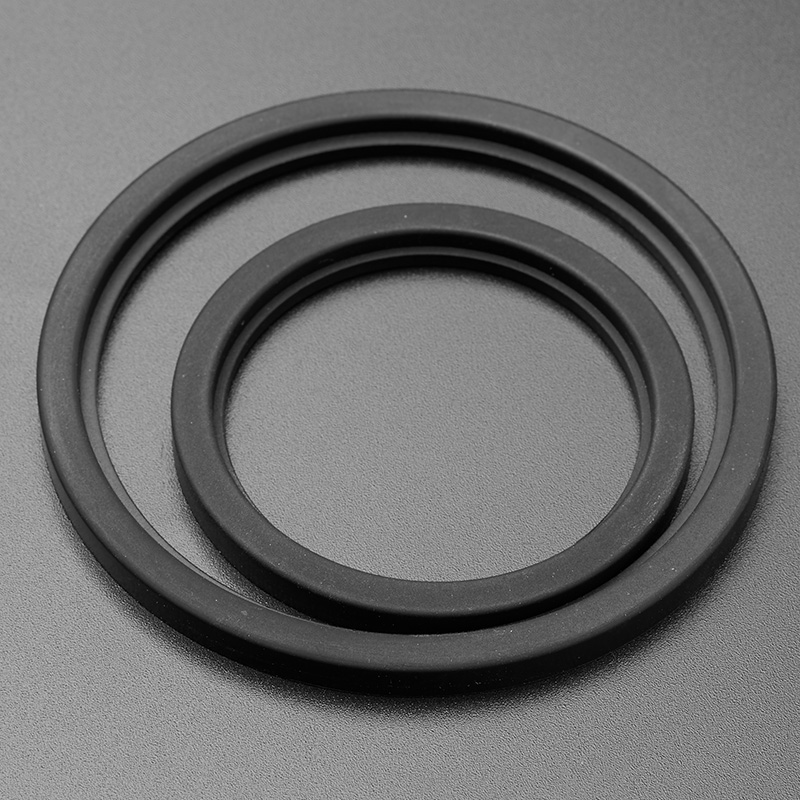

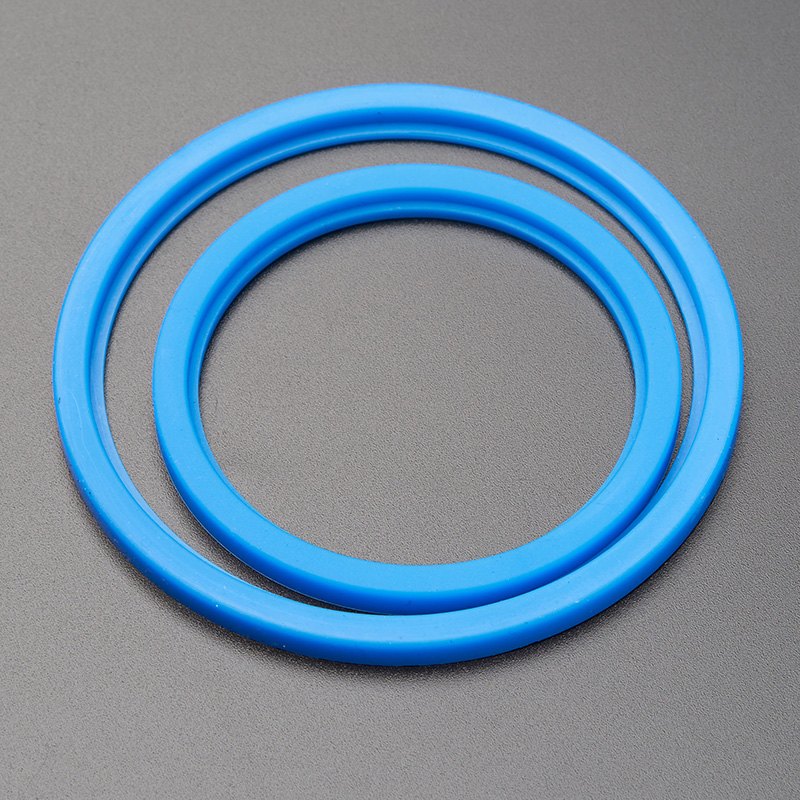

DS Gasket in Silicon FKM EPDM NBR DS Gasket Sanitary Union Fitting Union Type Gaskets

Application

Sanitary Clamp Type Gaskets are one of the most common used gaskets today. The gasket of choice throughout the sanitary process industries. These are offered in a wide range of materials. This connection is made up of stainless steel ferrules with the gasket pressed in between. The clamp goes over the sides of the ferrules and compresses the two together. This is a fast, easy, come- together connection that is sanitary.

Materials

•  FKM per FDA 177.2600

• EPDM per FDA 177.2600

• Silicon per FDA 177.2600

• NBR per FDA 177.2600

• PTFE per FDA 177.2600

DS Gasket

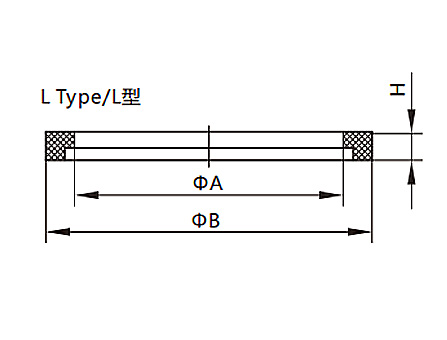

	Model for Silicon	Size	B/mm	A/mm	H/mm	N.W/g
	SFU0116100	1"	32.2	25.2	5.5
	SFU0116150	11/2"	47	38	5.5
	SFU0116200	2"	59	50.5	5.5
	SFU0116250	21/2"	74.5	63.5	5.5
	SFU0116300	3"	88	76	5.5
	SFU0116400	4"	116	101.6	5.5

Material Avaliable in 1-Silicon,2-EPDM,3-FKM, 4-NBR
