High Quality Sanitary AS Cross Short SS304 SS316L AS Cross Long Stainless Steel Weld Cross Fitting

Model No.:FXW

SKU:FXW

Item No:

Size.:

Materials:

Finishing:

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

Body: AISI-304 and AISI-316L

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld
Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

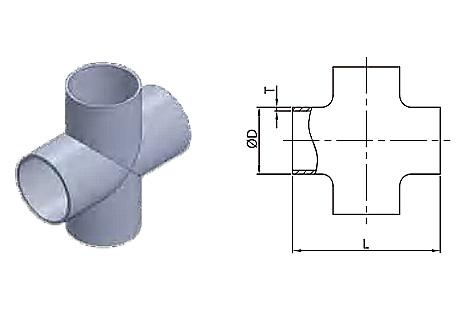

AS Cross Short

Model No	Size	D/mm	L/mm	T/mm	N.W/g.
FXW018050	1/2"	12.7	38.2	1.6
FXW018075	3/4"	19.05	57.2	1.6
FXW018100	1"	25.4	76.2	1.6
FXW018125	11/4"	31.8	95.4	1.6
FXW018150	1.5"	38.1	114.4	1.6
FXW018200	2"	50.8	152.4	1.6
FXW018250	2.5"	63.5	190.6	1.6
FXW018300	3"	76.2	228.6	1.6
FXW018400	4"	101.6	304.8	2

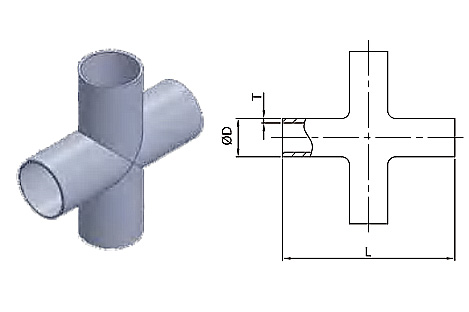

AS Cross Long

Model No	Size	D/mm	L/mm	T/mm	N.W/g.
FXW028050	1/2"	12.7	98.2	1.6
FXW028075	3/4"	19.05	117.2	1.6
FXW028100	1"	25.4	136.2	1.6
FXW028125	11/4"	31.8	155.4	1.6
FXW028150	1.5"	38.1	174	1.6
FXW028200	2"	50.8	212.4	1.6
FXW028250	2.5"	63.5	250	1.6
FXW028300	3"	76.2	288.4	1.6
FXW028400	4"	101.6	364.8	2
