Sanitary Union DIN Blind Liner SS304 SS316L Unions Fitting Stainless Steel DIN Blind Liner Blank End Cap

Application

Uinon Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Here’s a professional English description for a 304 Stainless Steel Sanitary Clamp Union Fitting Kit: 304 Stainless Steel Sanitary Union Fitting Kit Description Product Name* 304 Stainless Steel Sanitary Quick-Connect Union Kit (Clamp/Thread Type) Key Specifications Material: Body: 304 Stainless Steel (06Cr19Ni10), corrosion-resistant, compliant with GB/T 1220. Seal: Food-grade EPDM/FKM/Silicone (optional), FDA/EC1935 certified. Surface Finish: Mechanical polishing (Ra ≤ 0.8μm), mirror-finished inner surface, dead-space-free design. Optional electropolishing or passivation (enhanced corrosion resistance). Compliance Standards:DIN/SMS/ISO/3A (as per actual certifications). Components Included 1. Union Body: Precision-cast 304 stainless steel,quick-release design, allows 360° rotation alignment. 2. Connection Type: Clamp Typ: Stainless steel tri-clamp with anti-slip locking mechanism. Thread Type: BSP/NPT/Clamp threads available (optional). 3. Gasket: High-temperature resistant (-20°C to120°C), anti-aging, food-safe compliant. Features Hygienic Design: Meets GMP/HACCP standards, suitable for sterile piping systems. No dead zones, supports CIP/SIP cleaning and sterilization. Durability 304 stainless steel resists weak acids, alkalis, and organic solvents. Working pressure: 1.0MPa–1.6MPa (varies by size). Easy Installation Tri-clamp design for tool-free disassembly and maintenance. Compatible with DN15–DN100 (1/2"–4") pipes; custom sizes available. Applications Food & Beverage: Dairy, beer, juice, condiment pipelines. Pharmaceutical: Purified water, WFI (Water for Injection) systems. Cosmetics: High-purity fluid transfer. Packaging & Certifications - Individually packed in dust-proof bags, complete with seals/clamps. - Material Test Certificates (MTC) and sanitary compliance documents provided.

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: SMS, ISO / IDF, DS, RJT, DIN, DIN11864, etc

• End connections: Weld

• Size available: 1"-4" or DN10-DN150

Detailed specifications on the drawing label

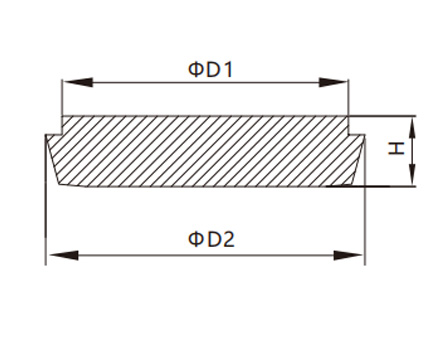

DIN Bline Liner

	Model	Size	D1/mm	D2/mm	H/mm	N.W/g
	FUC012010	DN10	18	22.5	9	20
	FUC012015	DN15	24	28.5	9	40
	FUC012020	DN20	30	36.5	11	70
	FUC012025	DN25	35	44	13	130
	FUC012032	DN32	41	50	13	170
	FUC012040	DN40	48	56	13	220
	FUC012050	DN50	61	68.5	15	350
	FUC012065	DN65	79	86	16	670
	FUC012080	DN80	93	100	16	920
	FUC012100	DN100	114	121	20	1340
	FUC012125	DN125	137	150	22	1680
	FUC012150	DN150	163	176	24	4300
