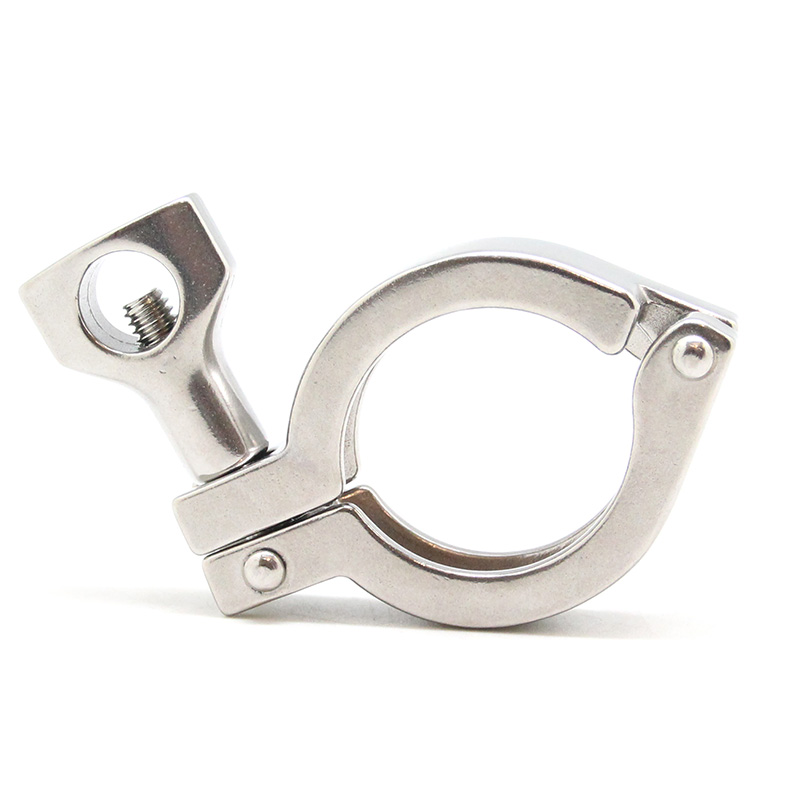

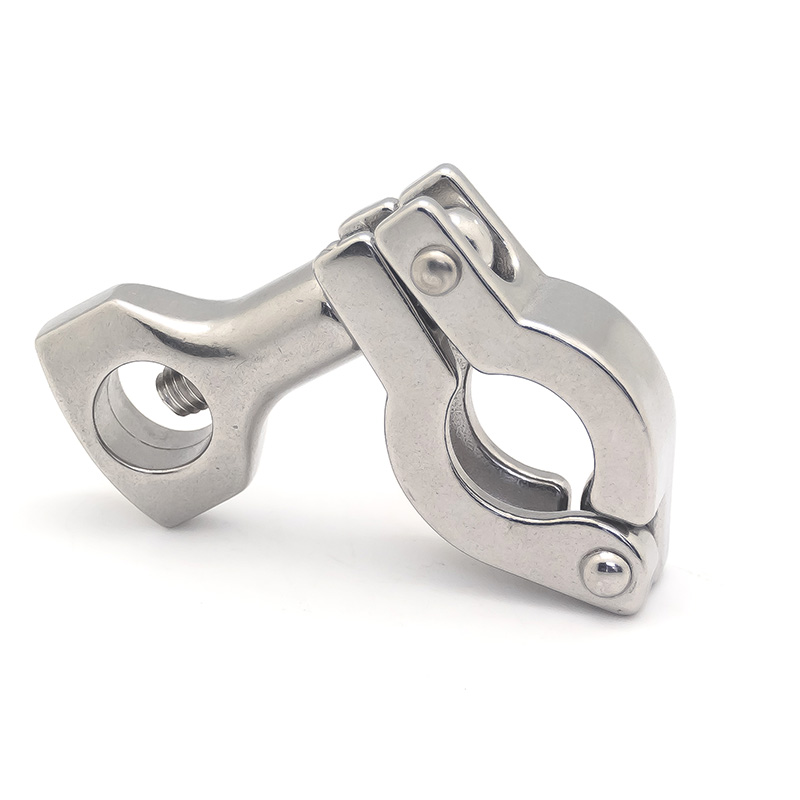

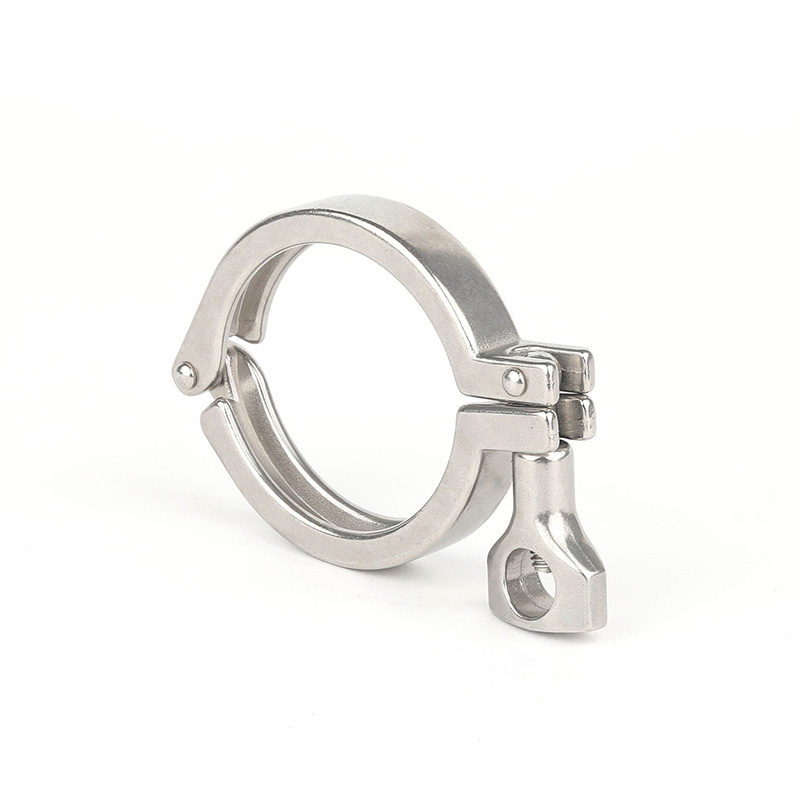

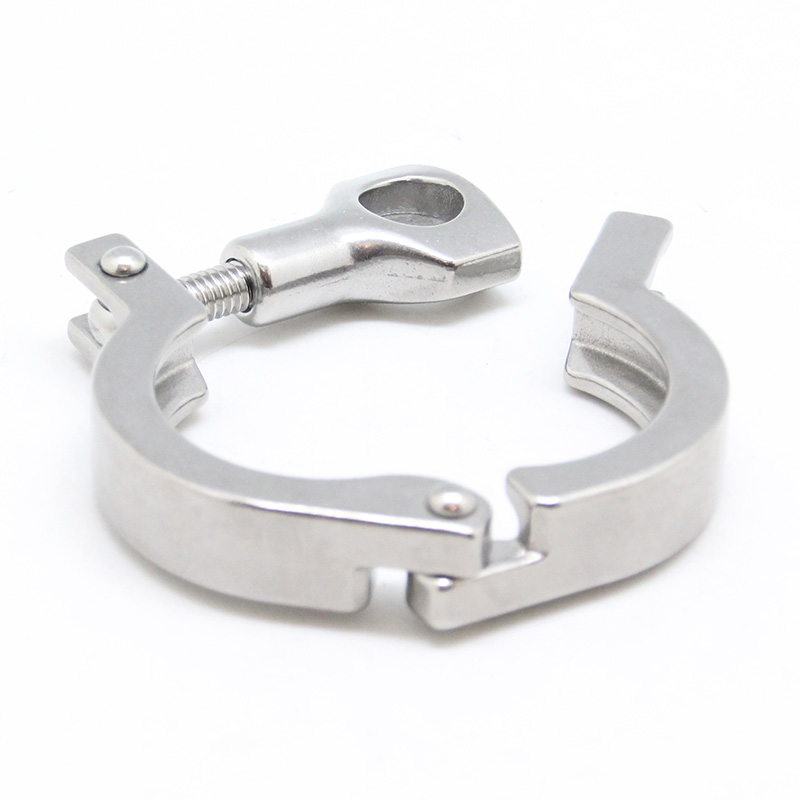

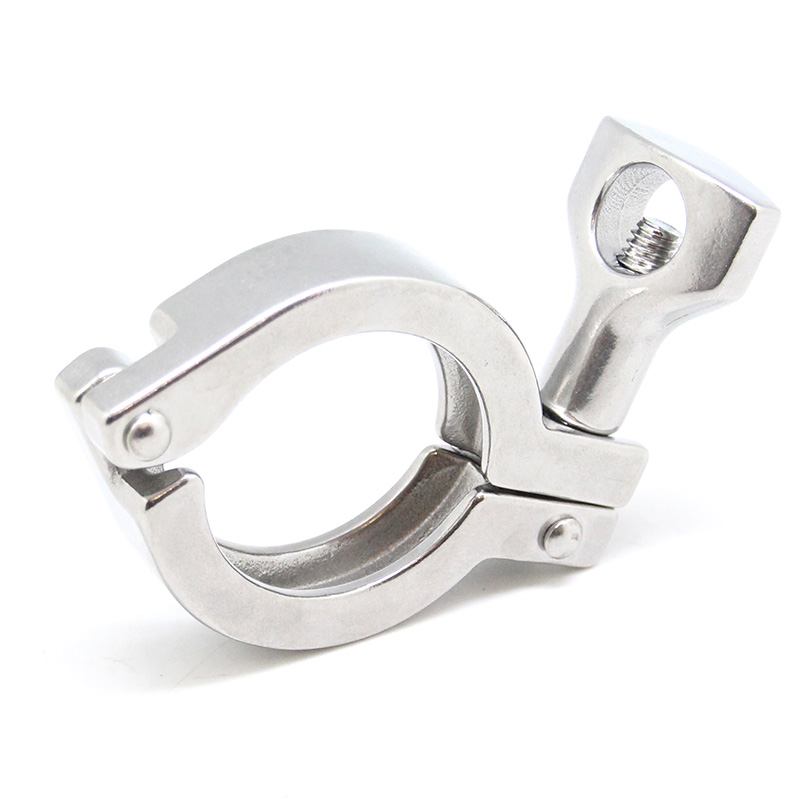

Name: Stainless Steel SS304 Sanitary 13MHHM Heavy Duty Clamp with Aircraft Nose/Round Hole Nut 3A/DIN32676
Brand: QIMING
SKU: 00071
Rating: 4.9 (86 reviews)

Stainless Steel SS304 Sanitary 13MHHM Heavy Duty Clamp with Aircraft Nose/Round Hole Nut 3A/DIN32676

Model No.:FCC04

SKU:FCC04

Size.:

Material:

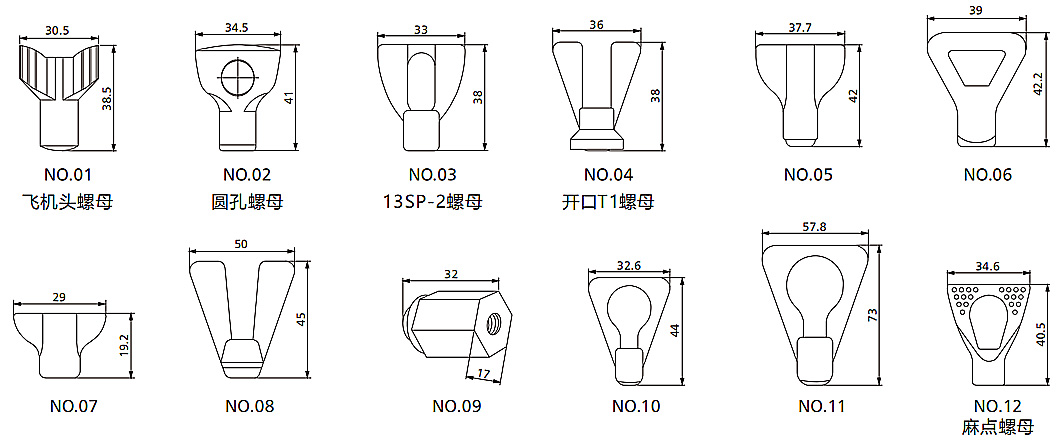

Nut:

Application

Sanitary stainless steel Clamps, the most popular type of fittings used in sanitary processes today. They are designed for fit needs at various circumstances and used with a gasket and two clamp compatible fittings to make a connection.

Materials

Body: AISI-304, 316L

Standard Design

Size available: 1/2"-8" or DN10-DN200
Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE
End connections: Weld or Tri-clamp

Detailed specifications on the drawing label

13MHHM Heavy Duty Clamp

Model		Size		A/mm	B/mm	For FerrulE Frange OD	N.W./g
Model		3A	DIN32676	A/mm	B/mm	For FerrulE Frange OD	FCCC01		FCCC04
FCC011075	FCC041075	1/2"-3/4"	/	21.2	28.2	25.2	146	160
FCC012020	FCC042020	/	DN10-DN20	27.8	37	34	136	186
FCC012025	FCC042025	/	/	35.8	43	40	144	N/A
FCC011150	FCC041150	1"-1.5"	DN25-DN40	44.4	53.6	50.5	168	228
FCC011200	FCC041200	2"	DN50	57.8	67	64	206	268
FCC011250	FCC041250	2.5"	/	71.4	80.6	77.5	236	304
FCC011300	FCC041300	3"	DN65	84	94.2	91	260	334
FCC011350	FCC041350	3.5"	DN80	99	109.2	106	306	400
FCC011400	FCC041400	4"	DN100	110	122.2	119	312	468
FCC011450	FCC041450	4.5"	/	123	133.2	130	N/A	542
FCC011500	FCC041500	5"	DN125	135.5	148	144.5	N/A	880
FCC011550	FCC041550	φ140	/	145	159	155	N/A	840
FCC011600	FCC041600	6"	DN150	155.4	170.4	167	N/A	914
FCC011625	FCC041625	φ159	/	173	187	183	N/A	960
FCC011800	FCC041800	8"	DN200	205	220	217.4	N/A	1392
FCC011850	FCC041850	φ219	/	223	237	233	N/A	1343
FCC0111000	FCC0411000	10”	DN250	258	272	268	N/A	2695
FCC0111050	FCC0411050	10.5"	/	276	290	286	N/A	1626
FCC0111200	FCC0411200	12"	DN300	307	323	319	N/A	2980
