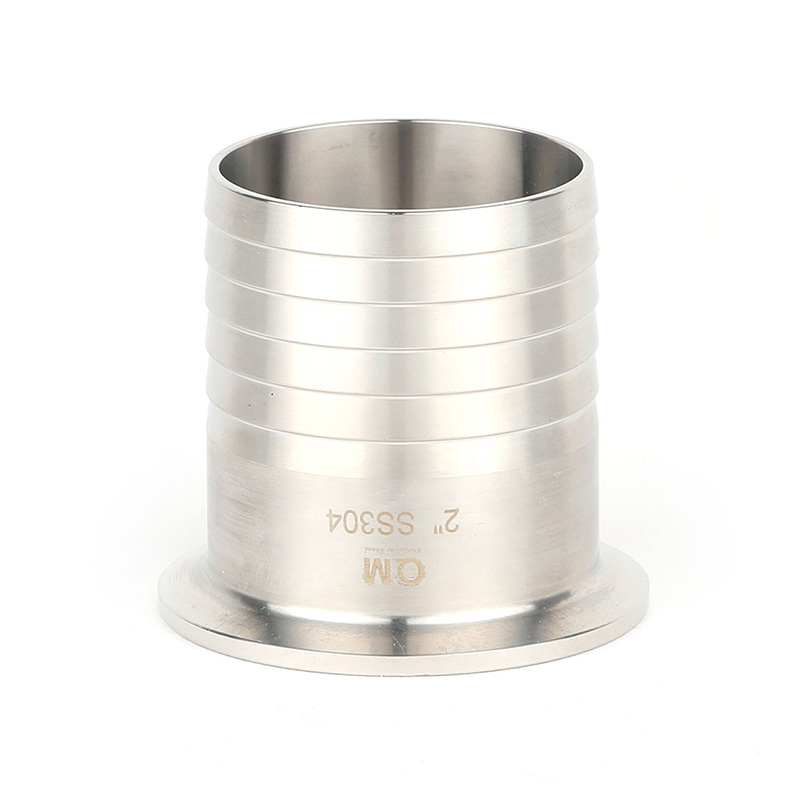

14WPHR Clamp Rubber Hose Adaptor SS304/SS316L Stainless Steel High Quality Sanitary Tri Clamp Fitting

Application

Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld or Tri-clamp

• Size available: 1/2"-8" or DN10-DN200

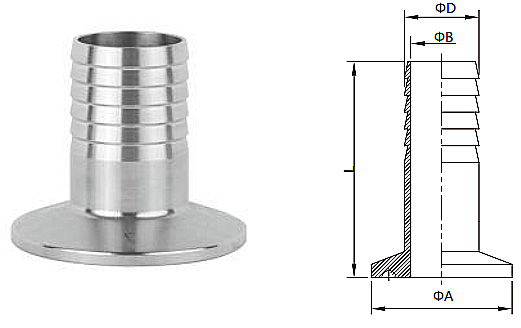

Detailed specifications on the drawing label

Product Description

Here’s a professional English description for stainless steel quick-assembly fittings: Stainless Steel Quick-Assembly Fittings These fittings are designed for rapid, tool-free installation in piping systems, offering high corrosion resistance and durability. Made from **grade 304/316 stainless steel**, they are ideal for applications in plumbing, HVAC, industrial fluid transfer, and food/beverage processing where hygiene and leak-proof performance are critical. Key Features Quick-Connect Mechanism:** Enables secure push-to-connect assembly without threading or soldering. Vibration-Resistant:** Internal grip rings or collets ensure a tight seal under pressure. Temperature Range:** -20°C to +120°C (varies by design). Pressure Rating:** Typically up to 16 bar (230 psi). Sizes Available:** 1/8" to 2" (DN6 to DN50) for tubes/pipes. Standards Compliance:** ASTM A270 (sanitary), ISO 1127, or industry-specific certifications. Common Types Straight Couplings Elbows (90°/45° Tees Union Connectors Flush-Fit Adapters (for clean-in-place systems) Applications Chemical/petrochemical lines Compressed air systems Water treatment plants Pharmaceutical tubing Advantages Reduced installation time vs. traditional methods Reusable designs for maintenance flexibility Electropolished options for ultra-smooth surfaces Optional additions based on context: For sanitary fittings: Add "3-A compliant, crevice-free design for FDA/USDA requirements For high-pressureSpecify Swivel nut designs for dynamic piping (up to 100 bar Let me know if you'd like to emphasize any specific feature (e.g., antimicrobial properties, extreme temperature resistance) for your target industry!

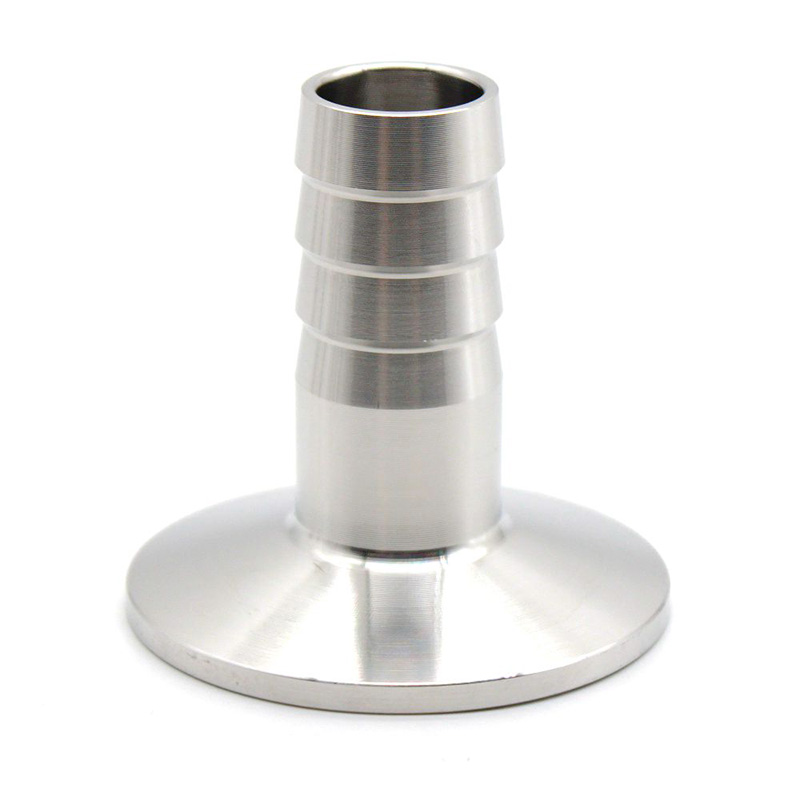

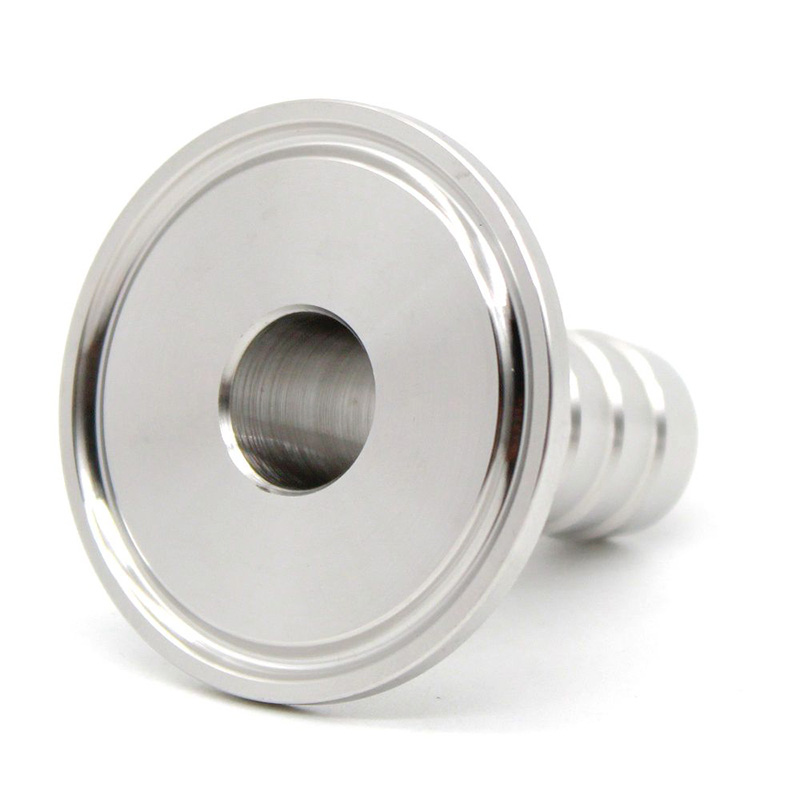

14WPHR Clamp Rubber Hose Adaptor

	Model for 304	Size	A/mm	B/mm	D/mm	L/mm	N.W./g
	FLH01C10254S1	1/4"	25.2	3.18	7.3	38	20
	FLH01C10384S1	3/8"	25.2	6.35	10.4	38	25
	FLH01C10504S1	1/2"	25.2	9.5	13.7	38	25
	FLH01C10754S1	3/4"	25.2	17.2	21.4	38	30
	FLH01C10254S3	1/4"	50.5	3.18	7.3	38	82
	FLH01C10384S3	3/8"	50.5	6.35	10.4	38	88
	FLH01C10504S3	1/2"	50.5	9.5	13.7	38	89
	FLH01C10754S3	3/4"	50.5	17.2	21.4	38	92
	FLH01C11004S1	1"	50.5	21.2	25.4	43	92
	FLH01C11254S1	11/4"	50.5	27.6	31.8	43	86
	FLH01C11504S1	11/2"	50.5	33.9	38.1	43	82
	FLH01C12004S1	2	64	46.6	50.8	59	170
	FLH01C12504S1	21/2"	77.5	59.3	63.5	59.5	250
	FLH01C13004S1	3"	91	72	76.2	78.6	360
	FLH01C14004S1	4"	119	97.6	101.6	86.5	500
