Sanitary 90/45 Degree Clamp Elbows Stainless Steel JIS Fitting Tri Clamp 45°Elbow SS304 SS316L JIS Pipe Fitting

Application

Weld Fittings are used on permanent installations where process piping and equipment can be cleaned in place (CIP) and removal from the system is not required. Weld Fittings are offered in nominal tube sizes 1/2˝ through 8˝ in T304 and T316L materials. Uniform wall thickness for 1/2˝ through 3˝ sizes measure .065 (16 ga). In 4˝ size, wall thickness measures. 083 (14 ga), 6˝ and 8˝ .109 (12 ga).

Materials

• Body: AISI-304 and AISI-316L

Standard Design

• Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME BPE

• End connections: Weld

• Size available: 1/2"-8" or DN10-DN200

Detailed specifications on the drawing label

JIS Clamp 90° Elbow

	Model No	Size	D/mm	D/mm	K/mm	T/mm	N.W/g.
	FEC015050	1/2S	12.7	49	25.2	1.25
	FEC015075	3/4S	19.1	54	25.2	1.65
	FEC015100	1S	25.4	55	50.5	1.25
	FEC015150	1.5S	38.1	70	50.5	1.25
	FEC015200	2S	50.8	82	64	1.5
	FEC015250	2.5S	63.5	105	77.5	1.5
	FEC015300	3S	76.2	110	91	2
	FEC015400	4S	101.6	162.5	119	2

JIS Clamp 45° Elbow

	Model No	Size	A/mm	C/mm	K/mm	T/mm	N.W/g.
	FEC035050	1/2S	12.7	24	25.2	1.25
	FEC035075	3/4S	19.1	30	25.2	1.65
	FEC035100	1S	25.4	34.5	50.5	1.25	150
	FEC035150	1.5S	38.1	40.7	50.5	1.25	130
	FEC035200	2S	50.8	46.9	64	1.5	240
	FEC035250	2.5S	63.5	58.7	77.5	1.5	360
	FEC035300	3S	76.2	62	91	2	540
	FEC035400	4S	101.6	83.7	119	2	1050
`

JIS 90° Elbow

	Model No	Size	D/mm	B/mm	T/mm	N.W/g.
	FEW015050	1/2S	12.7	25	1.5
	FEW015075	3/4S	19.1	28.5	1.5
	FEW015100	1S	25.4	35	1.5	35
	FEW015150	1.5S	38.1	50	1.5	86
	FEW015200	2S	50.8	60	1.5	160
	FEW015250	2.5S	63.5	79	1.5	270
	FEW015300	3S	76.2	82	2	390
	FEW015400	4S	101.6	133	2	925

JIS Long 90° Elbow

	Model No	Size	D/mm	C/mm	T/mm	N.W/g.
	FEW025050	1/2S	12.7	60	1.5
	FEW025075	3/4S	19.1	60	1.5
	FEW025100	1S	25.4	70	1.5
	FEW025150	1.5S	38.1	85	1.5
	FEW025200	2S	50.8	100	1.5
	FEW025250	2.5S	63.5	119	1.5
	FEW025300	3S	76.2	127	2
	FEW025400	4S	101.6	175	2

JIS Long 90° Elbow

	Model No	Size	D/mm	C/mm	T/mm	N.W/g.
	FEW035100	1S	25.4	14.6	1.5	18
	FEW035150	1.5S	38.1	20.7	1.5	43
	FEW035200	2S	50.8	24.9	1.5	80
	FEW035250	2.5S	63.5	32.7	1.5	135
	FEW035300	3S	76.2	34	2	195
	FEW035400	4S	101.6	55.7	2	475

JIS Long 45° Elbow

	Model No	Size	D/mm	D/mm	E/mm	N.W/g.
	FEW045050	1/2S	12.7	40	1.25
	FEW045075	3/4S	19.1	49	1.65
	FEW045100	1S	25.4	49.5	1.25
	FEW045150	1.5S	38.1	55.7	1.25
	FEW045200	2S	50.8	64.9	1.5
	FEW045250	2.5S	63.5	72.7	1.5
	FEW045300	3S	76.2	79	2
	FEW045400	4S	101.6	98.8	2

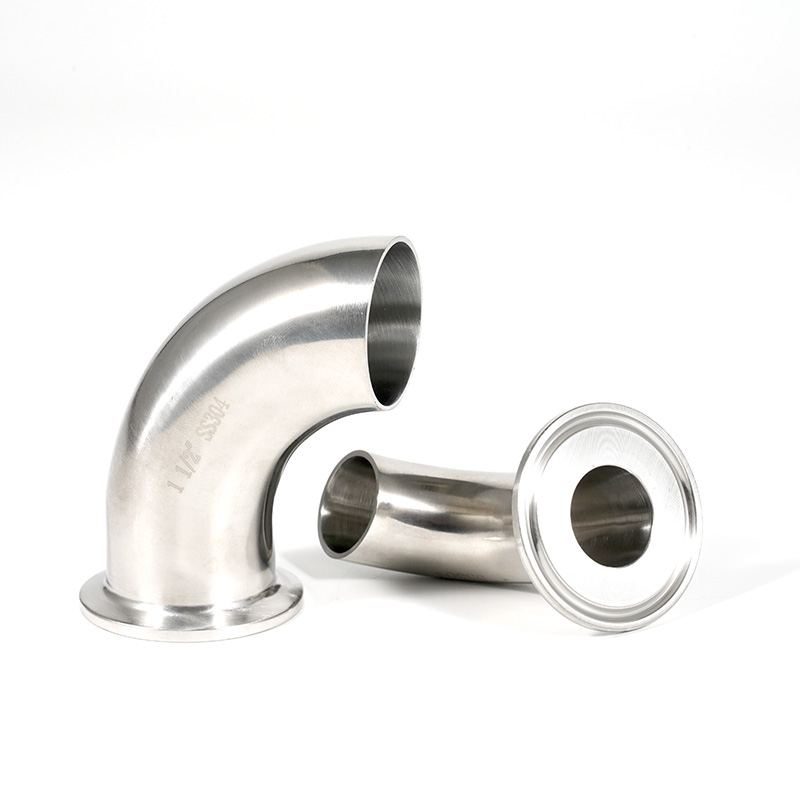

JIS Weld/Clamp 90° Elbow

	Model No	Size	D/mm	B/mm	D/mm	T/mm	N.W/g.
	FEA015050	1/2S	12.7	25	38.5	1.25
	FEA015075	3/4S	19.1	28.5	43.5	1.65
	FEA015100	1S	25.4	35	55	1.25
	FEA015150	1.5S	38.1	50	70	1.25
	FEA015200	2S	50.8	60	82	1.5
	FEA015250	2.5S	63.5	79	105	1.5
	FEA015300	3S	76.2	82	110	2
	FEA015400	4S	101.6	133	162.5	2

JIS Weld/Clamp 90° Elbow Long

	Model No	Size	D/mm	C/mm	D/mm	T/mm	N.W/g.
	FEA025050	1/2S	12.7	60	38.5	1.25
	FEA025075	3/4S	19.1	60	43.5	1.65
	FEA025100	1S	25.4	70	55	1.25
	FEA025150	1.5S	38.1	85	70	1.25
	FEA025200	2S	50.8	100	82	1.5
	FEA025250	2.5S	63.5	119	105	1.5
	FEA025300	3S	76.2	127	110	2
	FEA025400	4S	101.6	175	162.5	2

JIS Weld/Clamp 45° Elbow

	Model No	Size	D/mm	B/mm	C/mm	T/mm	N.W/g.
	FEA035100	1S	25.4	35	34.6	1.25
	FEA035150	1.5S	38.1	50	40.7	1.25
	FEA035200	2S	50.8	60	46.9	1.5
	FEA035250	2.5S	63.5	79	58.7	1.5
	FEA035300	3S	76.2	82	62	2
	FEA035400	4S	101.6	134.5	83.7	2

JIS Weld/Clamp 45° Elbow Long

	Model No	Size	D/mm	C/mm	D/mm	T/mm	N.W/g.
	FEA045050	1/2S	12.7	24	40	1.25
	FEA045075	3/4S	19.1	30	49	1.65
	FEA045100	1S	25.4	34.6	49.5	1.25
	FEA045150	1.5S	38.1	40.7	55.7	1.25
	FEA045200	2S	50.8	46.9	64.9	1.5
	FEA045250	2.5S	63.5	58.7	72.7	1.5
	FEA045300	3S	76.2	62	79	2
	FEA045400	4S	101.6	83.7	98.8	2
