Sanitary Elliptical Manhole Cover Stainless Steel SS304 SS316L Non-Pressure Elliptical Manhole Cover

Application

TME04 Series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Materials

• Cover Body:       SS304 or SS316L

• Gasket:              Silicon, EPDM, FPM per FDA 177.2600

Standard Design

• Available in size: 430x330mm, 530x430mm

• Standard height: 75mm for 430x330mm, 80mm or 100mm for 530x430mm

• Standard thickness: 8mm

• Inward Opening

• Installation on the side surface of tank

Technical Specification

• Max. pressure: 43psi (3bar)

• Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

• Surface treatment: mirror inside, stain or mirror outside

DESIGN AND FEATURES

• lnward opening manway door type
• Gasket Material Option: Silicon,EPDM, FPM
• Frame Height and thickness available on request

Technical Data

• Working pressure: 1-3Bar
• Max. Temperature: + 120°C (Silicon)

Stainless Steel Finishing

• Mechanical polish with ra(u)
• Electro polished
• Pickled
• Bead blasted

Item

Description

Material

Qty

Model No

Size

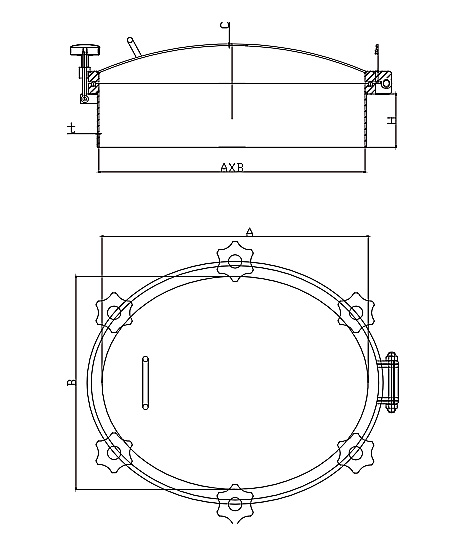

A

H*

T

C

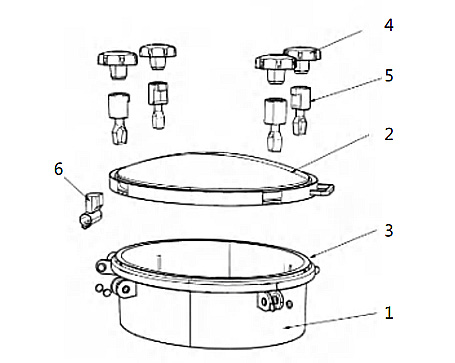

1

Frame

SS304/SS316L

1

2

Cover

SS304/SS316L

1

TME0441400x300H0812W1

400x300

400x300

100

3

3

3

Gasket

Silicon

1

TMR0141500x400H0812W1

500x400

500x400

100

3

3

4

Handwheel

Nylon/SS304

4

*Model No for Silicon seal *H option: 80mm, 100mm, 120mm, 150mm, 200mm or on request

5

Hub

SS304

4

6

Swing

SS304

1

* Gasket Option: Silicon, EPDM, FKP per FDA
