SS304 SS316L Pressure Cone Cover Stainless Steel Clamp Weld Thread Sanitary Flange Pressure Cone Cover

Model No.:TMA01

SKU:TMA01

α:
60°
  • 60°
  • 90°
Body Materials:
SS304
  • SS304
  • SS316L
Materials:
Silicon
  • Silicon
  • EPDM
  • FKM
  • NBR
Size.:
300mm
  • 300mm
  • 400mm
  • 450mm
  • 500mm
  • 600mm
Height:
100mm
  • 100mm
Inside &Outside Surface Finishing:
Inside/Outside Mirror Polishing
  • Inside/Outside Mirror Polishing
  • Inside Mirror/Outside Satin Polishing
  • Inside/Outside Satin Polishing
Handwheel Type:
Bolt of bolts
  • Bolt of bolts

Application

TMA01 series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Materials

  • Body Materials: AISI-304 or AISI-316L

  • Gasket Material:Silicon

          Manhole seat and gasket  comply with FDA 21CFR177.2600

Standard Design

  • Available in size: 300mm, 400mm, 500mm

  • Standard height: 100mm

  • Standard thickness: 4mm

  • Outward Opening

  • With cone type swivel hinge

Technical Specification

  • Up to 6 Bar
  • Stainless steel blind bole nuts
  • Wetting material: ss304/ss316L
  • Silicon gasket per FDA 177.2600
  • With cone type swivel hinge
  • Surface finishing: Mechanical polishing to Ra 0.8um
  • Neck Height: 100mm, neck thickness 4mm
  • Outlet size:50.5mm

Option

  • 60°or 90°apex-angles
  • Surface finishing : pickled, sandblasting
  • Gasket material: EPDM, FKM, all gaskets per FDA 177.2600
  • Various outlet size , min 38mm
  • Various outlet conntction: Clamp, Weld, Thread or Flange

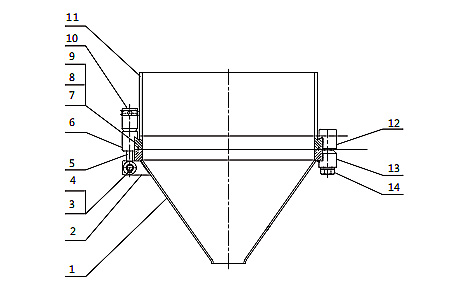

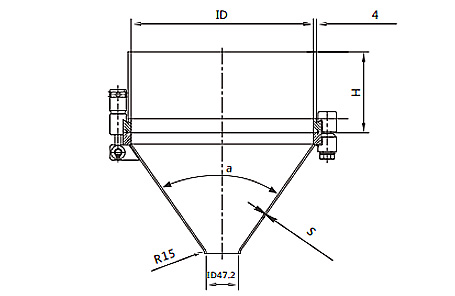

Item Diamete Material Qty Model No Size ID a H S
1 Cone SS304/SS316L 1 TMA01641300H1012W3 300 300 60° 100 4
2 Plate for Bolt SS304 16 TMA01641400H1012W3 400 400 60° 100 4
3 Shaft SS304 8 TMA01641450H1012W3 450 450 60° 100 4
4 Rataining Ring SS304 8 TMA01641600H1012W3 500 500 60° 100 4
5 Bolt M16 SS304 8 TMA01641600H1012W3 600 600 60° 100 5
6 Brquetting SS304 8 TMA01941300H1012W3 300 300 90° 100 4
7 Lower Flange SS304/SS316L 1 TMA01941400H1012W3 400 400 90° 100 4
8 O-Ring Silicon 1 TMA01941450H1012W3 450 450 90° 100 4
9 Upper Flange SS304/SS316L 1 TMA01941600H1012W3 500 500 90° 100 4
10 Nut SS304 8 TMA01941600H1012W3 600 600 90° 100 5
11 Neck SS304/SS316L 1
12 Rotary Briquetting SS304 1
13 Fixed Block SS304 1
13 Nut SS304 1
