Sanitary SS304 SS316L Clamp Round Manway Stainless Steel Tank Manhole Cover High Quality Tank Fitting Manway

Application

TMC01 series manhole cover is used on tanks or containers, especially in the dairy industry, where a hygienic closeable mean of access and monitoring to the interior of the tank required.

Materials

• Body Materials: AISI-304 or AISI-316L

• Clamp:SS304

• Gasket  ：Silicon,EPDM,FKM per FDA 21CFR177.2600

Standard Design

• Available in size: 300mm, 400mm, 500mm

• Standard height: 100mm

• Standard thickness: 4mm

• Outward Opening

• With cone type swivel hinge

Technical Specification

• Up to 6 Bar
• Stainless steel blind bole nuts
• Wetting material: ss304/ss316L
• Silicon gasket per FDA 177.2600
• With cone type swivel hinge
• Surface finishing: Mechanical polishing to Ra 0.8um

Design And Features

• Outward opening manways cover
• Inner Surface: Ra 0.4μm-0.8μm
• Outer Surface: Matte, Mirror-polished,Sand-blasting Finished

Technical Data

• Working Pressure:  No Pressure
• Max. Temperature: + 120°C (Silicon)

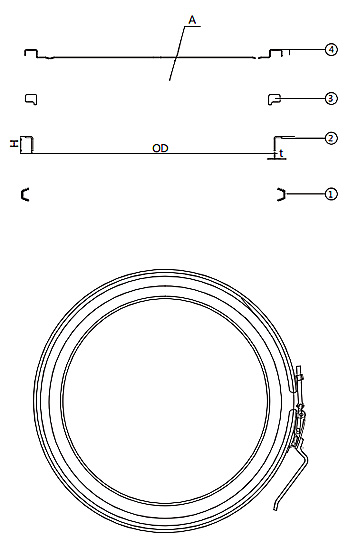

	Item				Description												Material
	1				Clamp												SS304
	2				Frame												SS304/SS316L
	3				Gasket												Silicon *
	4				Cover												SS304/SS316L
	*Gasket Material Option ：Silicon, EPDM,FPM per FDA
	Model No								SIZE					OD						H						A					t
	TMC0141300H0311								300					300						30						1.5					2.5
	TMC0141350H0311								350					350						30						1.5					2.5
	TMC0141400H0311								400					400						30						1.5					2.5
	TMC0141450H0311								450					450						30						1.5					2.5
	TMC0141500H0311								500					500						30						1.5					2.5
