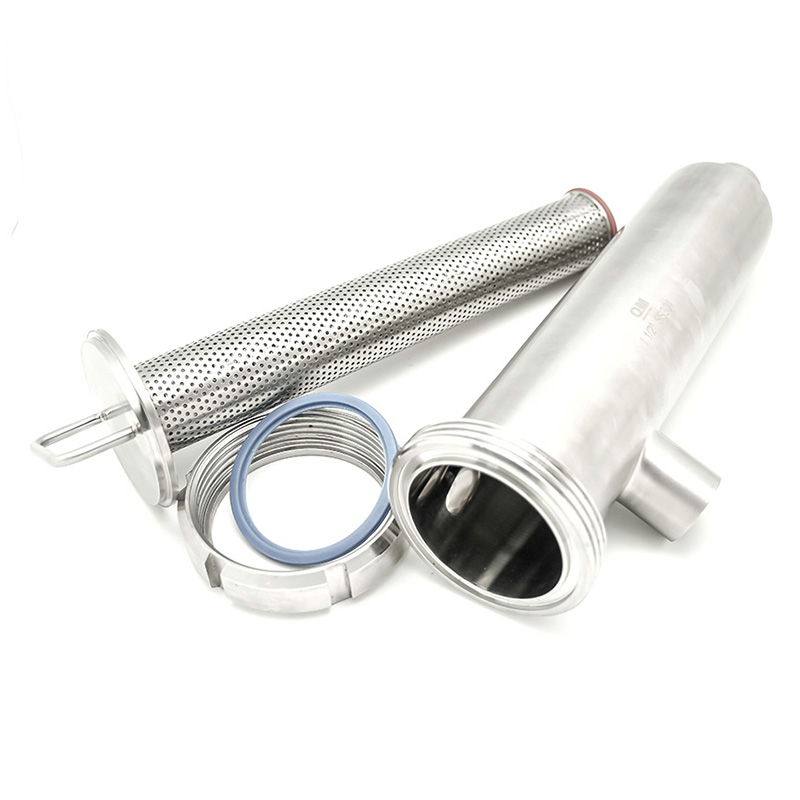

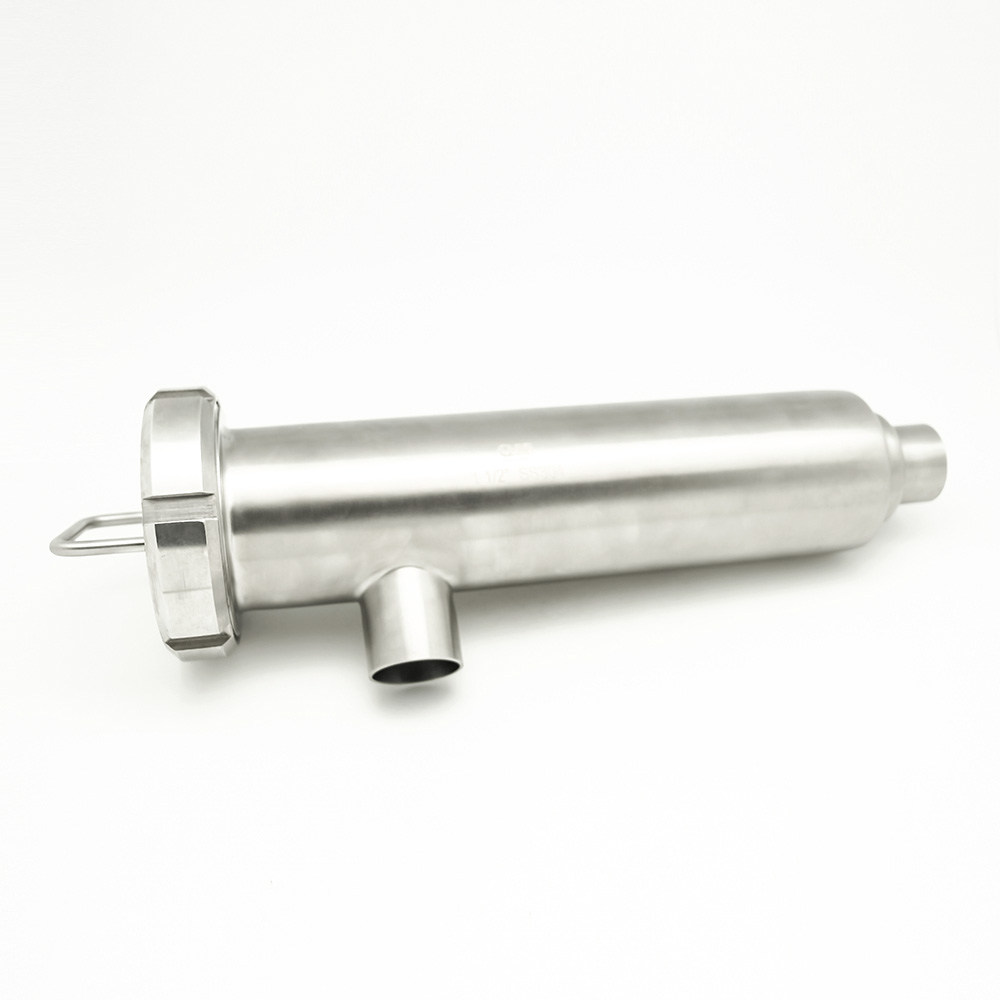

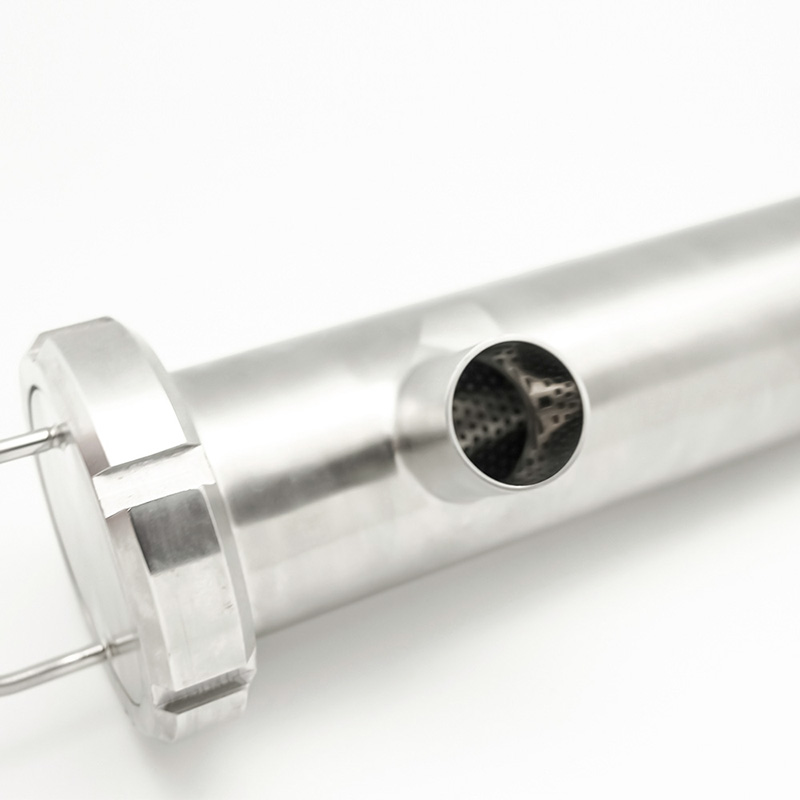

Sanitary Angle Type Filter Stainless Steel Clamp/Weld/Thread Connection Filter SS304/SS316L Clamp/Weld Filter

Application

TFA Series y type filter is mainly used for filtering liquid with solid particles, protecting the pump, instruments and other devices to work properly.Filters have a wide range of applications in the food-processingcosmetics and some chemical industries as well as in auxiliaryservices of the pharmaceutical industry.They have a hygienicdesign and are used to filter particles capable of damaging pumpsand other equipments.

Features And Design

• Cleaning of the screen without disassembling the filter for Angletype Filter TFA and Y type Filter TFY
• Cleaning of the screen disassembling the filter for In-line Filter TFS.
• Low pressure drops.

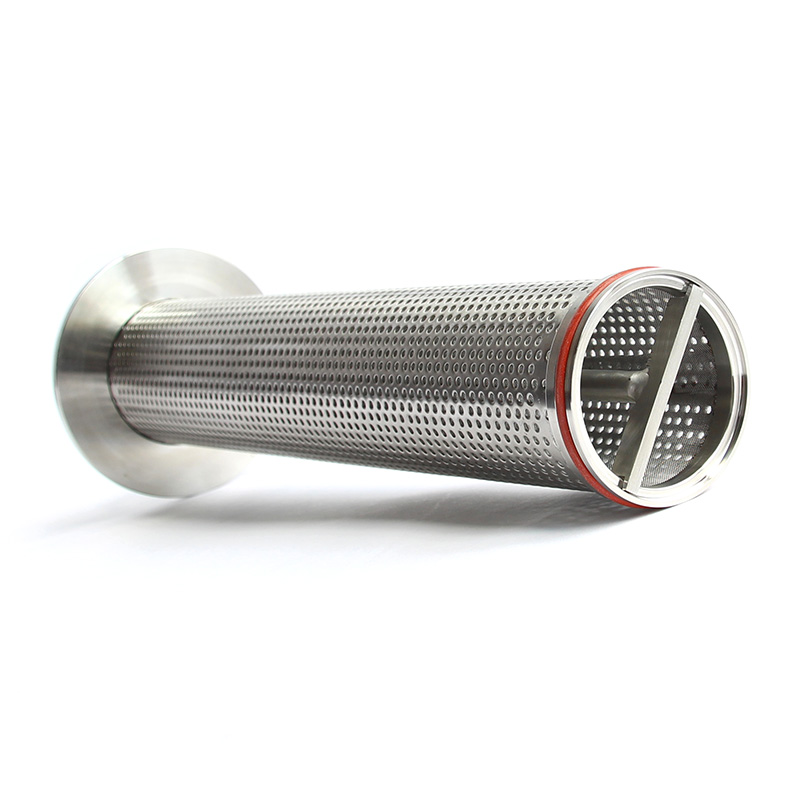

• Perforated Plate screen standard with 2mm holes, on requestavailable from 8 0,5 mm to 0 3 mm.
• Metal screen mesh with100meshes ,on request available 80 to400 meshes

Operating Conditions

working Pressure:8Bar

working Temperature:-10℃ to 120℃ (Silicon)

Materials

• wetting Parts: SS304/SS316L

• Slotted Cover Nut: SS304

• Gasket Material: Silicon per FDA 177.2600

Surface Finishing

Satin or Mirror Polishing

Options

• Seal Material: EPDM, FPM per FDA 177.2600

• Wedge Wire Screen options available

Mesh Equiv.	C(mm)	Useful Surface(%)		A(mm)	Useful Surface(%)		Mesh	Wire Diameter(mm)	Aperture(mm)
40	0.40	28		0.5	15		80	0.12	0.198
60	0.30	23		1	28		100	0.1	0.154
80	0.20	17		2	30		120	0.05	0.132
165	0.10	10		5	46		150	0.065	0.104
325	0.05	5		10X1	20		200	0.053	0.074
							250	0.04	0.061
							300	0.035	0.049
							350	0.03	0.042
							400	0.025	0.0385

Angle Type Filter TFA01

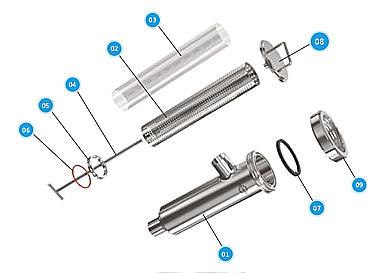

	Item	Description	Material
	1	Filter House	SS304/SS316L
	2	Perforated Plate Screen	SS304/SS316L
	3	Wire Mesh Screen	SS304/SS316L
	4	Locating Rod	SS304/SS316L
	5	Gasket Holder	SS304/SS316L
	6	O-Ring	Silicon
	7	Uinon Gasket	Silicon
	8	Cap	SS304/SS316L
	9	Nut	SS304

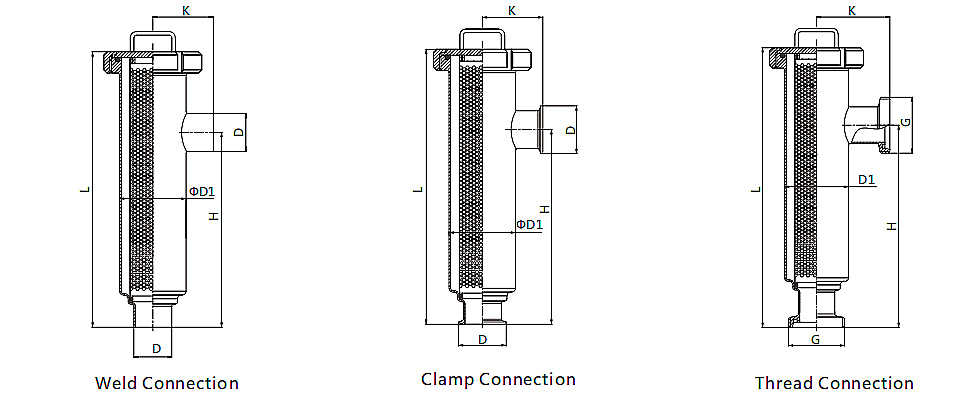

Size	D1	D		G	K			H			L
		Weld	Clamp	Thread	Weld	Clamp	Thread	Weld	Clamp	Thread	Weld	Clamp	Thread
1"	76.1	25.4	50.5	RD40*1/6	73	94.5	92	240	261.5	259	315	336.5	334
1.5"	76.1	38.1	50.5	RD60*1/6	73	94.5	96	240	261.5	263	315	336.5	338
2"	101.6	50.8	64	RD70*1/6	96	117.5	119	304	325.5	327	410	431.5	433
2.5"	101.6	63.5	77.5	RD85*1/6	96	117.5	123	350	371.5	377	455	476.5	482
3"	114.3	76.2	91	RD98*1/6	115	136.5	142	415	436.5	442	560	581.5	587
4"	139.7	101.6	119	RD132*1/6	130	151.5	160	450	471.5	480	600	621.5	630
DN25	76.1	28	50.5	RD52*1/6	73	94.5	102	240	261.5	269	315	336.5	344
DN40	76.1	40	50.5	RD65*1/6	73	94.5	105	240	261.5	272	315	336.5	347
DN50	101.6	52	64	RD78*1/6	96	117.5	129	304	325.5	337	410	431.5	443
DN65	101.6	70	77.5	RD95*1/6	96	117.5	131	350	378	385	455	483	490
DN80	114.3	85	91	RD110*1/6	115	136.5	155	415	443	455	560	588	600
DN100	139.7	104	119	RD130*1/4	130	151.5	175	450	478	495	600	628	645
