Sanitary Hex Pipe Hanger with PVC Sleeve Grommets SS304 Pipe Clamp Casting Stainless Steel High Pressure

Name: Sanitary Hex Pipe Hanger with PVC Sleeve Grommets SS304 Pipe Clamp Casting Stainless Steel High Pressure
Brand: QIMING
SKU: 01324
Rating: 4.9 (712 reviews)

Model No.:FH04

SKU:FH04

End Connections:

Size:

Material:

Inquire PDF Datasheet

Description

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

Body: AISI-304

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME
End connections: Weld or Female
Tube hanger type: Round, Hexagon, with rubber insert
Size available: 1/2"-12" or DN10-DN25

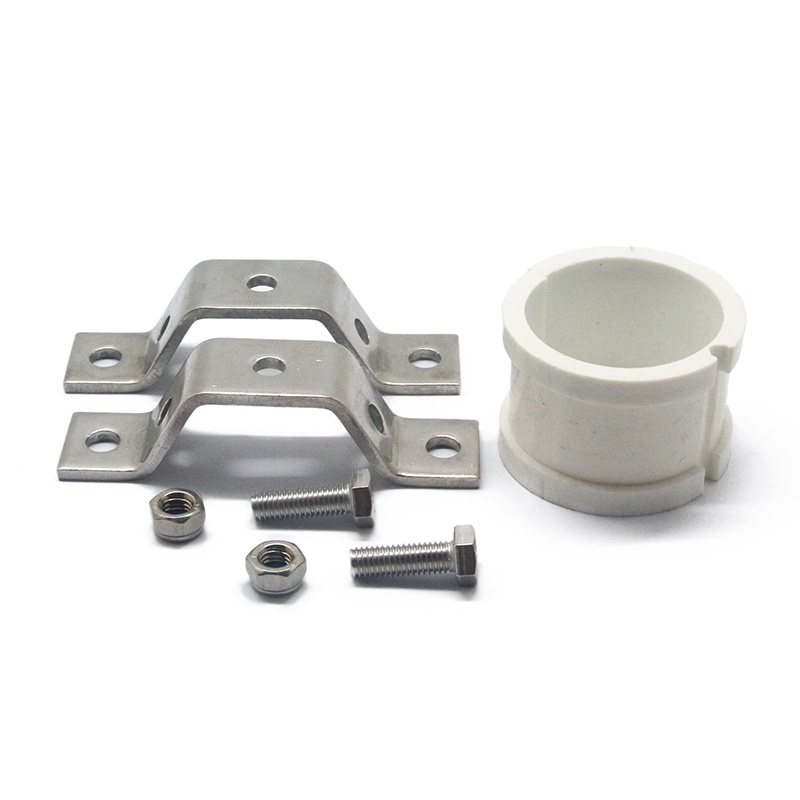

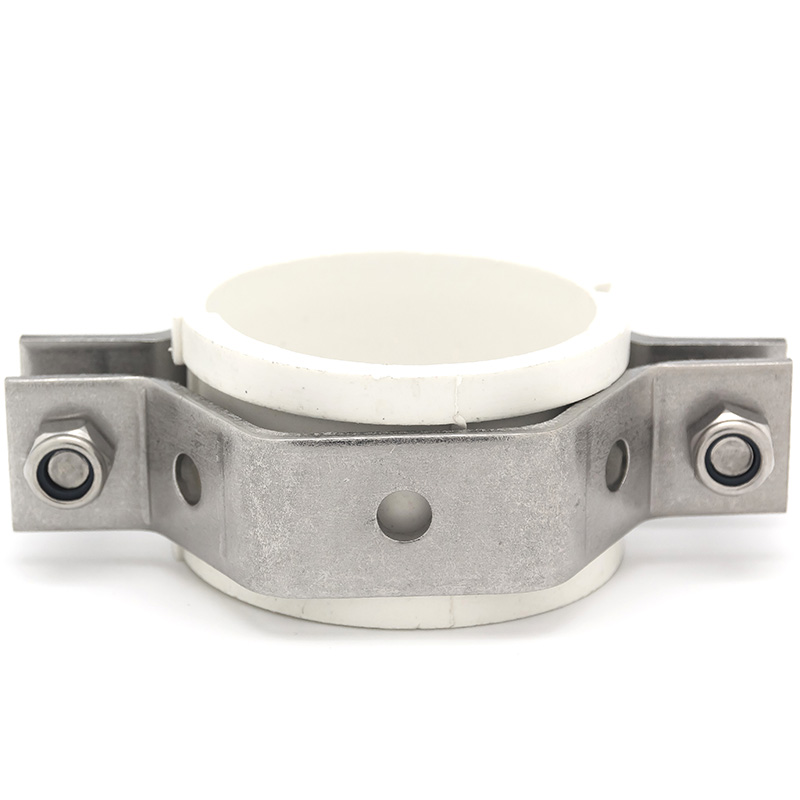

FH04 Hex Pipe Hanger With Rubber/PVC Grommets


Model		Size	D/mm	H/mm	L/mm	N.W/g
with Rubber	with PVC Sleeve	Size	D/mm	H/mm	L/mm	with Rubber	with PVC Sleeve
FH04B1050	FH04C1050	1/2"	12.7	31	72
FH04B1075	FH04C1075	3/4"	19.05	31	72
FH04B1100	FH04C1100	1"	25.4	42.4	86.6
FH04B1150	FH04C1150	11/2"	38.1	55.1	102
FH04B1200	FH04C1200	2"	50.8	67.8	115
FH04B1250	FH04C1250	21/2"	63.5	80.5	127.6
FH04B1300	FH04C1300	3"	76.2	93.2	142
FH04B1400	FH04C1400	4"	101.6	122	175
FH04B1600	FH04C1600	6"	152.4	174	235
