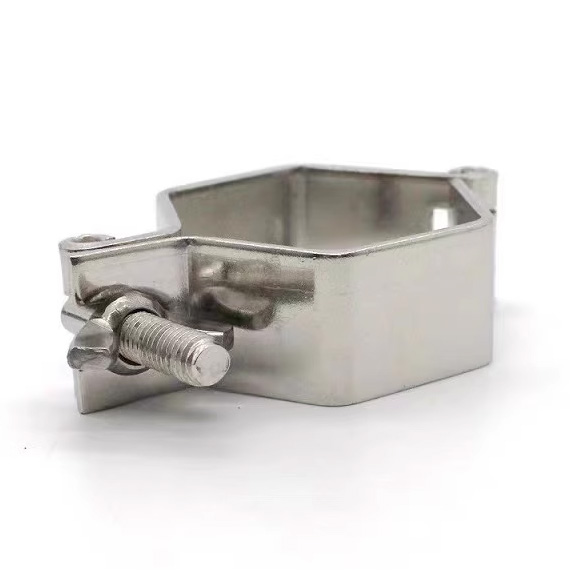

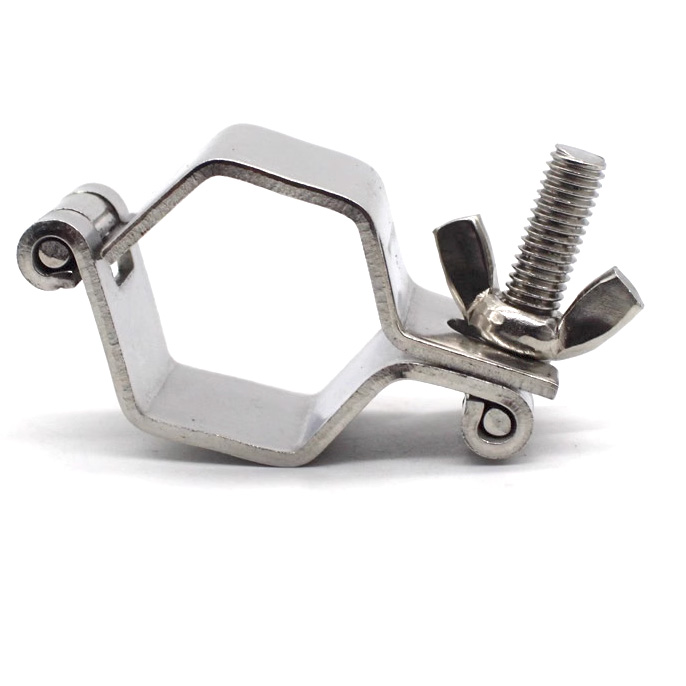

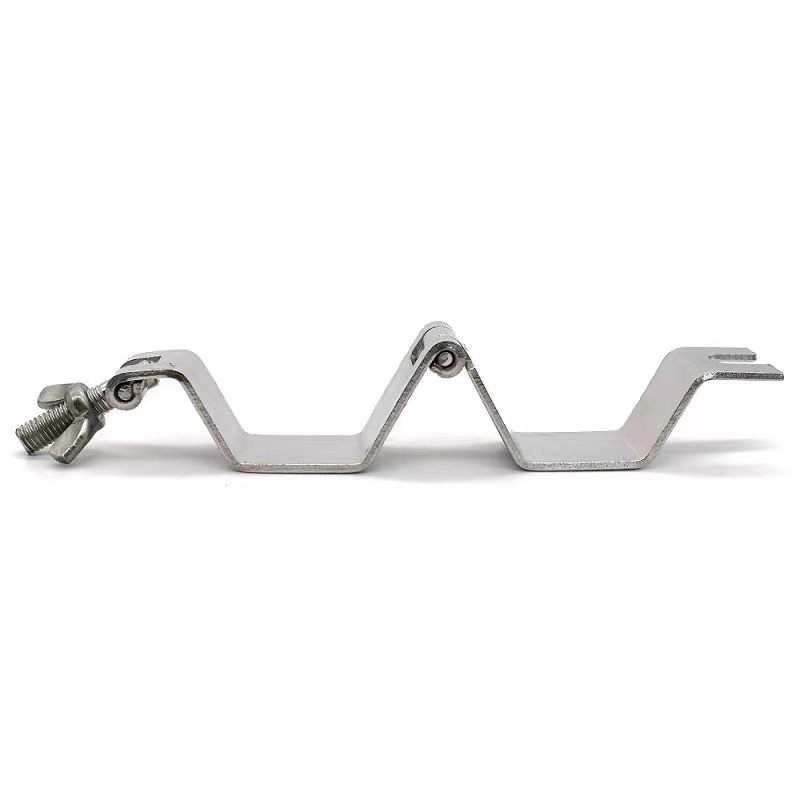

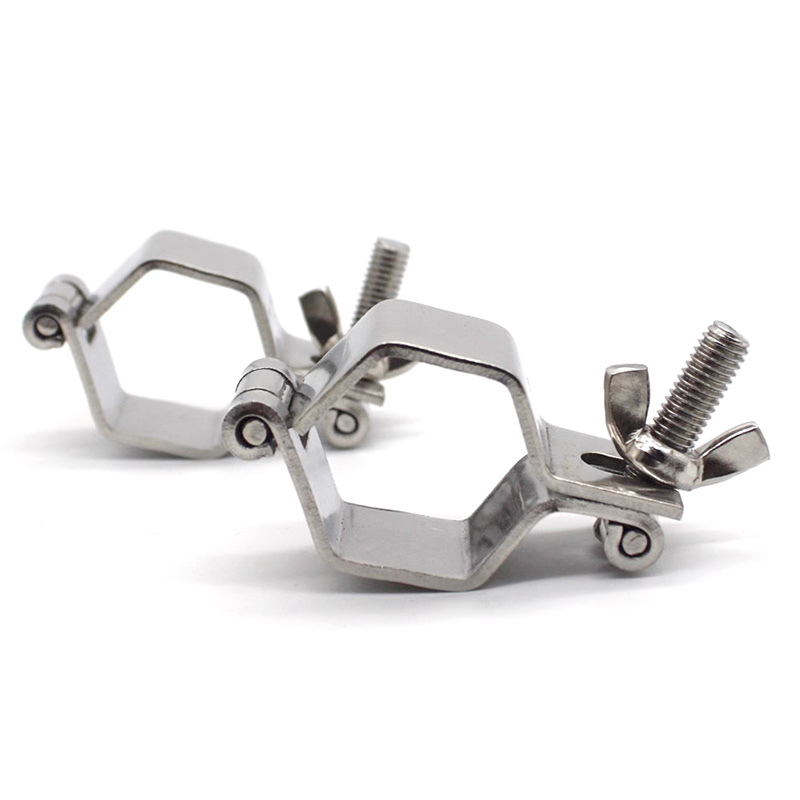

Name: SS304 Hexagonal Tube Hanger No Handle Stainless Steel Pipe Clamp Sanitary Hex Tube Hanger
Brand: QIMING
SKU: 01323
Rating: 4.9 (712 reviews)

SS304 Hexagonal Tube Hanger No Handle Stainless Steel Pipe Clamp Sanitary Hex Tube Hanger

Model No.:FH03

SKU:FH03

End Connections:

Size:

Material:

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

Body: AISI-304

Standard Design

Standards: DIN11850/DIN11852 SMS, ISO / IDF, BS / AS, ASME
End connections: Weld or Female
Tube hanger type: Round, Hexagon, with rubber insert
Size available: 1/2"-12" or DN10-DN250

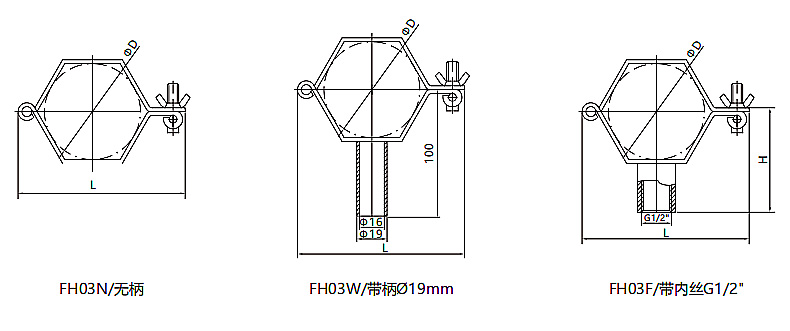

FH03 Hex Pipe Hanger


Model			Size	D/mm	L/mm	H/mm	N.W/g
Rod	Male	Female	Size	D/mm	L/mm	H/mm	Rod	Male	Female
FH03N1050	FH03M1050	FH03F1050	1/2"	12.7	45	39		95
FH03N1075	FH03M1075	FH03F1075	3/4"	19.05	52	42	76	111
FH03N1100	FH03M1100	FH03F1100	1"	25.4	61	45	86.3	129
FH03N1125	FH03M1125	FH03F1125	11/4"	32	68	49	99.6	141.5
FH03N1150	FH03M1150	FH03F1150	11/2"	38.1	76	51.5	107.8	144.3
FH03N1200	FH03M1200	FH03F1200	2"	50.8	90	58	126.6	161.9
FH03N1250	FH03M1250	FH03F1250	21/2"	63.5	106	64	149	182.1
FH03N1300	FH03M1300	FH03F1300	3"	76.2	120	70.5	170.8	198.5
FH03N1350	FH03M1350	FH03F1350	31/2"	89	132	77	188	215.5
FH03N1400	FH03M1400	FH03F1400	4"	101.6	146	83		234.1
FH03N2025	FH03M2025	FH03F2025	DN25	28	64	46.5
FH03N2032	FH03M2032	FH03F2032	DN32	34	64	49.5
FH03N2040	FH03M2040	FH03F2040	DN40	40	78	52.5
FH03N2050	FH03M2050	FH03F2050	DN50	52	90	58.5
FH03N2065	FH03M2065	FH03F2065	DN65	70	111	67.5
FH03N2080	FH03M2080	FH03F2080	DN80	85	125	75
FH03N2100	FH03M2100	FH03F2100	DN100	104	152	84.5
