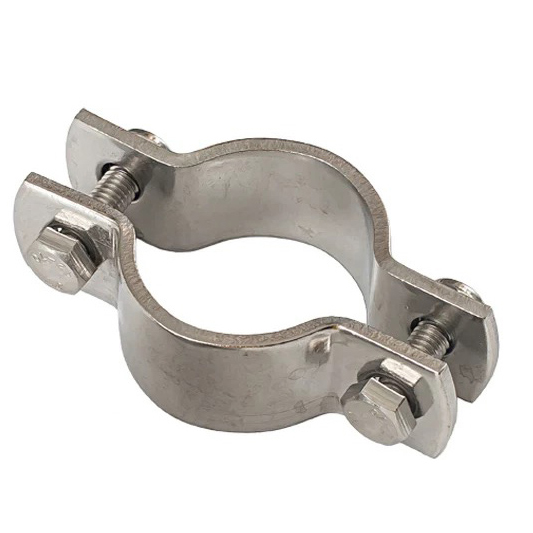

Name: SS304 Sanitary Pipe Hanger None Rod Pipe Clamp Fitting Stainless Steel Pipe Hanger None Tube Hanger
Brand: QIMING
SKU: 01327
Rating: 4.9 (714 reviews)

SS304 Sanitary Pipe Hanger None Rod Pipe Clamp Fitting Stainless Steel Pipe Hanger None Tube Hanger

Model No.:FH07

SKU:FH07

End Connections:

Size:

Material:

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

Body: AISI-304

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME
End connections: Weld or Female
Tube hanger type: Round, Hexagon, with rubber insert
Size available: 1/2"-12" or DN10-DN250

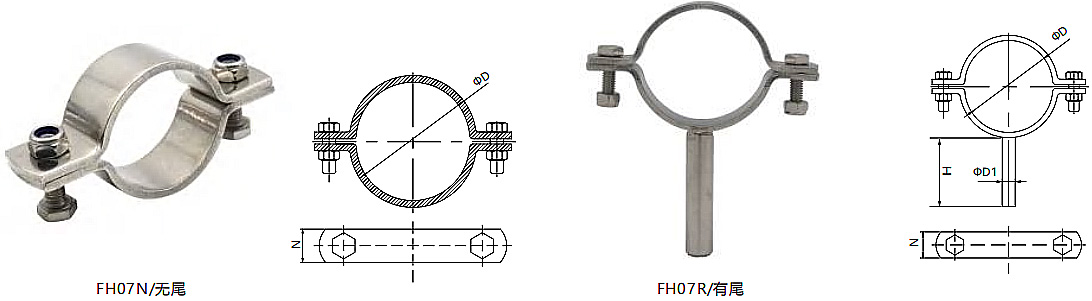

FH07 Pipe Hangers


Model		Size	D/mm	D1/mm	H/mm	N/mm	N.W/g
None	Rod	Size	D/mm	D1/mm	H/mm	N/mm	None	Rod
FH07N1050	FH07R1050	1/2"	12.7	8	55	20	60	82
FH07N1075	FH07R1075	3/4"	19.05	8	55	20	64	85.3
FH07N1100	FH07R1100	1"	25.4	10	55	20	77	111
FH07N1125	FH07R1125	11/4"	32	10	55	20	87.3	121.5
FH07N1150	FH07R1150	11/2"	38.1	10	55	20	93	127.3
FH07N1200	FH07R1200	2"	50.8	12	55	20	111	159.2
FH07N1225	FH07R1225	21/4"	57	12	55	20		167.4
FH07N1250	FH07R1250	21/2"	63.5	12	55	20	127.6	177.5
FH07N1300	FH07R1300	3"	76.2	12	55	20	148	195.5
FH07N1350	FH07R1350	3.5"	88.9	12	55	25	198	250
FH07N1400	FH07R1400	4"	101.6	12	55	25	223	270
FH07N1425	FH07R1425	41/4"	108	12	55	25		276.2
FH07N1600	FH07R1600	6"	152.4	16	55	25
FH07N1800	FH07R1800	8"	203.2	20	55	25
FH07N2015	FH07R2015	DN15	18	8	55	20	64	85.3
FH07N2020	FH07R2020	DN20	22	8	55	20	68	90
FH07N2025	FH07R2025	DN25	28	10	55	20	83.3	116
FH07N2032	FH07R2032	DN32	34	10	55	20	86.7	124
FH07N2040	FH07R2040	DN40	40	10	55	20	101	133
FH07N2050	FH07R2050	DN50	52	12	55	20	115	160.7
FH07N2065	FH07R2065	DN65	70	12	55	20		186.8
FH07N2080	FH07R2080	DN80	85	12	55		190	240
