Sanitary Interlocking Clamp/Bossed Clamp Stainless Steel Tube Hanger SS304 Clamp Pipe Hanger

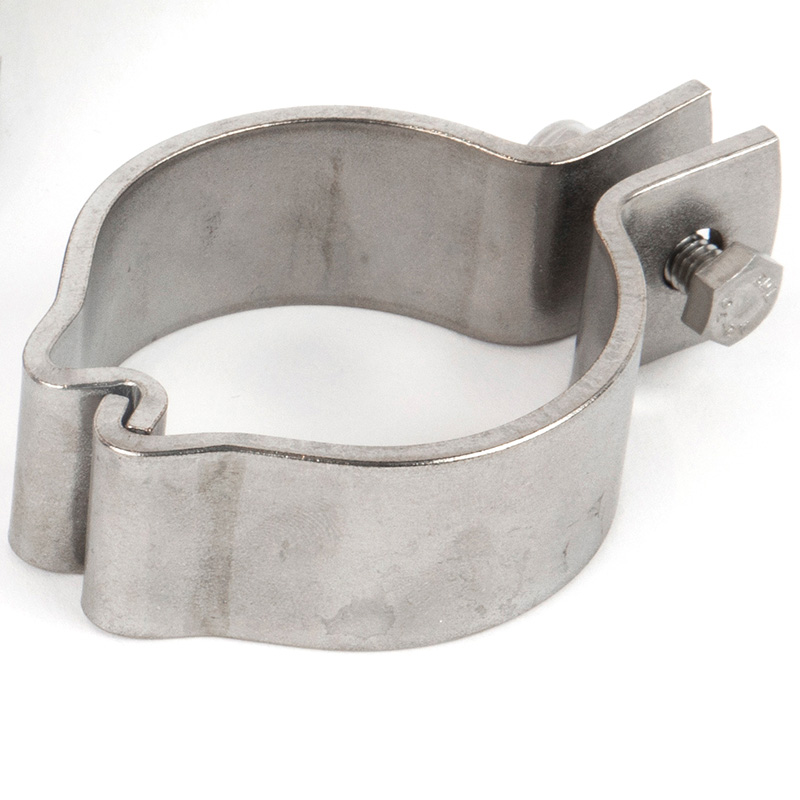

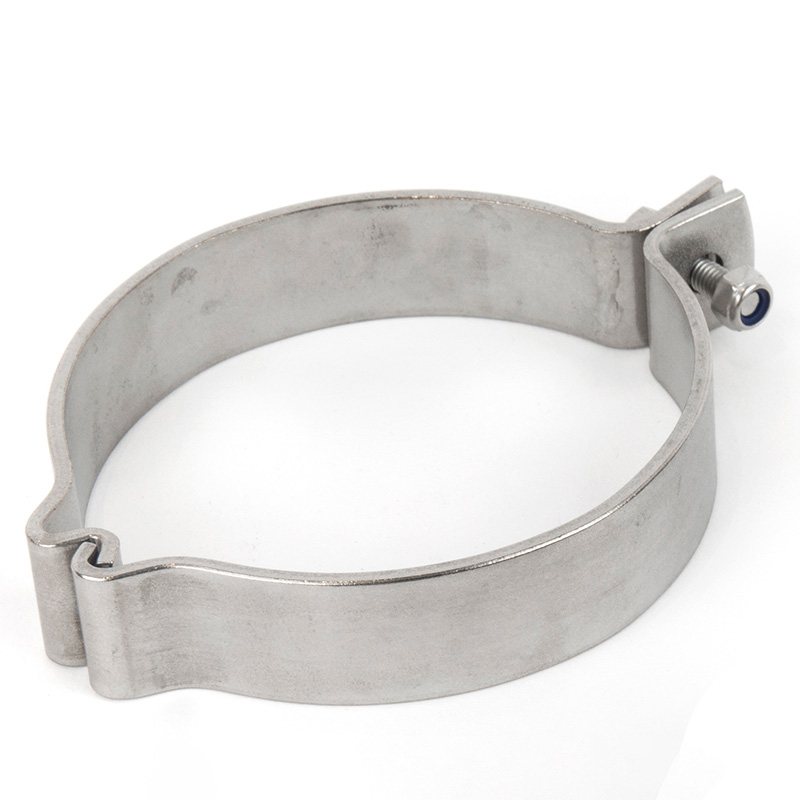

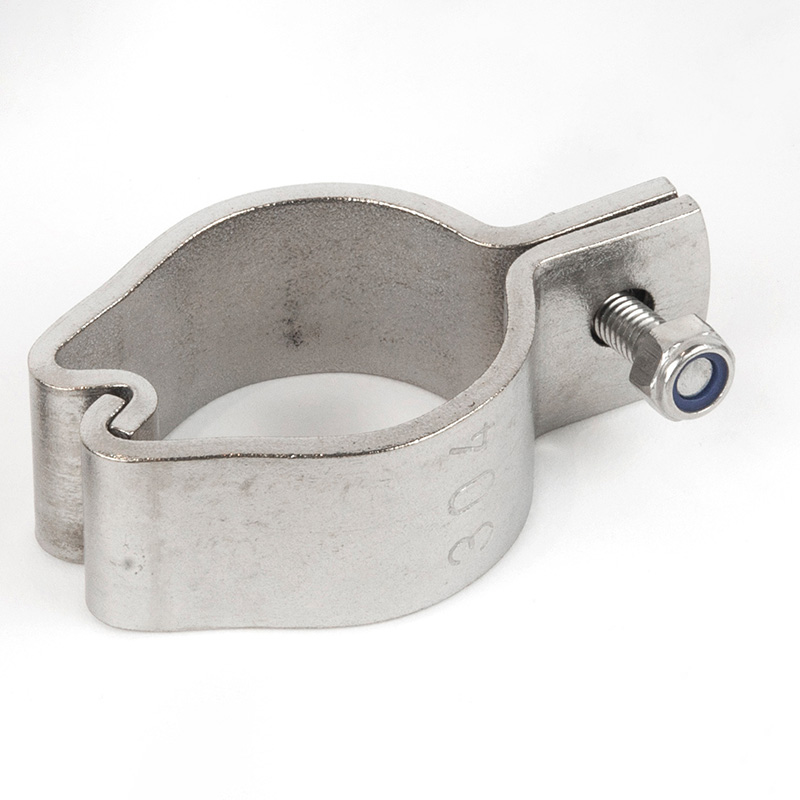

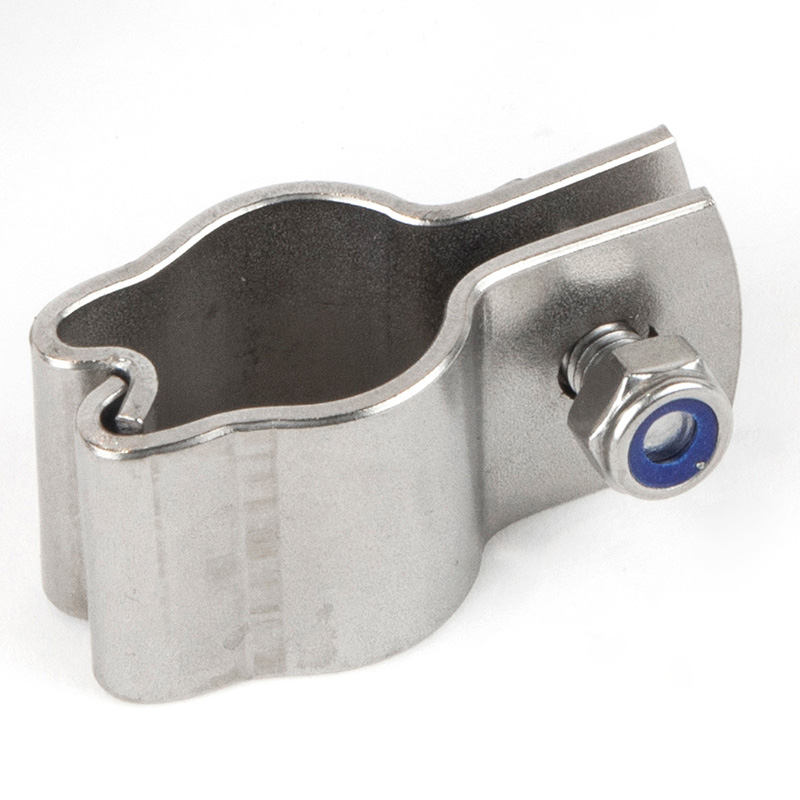

Name: Sanitary Interlocking Clamp/Bossed Clamp Stainless Steel Tube Hanger SS304 Clamp Pipe Hanger
Brand: QIMING
SKU: 01329
Rating: 4.9 (715 reviews)

Model No.:FH02

SKU:FH02

End Connections:

Size:

Material:

Inquire PDF Datasheet

Description

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

Body: AISI-304

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME
End connections: Weld or Female
Tube hanger type: Round, Hexagon, with rubber insert
Size available: 1/2"-12" or DN10-DN250

FH12 Interlocking Clamp/Bossed Clamp

Model		Size	OD/MM	FH12F Connection	N.W/g
None	Female	Size	OD/MM	FH12F Connection	None	Female
FH12N1075	FH12F1075	3/4"	19	φ6mm rod，H=100mm
FH12N1100	FH12F1100	1"	25	G¹/₂"
FH12N1150	FH12F1150	11/2"	38	G¹/₂"
FH12N1200	FH12F1200	2"	51	G¹/₂"
FH12N1250	FH12F1250	21/2"	63	G¹/₂"
FH12N1300	FH12F1300	3"	76	G¹/₂"
FH12N1400	FH12F1400	4"	102	G¹/₂"
