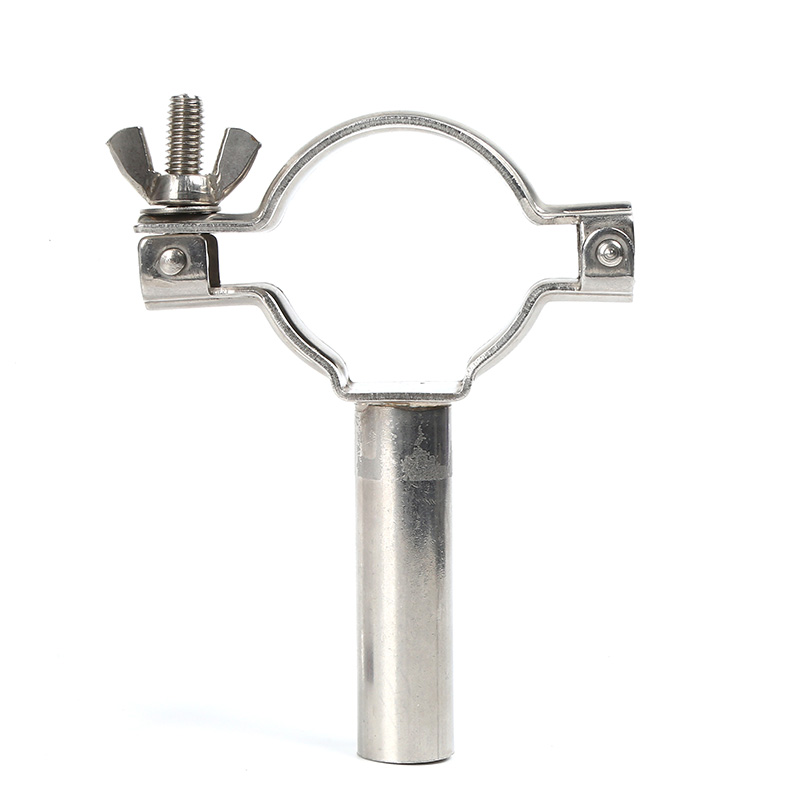

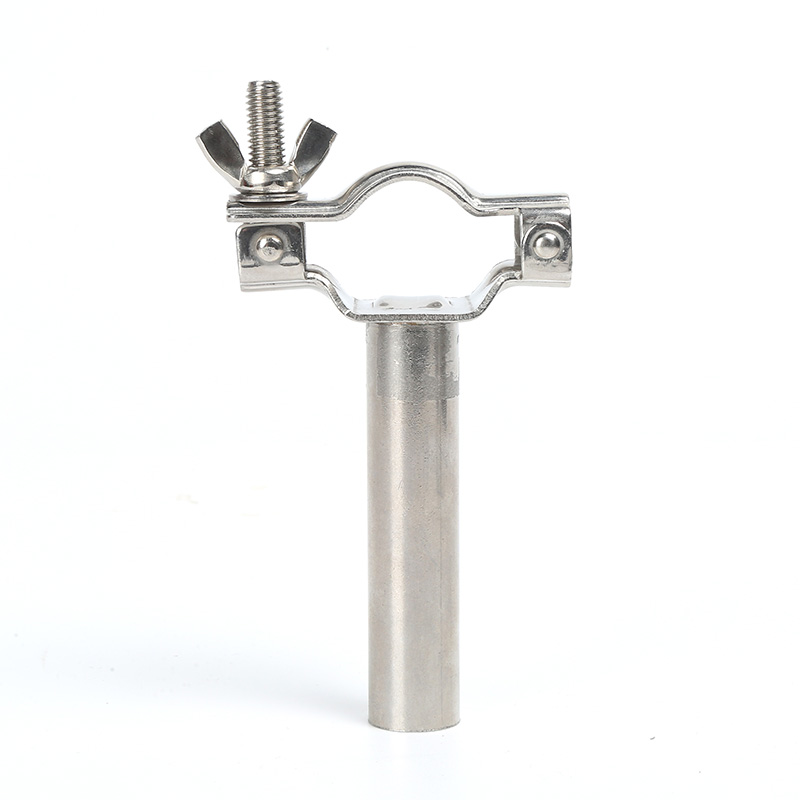

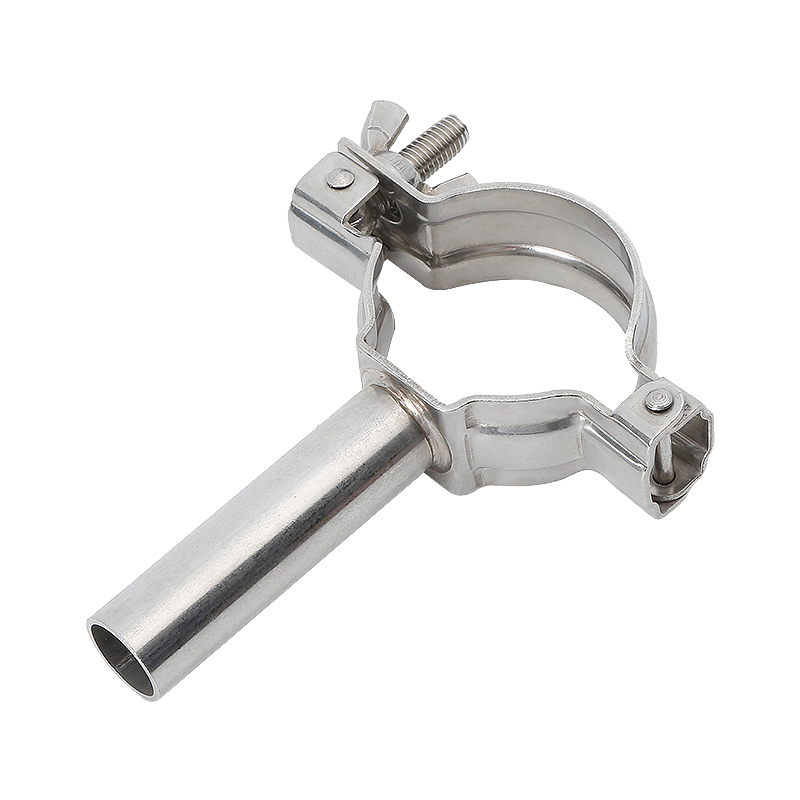

Name: Stainless Steel Pipe Clamp SS304 Sanitary Pipe Hanger Weld Tube OD19mm Pipe Hanger
Brand: QIMING
SKU: 00100
Rating: 4.9 (100 reviews)

Model No.:FH01

SKU:FH01

End Connections:

Size:

Material:

Inquire PDF Datasheet

Description

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

Body: AISI-304

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME
End connections: Weld or Female

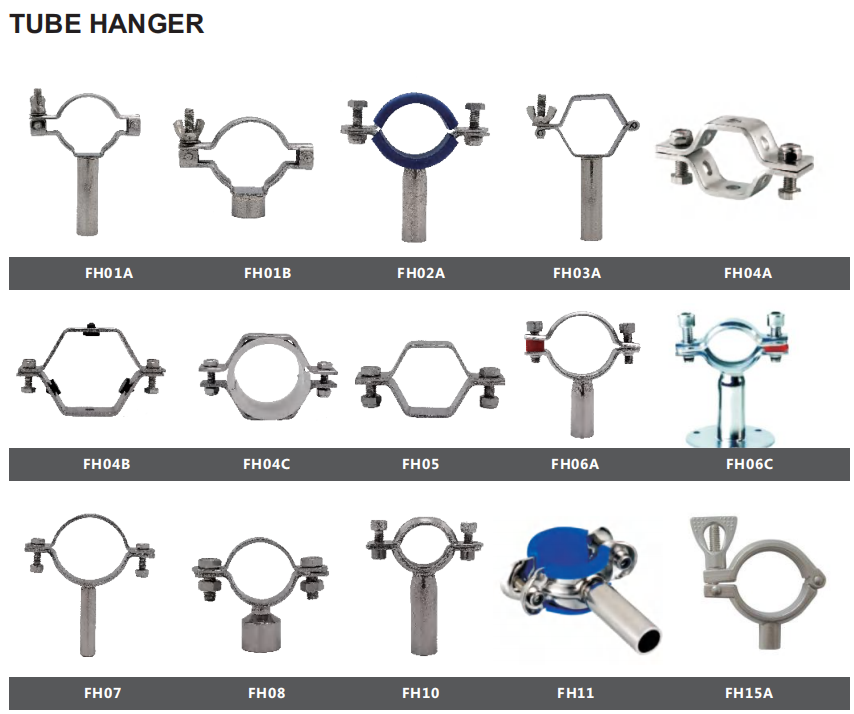

Tube hanger type: Round, Hexagon, with rubber insert
Size available: 1/2"-12" or DN10-DN250

FH01 Pipe Hanger

Model		Size	D/mm	L/mm	N.W/g
Weld Tube φ19MM	Female G1/2"	Size	D/mm	L/mm	Weld Tube φ19MM	Female G1/2"
FH01W1075	FH01F1075	3/4"	19	70	140	106
FH01W1100	FH01F1100	1"	25	70	130	103
FH01W1125	FH01F1125	11/4"	32	75	140	113
FH01W1150	FH01F1150	11/2"	38	85	150	123
FH01W1200	FH01F1200	2"	51	95	160	134
FH01W1250	FH01F1250	21/2"	63	110	166	153
FH01W2065	FH01F2065	DN65	70		171	162
FH01W1300	FH01F1300	3"	76	122	170	180
FH01W1350	FH01F1350	31/2"	89	138	192	187
FH01W1400	FH01F1400	4"	102	150	197	200
FH01W1600	FH01F1600	6"	152		260
