Name: SS304 Pipe Clamp Sanitary 3A/DIN Weld Tube With OD19mm Stainless Steel Pipe Hanger with Blue Insert Clamp Fitting
Brand: QIMING
SKU: 00099
Rating: 4.9 (100 reviews)

SS304 Pipe Clamp Sanitary 3A/DIN Weld Tube With OD19mm Stainless Steel Pipe Hanger with Blue Insert Clamp Fitting

Model No.:FH02

SKU:FH02

End Connections:

Size:

Material:

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

Body: AISI-304

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME
End connections: Weld or Female

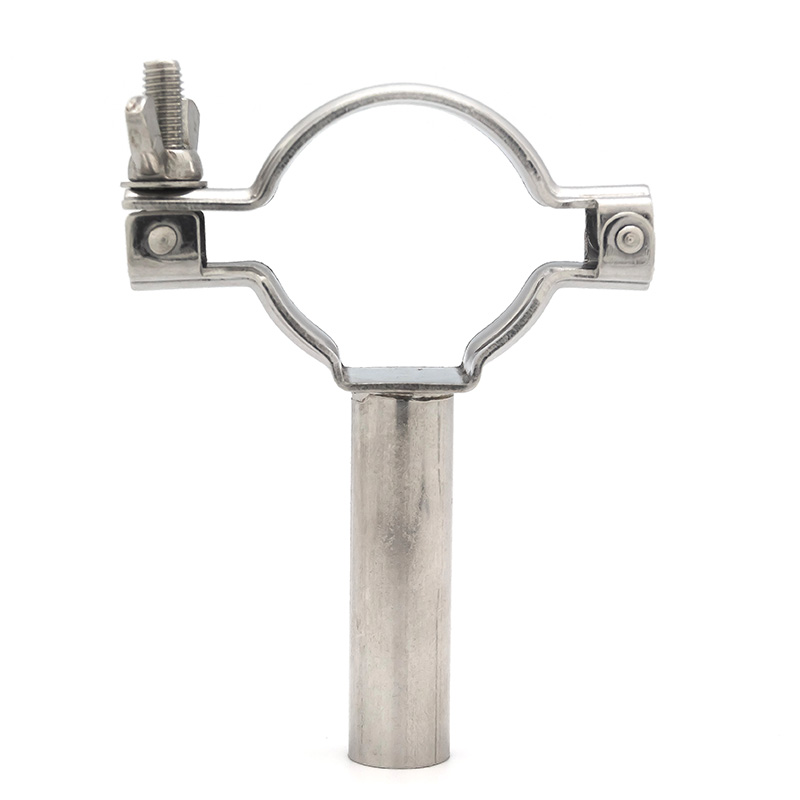

Tube hanger type: Round, Hexagon, with rubber insert
Size available: 1/2"-12" or DN10-DN250

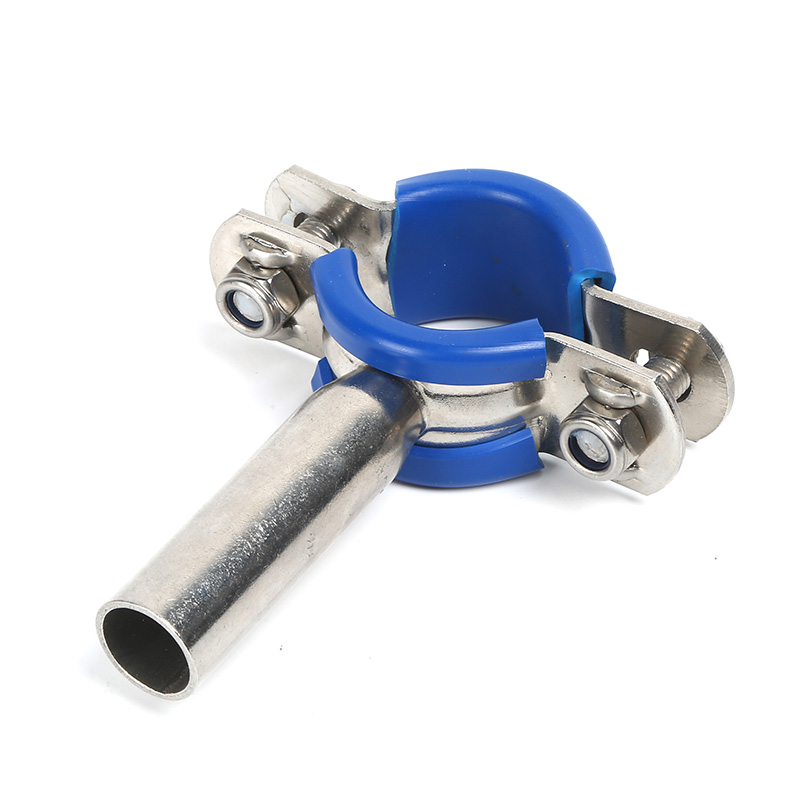

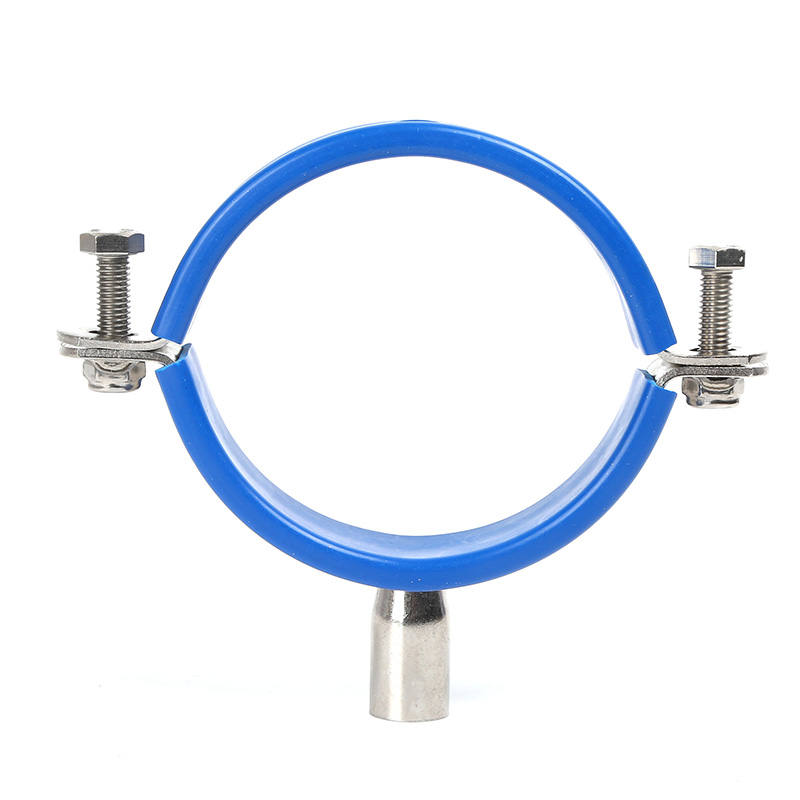

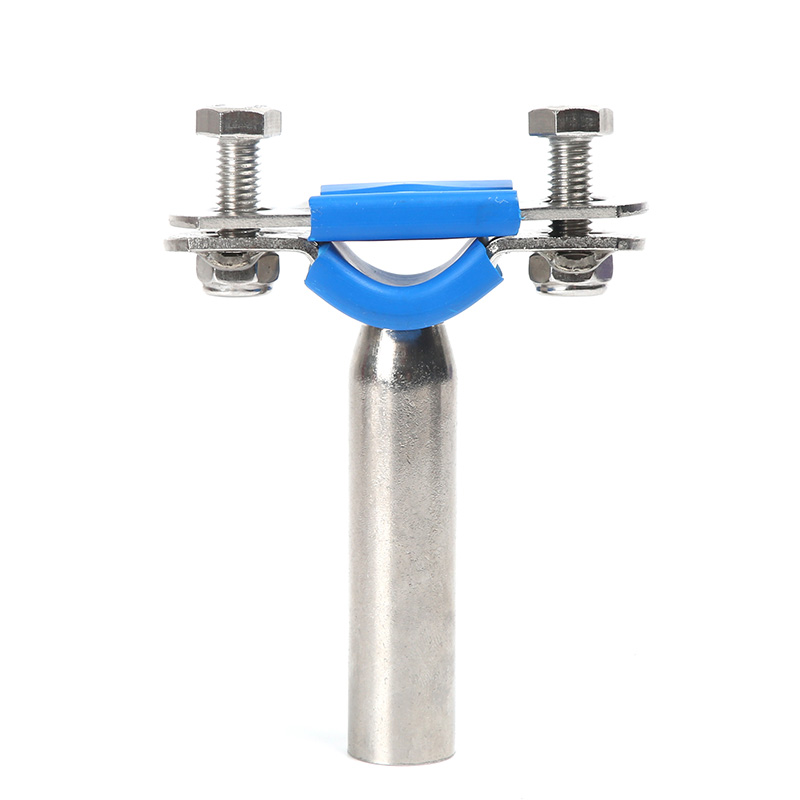

FH02 Pipe Hanger with Blue Insert

Model		Size	D/mm	H/mm	H1/mm	N.W/g
Weld Tube φ19MM	Female G1/2"	Size	D/mm	H/mm	H1/mm	Weld Tube φ19MM	Female G1/2"
FH02W1075	FH02F1075	3/4"	19	90	44
FH02W1100	FH02F1100	1"	25	90	44	163	190
FH02W1125	FH02F1125	11/4"	32	90	44	162	190
FH02W1150	FH02F1150	11/2"	38	90	57	178	214
FH02W1200	FH02F1200	2"	51	90	51	183	215.6
FH02W1250	FH02F1250	21/2"	63	90	52	198	242.4
FH02W2065	FH02F2065	DN65	70	90	52	230	273.6
FH02W1300	FH02F1300	3"	76	90	66
FH02W1350	FH02F1350	31/2"	89	90	70	248	298.5
FH02W1400	FH02F1400	4"	102	90	73	271	325.6
FH02W1450	FH02F1450	41/2"	114			288.5	340.7
FH02W1500	FH02F1500	5"	127	117.5
FH02W1525	FH02F1525	133	133.35
FH02W1600	FH02F1600	6"	152	130
FH02W1625	FH02F1625	61/4"	159
FH02W7600	FH02F7600	168	168
FH02W1800	FH02F1800	8"	203.2	155
FH02W11000	FH02F11000	10"	254
