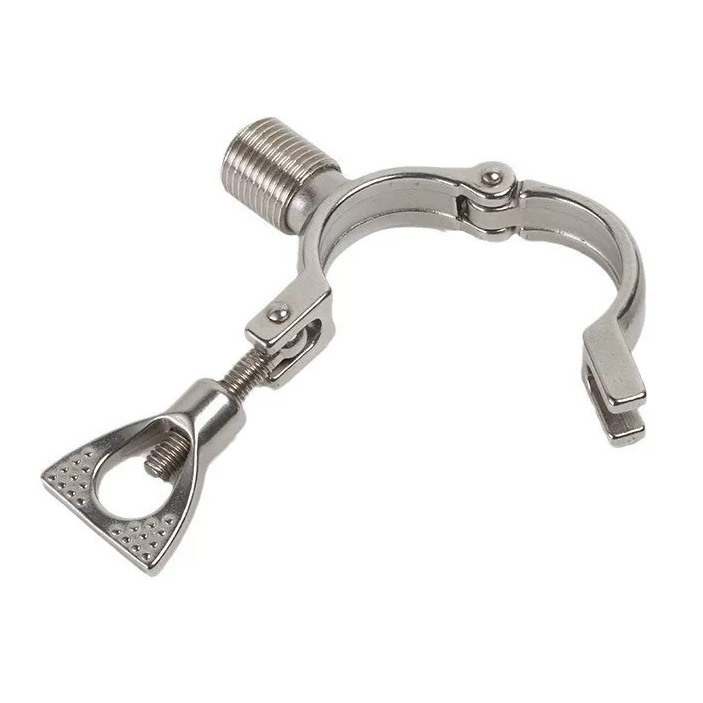

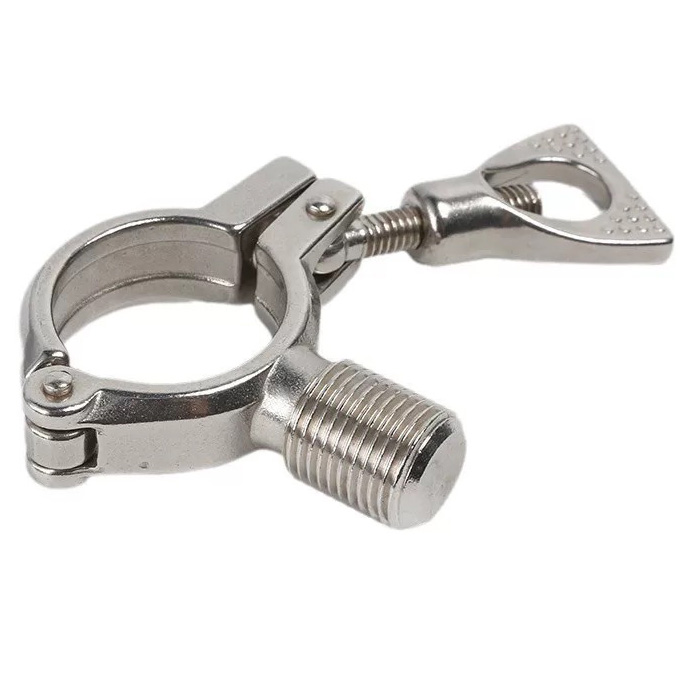

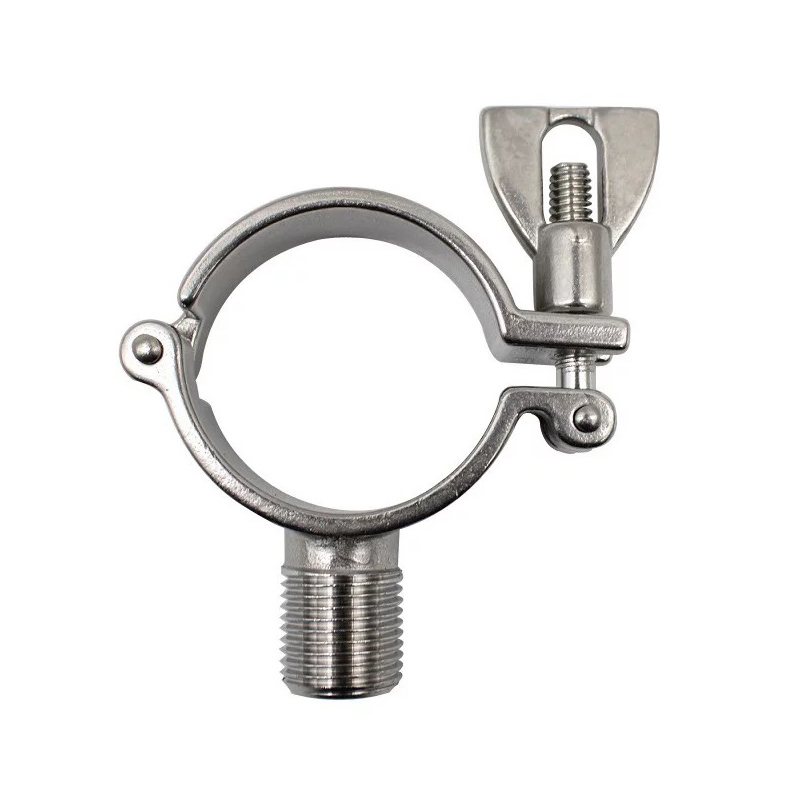

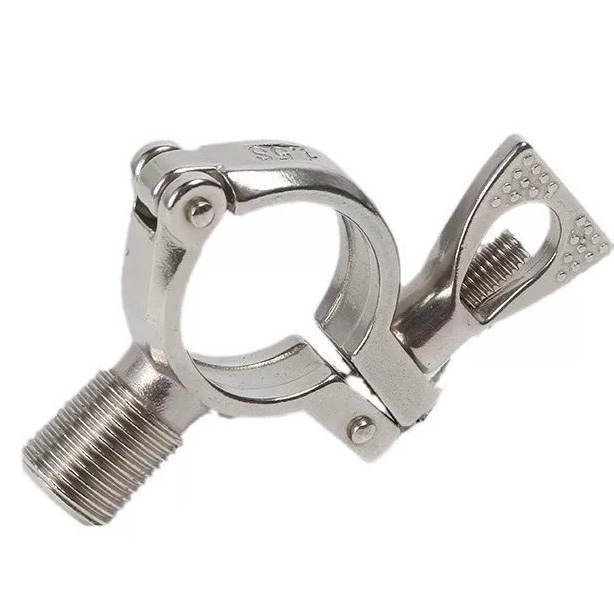

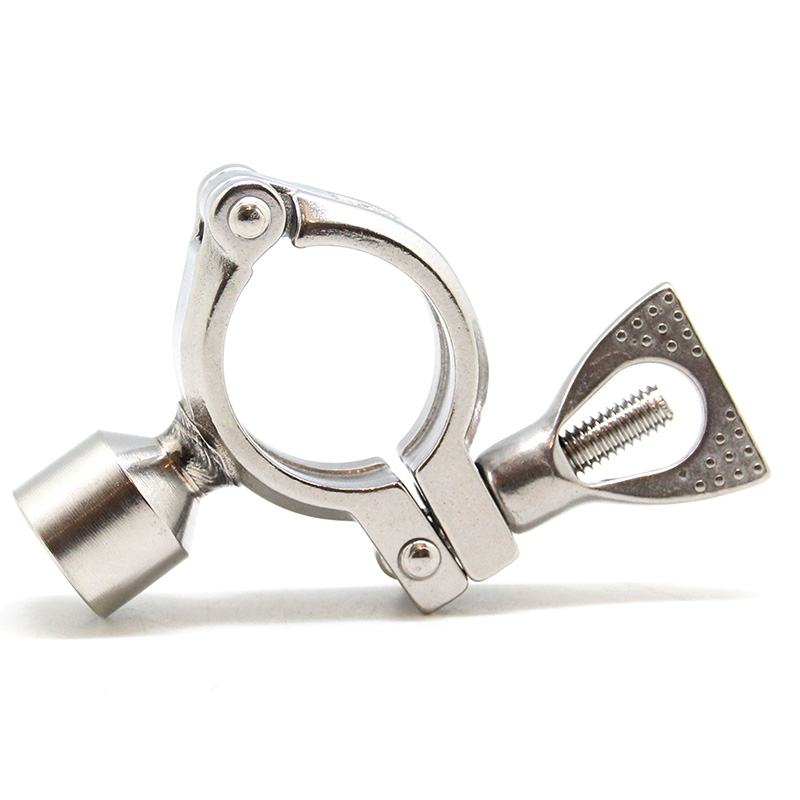

Name: ISO Casting Pipe Hanger Male Stainless Steel Pipe Clamp Sanitary 3A/ISO Casting SS304 Tube Hangers with Male
Brand: QIMING
SKU: 01319
Rating: 4.9 (710 reviews)

ISO Casting Pipe Hanger Male Stainless Steel Pipe Clamp Sanitary 3A/ISO Casting SS304 Tube Hangers with Male

Model No.:FH15

SKU:FH15

End Connections:

Size:

Material:

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

Body: AISI-304

Standard Design

Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME
End connections: Weld or Female
Tube hanger type: Round, Hexagon, with rubber insert
Size available: 1/2"-12" or DN10-DN250

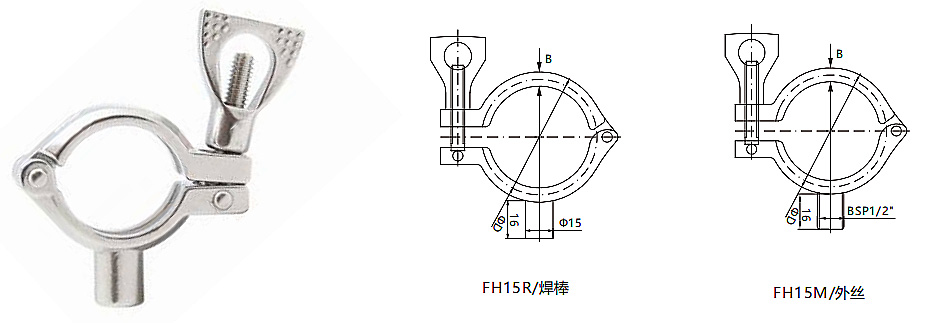

FH16 ISO Casting Pipe Hanger


Model			Size	D/mm	B/mm	N.W/g
Rod	Male	Female	Size	D/mm	B/mm	Rod	Male	Female
FH15W1050	FH15M1050	FH15F1050	1/2"	12.7	5	137	169	140
FH15W1075	FH15M1075	FH15F1075	3/4"	19.05	5	149	183	162
FH15W1100	FH15M1100	FH15F1100	1"	25.4	5	155	196	163
FH15W1125	FH15M1125	FH15F1125	11/4"	32	5	183	217
FH15W1150	FH15M1150	FH15F1150	11/2"	38.1	5	191	225	200
FH15W1200	FH15M1200	FH15F1200	2"	50.8	6.5	230	256	243
FH15W1250	FH15M1250	FH15F1250	21/2"	63.5	6.5	262	297	273
FH15W1300	FH15M1300	FH15F1300	3"	76.2	6.5	294	356	312
FH15W1400	FH15M1400	FH15F1400	4"	101.6	7	375	445	387
FH15W1500	FH15M1500	FH15F1500	5"	127	7	597	635	615
FH15W1600	FH15M1600	FH15F1600	6"	152.4	7	694	707	696
FH15W7050	FH15M515A	FH15F515A	15A	21.3	5	149
FH15W7075	FH15M520A	FH15F520A	20A	26.7	5	161
FH15W7100	FH15M525A	FH15F525A	25A	33.4	5	185
FH15W7125	FH15M532A	FH15F532A	32A	42.2	5	208
FH15W7150	FH15M540A	FH15F540A	40A	48.3	5	228
FH15W7200	FH15M550A	FH15F550A	50A	60.3	6.5	256
FH15W7250	FH15M565A	FH15F565A	65A	73	6.5	294
FH15W7300	FH15M580A	FH15F580A	80A	89	6.5	301
FH15W7400	FH15M5100A	FH15F5100A	100A	114	7	412
FH15W7500	FH15M5125A	FH15F5125A	125A	139.8	7	565
FH15W7600	FH15M5150A	FH15F5150A	150A	165.2	7	645
