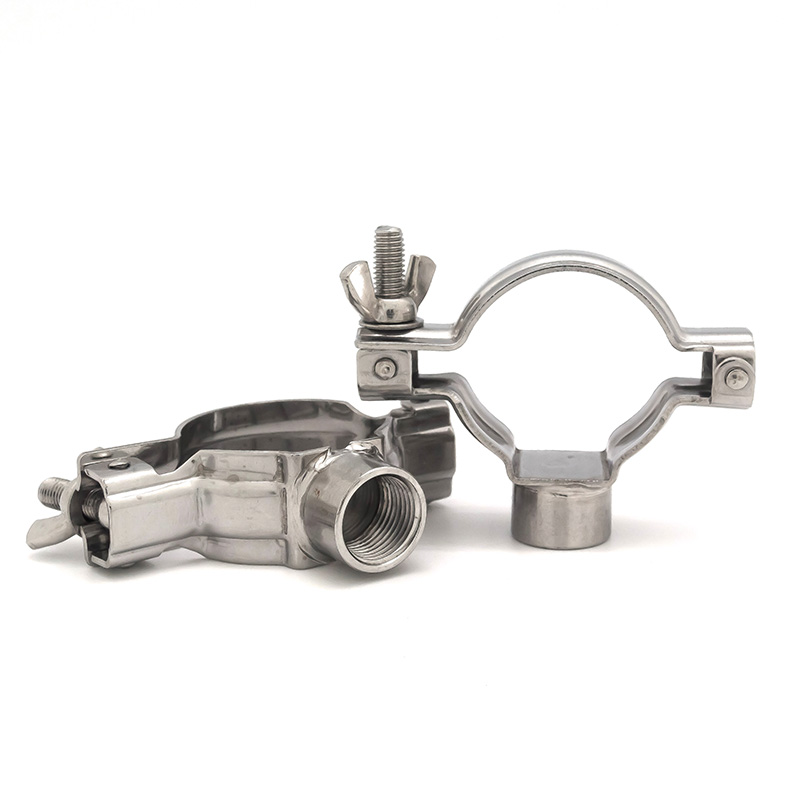

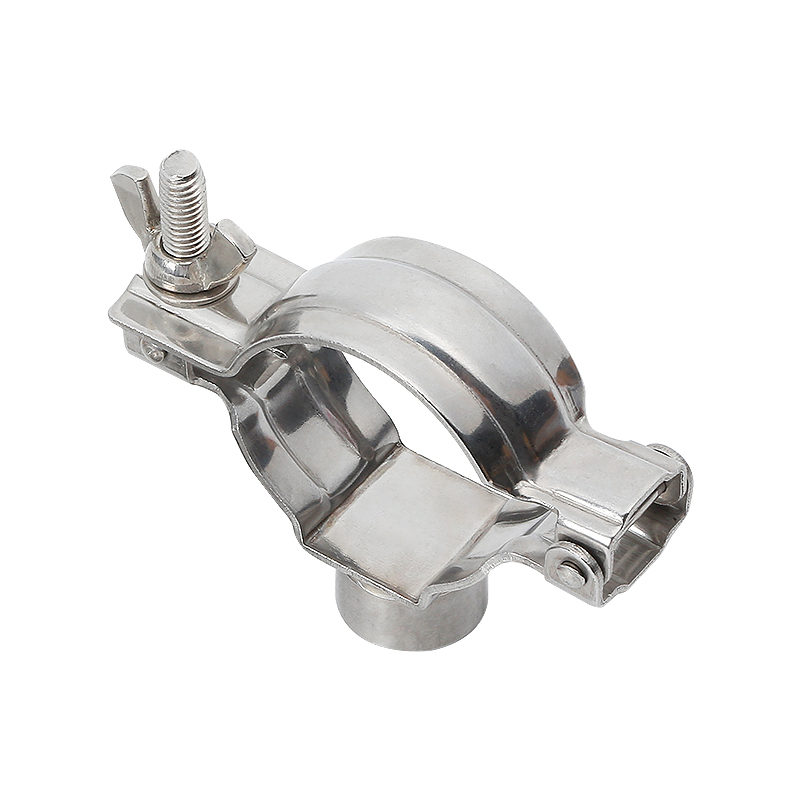

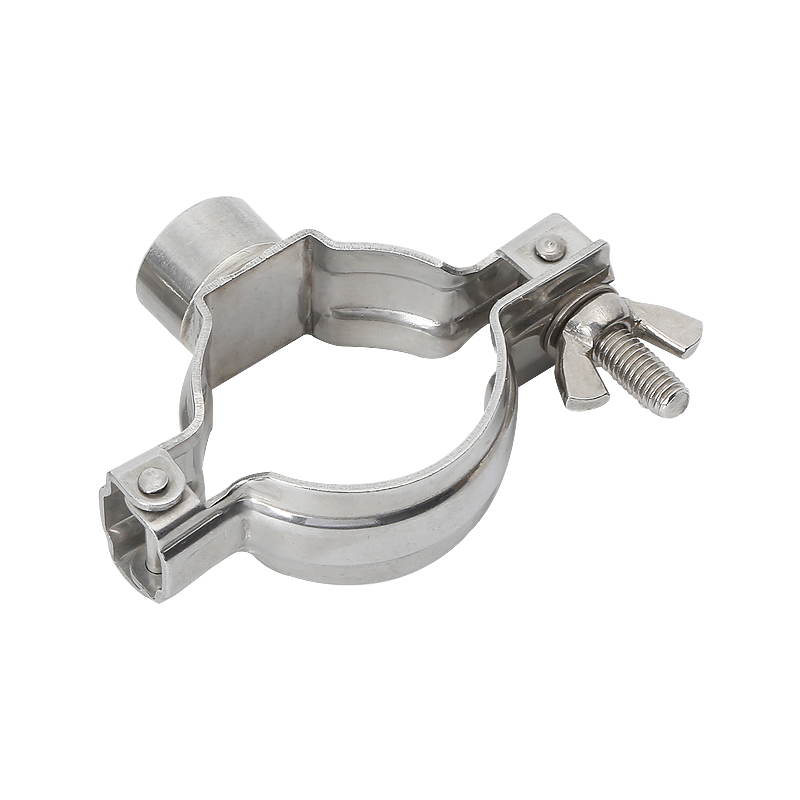

Pipe Clamp SS304 Sanitary Pipe Hanger With Female G1/2inch Stainless Steel Pipe Hanger

Model No.:FH01

SKU:FH01

End Connections:
Weld
  • Weld
  • Female
Size:
3A 3/4"
  • 3A 3/4"
  • 3A 1"
  • 3A 11/4"
  • 3A 11/2"
  • 3A 2"
  • 3A 21/2"
  • 3A 3"
  • 3A 3.5"
  • 3A 4"
  • 3A 5"
  • 3A 6"
Material:
SS304
  • SS304
Inquire PDF Datasheet

Application

FH series tube hangers with different design, widely used on dairy, beverage, foodstuff, pharmaceutical and other industries.

Materials

  • Body: AISI-304

Standard Design

  • Standards: DIN11850/DIN11852, SMS, ISO / IDF, BS / AS, ASME

  • End connections: Weld or Female

  • Tube hanger type: Round, Hexagon, with rubber insert

  • Size available: 1/2"-12" or DN10-DN250

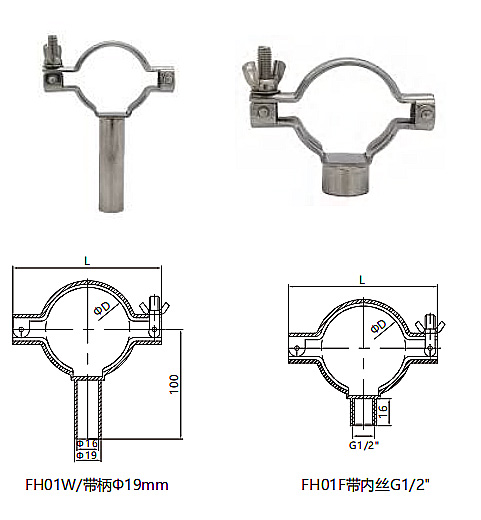

FH01 Pipe Hanger

Model  Size D/mm L/mm N.W/g
Weld Tube φ19MM Female G1/2" Weld Tube φ19MM Female G1/2"
FH01W1075 FH01F1075 3/4" 19 70 140 106
FH01W1100 FH01F1100 1" 25 70 130 103
FH01W1125 FH01F1125 11/4" 32 75 140 113
FH01W1150 FH01F1150 11/2" 38 85 150 123
FH01W1200 FH01F1200 2" 51 95 160 134
FH01W1250 FH01F1250 21/2" 63 110 166 153
FH01W2065 FH01F2065 DN65 70   171 162
FH01W1300 FH01F1300 3" 76 122 170 180
FH01W1350 FH01F1350 31/2" 89 138 192 187
FH01W1400 FH01F1400 4" 102 150 197 200
FH01W1600 FH01F1600 6" 152   260
