Application

VR series divert seat valve is a kind of manual hygienic single-seat valve, which is applied to a wide range of application in the food-processing industry, beverage production,

pharmaceutical and fine chemicals industries

Material

Materials: AISI304 316L

The seal materials comply with FDA177.2600 standard.

Standard Design

Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

End connections: butt-welded, sanitary clamp, or others upon request

Technical Specification

Size available: 1", 1 1/2", 2" 2 1/2", 3", 3.5", 4";

Max. working pressure: 147psi (10bar)

Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

End connections: butt-welded, sanitary clamp, T-type tee, U type tee, Mini type, tank bottom type etc.

Inside polishing: Ra 16-32µin (0.4 ~ 0.8µm)

Connection Type: Weld,Clamp,Thread,Union,Flange,etc

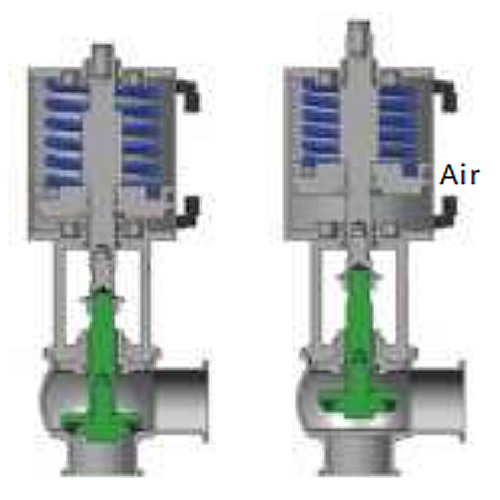

Normal Close(NC actuator)

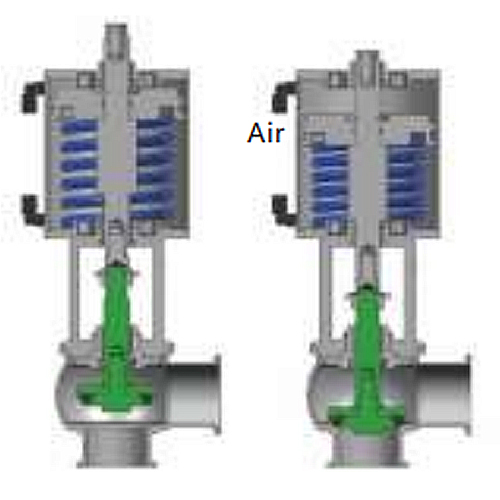

Normal Close(NO actuator)

Valve is close, when air is

suppliedplug lift to open.

The built inspring returnsthe

valve plug to its close

positiononce the air supply

is stopped

Valve is open, when air is

supplied,shaft goes down

to close. The builtin spring

returns the valve plug toit

s open position once the

airsupply is stopped

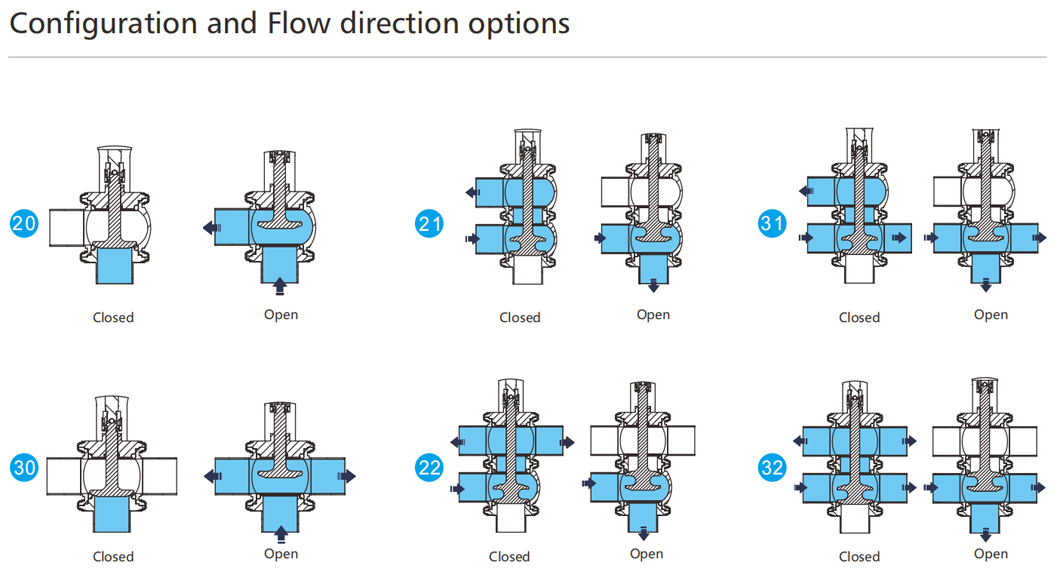

Configuration and Flow direction options

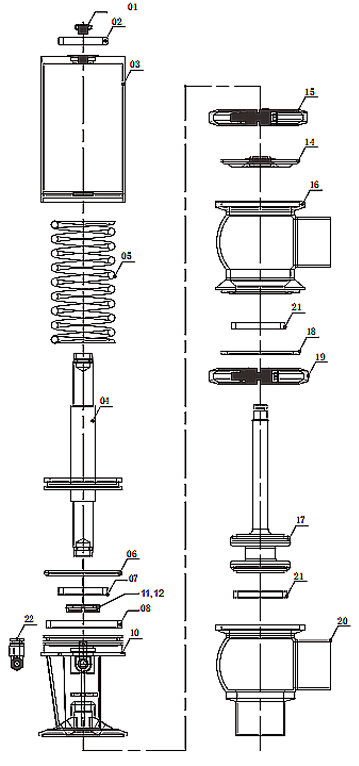

Item	Description	Material	Qty
1	Silencer	QAI10-4-4	1
2	O-Ring	NBR	1
3	Cyinder	SS304	1
4	Piston	SS304	1
5	Spring	60Si2MnA	1
6	O-Ring	NBR	1
7	O-Ring	NBR	1
8	O-Ring	NBR	1
9	Snap ring	SS304	1
10	Bracket	SS304	1
11	Gland	PVDF	1
12	Plate	SS304	1
13	Sleeve	Plastic	1
14	Seal	304+EPDM	1
15	Clamp	SS304	1
16	Upper Valve Bady	SS304/SS316L	1
17	Valve Plug	SS304/SS316	1
18	Valve Body Seal	EPDM	1
19	Calmp	SS304	1
20	Lower Valve Body	SS304/SS316L	1
21	Seat Seal	EPDM	2
Material: Wetting Material:SS304/SS316L Other Steel Parts: ss304 Seat Seal: EPDM, FKM per FDA 177.2600 Connection:Clamp End/eld End/Male End Body type: 20,21,30,31,22,32
Material: Wetting Material:SS304/SS316L Other Steel Parts: SS304 Seat Seal: EPDM, FKM per FDA 177.2600 Connection:Clamp End/eld End/Male End Body type: 20,21,30,31,22,32
Surface: Inside Surface: Bright polished to Ra<0.8umO utside Surface: Matt or Sandblast

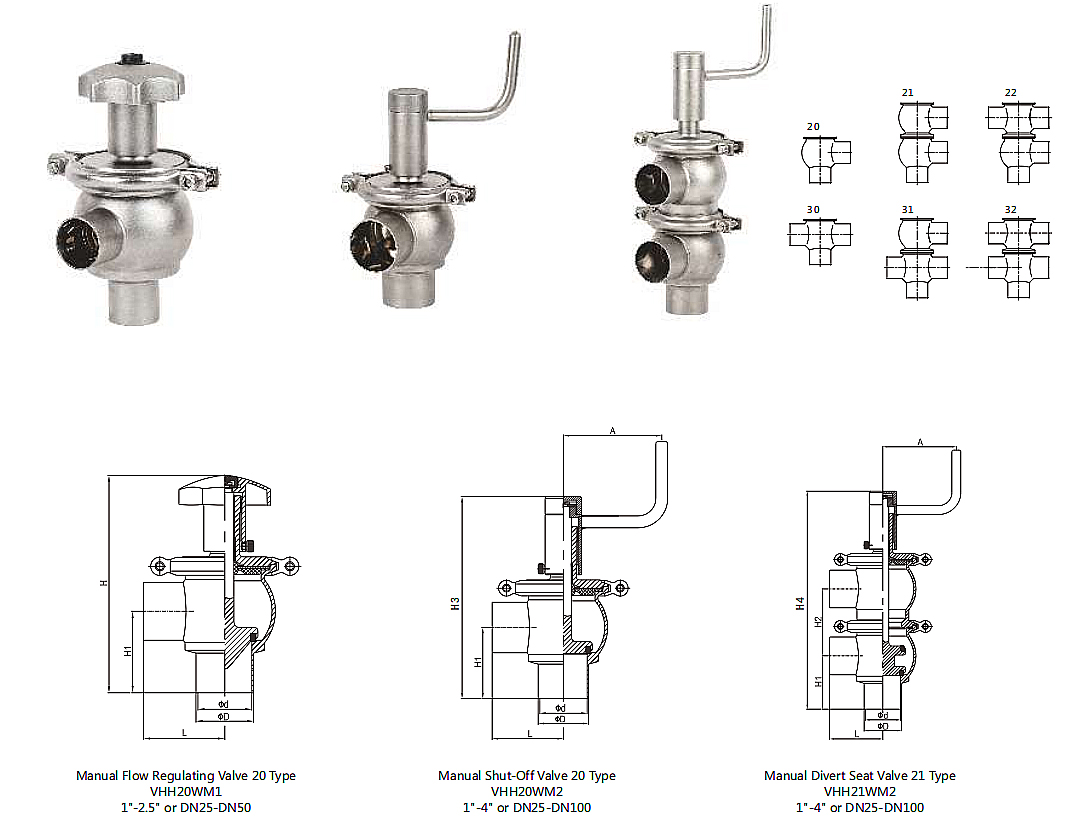

Size	d	D	H	H1	H2	H3	H4	A	L
1"	22.4	25.4	192	72	90	204	295	100	72
11/4"	28.8	31.8	192	72	90	204	295	100	72
11/2"	35.1	38.1	192	72	90	204	295	100	72
2"	47.8	50.8	192	72	90	204	295	100	72
21/2"	59.5	63.5	201	75	99	213	312	100	80
3"	72.2	76.2	/	98	107	258	364	125	98
31/2"	84.9	88.9	/	107	120	272	392	125	107
4"	97.6	101.6	/	127	135	300	434	125	135
DN25	25	28	192	72	90	204	295	100	72
DN32	31	34	192	72	90	204	295	100	72
DN40	37	40	192	72	90	204	295	100	72
DN50	49	52	192	72	90	204	295	100	72
DN65	66	70	/	98	107	258	364	125	98
DN80	81	85	/	107	120	272	392	125	107
DN100	100	104	/	127	135	300	434	125	135

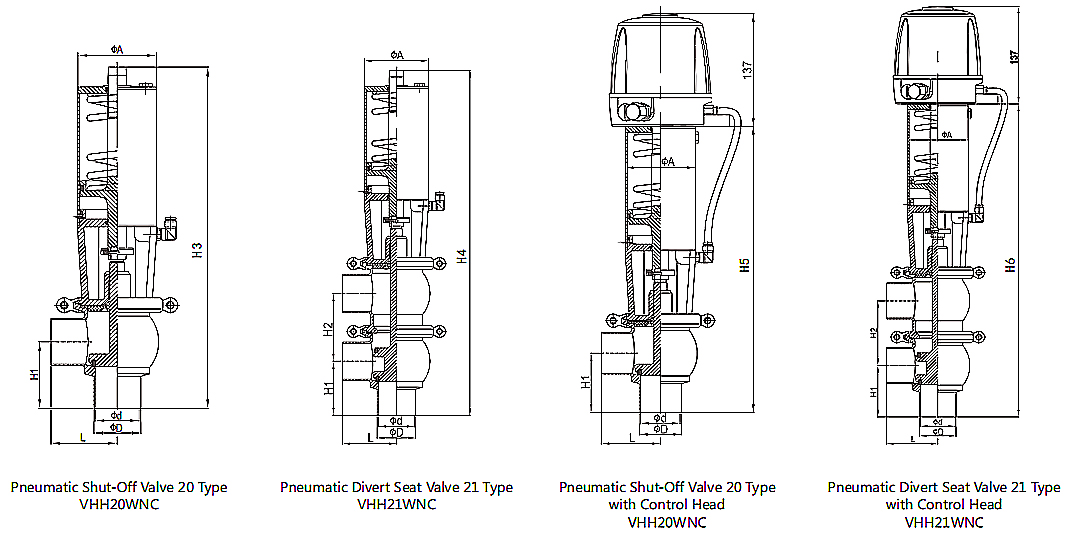

Size	d	D	H1	H2	H3	H4	H5	H6	A	L
1"	22.4	25.4	72	90	367	453	353	439	86	72
11/4"	28.8	31.8	72	90	367	453	353	439	86	72
11/2"	35.1	38.1	72	90	367	453	353	439	86	72
2"	47.8	50.8	72	90	367	453	353	439	86	72
21/2"	59.5	63.5	75	99	373	472	357	456	86	80
3"	72.2	76.2	98	107	404	509	388	493	108	98
31/2"	84.9	88.9	107	120	443	562	428	548	133	107
4"	97.6	101.6	127	135	478	612	459	593	152	135
DN25	25	28	72	90	367	453	353	439	86	72
DN32	31	34	72	90	367	453	353	439	86	72
DN40	37	40	72	90	367	453	353	439	86	72
DN50	49	52	72	90	367	453	353	439	86	72
DN65	66	70	98	107	404	509	388	493	108	98
DN80	81	85	107	120	443	562	428	548	133	107
DN100	100	104	127	135	478	612	459	593	152	135

SS304/SS316L Stainless Steel Sanitary Clamp/Weld Wrench Handle Manual Divert Seat Shut-off Valve 20Type

Model:VHH20WM2
