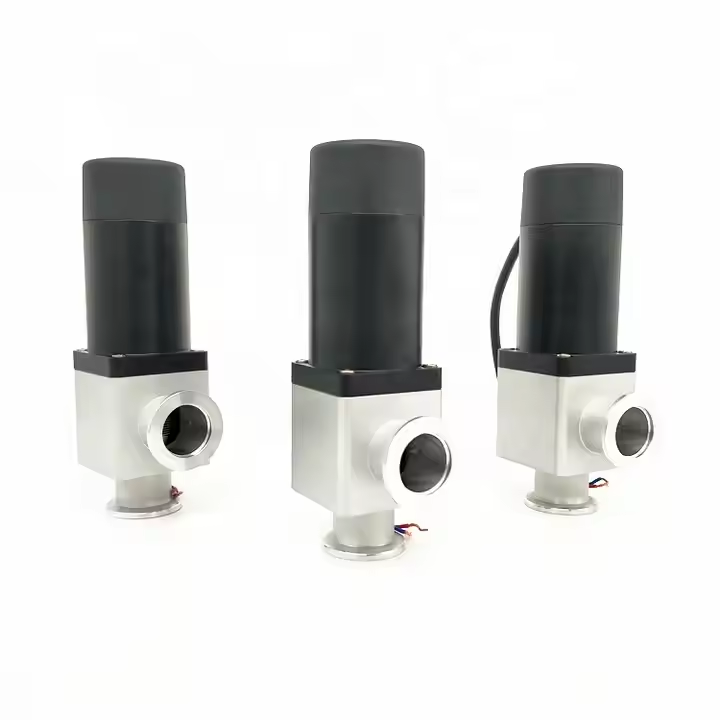

Aluminum Vacuum Electromagnetic Angle Valve KF/NW16-50 Electric Power Vacuum Angle Valve for Semiconductor

Angle valves are a device that manually or pneumatic rotates the thread  to drive the valve shaft up and down, causing the valve seat to open or  close, thereby connecting or cutting off the airflow in the vacuum system. Valve body designed in 90° right angle(L type) and 45° right angle(Y  type). Connecting Flanges are available in KF, ISO, CF types and Tube ends  as well. They are rated for high-vacuum use and pressure rate from 1X10^-6 Pa to  1.2x10⁵ Pa, leak rate of 1.3x10^-7 Pa L/s. Manually operated angle valves are an excellent solution when automation is not required, they are frequently used in roughing and high-vacuum forelines and make excellent chamber venting valves.

QiMing Angle valves are used in applications ranging from semiconductor manufacturing, plasma physics research, to nuclear accelerators.QiMing offers all series angle valves suited for vacuum applications such as high vacuum process processes, high vacuum applications in pumping  systems, semiconductor technology and research systems.

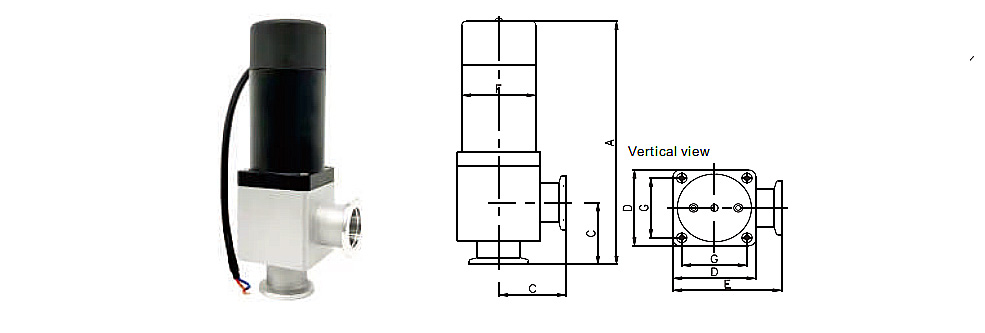

Technical Parameters

Electromagnetic Angle Valve(Aluminum Body)

Model for 304/Alu	Size	A/mm	C/mm	D/mm	E/mm	F/mm	G/mm
VZL01DC4311K16	KF16	167.5	35	48	62.5	44	39
VZL01DC4311K25	KF25	187	45	56	73.5	50	44
VZL01DC4311K40	KF40	221	55	78	94.5	73	63
VZL01DC4311K50	KF50	245	65	84	107.5	78	69
