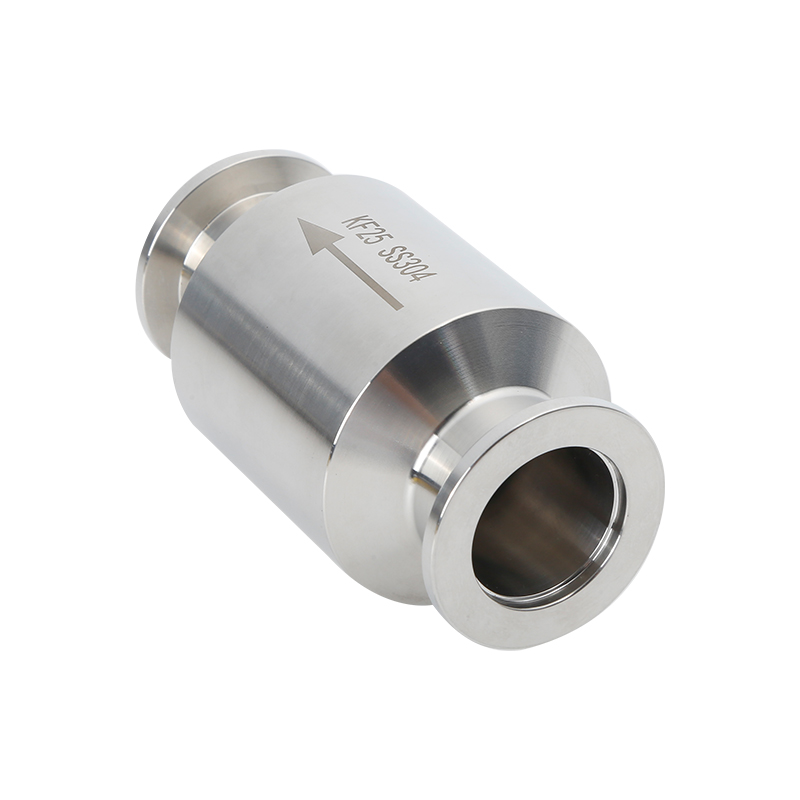

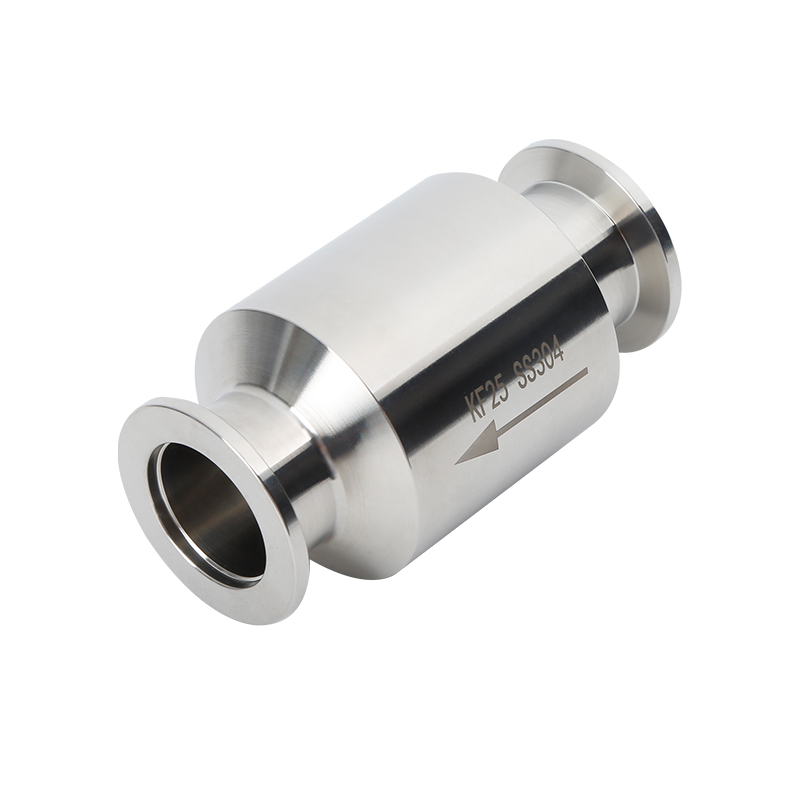

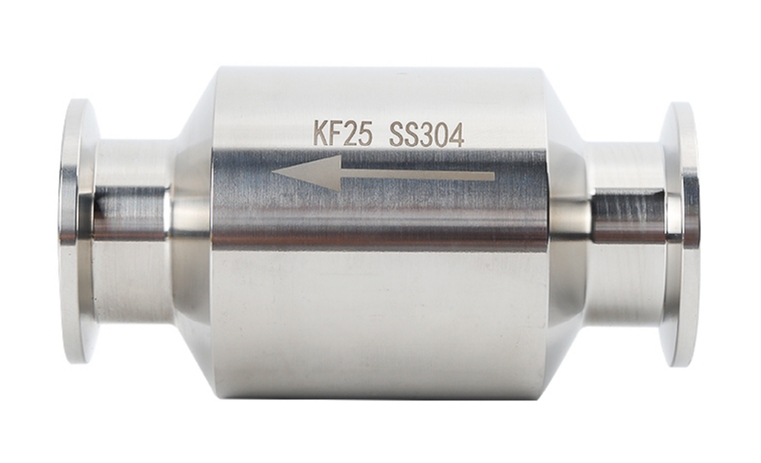

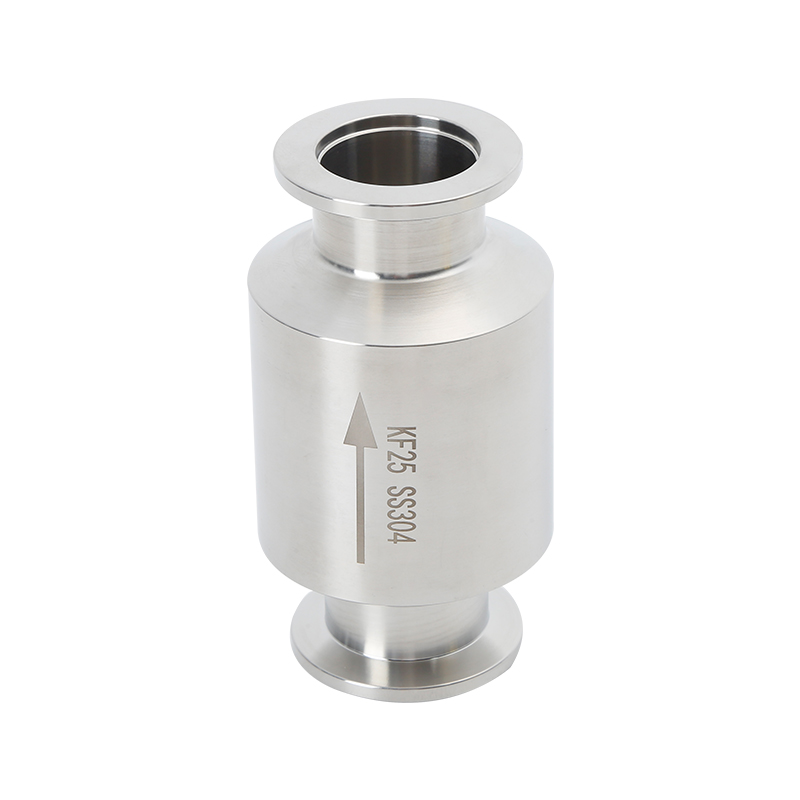

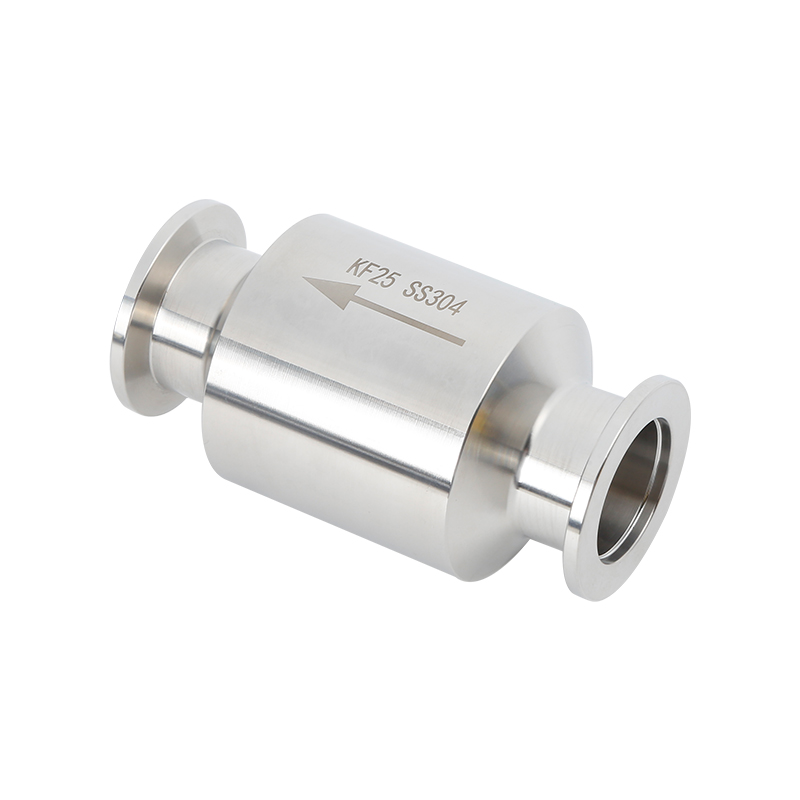

VCK01 check valves help prevent air in rush into a system after powering down the pump. Typically installed on the exhaust side of the pump, they can prevent oil back streaming upon pump shut down or failure.
VCK01 check valves with a spring-loaded O-ring sealed disc are for installation in any orientation.
·SS304/SS316L Body with FKM Seals
·Min. Relief Pressure of 30mBar
·Leak Rate: 1.0 x 10-5 mbar*L/s
·Temperature Range: -5°C to 100°C (approx.)
 |

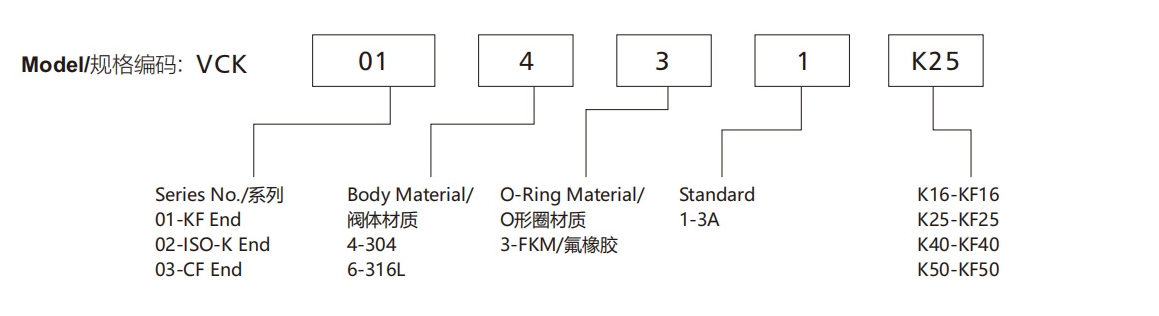

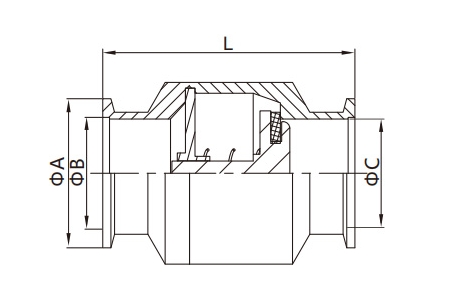

Model for 304 |
Size |
A/mm |
B/mm |
C/mm |
L/mm |
N.W./kg |
|
VCK01431K16 |
KF16 |
30 |
17.2 |
16 |
92 |
0.32 |
|
|
VCK01431K25 |
KF25 |
40 |
26.2 |
25 |
93 |
0.53 |
|
|
VCK01431K40 |
KF40 |
55 |
41.2 |
40 |
93 |
0.86 |
|
|
VCK01431K50 |
KF50 |
75 |
52.2 |
50 |
105 |
1.37 |
