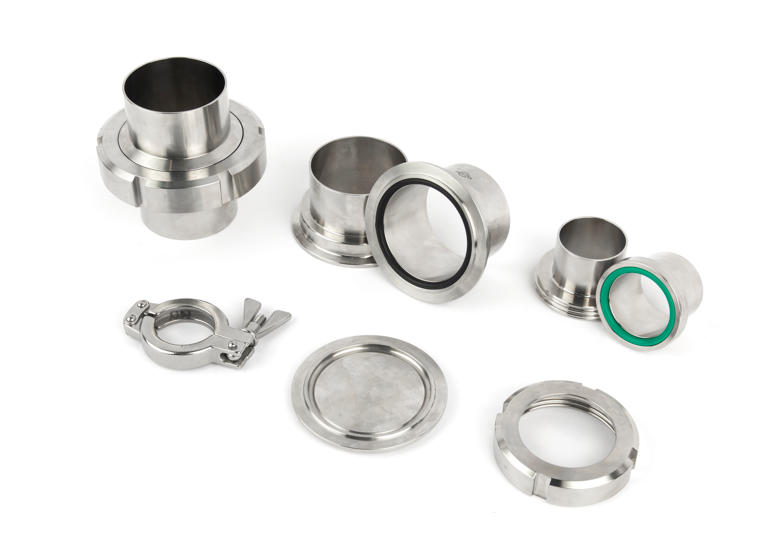

DIN 11864-3 Aseptic Clamp Unions

Application

This range of aseptic fittings has been developed by the German hygienic industry to meet the exacting needs of the food, chemical and pharmaceutical industries.

Three designs of pipe fittings have been tailored to accept 2 different styles of aseptic seals that effect a smooth interface within the pipe work whilst simultaneously achieving a metal to metal seat behind the joint.

The seal sections used are referenced as “Form A” and “Form B” and both have distinctive profiles that are easily recognised. Form A is an O Ring Joint whilst Form B is a 2-part Square seal with a secondary internal diamond section.

SPECIFICATION

Size Range: DN10 - DN100
Material: SS316L

Standard Design

• Standards: DIN 11866 / 11850, ISO1127

• Size available: DN10-DN100

Related Standards:

• DIN 11864-1 Form A - Aseptic Screwed Union

• DIN 11864-2 Form A -  Aseptic Flange Union

• DIN 11864-3 Form A -  Aseptic Tri-Clamp Union

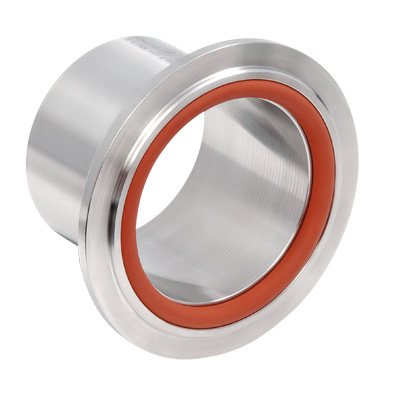

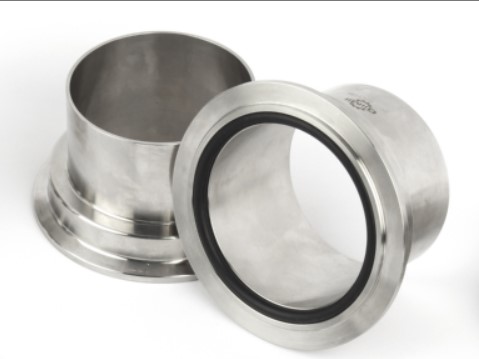

Clamp Nut DIN 11864-3 Form A (DIN)

	Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
	FLA3320106S2	DN10	10	13	34	39.5	40
	FLA3320156S2	DN15	16	19	34	39.5	40
	FLA3320206S2	DN20	20	23	50.5	39.5	90
	FLA3320256S2	DN25	26	29	50.5	40	90
	FLA3320326S2	DN32	32	35	50.5	45.5	90
	FLA3320406S2	DN40	38	41	64	45.5	130
	FLA3320506S2	DN50	50	53	77.5	46	170
	FLA3320656S1	DN65	66	70	91	58	260
	FLA3320806S1	DN80	81	85	106	60	300
	FLA321006S1	DN100	100	104	130	61.5	400

Clamp Nut DIN 11864-3 Form A（3A)

	Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
	FLA3310506	1/2"	9.4	12.7	34	39.5	50
	FLA3310756	3/4"	15.75	19.05	34	39.5	50
	FLA3311006	1"	22.1	25.4	50.5	40	90
	FLA3311506	11/2"	34.8	38.1	64	45.5	140
	FLA3312006	2"	47.5	50.8	77.5	46	170
	FLA3312506	21/2"	60.2	63.5	91	59	240
	FLA3313006	3"	72.9	76.2	106	60	300
	FLA3314006	4"	97.38	101.6	130	61	420

Clamp Nut DIN 11864-3 Form A (ISO 1127)

	Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
	FLA3370256	1/4"	10.3	13.5	34	39.5	50
	FLA3370386	3/8"	14	17.2	34	39.5	50
	FLA3370506	1/2"	18.1	21.3	34	40.5	90
	FLA3370756	3/4"	23.7	26.9	50.5	40	90
	FLA3371006	1"	29.7	33.7	50.5	45.5	90
	FLA3371256	11/4"	38.4	42.4	64	45.5	90
	FLA3371506	11/2"	44.3	48.3	64	46.5	180
	FLA3372006	2"	56.3	60.3	91	58.5	280
	FLA3372506	21/2"	72.1	76.1	106	60	340
	FLA3373006	3"	84.3	88.9	119	62.5	370

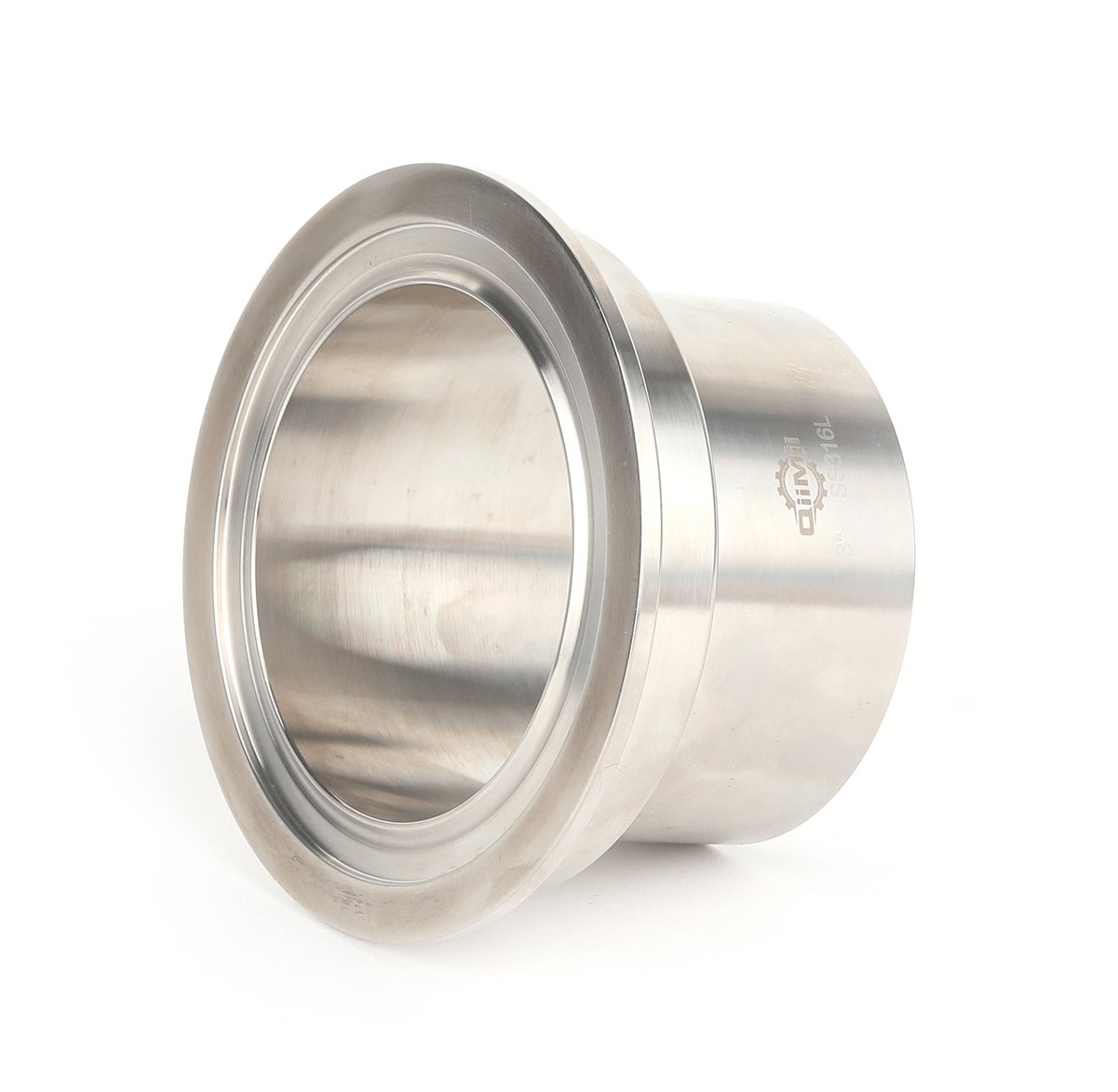

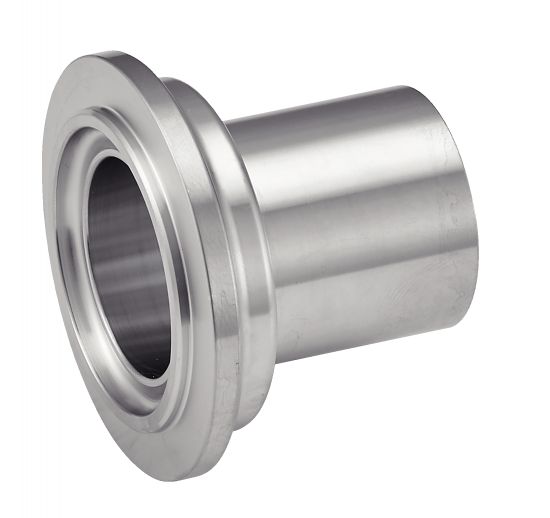

Clamp Liner DIN 11864-3 Form A (DIN)

	Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
	FLA3420106S2	DN10	10	13	34	38	40
	FLA3420156S2	DN15	16	19	34	38	40
	FLA3420206S2	DN20	20	23	50.5	38	80
	FLA3420256S2	DN25	26	29	50.5	38.5	70
	FLA3420326S2	DN32	32	35	50.5	44	60
	FLA3420406S2	DN40	38	41	64	44	100
	FLA3420506S2	DN50	50	53	77.5	44.5	140
	FLA3420656S1	DN65	66	70	91	56.5	210
	FLA3420806S1	DN80	81	85	106	58.5	250
	FLA3421006S1	DN100	100	104	130	30	350

Clamp Liner DIN 11864-3 Form A (3A)

	Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
	FLA3410506	1/2"	9.4	12.7	34	38	40
	FLA3410756	3/4"	15.75	19.05	34	38	40
	FLA3411006	1"	22.1	25.4	50.5	38.5	80
	FLA3411506	11/2"	4.8	38.1	64	44	120
	FLA3412006	2"	47.5	50.8	77.5	44.5	170
	FLA3412506	21/2"	60.2	63.5	91	57.5	240
	FLA3413006	3"	72.9	76.2	106	58.5	300
	FLA3414006	4"	97.38	101.6	130	59.5	440

Clamp Liner DIN 11864-3 Form A (ISO 1127)

	Model	Size	A/mm	B/mm	C/mm	L/mm	N.W./g
	FLA3470256	1/4"	10.3	13.5	34	38	40
	FLA3470386	3/8"	14	17.2	34	38	40
	FLA3470506	1/2"	18.1	21.3	34	38	40
	FLA3470756	3/4"	23.7	26.9	50.5	38	80
	FLA3471006	1"	29.7	33.7	50.5	38.5	80
	FLA3471256	11/4"	38.4	42.4	64	44	110
	FLA3471506	11/2"	44.3	48.3	64	44	110
	FLA3472006	2"	56.3	60.3	91	445	220
	FLA3472506	21/2"	72.1	76.1	106	56.5	320
	FLA3473006	3"	84.3	88.9	119	58.5	360

Blind Clamp Nut DIN  11864-3 Form A (DIN)

	Model	Size	C/mm	L/mm	N.W./g
	FLA3520106	DN10	34	10	40
	FLA3520156	DN15	34	10	40
	FLA3520206	DN20	50.5	10	100
	FLA3520256	DN25	50.5	10	100
	FLA3520326	DN32	50.5	10	100
	FLA3520406	DN40	64	10	100
	FLA3520506	DN50	77.5	10	220
	FLA3520656	DN65	91	10	290
	FLA3520806	DN80	106	10	410
	FLA3521006	DN100	130	10	530

Blind Clamp  Liner DIN  11864-3 Form A (DIN)

	Model	Size	C/mm	L/mm	N.W./g
	FLA3620106	DN10	34	8	40
	FLA3620156	DN15	34	8	40
	FLA3620206	DN20	50.5	8	100
	FLA3620256	DN25	50.5	8	100
	FLA3620326	DN32	50.5	8	100
	FLA3620406	DN40	64	8	150
	FLA3620506	DN50	77.5	8	220
	FLA3620656	DN65	91	8	290
	FLA3620806	DN80	106	8	410
	FLA3621006	DN100	130	8	530

O-Ring DIN 11864-3 Form A (DIN)

	Model for FKM	Size	D/mm	D1/mm	Section
	SFA0132010	DN10	19	12	3.5
	SFA0132015	DN15	25	18	3.5
	SFA0132020	DN20	29	22	3.5
	SFA0132025	DN25	35	28	3.5
	SFA0132032	DN32	44	34	5
	SFA0132040	DN40	50	40	5
	SFA0132050	DN50	62	52	5
	SFA0132065	DN65	78	68	5
	SFA0132080	DN80	93	83	5
	SFA0132100	DN100	112	102	5
	SFA0132125	DN125	137	127	5
	SFA0132150	DN150	162	152	5

O-Ring DIN 11864-3 Form A (3A)

	Model for FKM	Size	D/mm	D1/mm	Section
	SFA0132010	1/2"	Same as DN10
	SFA0132015	3/4"	Same as DN15
	SFA0131100	1"	31	24	3.5
	SFA0131150	11/2"	47	37	3.5
	SFA0131200	2"	60	50	5
	SFA0131250	21/2’	72	62	5
	SFA0131300	3“	85	75	5
	SFA0131400	4”	110	100	5

O-Ring DIN 11864-3 Form A (ISO1127)

	Model for FKM	Size	D/mm	D1/mm	Section
	SFA0132010	1/4"	Same as DN10
	SFA0137038	3/8"	16	23	3.5
	SFA0137050	1/2"	20	27	3.5
	SFA0137075	3/4"	26	33	3.5
	SFA0137100	1"	32	42	5
	SFA0137125	11/4"	40.5	50.6	5
	SFA0137150	11/2'	46.5	56.5	5
	SFA0137200	21/2“	58.5	68.5	5
	SFA0137250	21/2”	73.5	83.5	5
	SFA0137300	3"	86.5	96.5	5
	SFA0137400	4"	111	121	5
